Toyota Corona
1997-10 → 2003-10 · chassis AT220,CT220,ST220 · catalogue 273340 · General
Discontinued model
Data version 2003-10
Switch & Relay & Computer
71 part groups · 12 illustrations

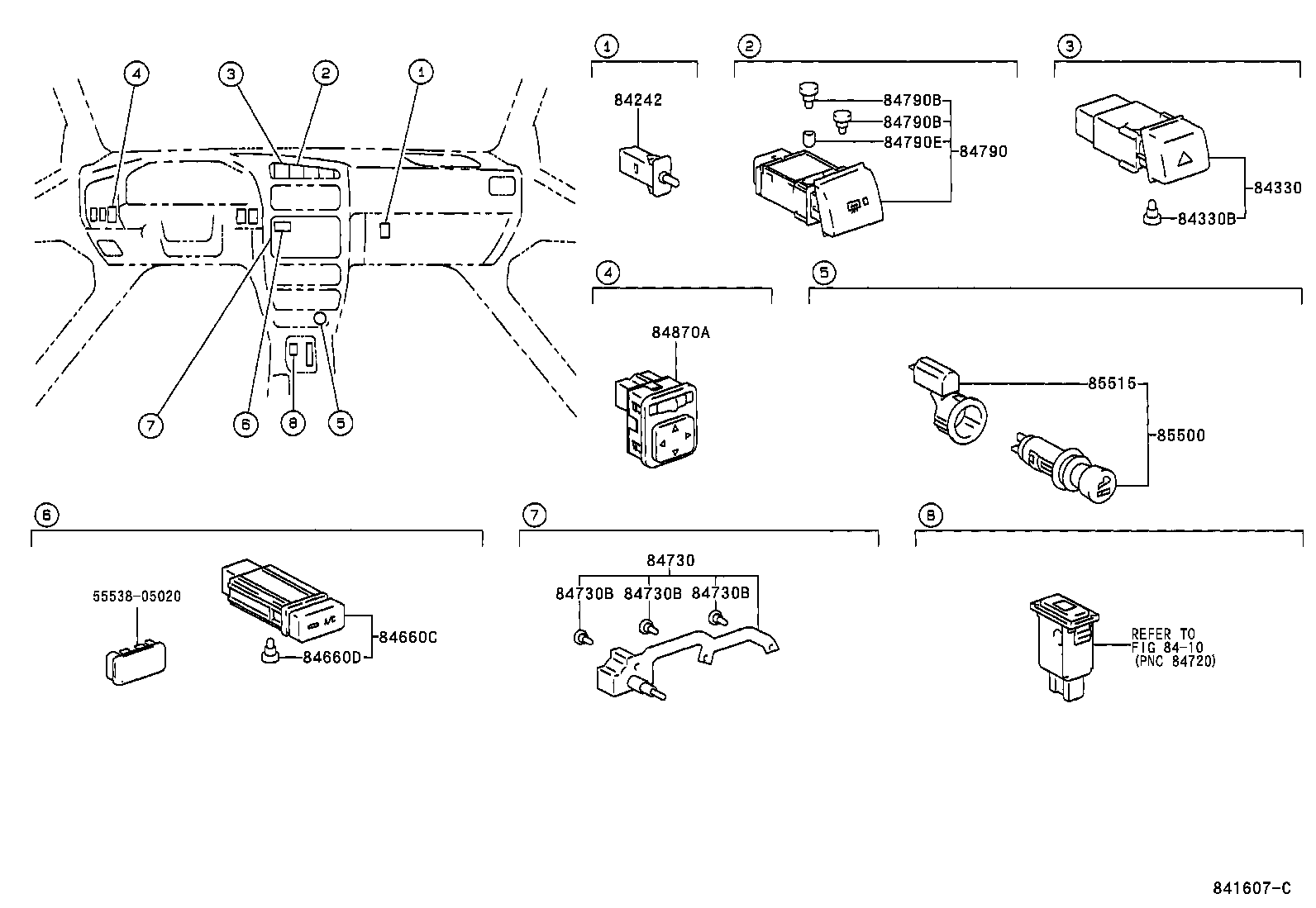

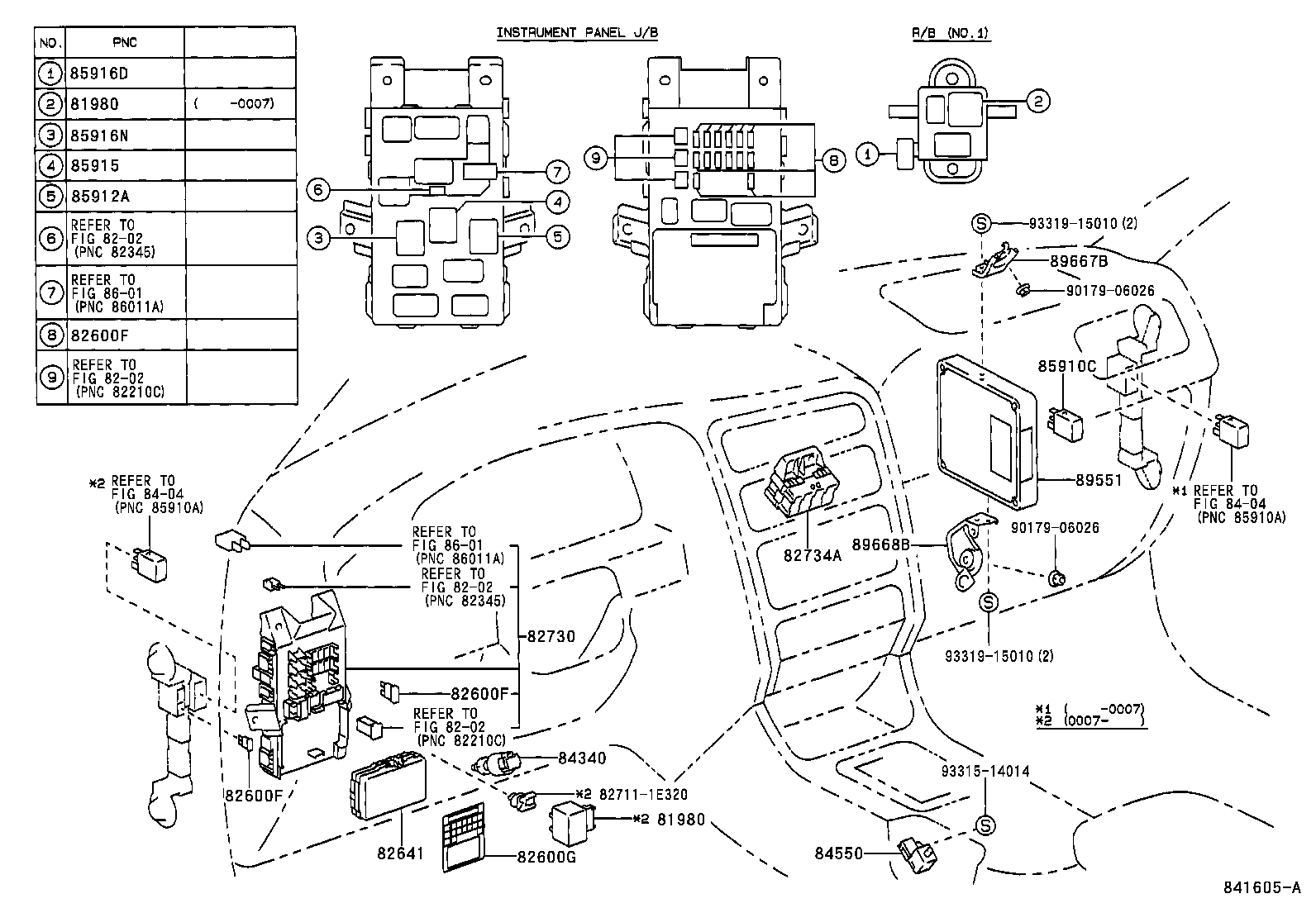

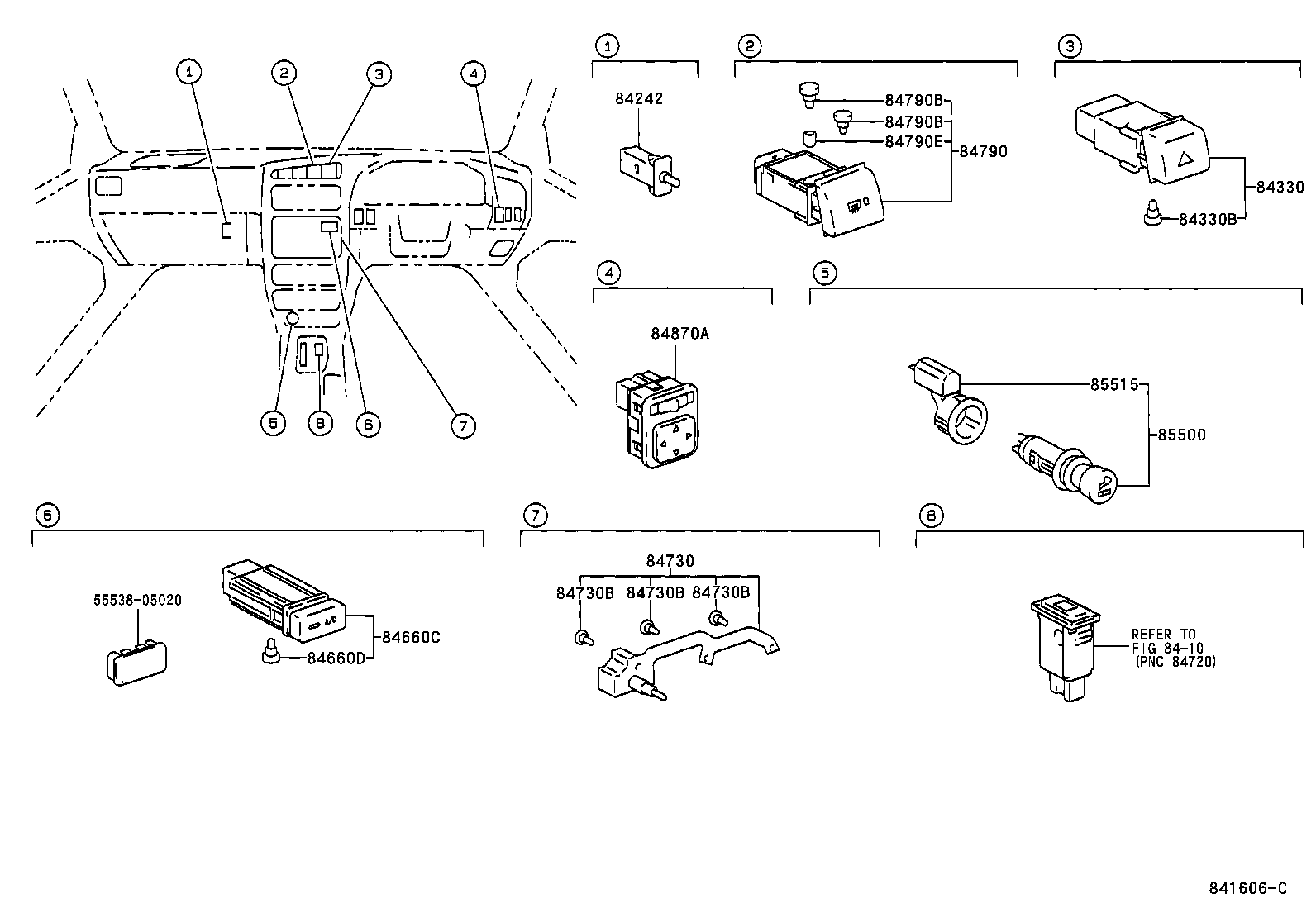

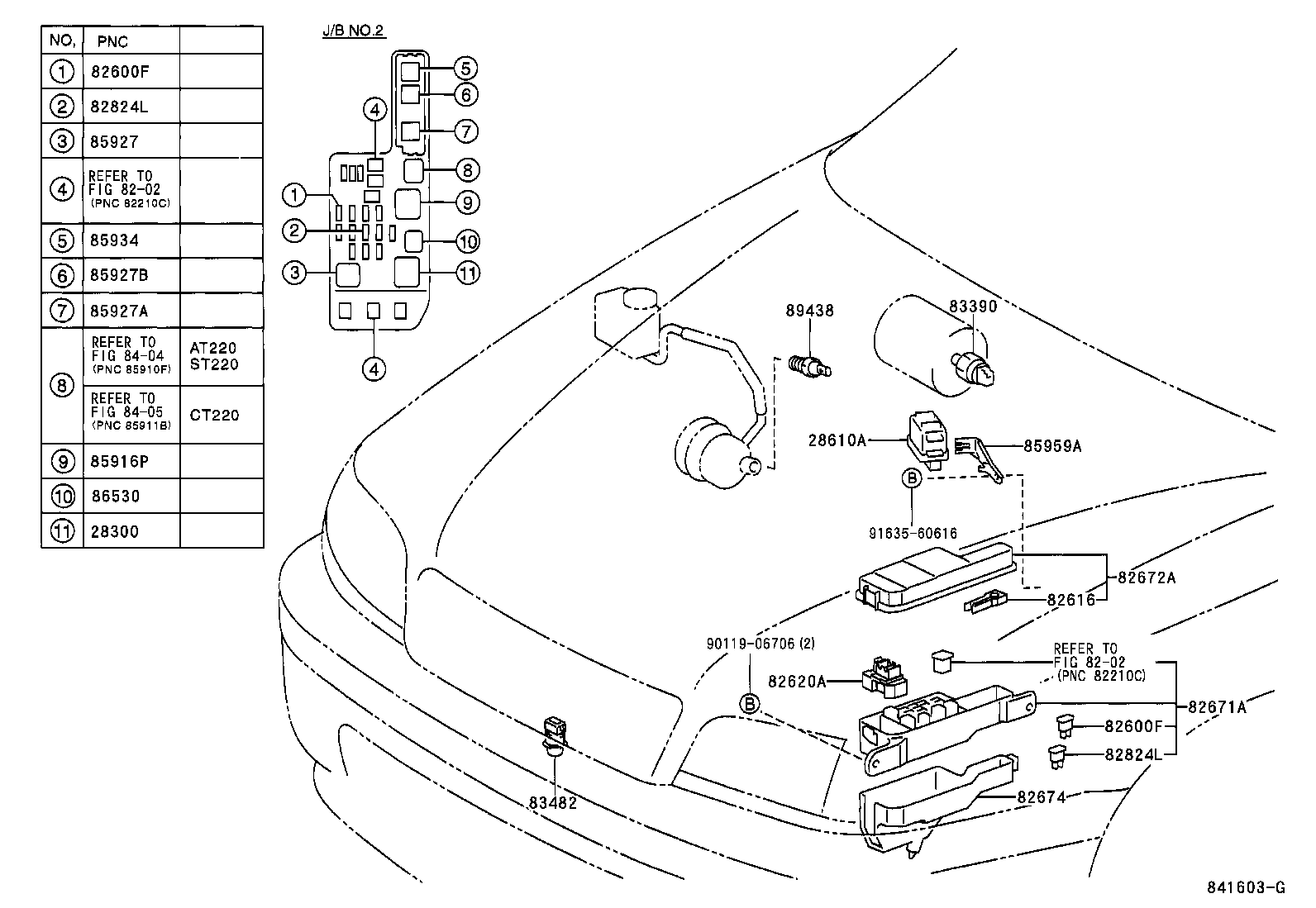

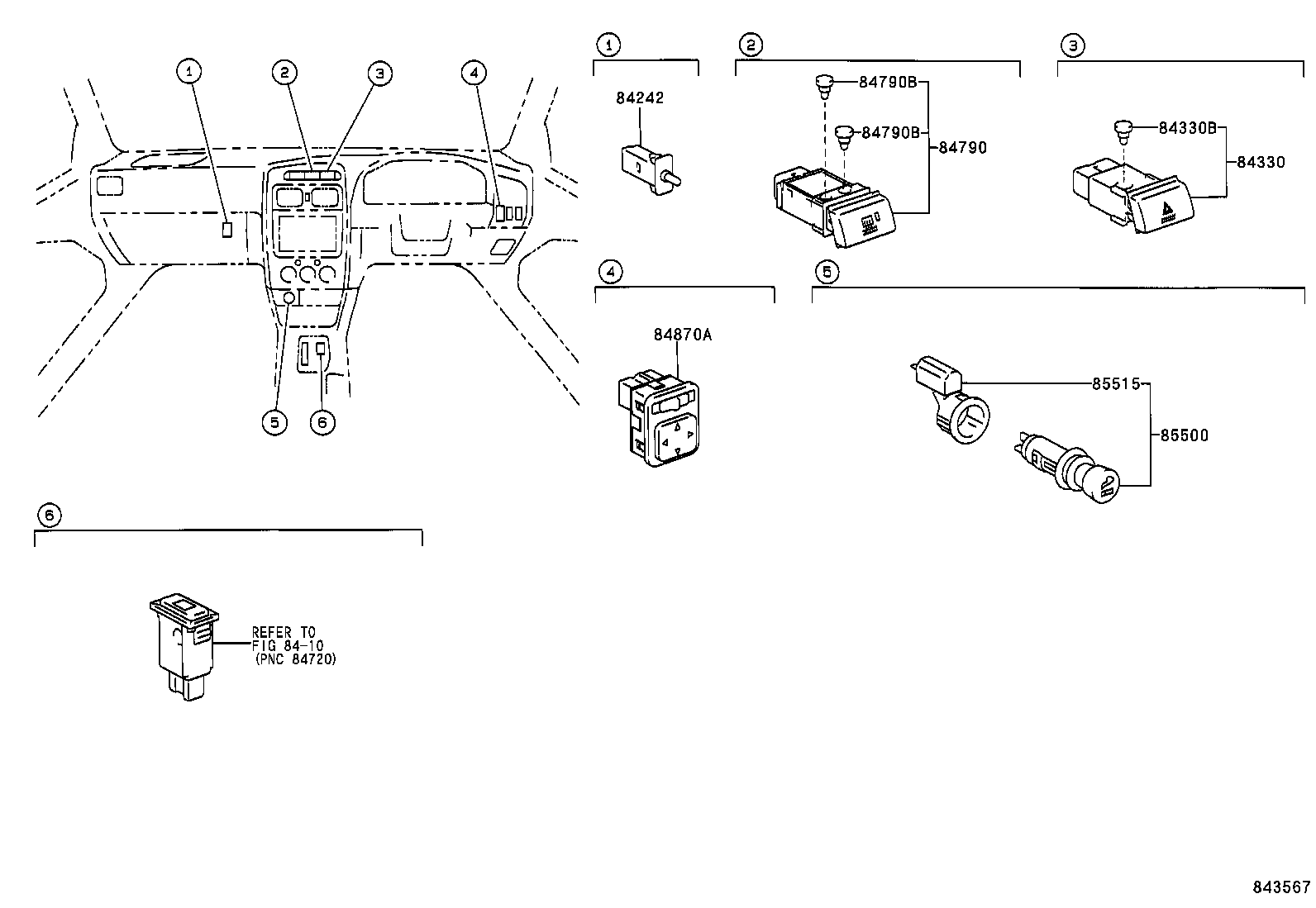

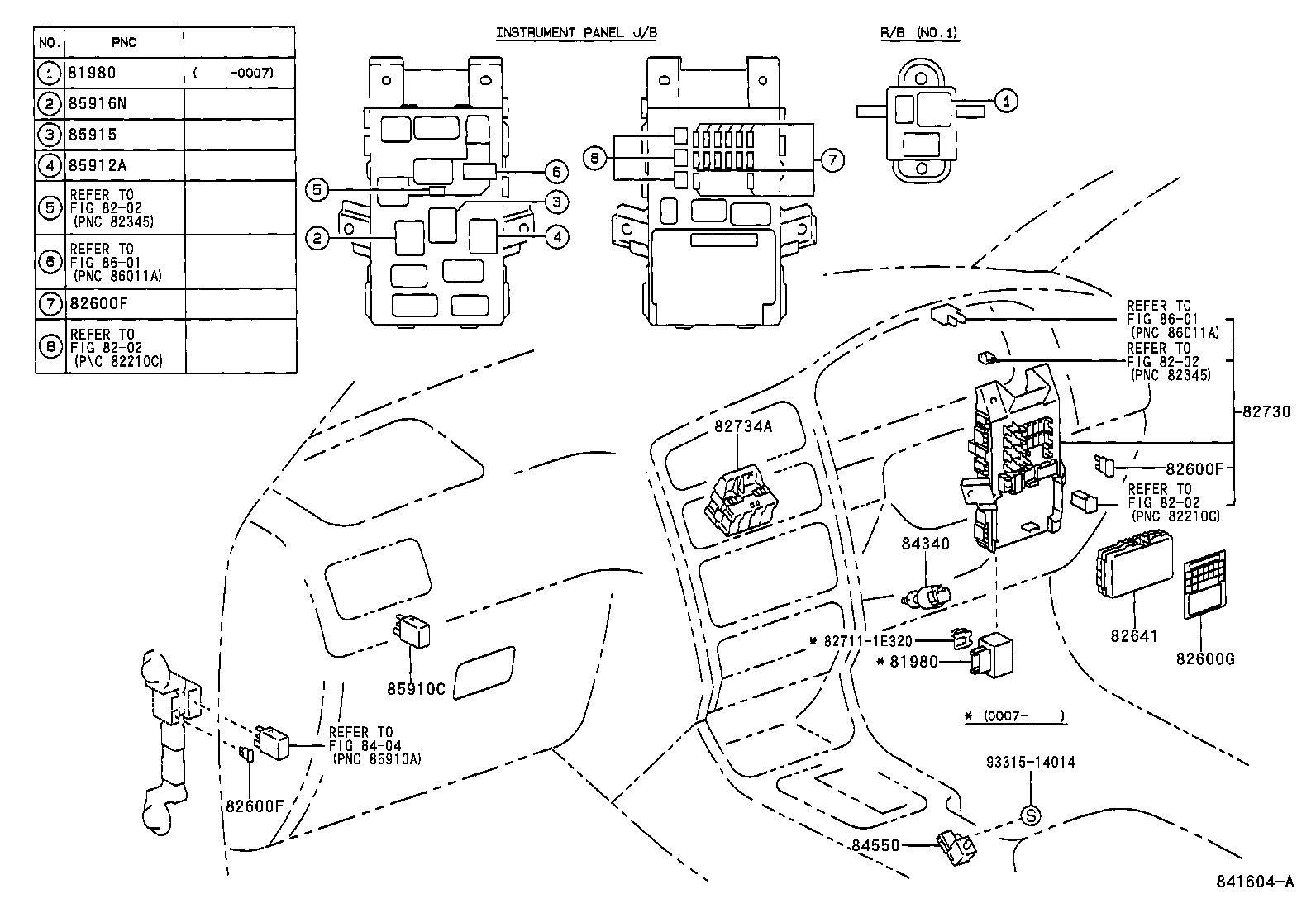

Illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 28610A | Relay Assy, Glow Plug(SUB) |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82600G | Plate, Caution(FOR FUSE) |
| 82616 | Puller, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82641 | Relay, Integration NO.1 |
| 82671A | Block, Junction |
| 82672A | Cover, Junction Block |
| 82674 | Cover, Junction Block Lower |
| 82730 | Block Assy, Instrument Panel Junction |
| 82734A | Block, Center Junction |
| 82824L | Pin, Short |
| 83320 | Gage Assy, Fuel Sender |
| 83390 | Switch Assy, Vacuum Warning |
| 83420 | Gage Assy, Water Temperature Sender |
| 83482 | Sensor, Outer Ambient Temperature |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84236 | Switch Assy, Courtesy Lamp(FOR LUGGAGE COMPARTMENT ROOM) |
| 84242 | Switch, Glove Box Lamp |
| 84306 | Cable Sub-assy, Spiral |

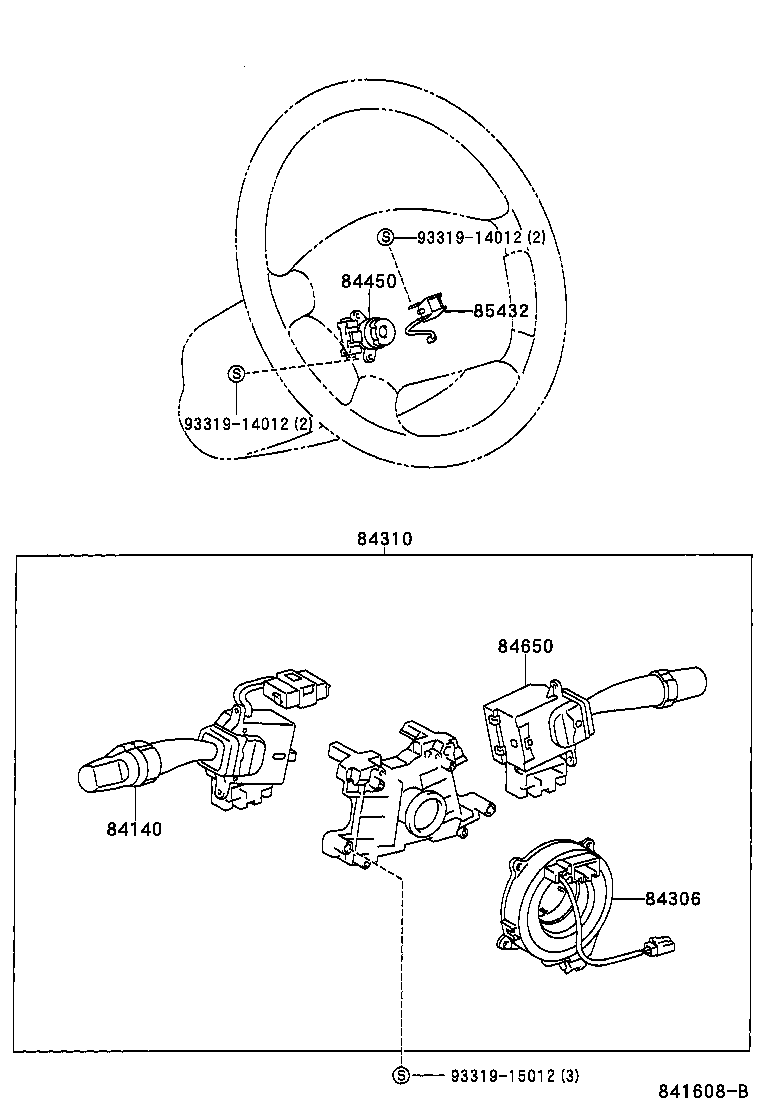

| 84310 | Switch Assy, Turn Signal |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84330B | Bulb, Hazard Warning Signal Switch |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84660C | Switch, Cooler |
| 84660D | Bulb(FOR COOLER SWITCH) |
| 84730 | Switch Assy, Heater Blower |
| 84730B | Bulb, Heater Blower Switch |
| 84790 | Switch Assy, Rear Window Defogger |
| 84790B | Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84790E | Cap, Bulb(FOR REAR WINDOW DEFOGGER SWITCH) |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84820 | Master Switch Assy, Power Window Regulator |
| 84860A | Switch Assy, Sliding Roof |
| 84870A | Switch Assy, Outer Mirror |
| 85432 | Solenoid, Key Interlock |
| 85500 | Lighter Assy, Cigarette |
| 85515 | Stay, Cigarette Lighter Bezel |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912A | Relay, Defogger Timer |
| 85915 | Relay, Main |
| 85916D | Relay, Fog Lamp |
| 85916N | Relay, Taillamp |
| 85916P | Relay, Headlamp |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |
| 85927B | Relay, Cooling Fan, NO.3 |
| 85934 | Relay, Magnet-clutch |
| 85959A | Holder, Relay |
| 86530 | Relay Assy, Horn |
| 89421D | Sensor, Turbo Pressure |
| 89422A | Sensor, Water Temperature |
| 89428 | Switch, Temperature Detect, NO.2 |
| 89438 | Switch, Power Steering Oil Pressure |
| 89491 | Sensor, Engine Oil Level |
| 89491A | Gasket, Engine Oil Level Sensor |
| 89551 | Computer, Emission Control |
| 89615 | Sensor, Knock Control |
| 89667B | Bracket, Engine Control Computer, NO.1 |
| 89668B | Bracket, Engine Control Computer, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
