Toyota Corona

1997-10 → 2003-10 · chassis AT220,CT220,ST220 · catalogue 273340 · General

Discontinued model Data version 2003-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Overdrive & Electronic Controlled Transmission

7 part groups · 2 illustrations

Illustrations

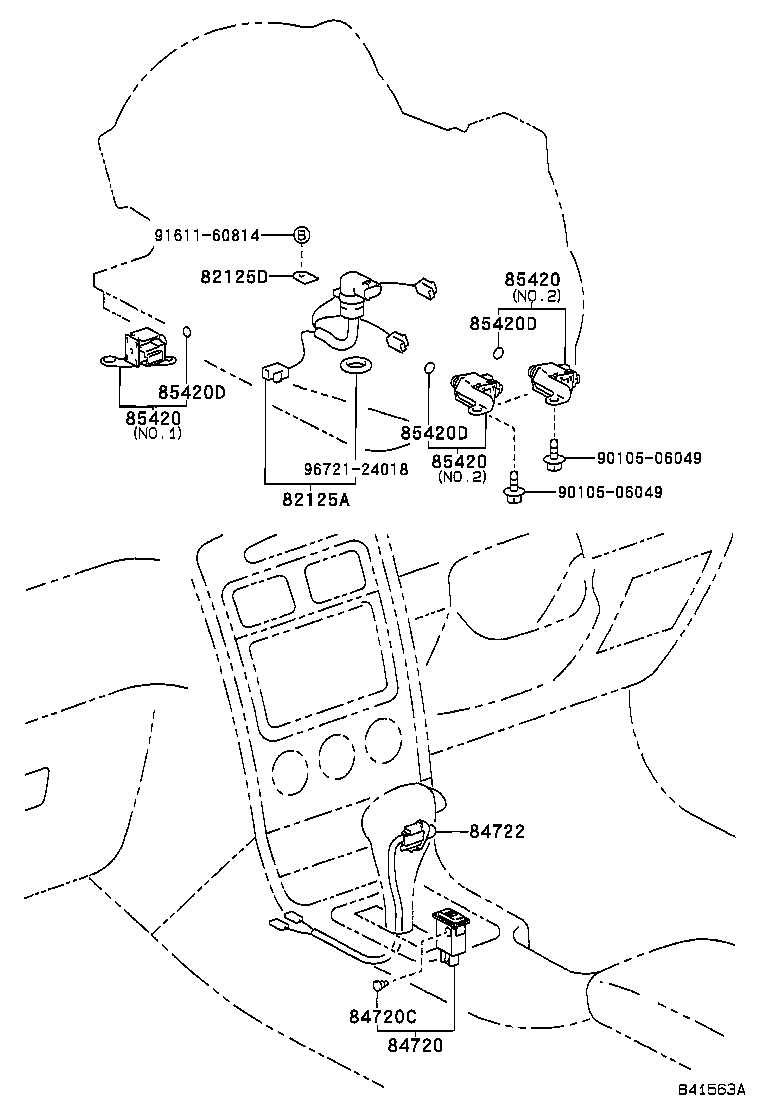

Figure 841562A 841562A 1997-10 → — Figure 841563A 841563A 1997-10 → —

Part groups

PNCDescription
82125A Wire, Transmission
82125D Plate, Transmission Wire Lock
84720 Switch Assy, Pattern Select
84720C Bulb(FOR PATTERN SELECT SWITCH)
84722 Switch, Transmission Control
85420 Solenoid Assy, Transmission
85420D Ring, O (FOR TRANSMISSION SOLENOID)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
