Toyota Corona
1997-10 → 2003-10 · chassis AT220,CT220,ST220 · catalogue 273340 · General
Discontinued model
Data version 2003-10
Heating & Air Conditioning - Cooler Unit
34 part groups · 7 illustrations
Part groups

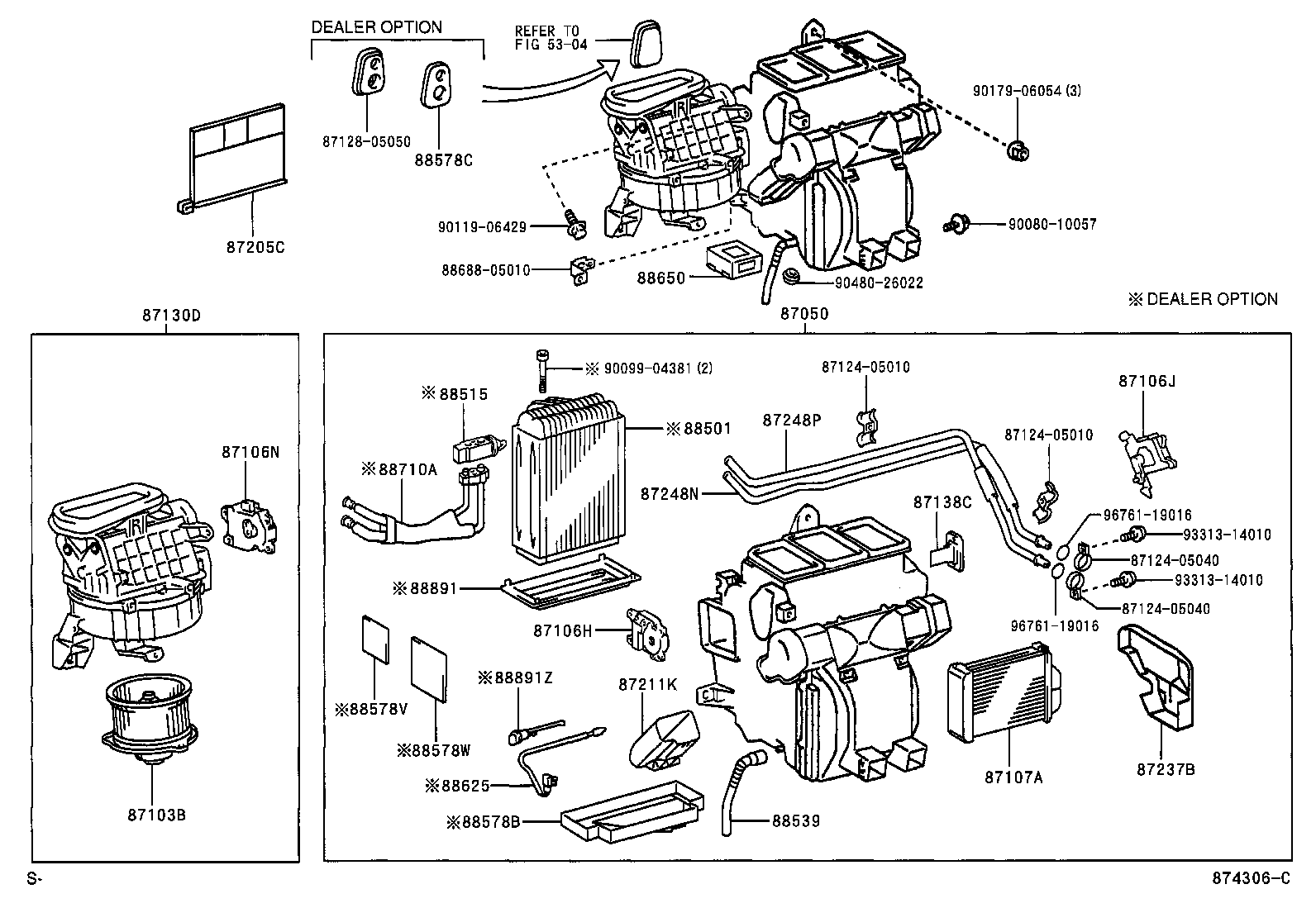

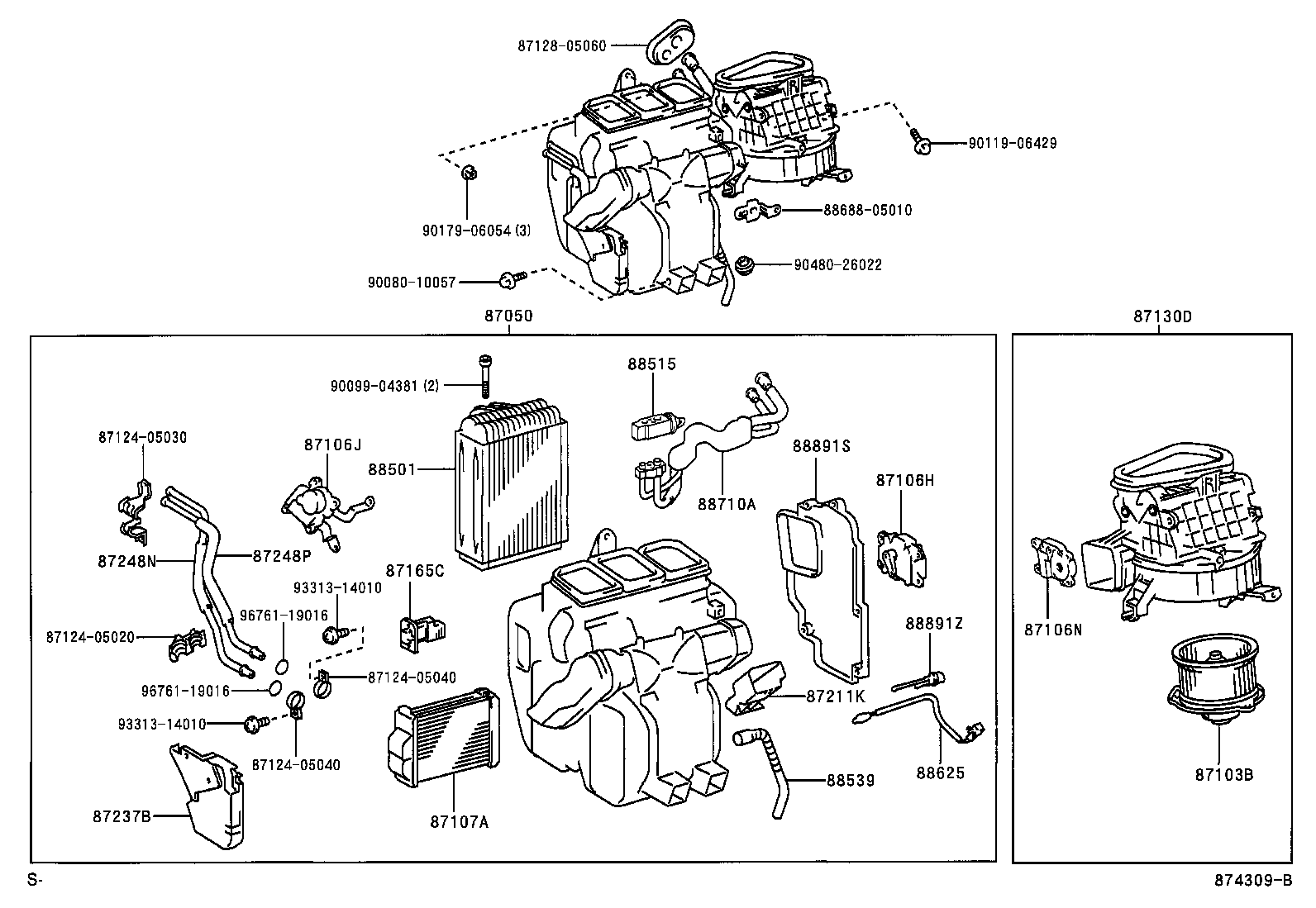

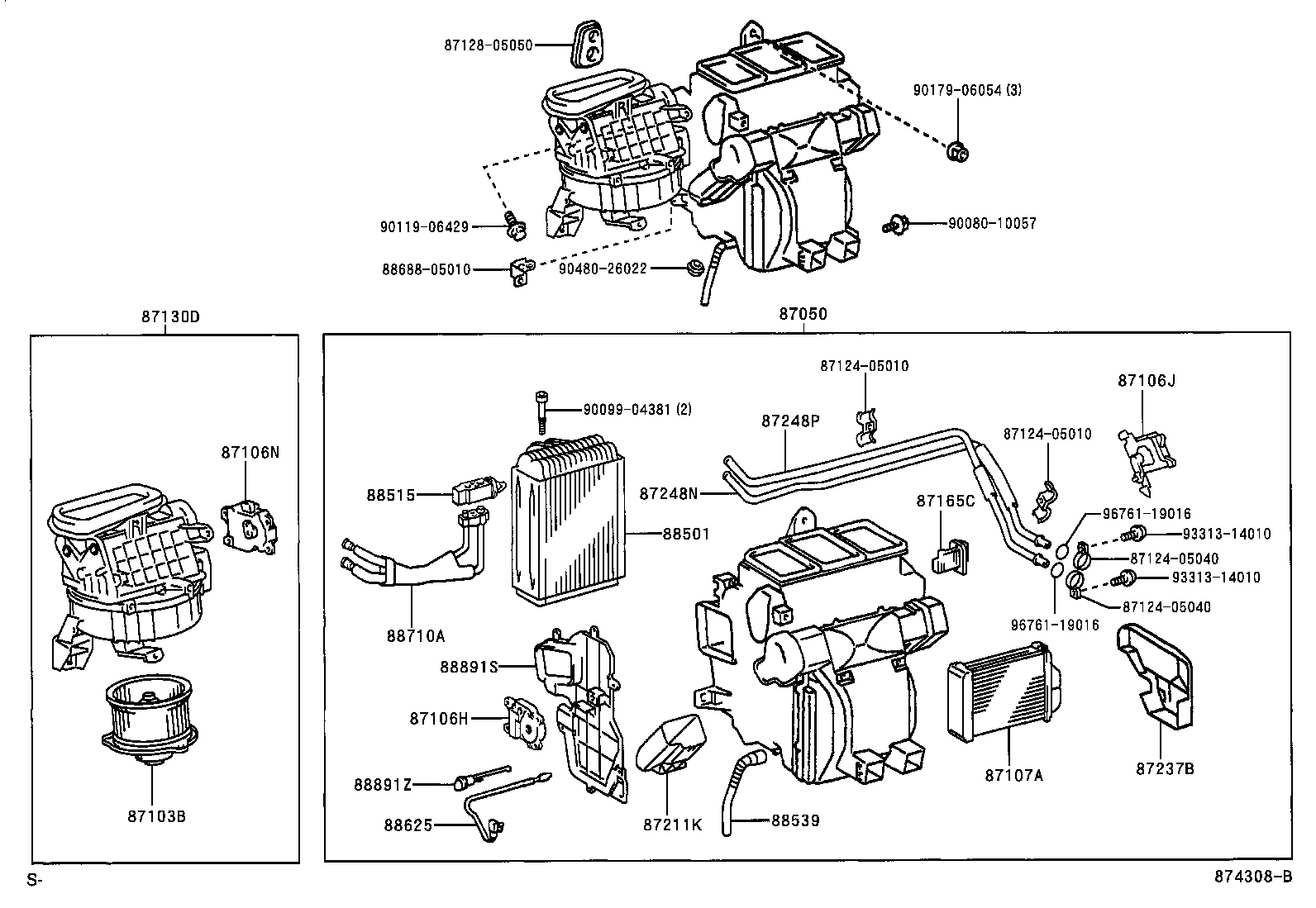

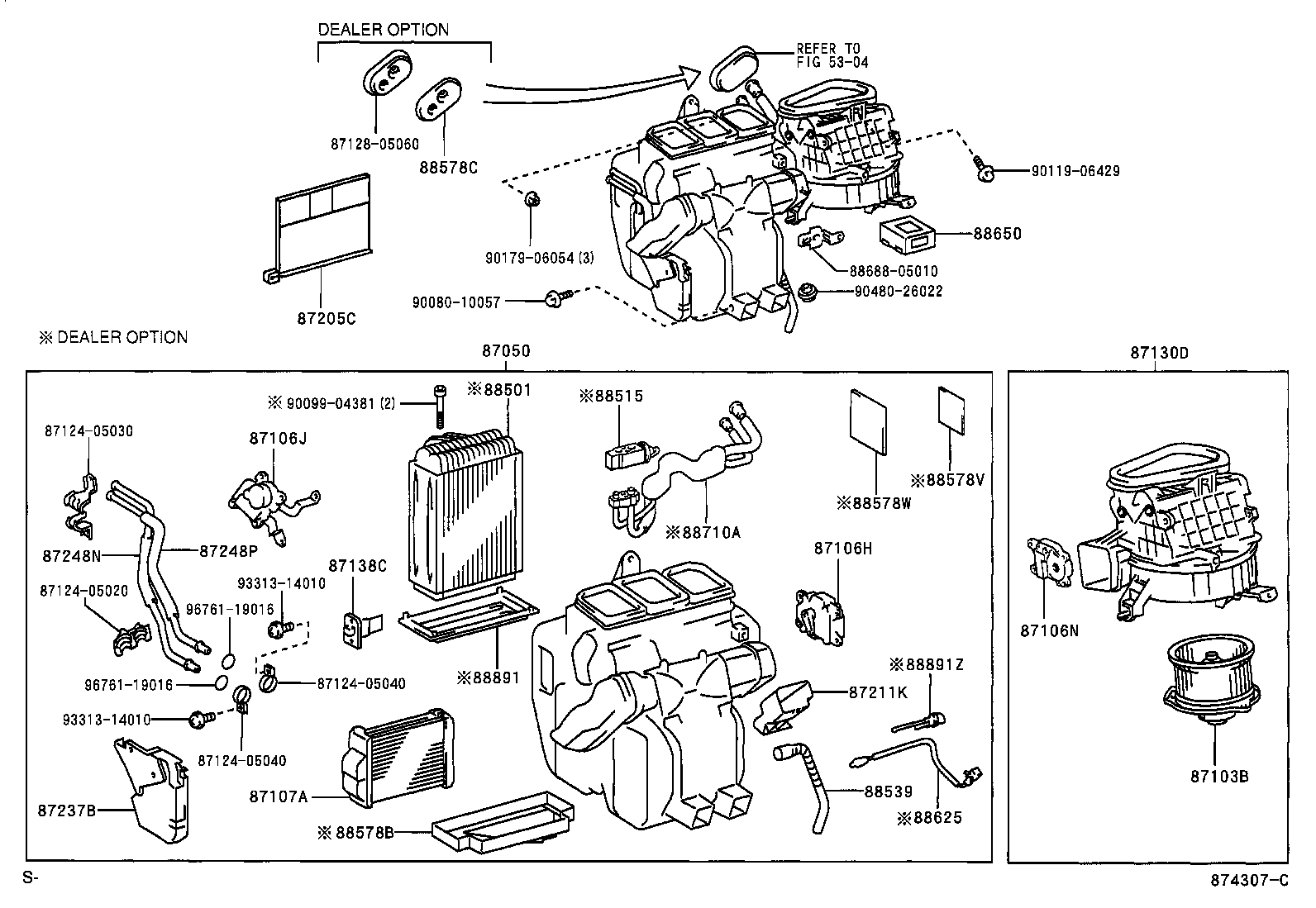

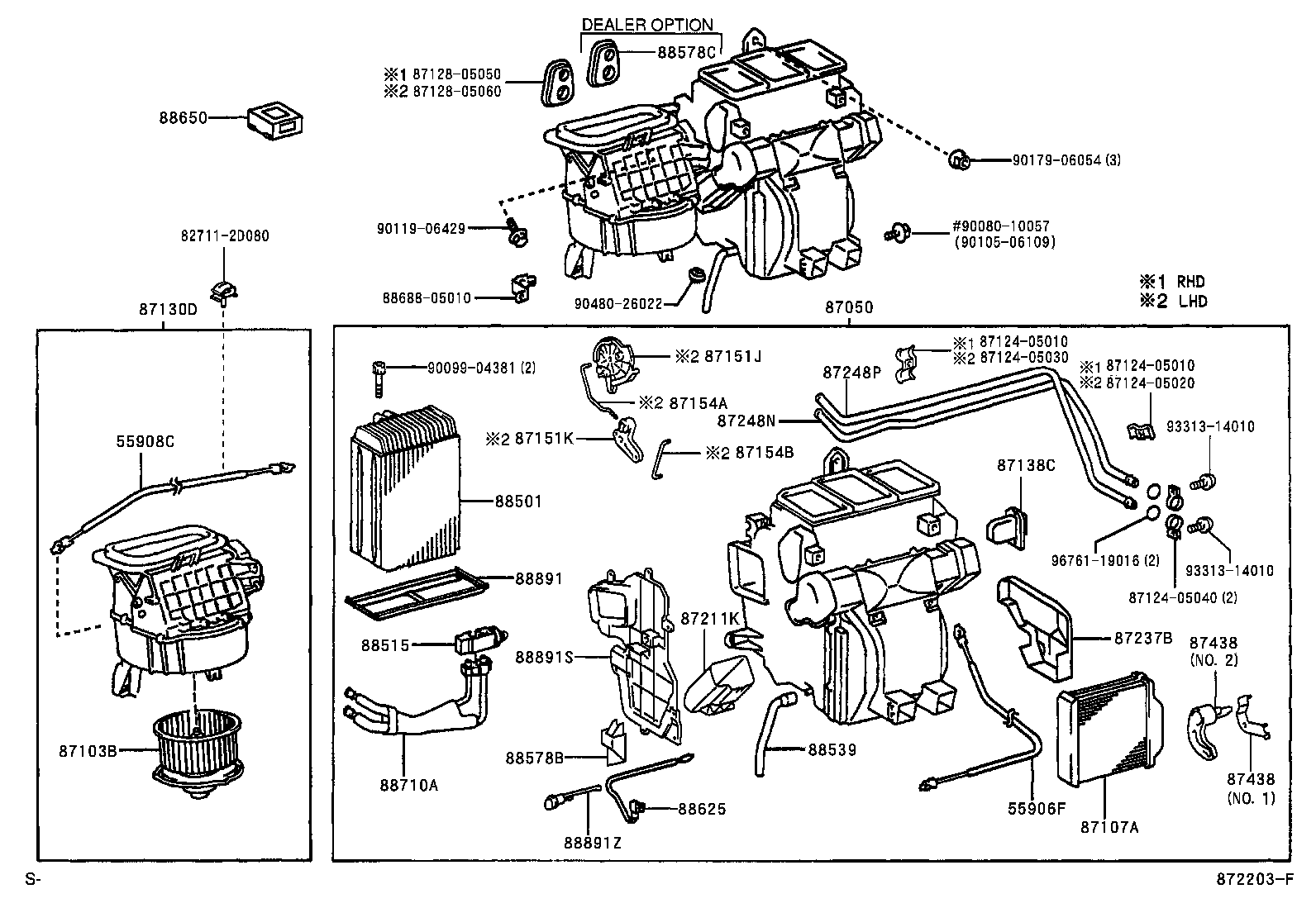

| PNC | Description |
|---|---|
| 55906F | Cable Sub-assy, Defroster Damper Control |
| 55908C | Cable Sub-assy, Air Inlet Damper Control |
| 87050 | Radiator Assy, Air Conditioner |
| 87103B | Motor Sub-assy, Blower W/Fan |
| 87106H | Servo Sub-assy, Damper(FOR AIRMIX) |
| 87106J | Servo Sub-assy, Damper(FOR MODE) |
| 87106N | Servo Sub-assy, Damper(FOR RECIRCULATION) |
| 87107A | Unit Sub-assy, Heater Radiator |
| 87130D | Blower Assy |
| 87138C | Resistor, Blower |
| 87151J | Plate, Damper NO.1 |
| 87151K | Plate, Damper NO.2 |
| 87154A | Shaft, Damper, NO.1 |
| 87154B | Shaft, Damper, NO.2 |
| 87165C | Control, Blower Motor |
| 87205C | Guide Sub-assy, Air Duct |
| 87211K | Duct, Air |
| 87237B | Cover, Heater Piping |
| 87248N | Pipe, Heater Water Inlet |
| 87248P | Pipe, Heater Water Outlet |
| 87438 | Plate,Link |
| 88501 | Evaporator Sub-assy, Cooler, NO.1 |
| 88515 | Valve, Cooler Expansion |
| 88539 | Hose, Cooler Unit Drain, NO.1 |
| 88578B | Packing, Cooling Unit, NO.1 |
| 88578C | Packing, Cooling Unit, NO.2 |
| 88578V | Packing, Cooling Unit, NO.3 |
| 88578W | Packing, Cooling Unit, NO.4 |
| 88625 | Thermistor, Cooler, NO.1 |
| 88650 | Amplifier Assy, Cooler Stabilizer |
| 88710A | Tube Assy, Air Conditioner |
| 88891 | Packing (FOR COOLER) |
| 88891S | Cover, Cooler, NO.1 |
| 88891Z | Bracket, Cooler Thermistor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
