Toyota Avensis
2003-01 → 2008-11 · chassis AZT250 · catalogue 273350 · General
Supported model
Data version 2009-04

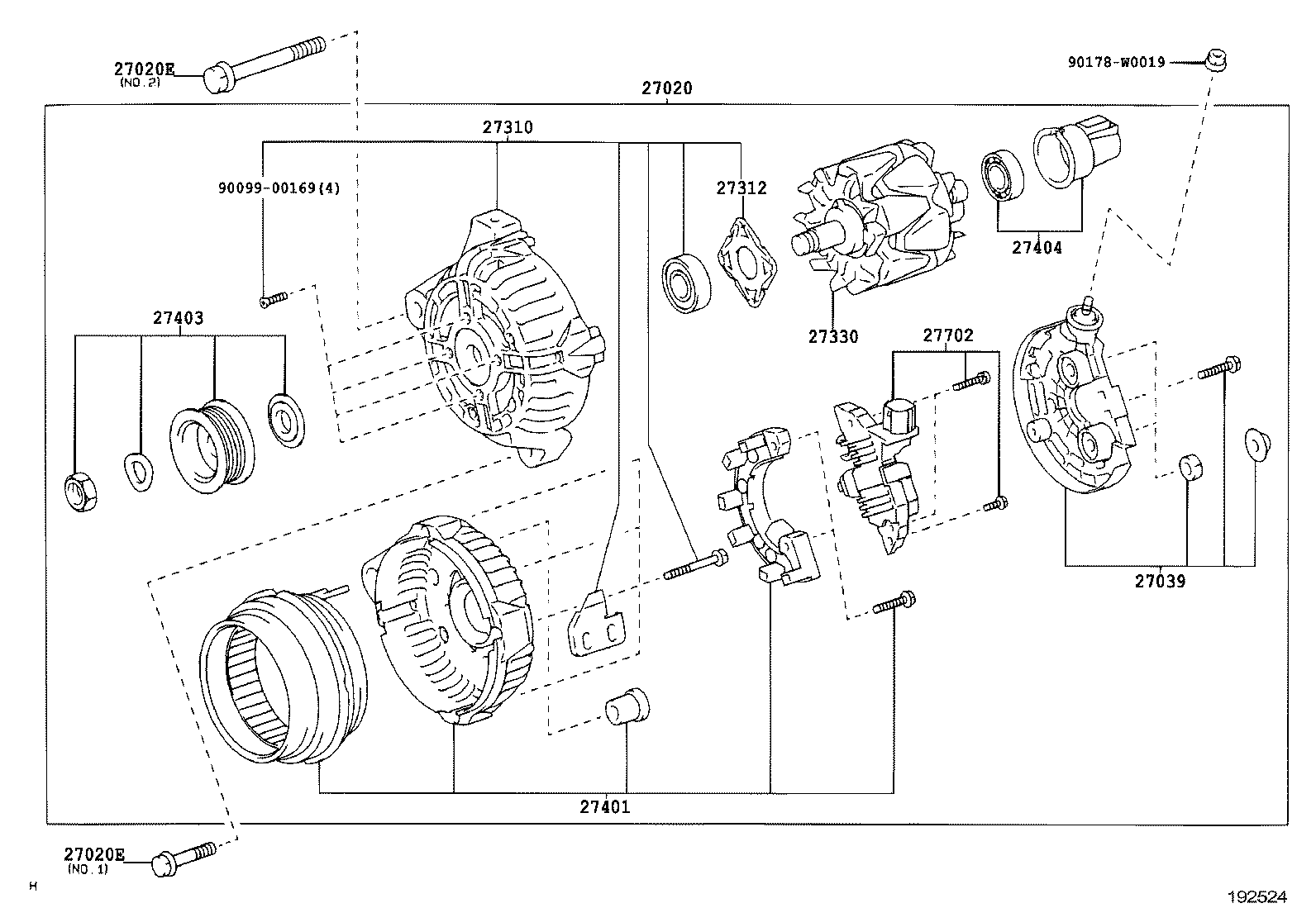

Alternator
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 27020 | Alternator Assy |
| 27020E | Bolt(FOR ALTERNATOR) |
| 27039 | Cover, Alternator Rear End |
| 27310 | Frame Assy, Drive End, Alternator |
| 27312 | Plate, Retainer |
| 27330 | Rotor Assy, Alternator |
| 27401 | Stator Sub-assy Alternator W/Rectifier |
| 27403 | Pulley Set, Alternator |
| 27404 | Bearing Set, Alternator |
| 27702 | Regulator Sub-assy Generator W/Brush |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
