Toyota Avensis

2003-01 → 2008-11 · chassis AZT250 · catalogue 273350 · General

Supported model Data version 2009-04
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

28 part groups · 3 illustrations

Illustrations

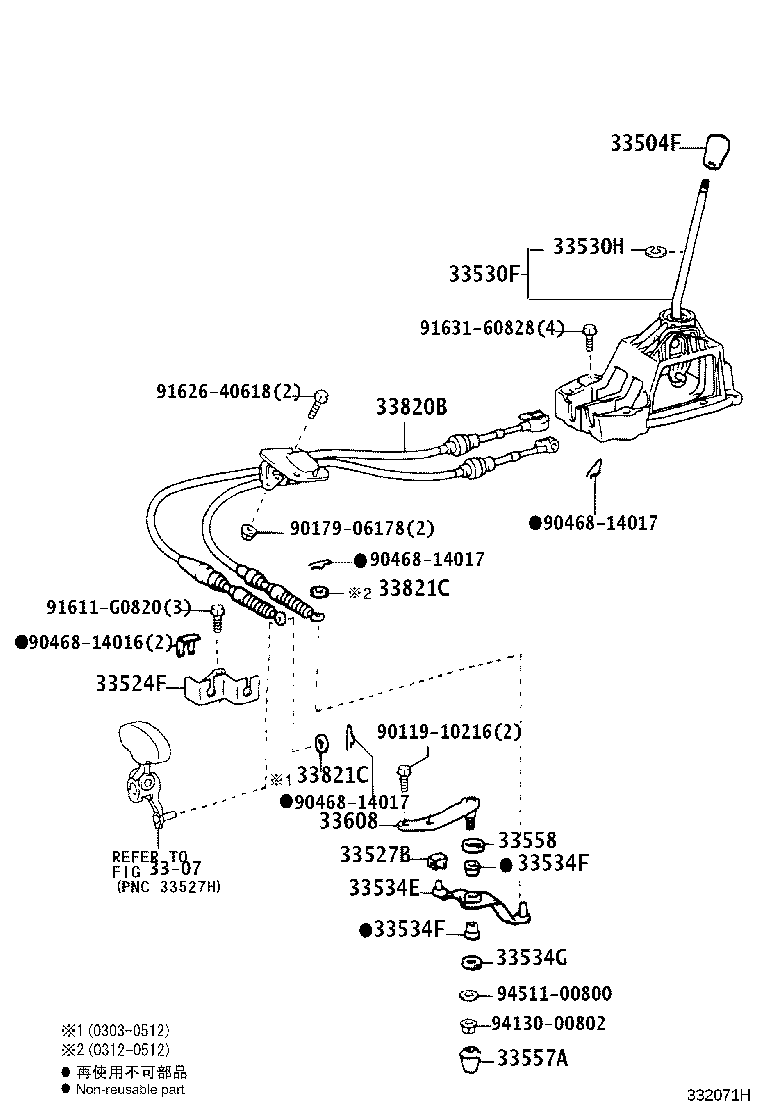

Figure 336484 336484 2003-01 → — Figure 332070B 332070B 2003-01 → — Figure 332071H 332071H 2003-01 → —

Part groups

PNCDescription
33504F Knob Sub-assy, Shift Lever
33524F Bracket, Control Lever Housing Support (FOR FLOOR SHIFT)
33527B Bush (FOR CONTROL SHIFT LEVER)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33530H Ring, Snap (FOR SHIFT LEVER)
33534E Crank, Selecting Bell, NO.2
33534F Bush (FOR SELECTING BELLCRANK NO.2)
33534G Washer, Plate (FOR SELECTING BELLCRANK NO.2)
33550D Bulb, Position Indicator Lamp
33550E Cap, Position Indicator Lamp
33557A Cover, Selecting Bellcrank Dust, NO.1
33558 Cover, Selecting Bellcrank Dust, NO.2
33560 Unit Assy, Shift Lock Control
33563 Button, Shift Lock Release
33608 Support Sub-assy, Selecting Bellcrank
33820B Cable Assy, Transmission Control
33821C Washer, Plate (FOR TRANSMISSION CONTROL CABLE)
33823 Bracket, Transmission Control Cable, NO.1
33829B Clamp, Transmission Control Cable
33866 Spring, Shift Lock Release
33877 Label, Shift Lock Information, NO.1
33880A Cable Assy, Parking Lock (FOR FLOOR SHIFT)
35906 Wire Sub-assy, Indicator Lamp
35907 Housing Sub-assy, Position Indicator (FOR FLOOR SHIFT)
35953 Guide, Position Indicator Light
35974 Housing, Position Indicator, Lower
35975 Cover, Slide (FOR POSITION INDICATOR)
35976 Cover, Slide, NO.2 (FOR POSITION INDICATOR)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
