Brake Booster & Vacuum Tube

5 part groups · 2 illustrations

Illustrations

Figure 473436C

473436C 2003-01 → —

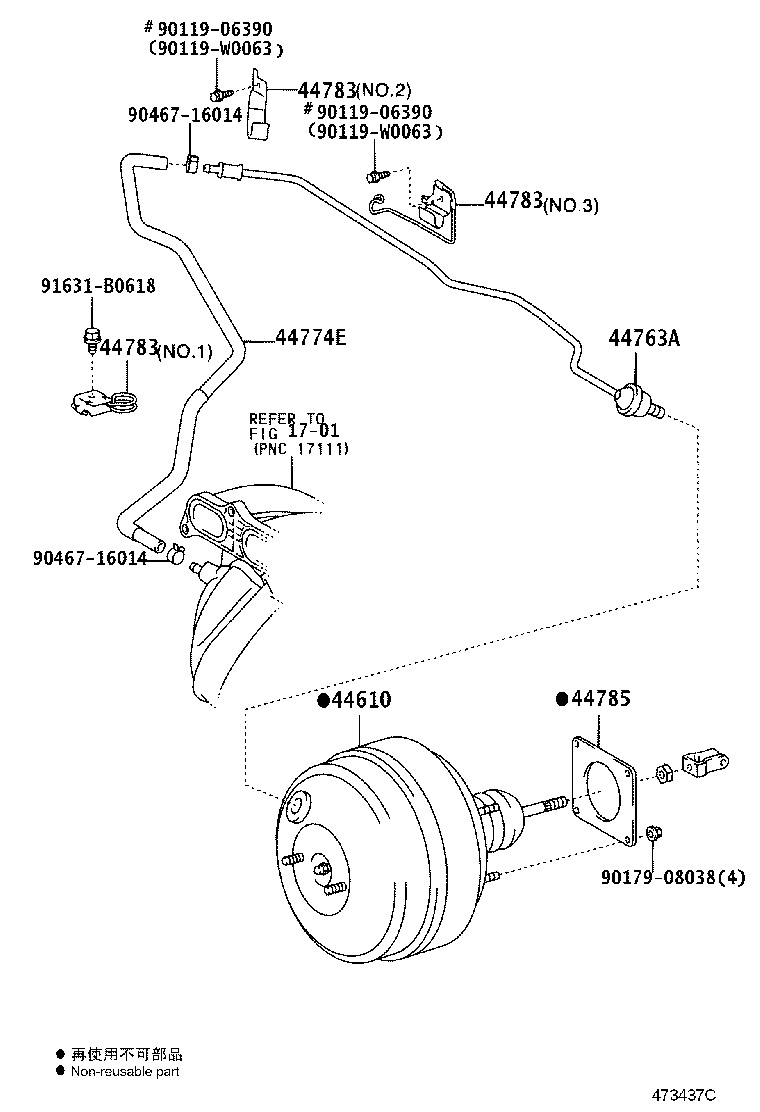

Figure 473437C

473437C 2003-01 → —

Part groups

PNC	Description
44610	Booster Assy, Brake
44763A	Tube, Hose TO Hose, NO.1
44774E	Hose, Union TO Connector Tube
44783	Clamp, Vacuum Hose
44785	Gasket, Brake Booster

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
