Toyota Avensis
2003-01 → 2008-11 · chassis AZT250 · catalogue 273350 · General
Supported model
Data version 2009-04
Fuel Tank & Tube

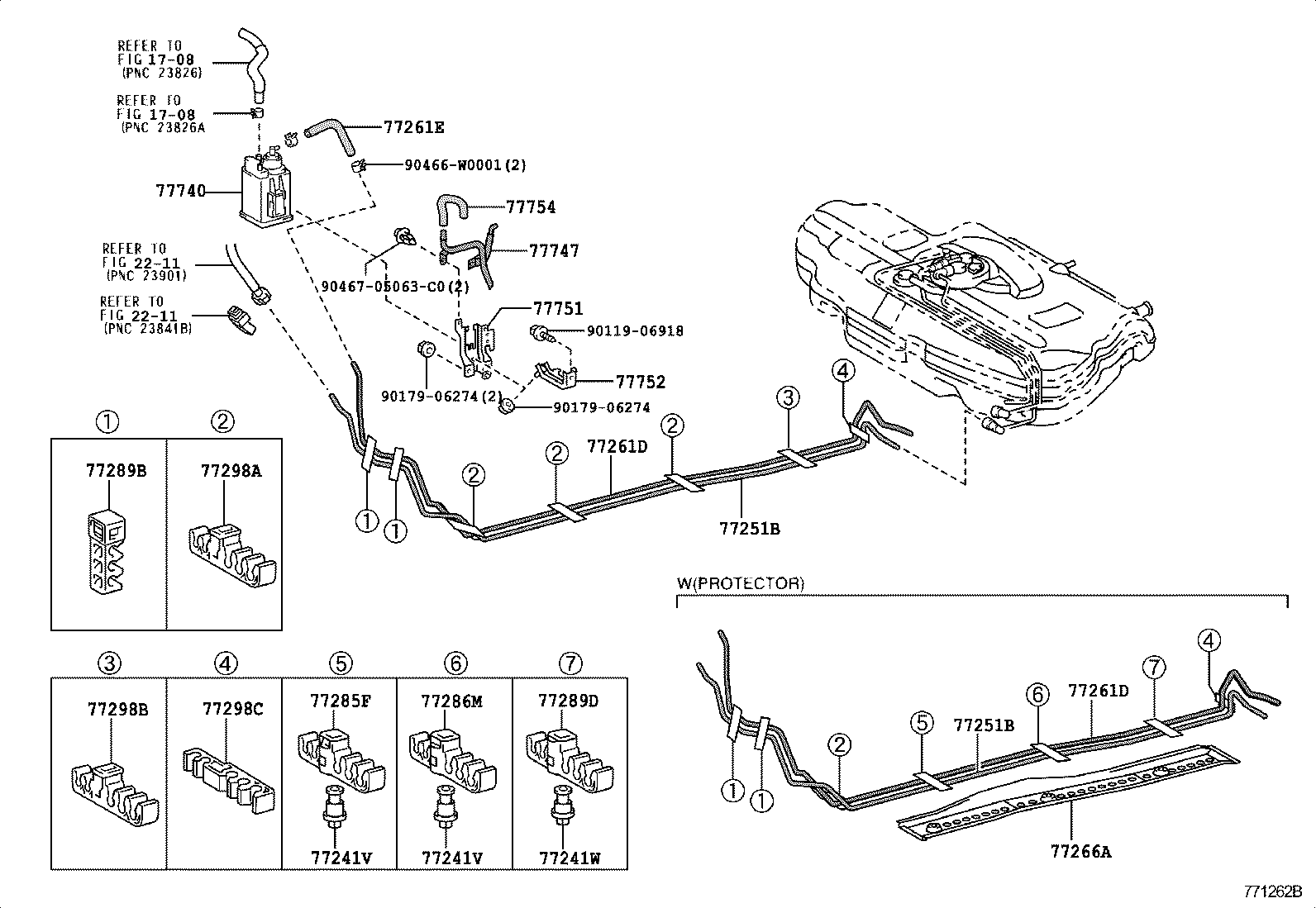

46 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 77020A | Tube Assy, Fuel Suction W/Pump & Gage |
| 77027 | Tube Sub-assy, Fuel Evaporation, NO.2 |
| 77035 | Cable Sub-assy, Fuel Lid Lock Control |
| 77100 | Tank Assy, Fuel |
| 77144 | Retainer, Fuel Pump Gauge |
| 77169A | Gasket, Fuel Suction Tube Set |
| 77201 | Pipe Sub-assy, Fuel Tank Inlet |
| 77202A | Hose, Fuel, NO.1 (FOR BREATHER TUBE) |
| 77209D | Tube Sub-assy, Fuel Tank Main |
| 77213B | Hose, Fuel Tank TO Filler Pipe |
| 77216A | Support, Fuel Tank Filler Pipe, NO.1 |
| 77217A | Support, Fuel Tank Filler Pipe, NO.2 |
| 77241V | Clip, Tube Joint |
| 77241W | Clip, Tube Joint |
| 77251B | Tube, Fuel Main |
| 77261D | Tube, Fuel Tank TO Canister |
| 77261E | Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE) |
| 77266A | Protector, Fuel Tube, NO.1 |
| 77285F | Clamp, Fuel Tube, NO.1 |
| 77286M | Clamp, Fuel Tube, NO.6 |
| 77289B | Clamp, Fuel Tube, NO.3 |
| 77289D | Clamp, Fuel Tube, NO.5 |
| 77290 | Shield Assy, Fuel Tank Filler Pipe |
| 77298A | Clamp, Fuel Tube, NO.4 |
| 77298B | Clamp, Fuel Tube, NO.4 |
| 77298C | Clamp, Fuel Tube, NO.4 |
| 77310A | Cap Assy, Fuel Tank |
| 77316 | Gasket, Fuel Tank Cap |
| 77350 | Lid Assy, Fuel Filler Opening |
| 77366 | Spring, Fuel Filler Opening Lid Hinge |
| 77377 | Retainer, Fuel Filler Opening Lid Lock |
| 77380 | Valve Assy, Fuel Cut Off |
| 77391 | Ring, Fuel Inlet Box |
| 77391A | Ring, Fuel Inlet Box |
| 77601A | Band Sub-assy, Fuel Tank, NO.1 |
| 77602B | Band Sub-assy, Fuel Tank, NO.1 LH |
| 77641A | Protector, Fuel Tank, NO.1 |
| 77651A | Cushion, Fuel Tank, NO.1 |
| 77652A | Cushion, Fuel Tank, NO.2 |
| 77681 | Seat, Fuel Tank Band, RH |
| 77682 | Seat, Fuel Tank Band, LH |
| 77740 | Canister Assy, Charcoal |
| 77747 | Pipe, Charcoal Canister, NO.1 |
| 77751 | Bracket, Charcoal Canister Base |
| 77752 | Bracket, Charcoal Canister Support |
| 77754 | Hose, Charcoal Canister Outlet, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
