Toyota Avensis

2008-11 → 2011-04 · chassis AZT270 · catalogue 273360 · General

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

6 part groups · 2 illustrations

Illustrations

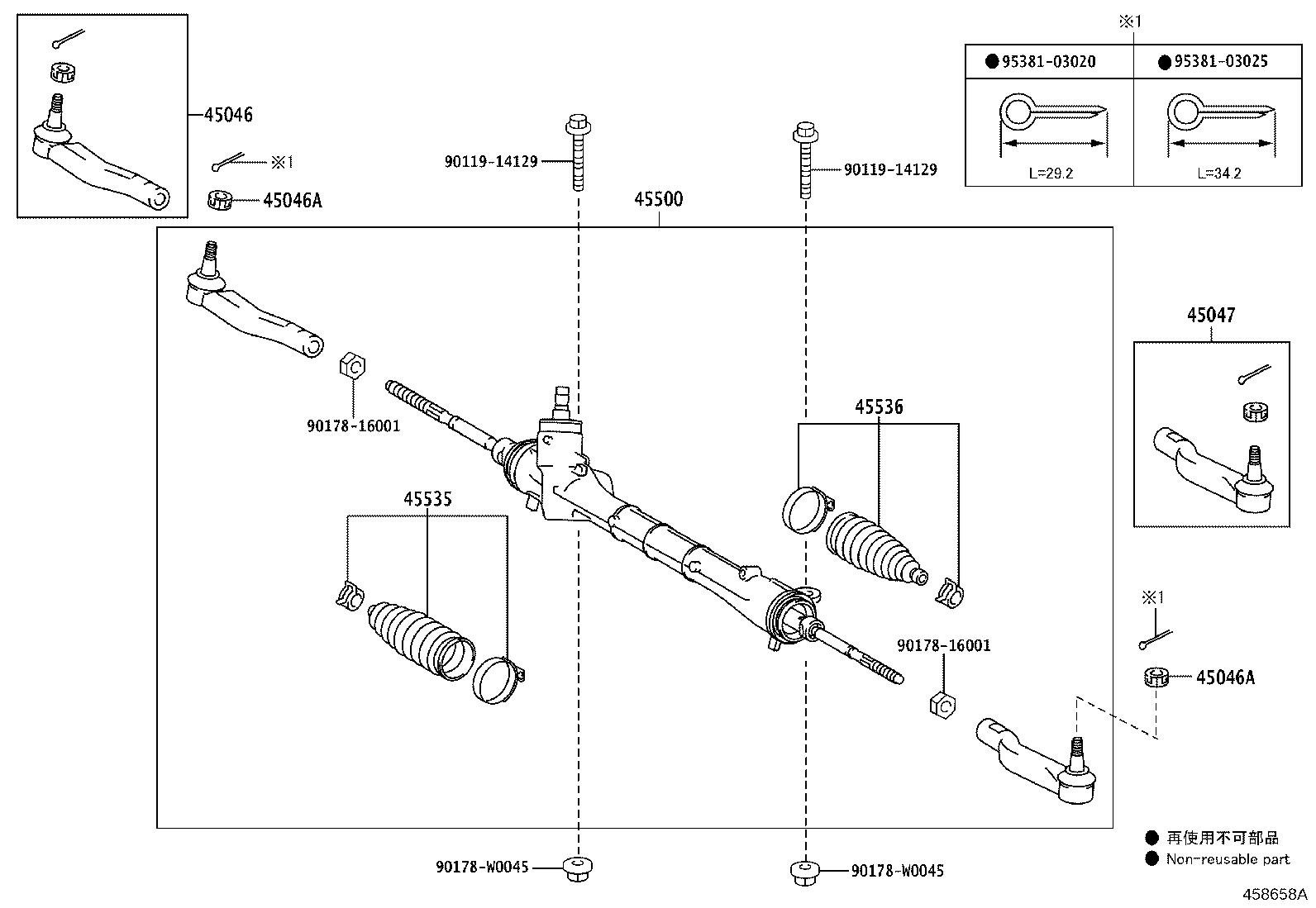

Figure 458657A 458657A 2008-11 → — Figure 458658A 458658A 2008-11 → —

Part groups

PNCDescription
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45500 Link Assy, Steering
45535 Boot, Steering Rack, NO.1
45536 Boot, Steering Rack, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
