Toyota Avensis

2008-11 → 2011-04 · chassis AZT270 · catalogue 273360 · General

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

39 part groups · 8 illustrations

Illustrations

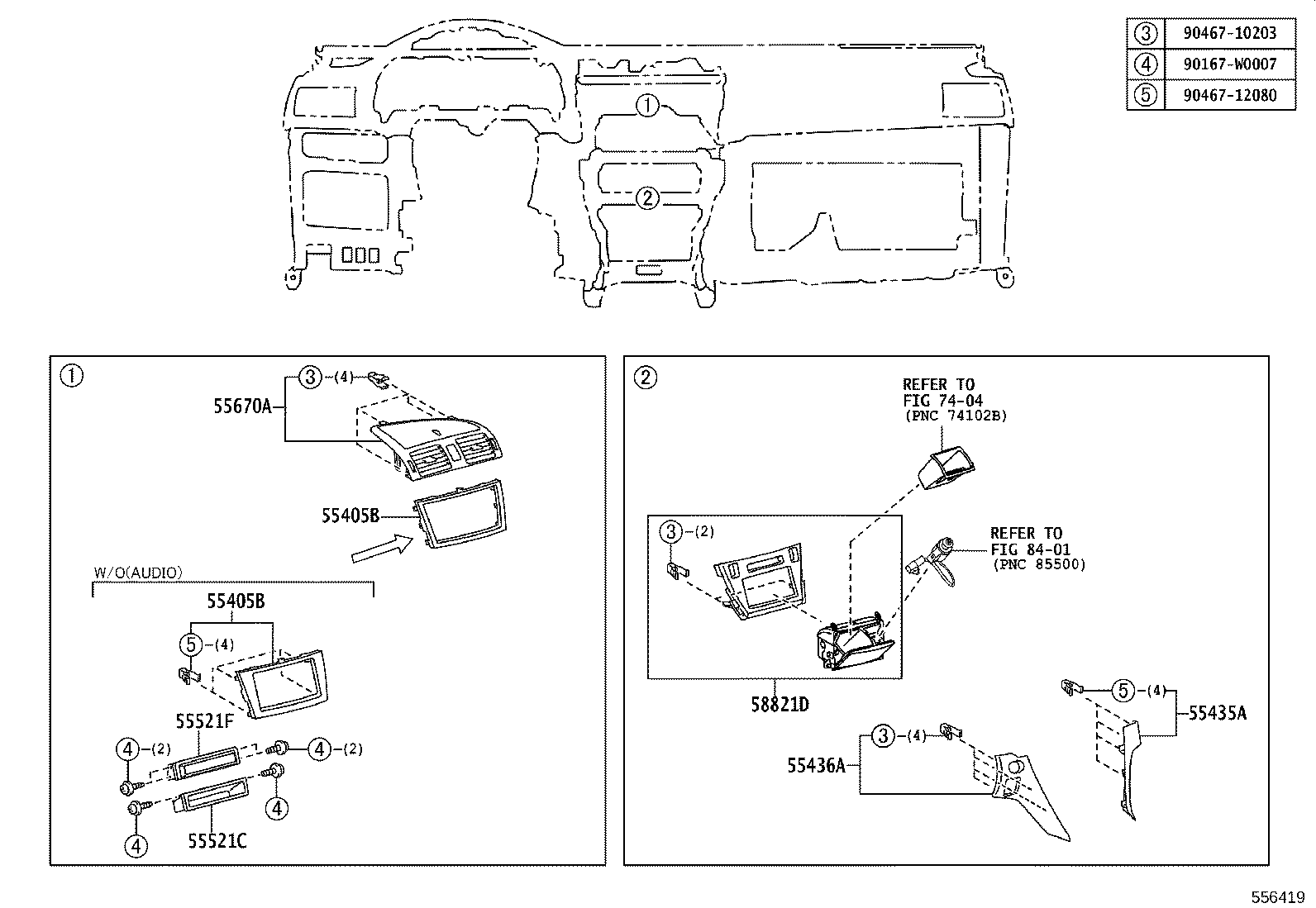

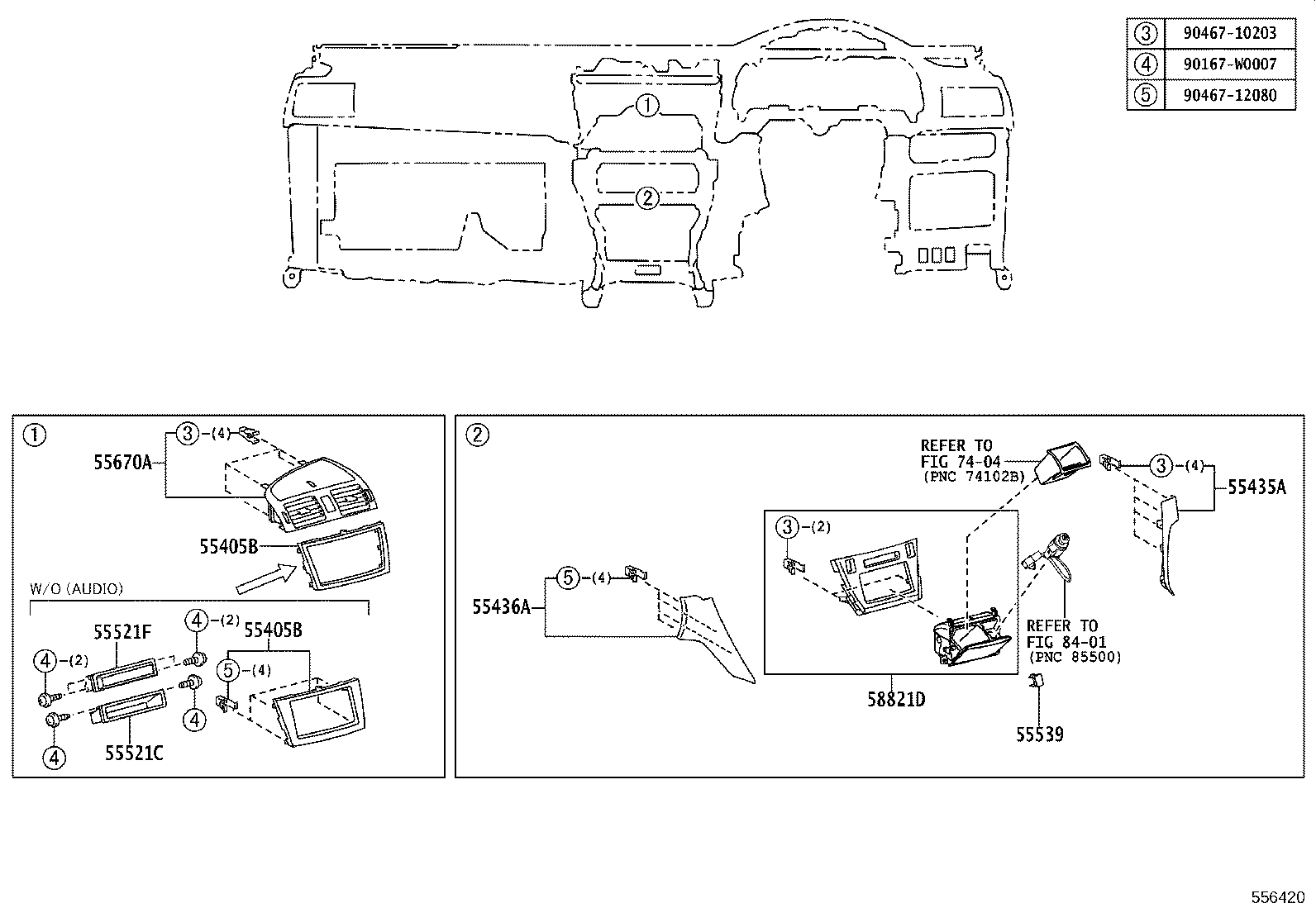

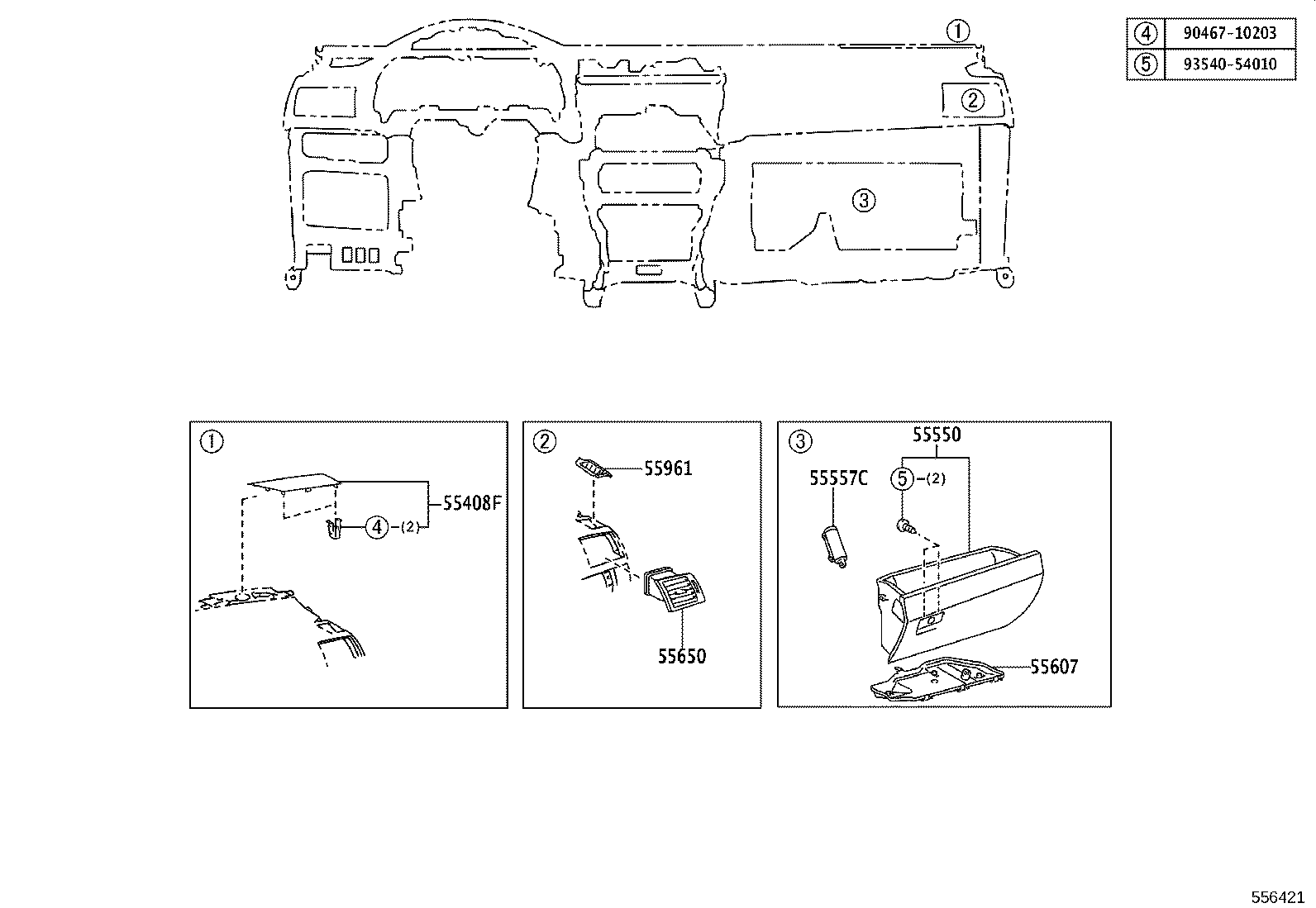

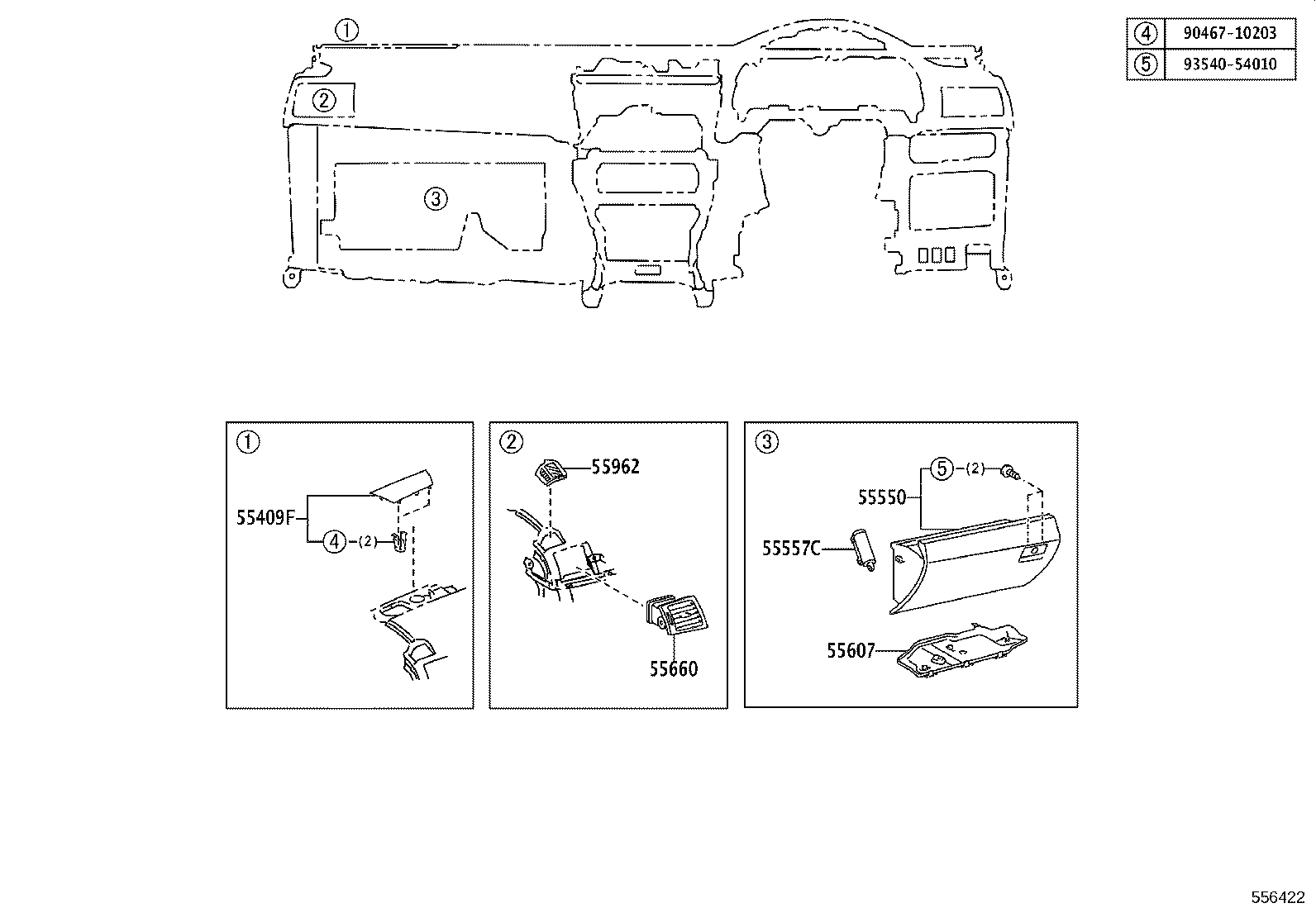

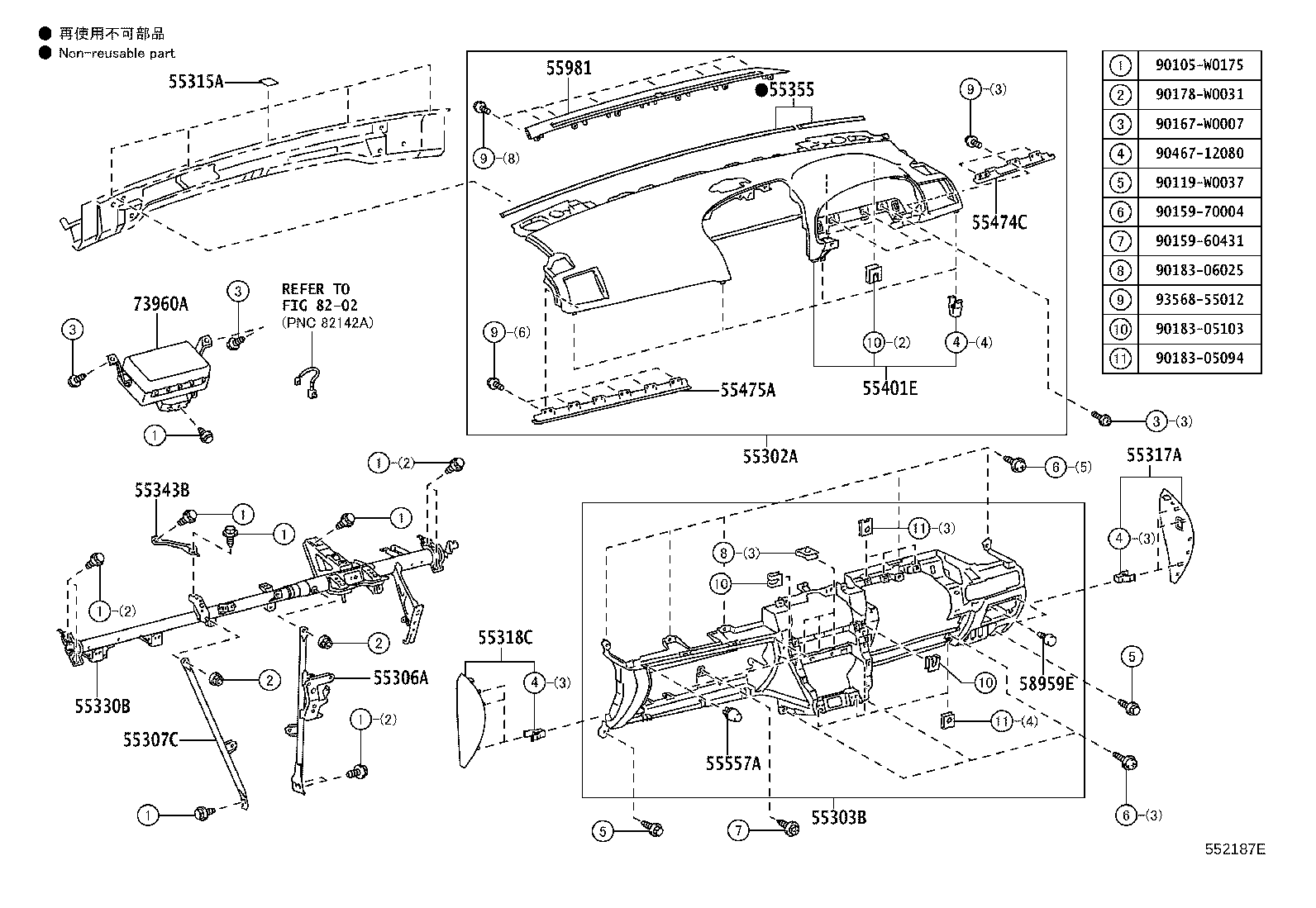

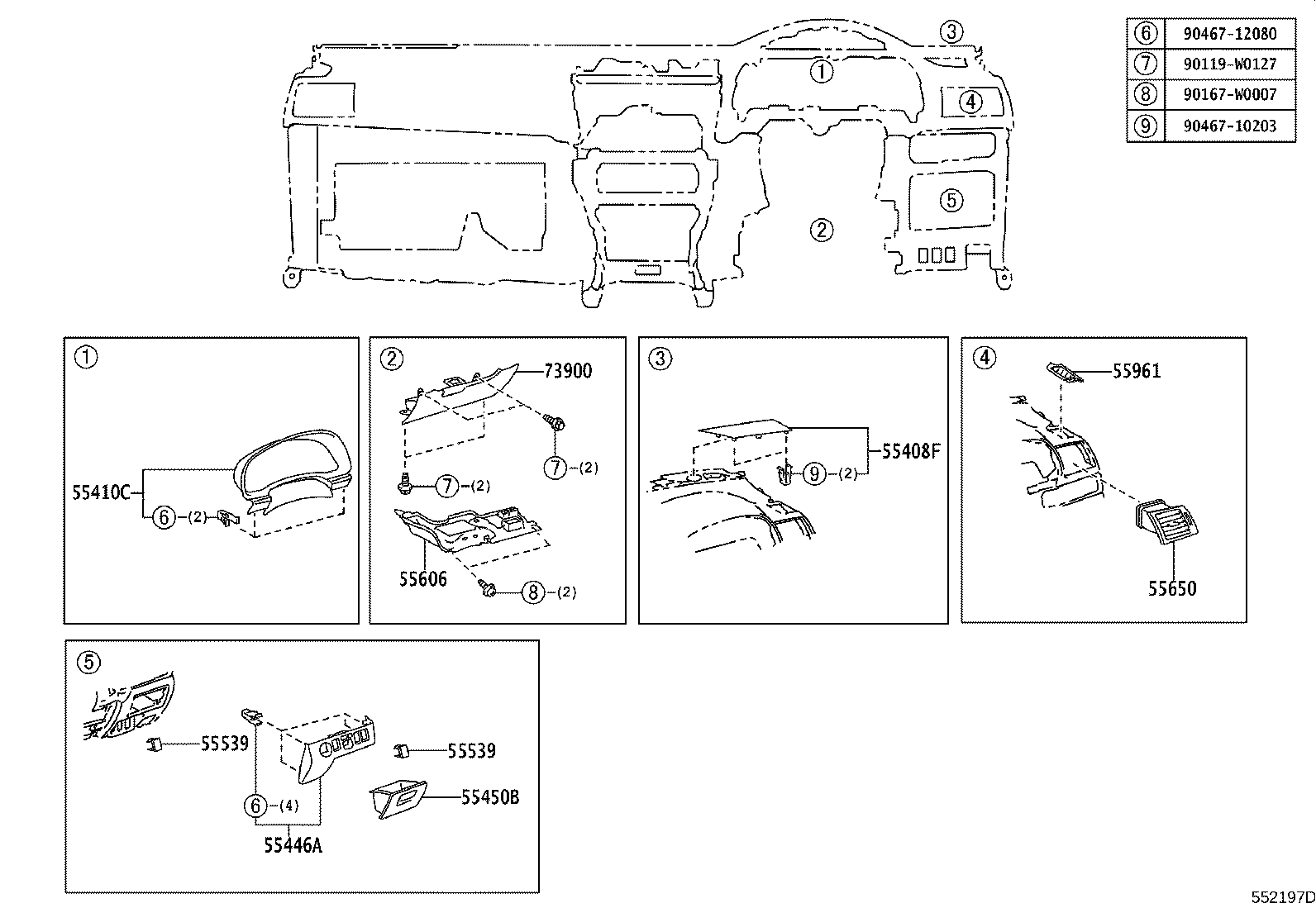

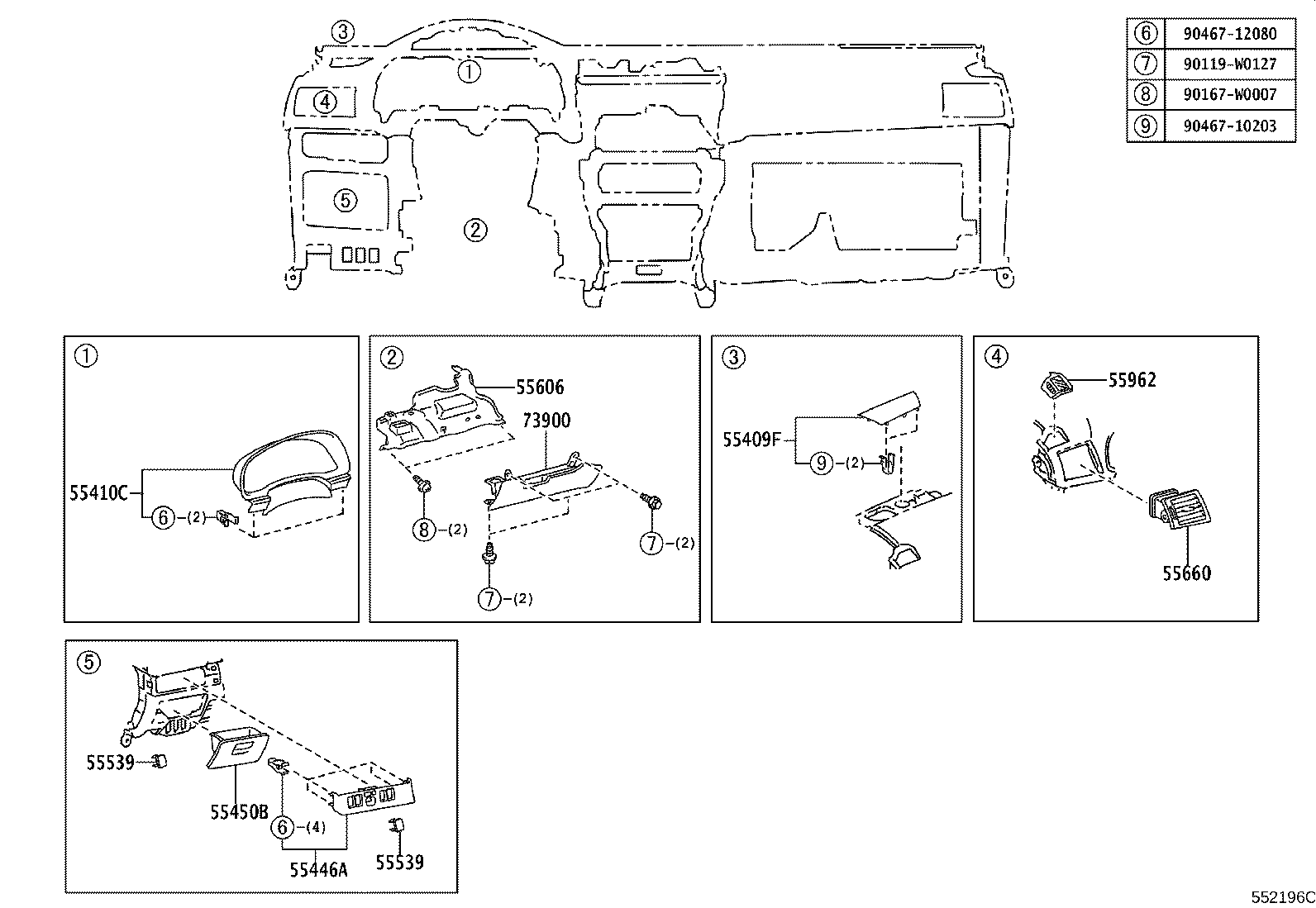

Figure 552188C 552188C 2008-11 → 2011-04 Figure 552187E 552187E 2008-11 → 2011-04 Figure 552196C 552196C 2008-11 → 2011-04 Figure 552197D 552197D 2008-11 → 2011-04 Figure 556419 556419 2008-11 → 2011-04 Figure 556420 556420 2008-11 → 2011-04 Figure 556421 556421 2008-11 → 2011-04 Figure 556422 556422 2008-11 → 2011-04

Part groups

PNCDescription
55302A Panel Sub-assy, Instrument, Upper
55303B Panel Sub-assy, Instrument, Lower
55306A Brace Sub-assy, Instrument Panel, NO.1
55307C Brace Sub-assy, Instrument Panel, NO.2
55315A Spacer, Instrument Panel, NO.1
55317A Panel, Instrument Side, RH
55318C Panel, Instrument Side, LH
55330B Reinforcement Assy, Instrument Panel
55343B Brace, Instrument Panel TO Cowl, Center
55355 Cushion, Instrument Panel, NO.1
55401E Pad Sub-assy, Instrument Panel Safety
55405B Panel Sub-assy, Instrument Cluster Finish, Center
55408F Panel Sub-assy, Instrument Panel Speaker, NO.1
55409F Panel Sub-assy, Instrument Panel Speaker, NO.2
55410C Panel Assy, Instrument Cluster Finish
55435A Panel, Instrument Panel Finish, End RH
55436A Panel, Instrument Panel Finish, End LH
55446A Base, Switch Hole, NO.1
55450B Box Assy, Coin
55474C Garnish, Instrument Cluster Finish Panel, NO.1
55475A Garnish, Instrument Cluster Finish Panel, NO.2
55521C Cover, Stereo Opening
55521F Cover, Stereo Opening, NO.2
55539 Cover, Spare Switch Hole
55550 Door Assy, Glove Compartment
55557A Cushion, Glove Compartment Door Check
55557C Damper, Glove Compartment Door
55606 Cover Sub-assy, Instrument Panel Under, NO.1
55607 Cover Sub-assy, Instrument Panel Under, NO.2
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670A Register Assy, Instrument Panel, Center
55961 Nozzle, Side Defroster, NO.1
55962 Nozzle, Side Defroster, NO.2
55981 Garnish, Defroster Nozzle, NO.1
58821D Panel, Console, Upper Front
58959E Cushion, Console Compartment Door
73900 Airbag Assy, Instrument Panel, Lower NO.1
73960A Airbag Assy, Instrument Panel Passenger W/O Door
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
