Toyota Avensis
2008-11 → 2011-04 · chassis AZT270 · catalogue 273360 · General
Supported model
Data version 2008-11

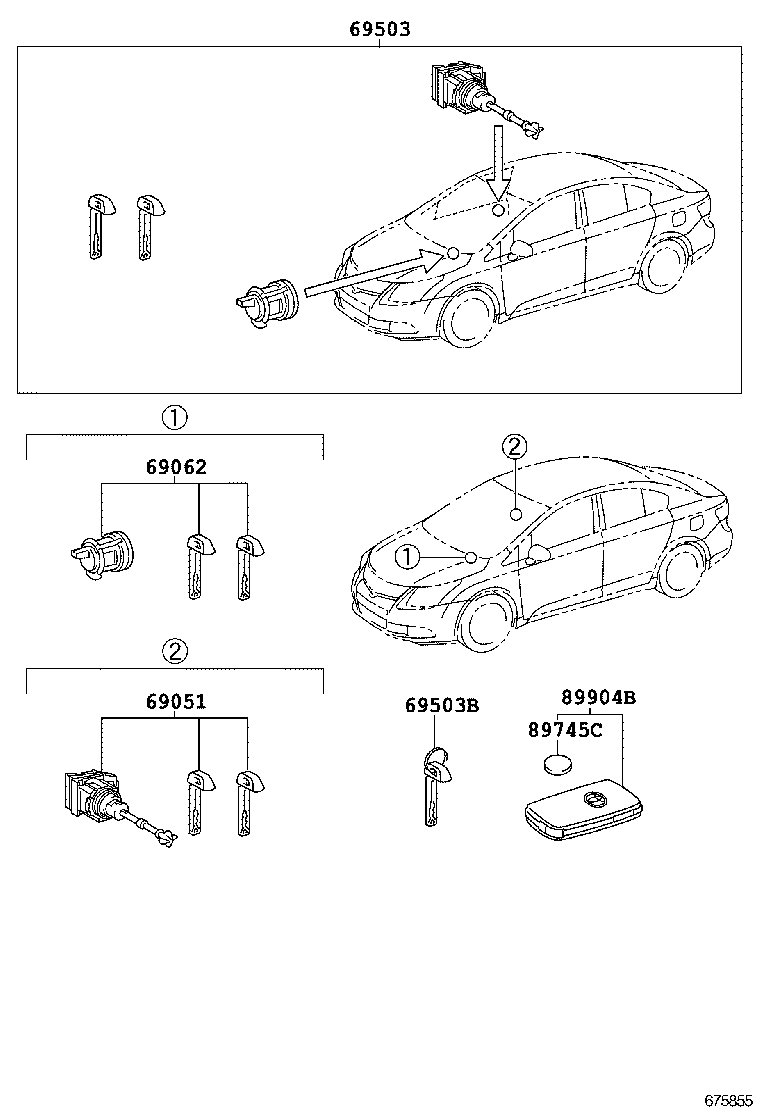

Lock Cylinder Set
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 69051 | Cylinder & Key Set, Door Lock, RH |
| 69052 | Cylinder & Key Set, Door Lock, LH |
| 69062 | Cylinder & Key Set, Glove Compartment Lock |
| 69503 | Cylinder Set, Lock |
| 69503B | Key, Cut |
| 89745C | Battery, Transmitter |
| 89904B | Transmitter Sub-assy, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
