Toyota Avensis
2008-11 → 2011-04 · chassis AZT270 · catalogue 273360 · General
Supported model
Data version 2008-11
Interior Lamp
15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81230 | Lamp Assy, Courtesy |
| 81230B | Bulb(FOR COURTESY LAMP) |
| 81240 | Lamp Assy, Room, NO.1 |
| 81240B | Bulb, Room Lamp, NO.1 |
| 81251B | Lens, Rear Room Lamp, RH |
| 81260 | Lamp Assy, Glove Box |

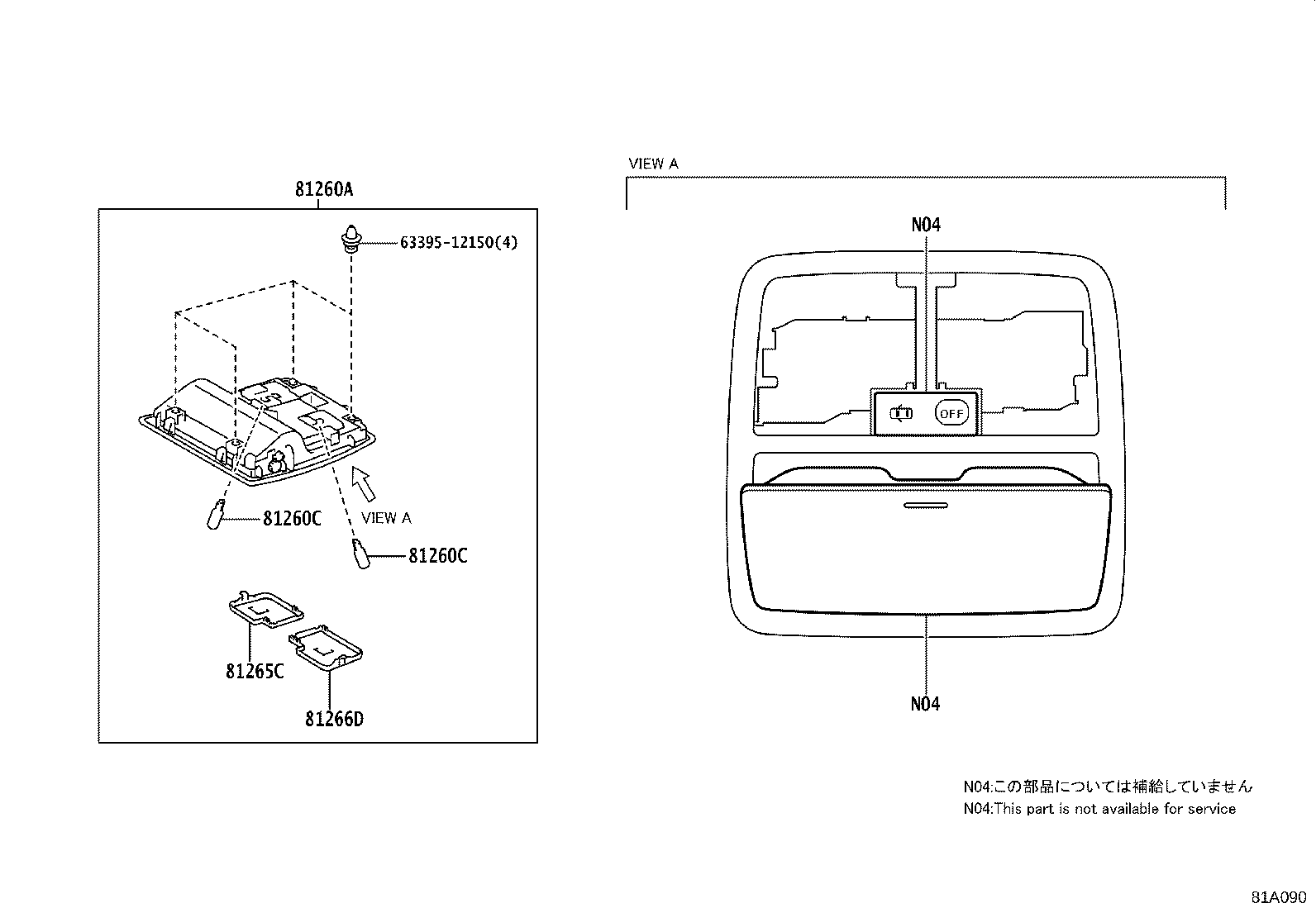

| 81260A | Lamp Assy, Map |
| 81260C | Bulb(FOR MAP LAMP) |
| 81265C | Lens, Map Lamp, NO.1 |
| 81266D | Lens, Map Lamp, NO.2 |
| 81291A | Lens, Rear Room Lamp, LH |
| 81330 | Lamp Assy, Luggage Compartment, NO.1 |
| 81330B | Bulb, Luggage Compartment Lamp |
| 81340 | Lamp Assy, Vanity |
| 81340B | Bulb (FOR VANITY LAMP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
