Toyota Avensis

2008-11 → 2011-04 · chassis AZT270 · catalogue 273360 · General

Supported model Data version 2008-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

47 part groups · 12 illustrations

Illustrations

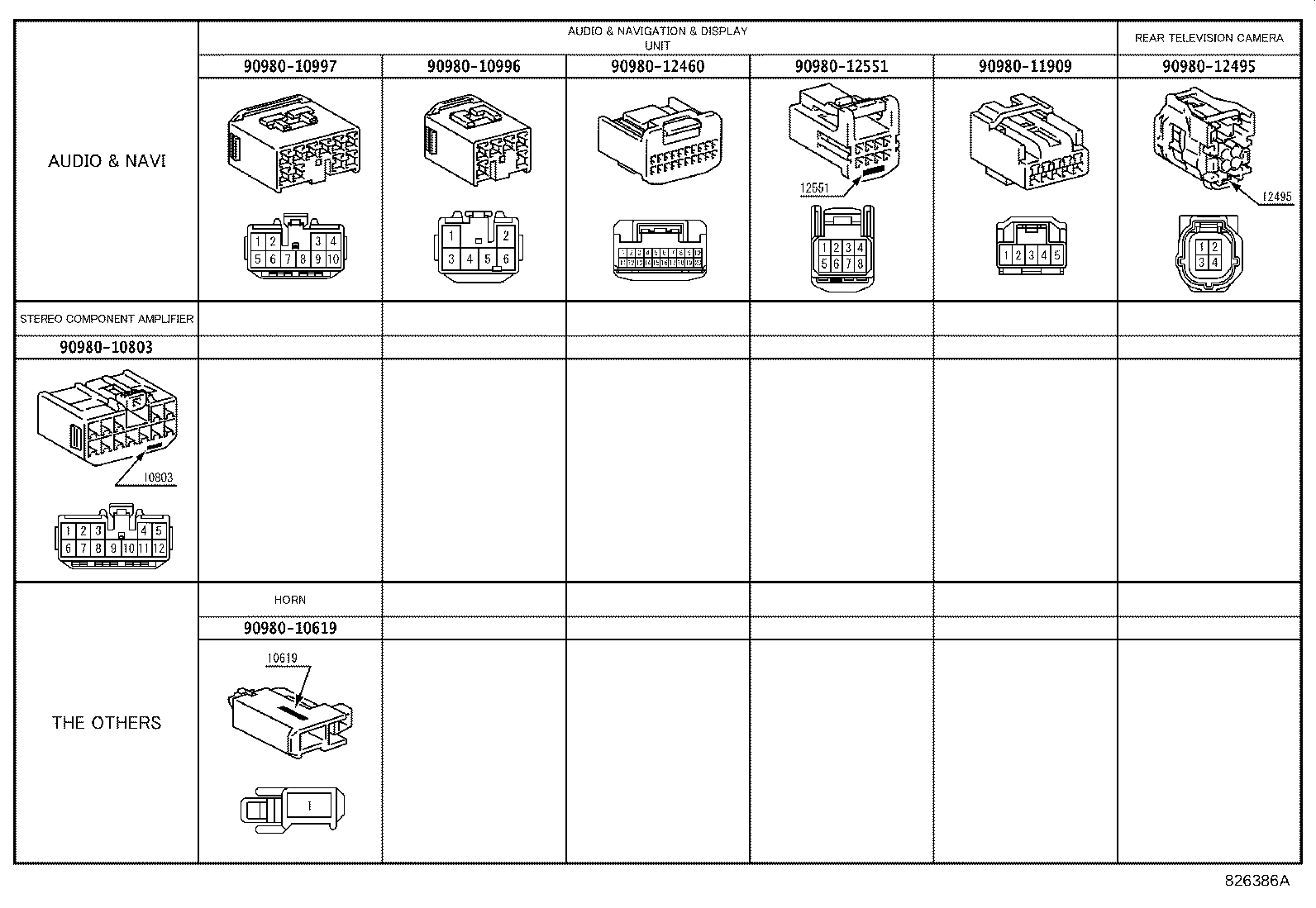

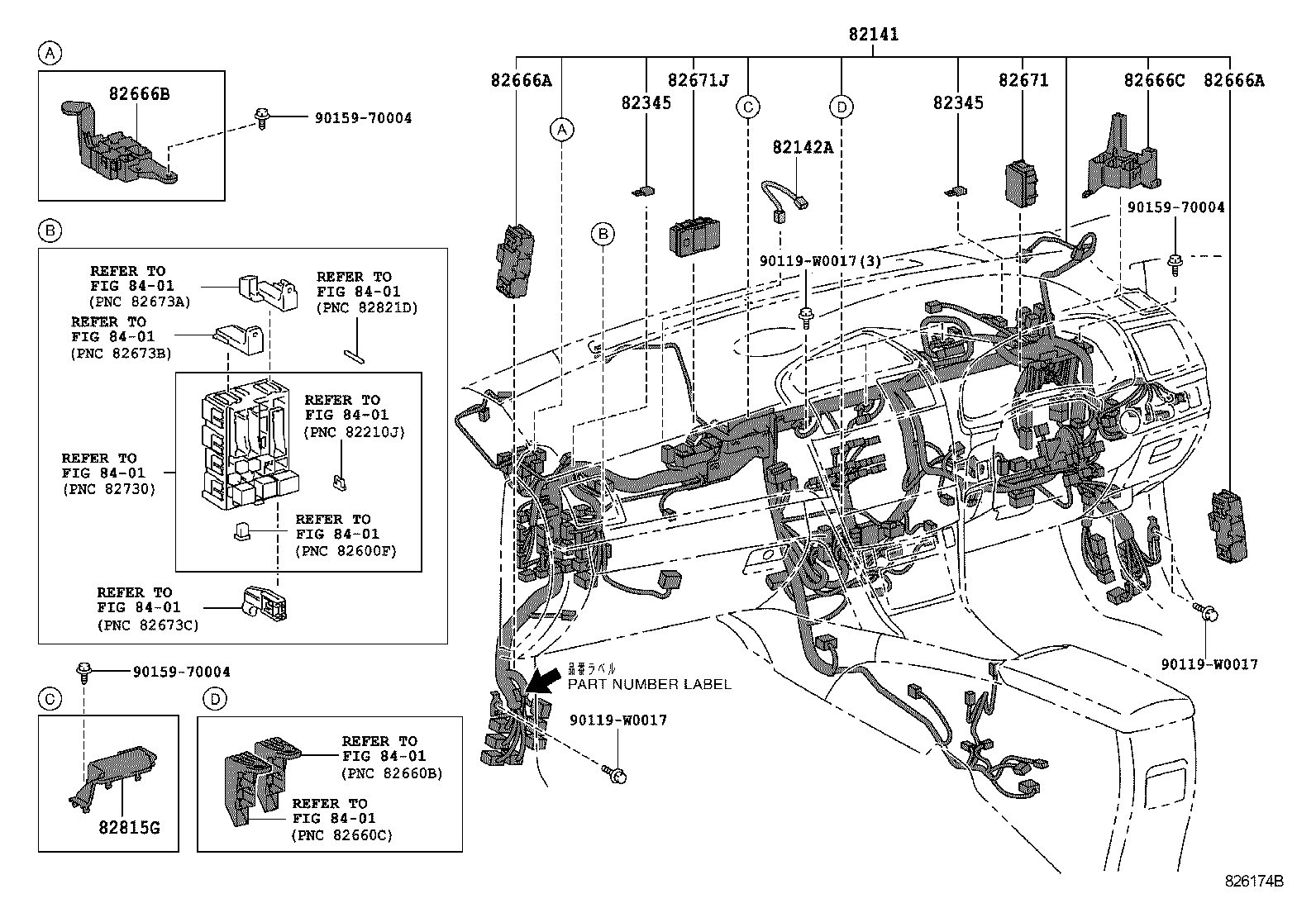

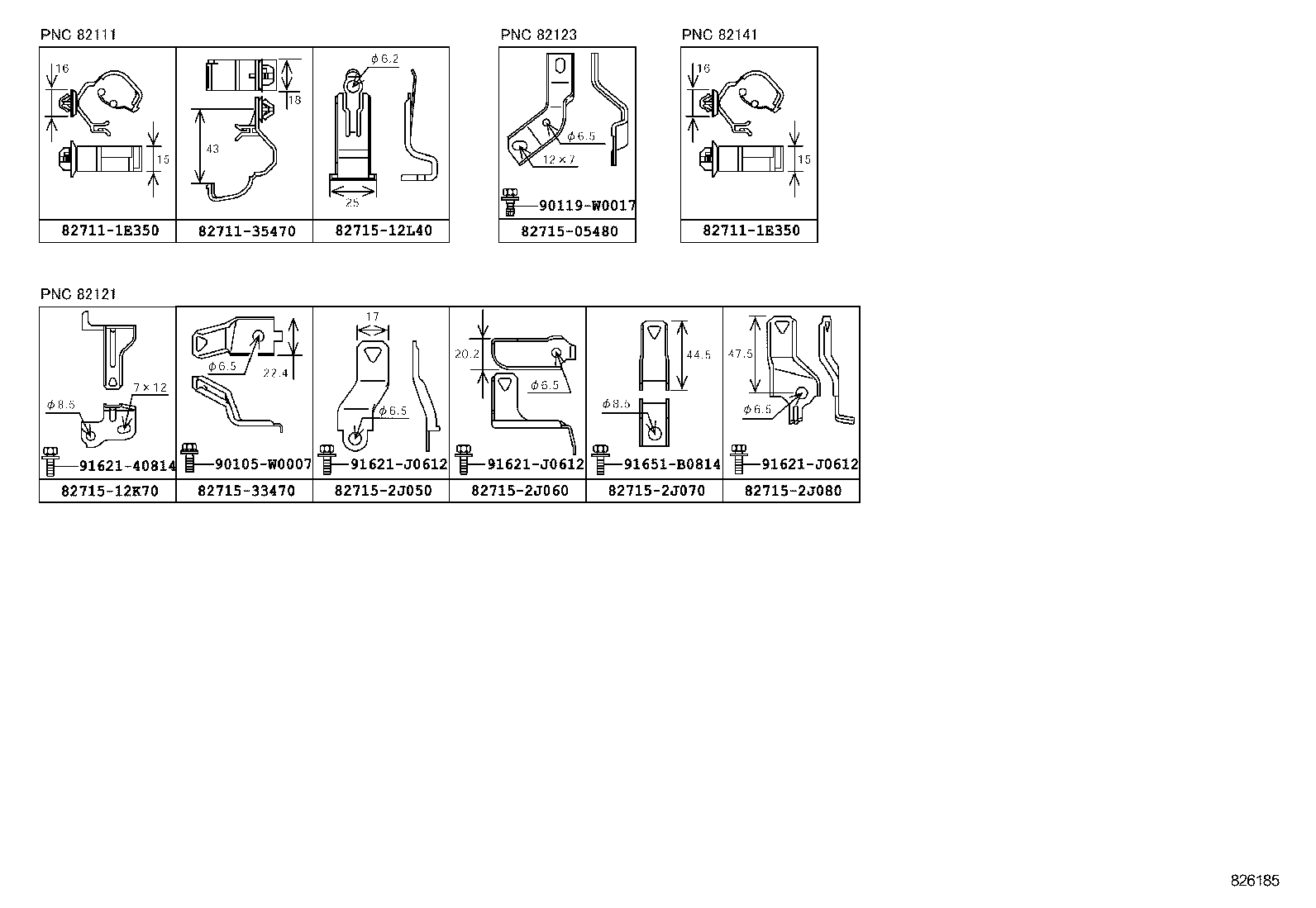

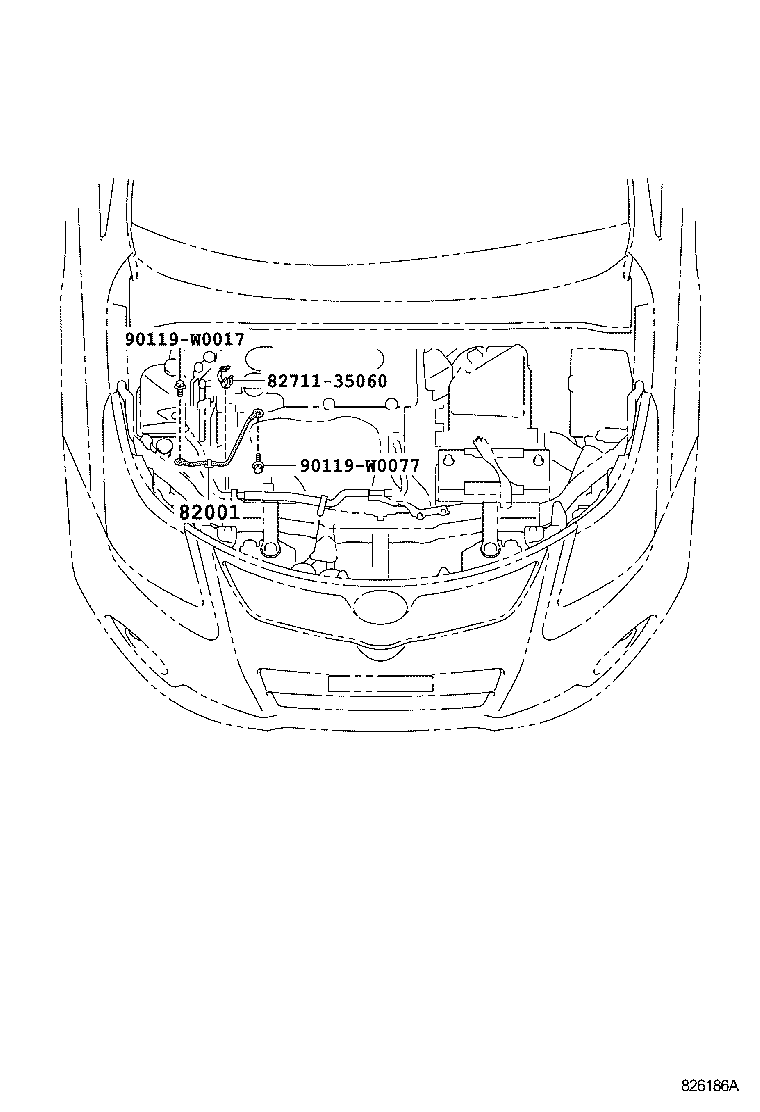

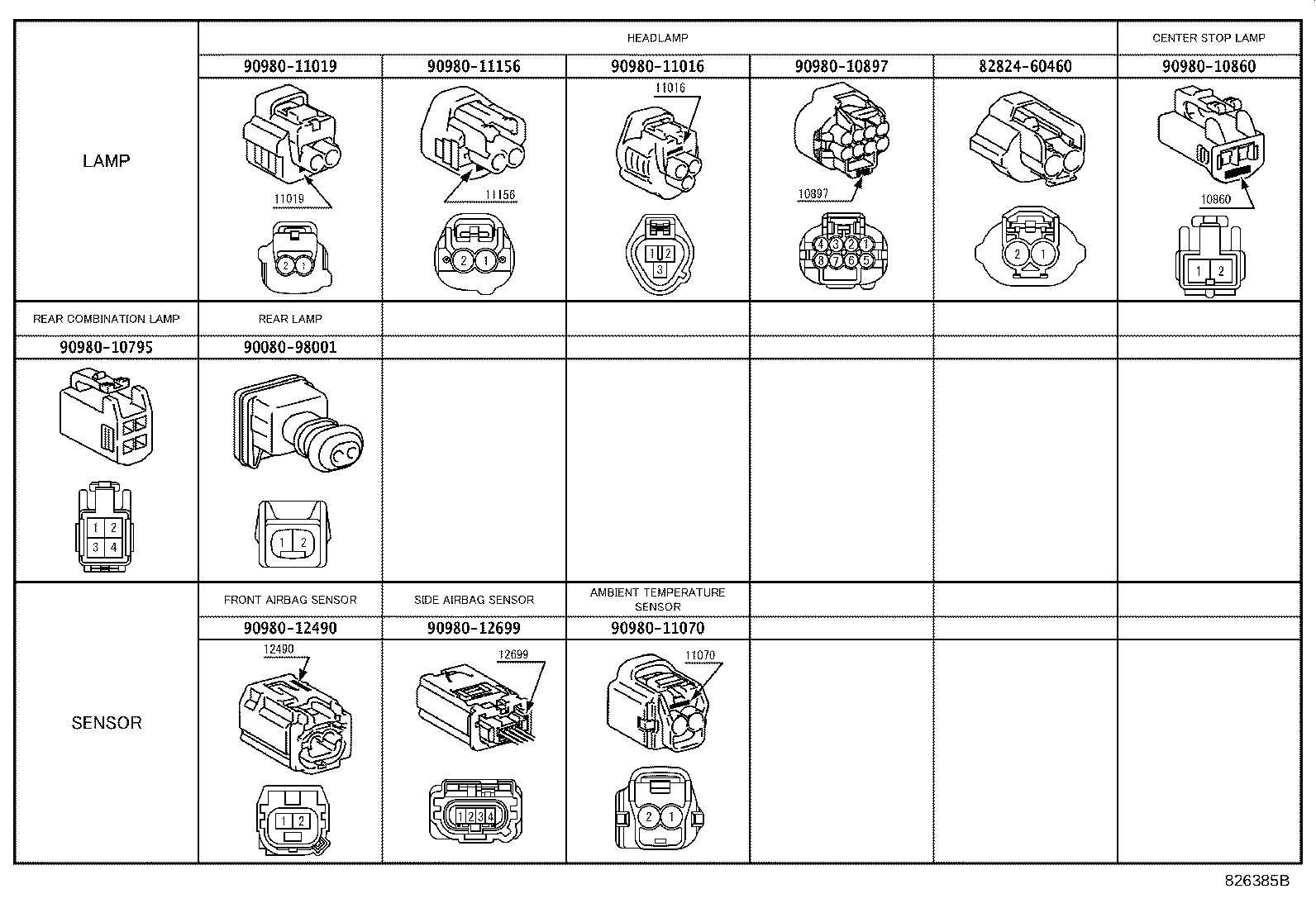

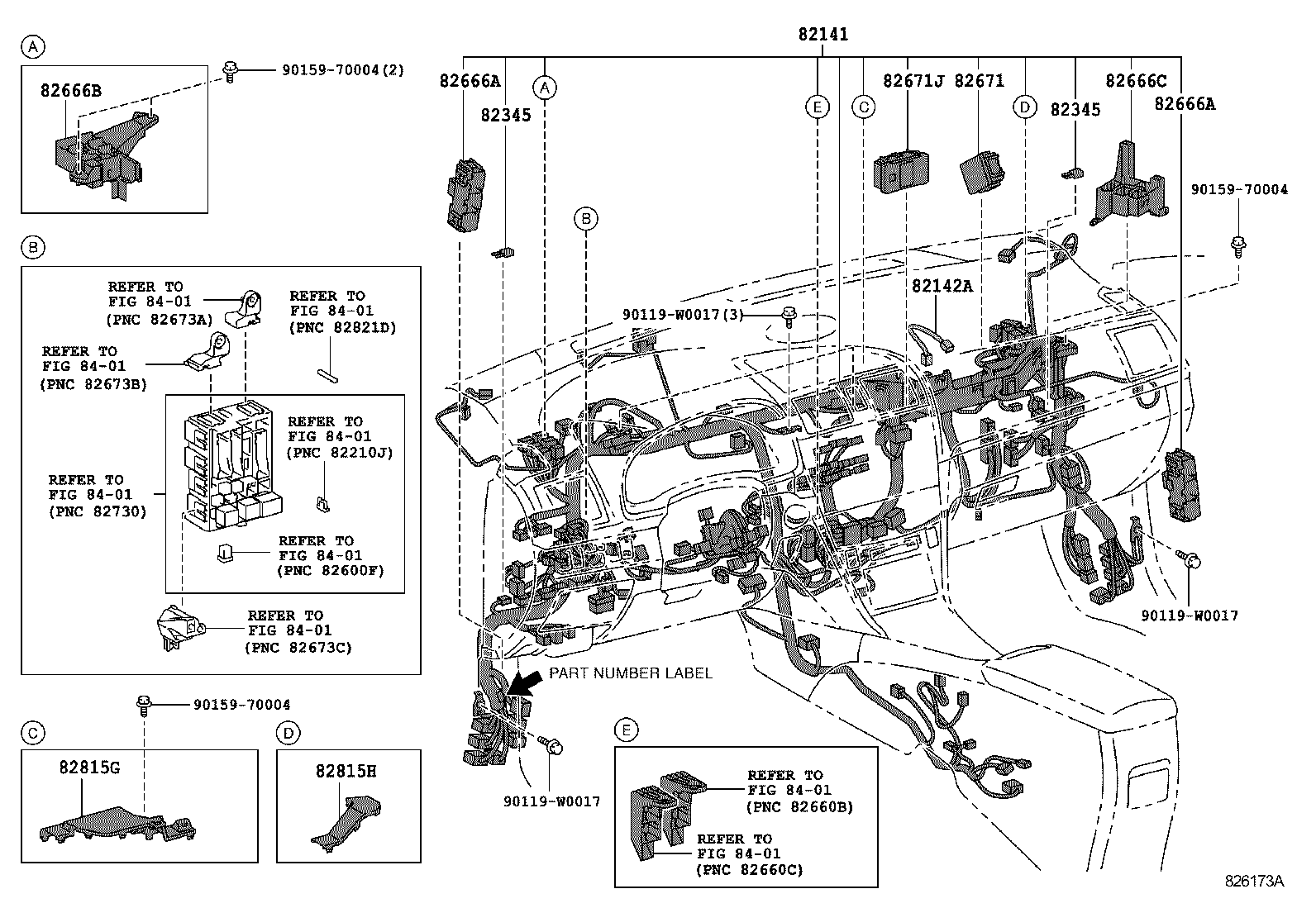

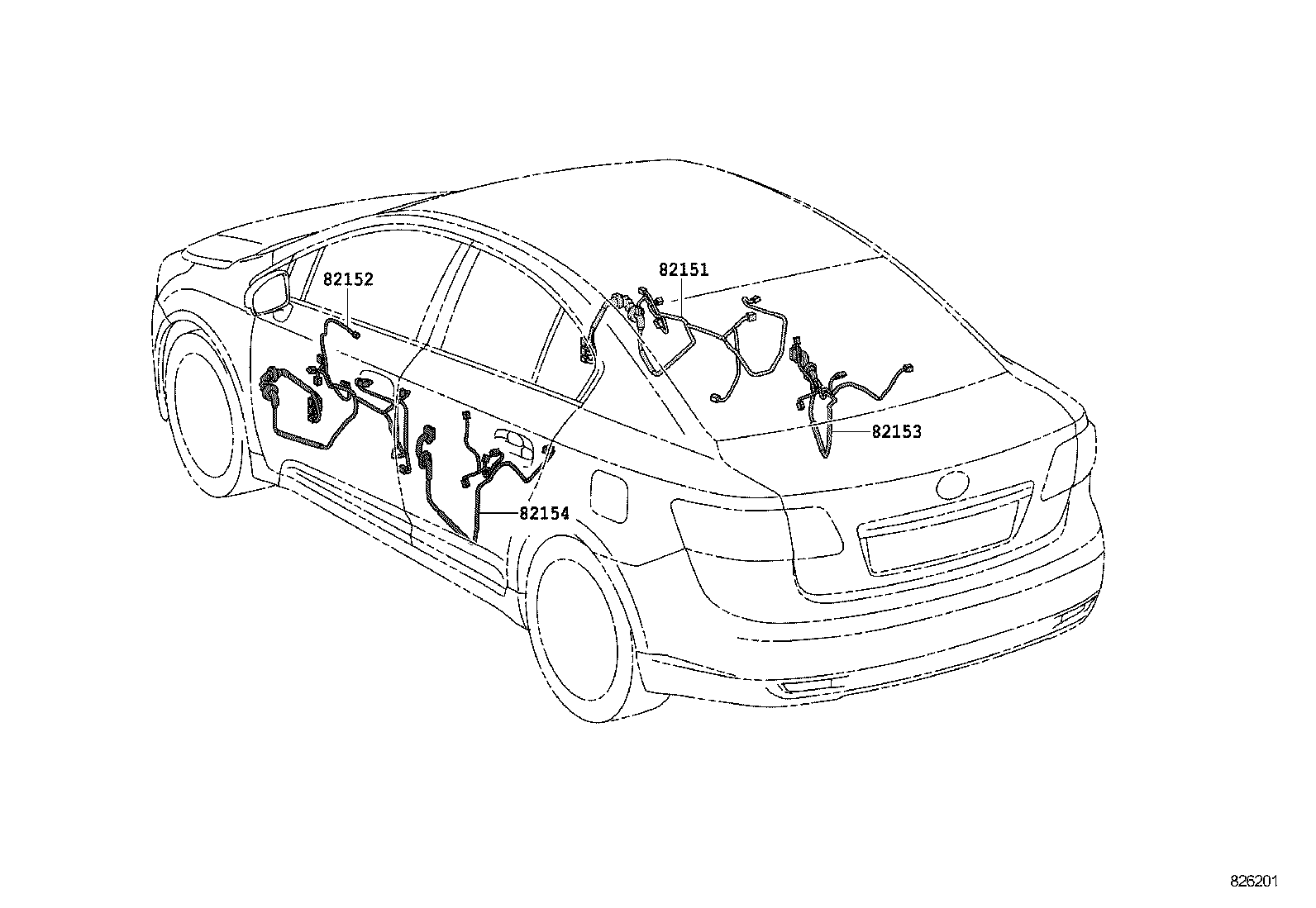

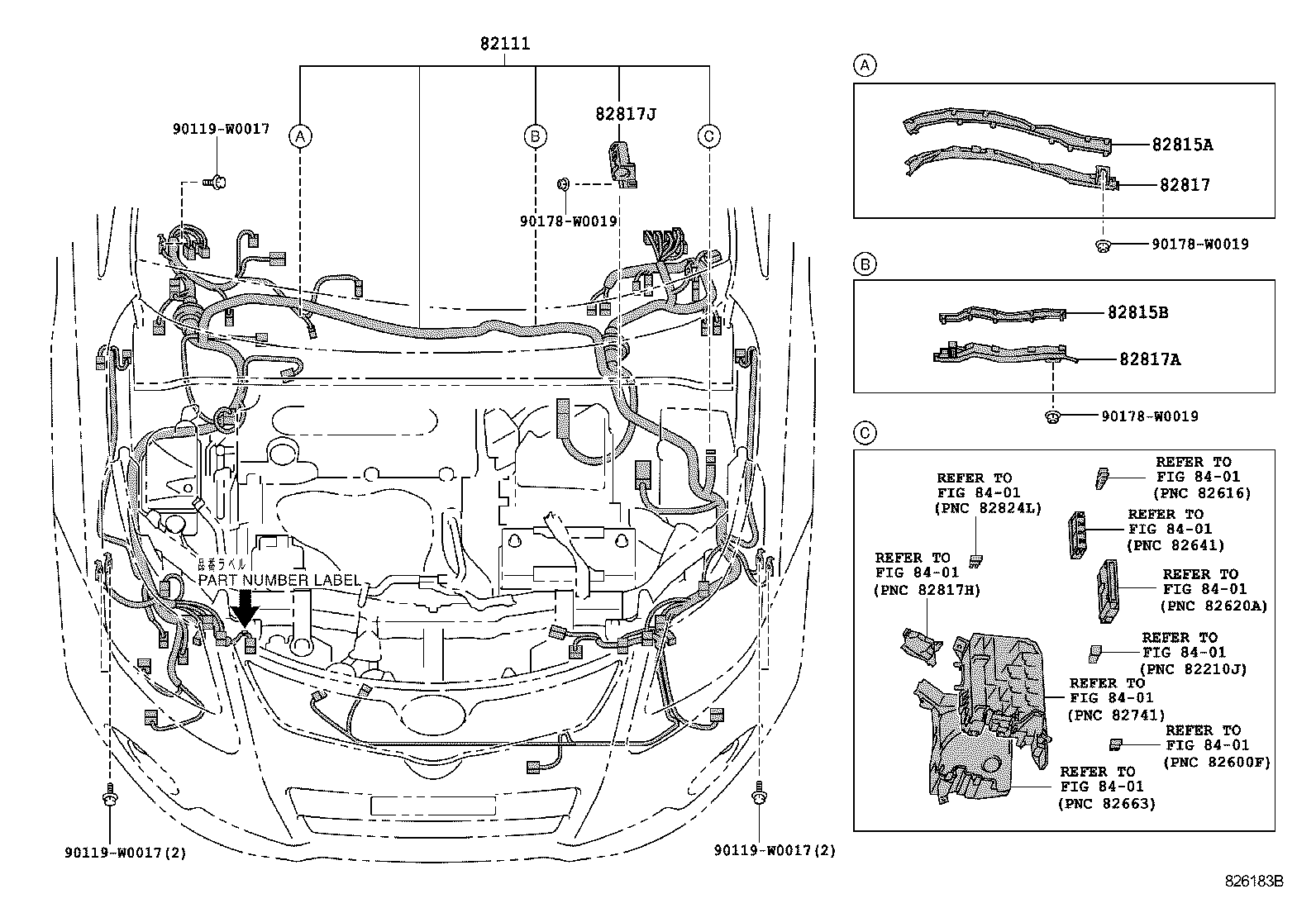

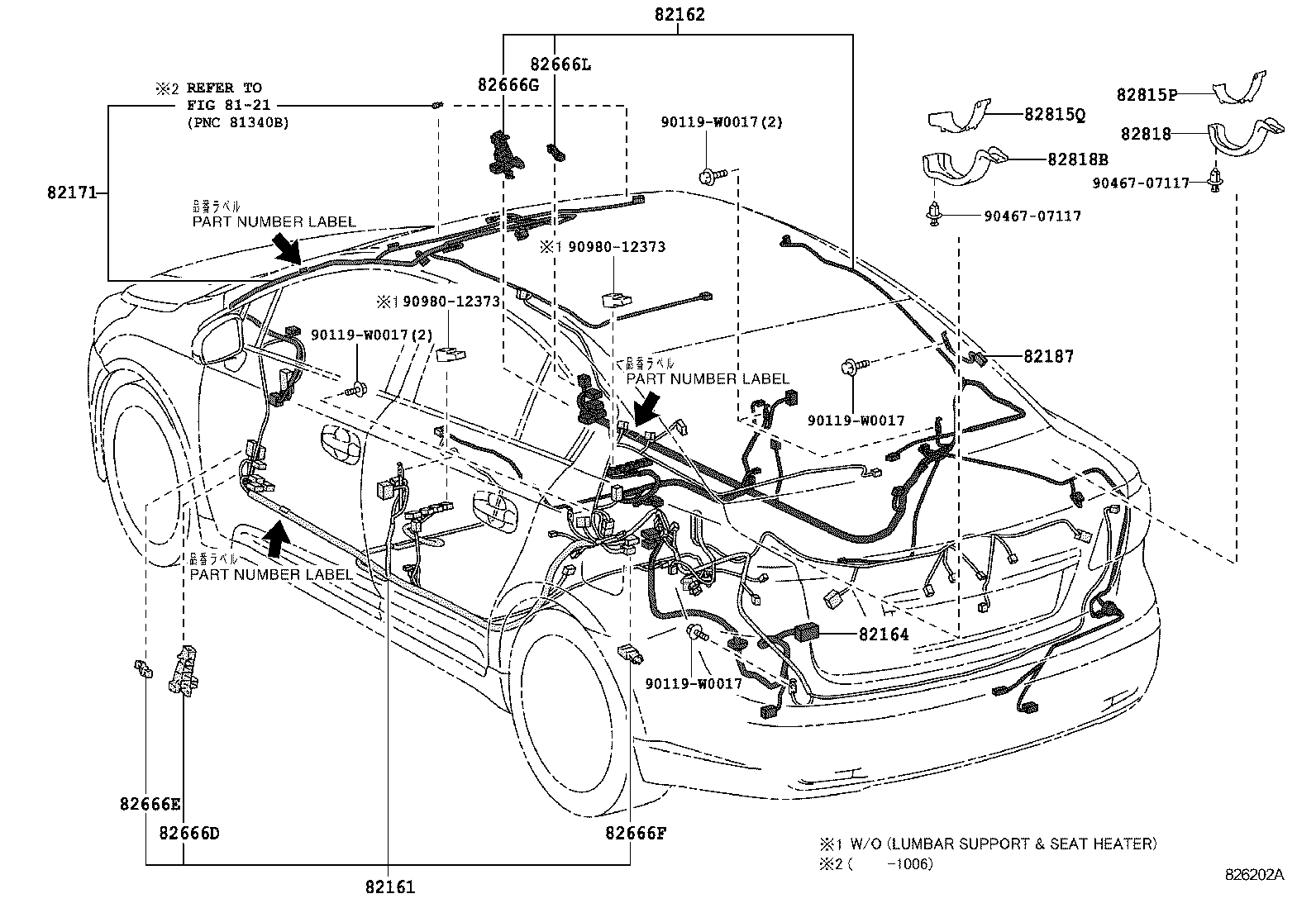

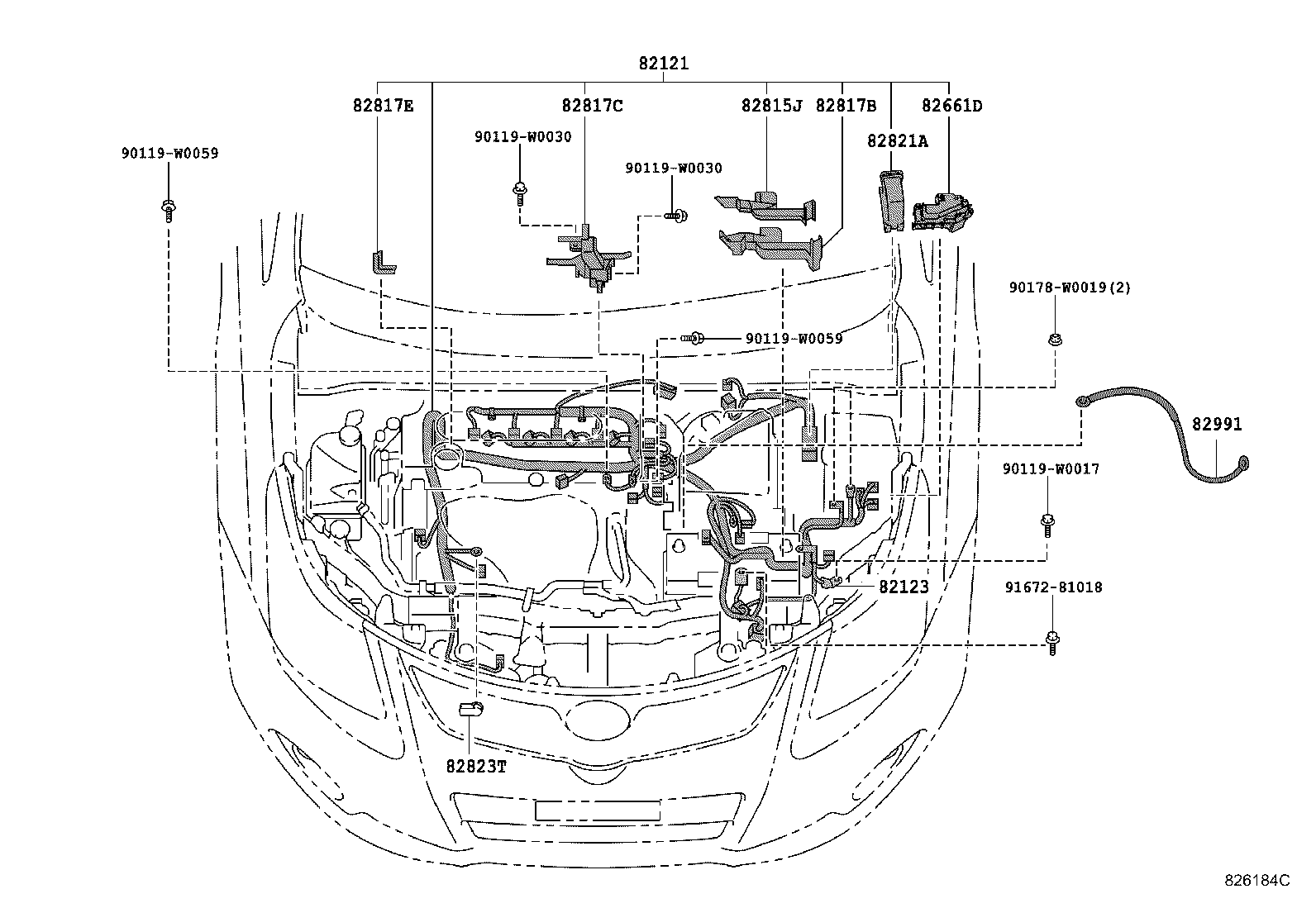

Figure 826182A 826182A 2008-11 → 2011-04 Figure 826183B 826183B 2008-11 → 2011-04 Figure 826184C 826184C 2008-11 → 2011-04 Figure 826173A 826173A 2008-11 → 2011-04 Figure 826174B 826174B 2008-11 → 2011-04 Figure 826201 826201 2008-11 → 2011-04 Figure 826202A 826202A 2008-11 → 2011-04 Figure 826178 826178 2008-11 → 2011-04 Figure 826185 826185 2008-11 → 2011-04 Figure 826186A 826186A 2008-11 → 2011-04 Figure 826385B 826385B 2008-11 → 2011-04 Figure 826386A 826386A 2008-11 → 2011-04

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82171 Wire, Roof, NO.1
82187 Wire, Rear Window, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82345 Diode
82661D Cover, Relay Block, Side NO.1
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82666D Holder, Connector NO.5
82666E Holder, Connector NO.6
82666F Holder, Connector NO.7
82666G Holder, Connector NO.8
82666L Holder, Connector NO.9
82671 Block, Junction
82671J Block, Junction, NO.2
82815A Cover, Wiring Harness Protector
82815B Cover, Wiring Harness Protector
82815G Cover, Wiring Harness Protector NO.5
82815H Cover, Wiring Harness Protector NO.6
82815J Cover, Wiring Harness Protector, NO.7
82815P Cover, Wiring Harness Protector, NO.12
82815Q Cover, Wiring Harness Protector, NO.13
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817C Protector, Wiring Harness, NO.4
82817E Protector, Wiring Harness, NO.6
82817J Protector, Wiring Harness, NO.9
82818 Protector, Wiring Harness, NO.2
82818B Protector, Wiring Harness, NO.3
82821A Cover, Connector
82823T Cap, Alternator Terminal
82991 Wire, Fusible Link Repair
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
