Toyota Corona WG

1992-11 → 1996-01 · chassis ST191 · catalogue 274330 · General

Discontinued model Data version 1997-10

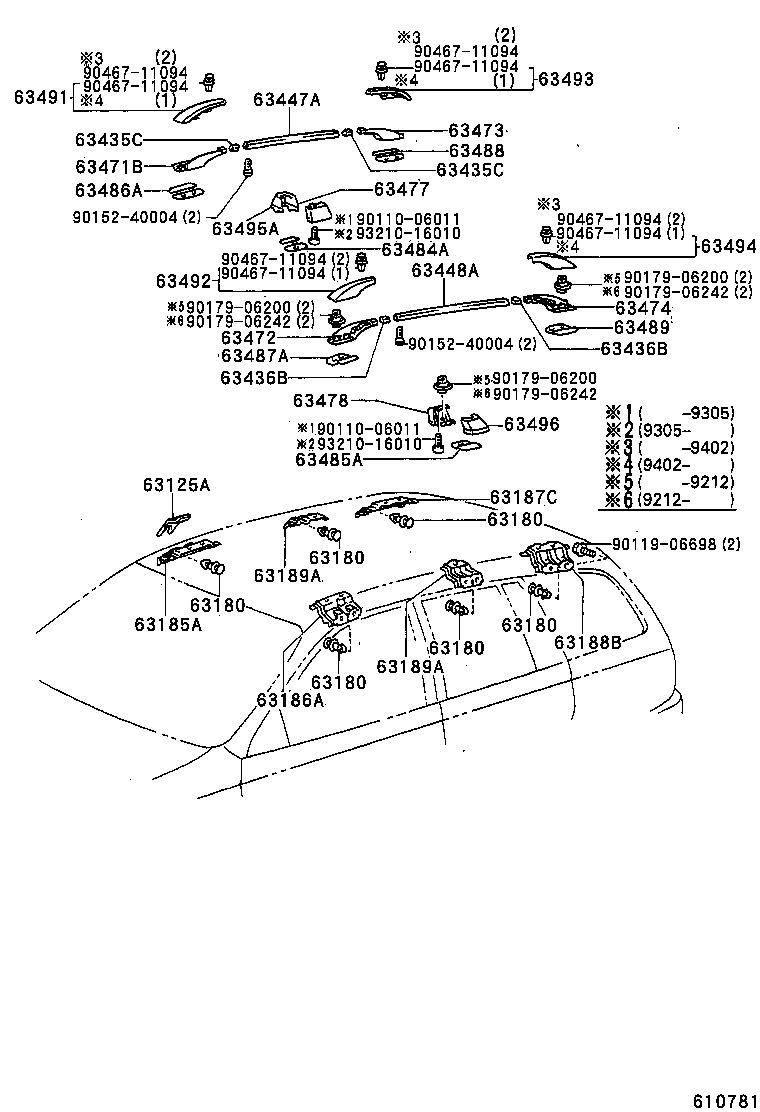

Roof Panel & Back Window Glass

42 part groups · 2 illustrations

PNC	Description
63102A	Panel Sub-assy, Windshield Header
63111	Panel, Roof
63125A	Shim, Roof Panel
63127	Reinforcement, Roof Panel, NO.5
63134A	Frame, Back Door Opening, Upper
63141H	Reinforcement, Roof Panel, Center
63143B	Reinforcement, Roof Panel, NO.3
63144A	Reinforcement, Roof Panel, NO.4
63147C	Reinforcement, Back Door Opening Frame, Upper Center
63148A	Reinforcement, Roof Panel, NO.7
63175A	Reinforcement, Back Door Hinge Female, RH
63176A	Reinforcement, Back Door Hinge Female, LH
63177	Reinforcement, Roof Panel, NO.9
63178A	Reinforcement, Roof Panel, NO.10
63180	Clip(BRACKET, ROOF RACK)
63185A	Bracket, Roof Rack, Front RH
63186A	Bracket, Roof Rack, Front LH
63187C	Bracket, Roof Rack, NO.1 Rear RH
63188B	Bracket, Roof Rack, NO.1 Rear LH
63189A	Bracket, Roof Rack, Center
63435C	Seal, Roof Carrier, NO.1 RH
63436B	Seal, Roof Carrier, NO.1 LH
63447A	Roof Rail, RH
63448A	Roof Rail, LH
63471B	Leg, Roof Rack, Front RH
63472	Leg, Roof Rack, Front LH
63473	Leg, Roof Rack, Rear RH
63474	Leg, Roof Rack, Rear LH
63477	Support, Roof Rack, Center RH
63478	Support, Roof Rack, Center LH
63484A	Cushion, Roof Rack Leg, Center RH
63485A	Cushion, Roof Rack Leg, Center LH
63486A	Cushion, Roof Rack Leg, Front RH
63487A	Cushion, Roof Rack Leg, Front LH
63488	Cushion, Roof Rack Leg, Rear RH
63489	Cushion, Roof Rack Leg, Rear LH
63491	Cover, Roof Rack Leg, Front RH
63492	Cover, Roof Rack Leg, Front LH
63493	Cover, Roof Rack Leg, Rear RH
63494	Cover, Roof Rack Leg, Rear LH
63495A	Cover, Roof Rack Leg, Center
63496	Cover, Roof Rack Leg, Center LH

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
