Oil Cooler & Tube (ATM)

18 part groups · 2 illustrations

Illustrations

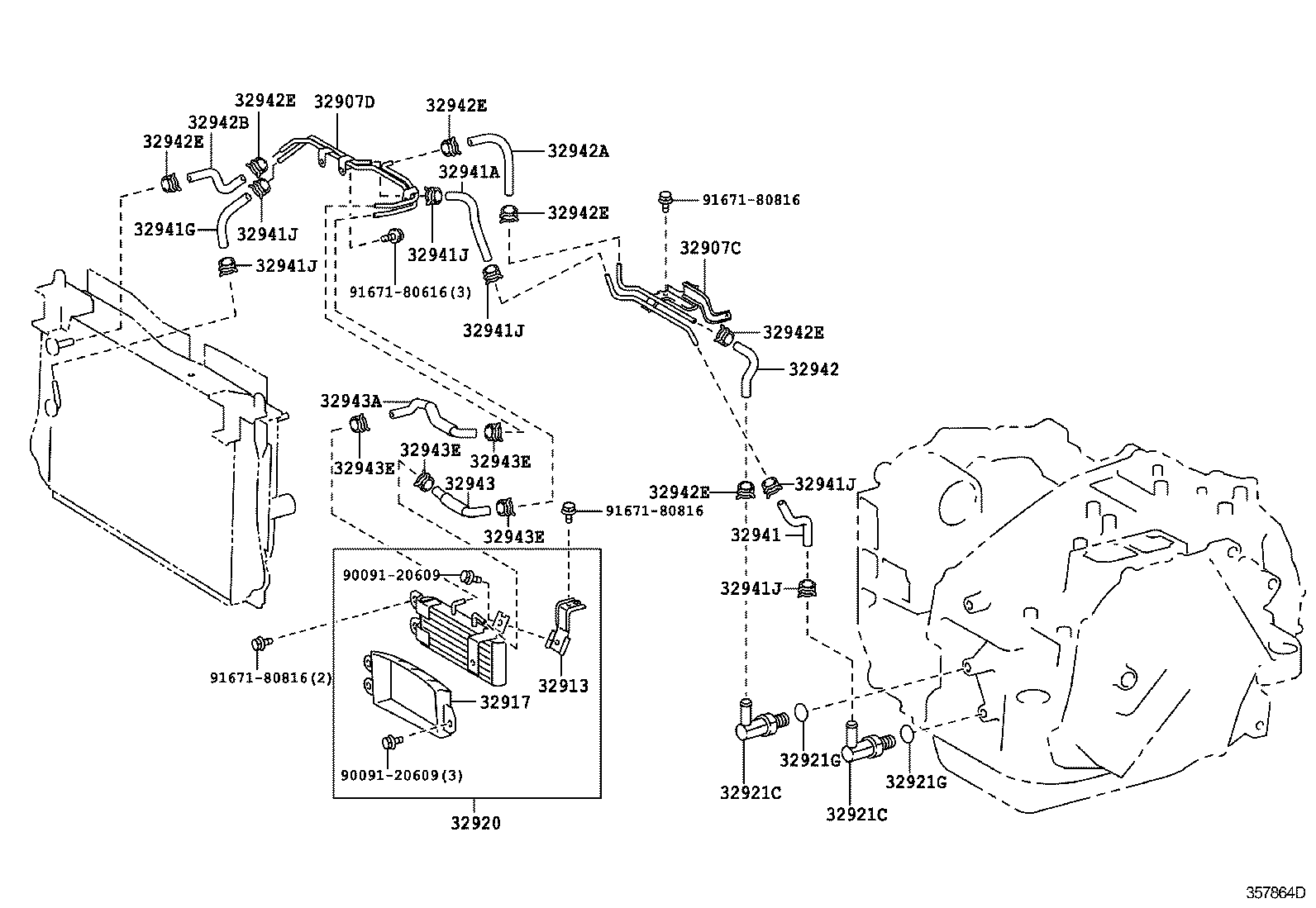

Figure 357865 357865 2010-08 → — Figure 357864D 357864D 2010-08 → —

Part groups

PNCDescription
32907C Tube Sub-assy, Oil Cooler W/O Hose, NO.1
32907D Tube Sub-assy, Oil Cooler W/O Hose, NO.2
32913 Bracket, Oil Cooler
32917 Duct, Transmission Oil Cooler Air
32920 Cooler Assy, Oil W/Hose
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32941 Hose, Oil Cooler Inlet, NO.1
32941A Hose, Oil Cooler Inlet, NO.2
32941G Hose, Oil Cooler Inlet, NO.3
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942A Hose, Oil Cooler Outlet, NO.2
32942B Hose, Oil Cooler Outlet, NO.3
32942E Clip, NO.2(FOR OIL COOLER HOSE)
32943 Hose, Transmission Oil Cooler, NO.1
32943A Hose, Transmission Oil Cooler, NO.2
32943E Clip, NO.3(FOR OIL COOLER HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
