Toyota Camry (CHINA)

2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

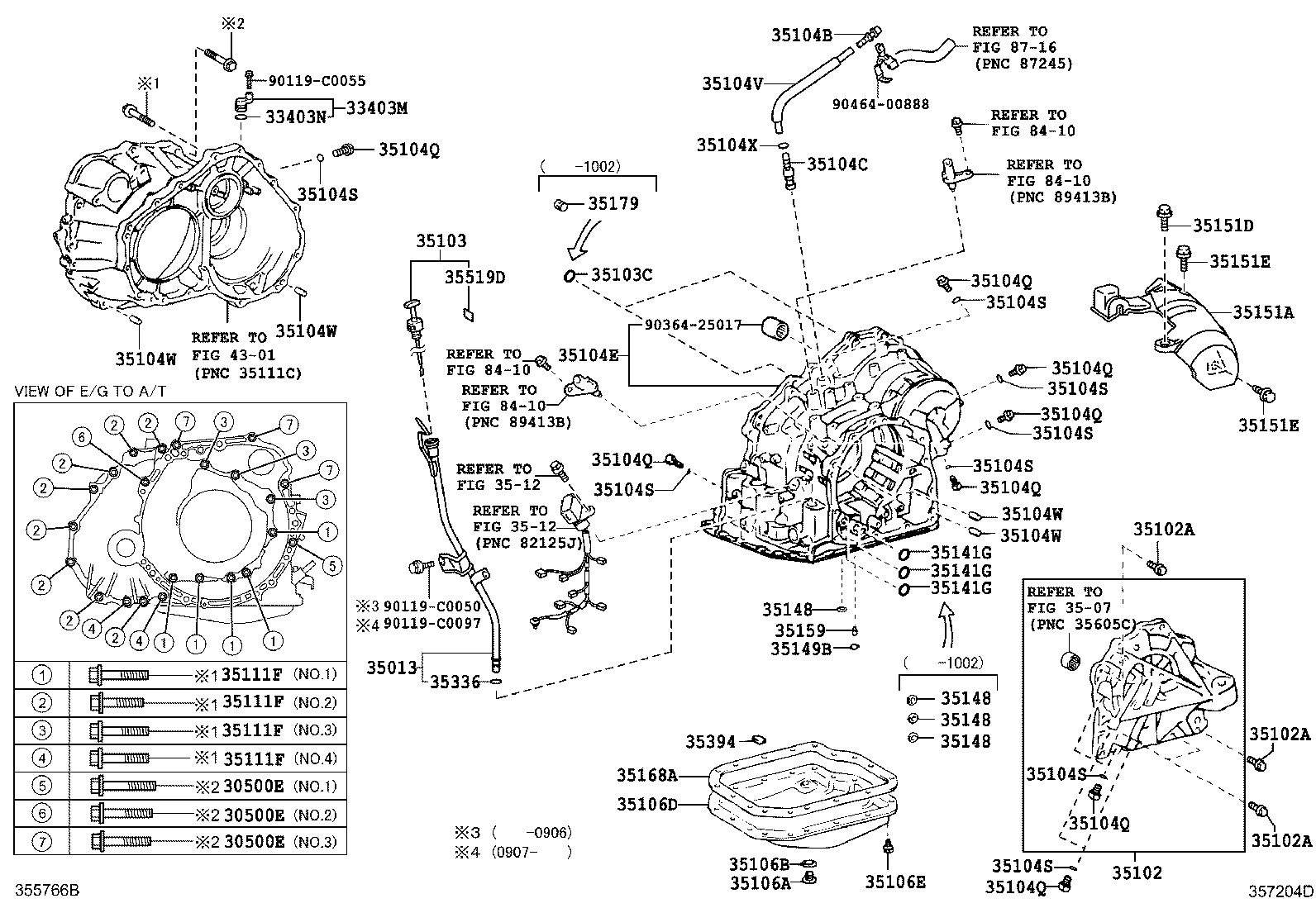

Exploded illustration 357204D 35104X — RING, O (FOR BREATHER PLUG) (4 parts) 35104C — PLUG, BREATHER, NO.2 (ATM) (3 parts) 9046400888 — not listed in this catalogue 35104V — HOSE (FOR BREATHER PLUG) (3 parts) 35104B — PLUG, BREATHER, NO.1 (ATM) (3 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (4 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (4 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (4 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (4 parts) 35148 — GASKET, GOVERNOR APPLY, NO.1 (5 parts) 35148 — GASKET, GOVERNOR APPLY, NO.1 (5 parts) 35148 — GASKET, GOVERNOR APPLY, NO.1 (5 parts) 35148 — GASKET, GOVERNOR APPLY, NO.1 (5 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (4 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (4 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (4 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (4 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (4 parts) 35104W — PIN, STRAIGHT (FOR TRANSAXLE CASE) (4 parts) 35104W — PIN, STRAIGHT (FOR TRANSAXLE CASE) (4 parts) 35151D — BOLT (FOR TRANSAXLE CASE UPPER COVER) (2 parts) 35151E — BOLT (FOR TRANSAXLE CASE UPPER COVER) (1 parts) 35151A — COVER, TRANSAXLE CASE, UPPER (2 parts) 35151E — BOLT (FOR TRANSAXLE CASE UPPER COVER) (1 parts) 35102A — BOLT (FOR TRANSAXLE REAR COVER SETTING) (3 parts) 35102A — BOLT (FOR TRANSAXLE REAR COVER SETTING) (3 parts) 35102A — BOLT (FOR TRANSAXLE REAR COVER SETTING) (3 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (4 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (4 parts) 35102 — COVER SUB-ASSY, TRANSAXLE REAR (4 parts) 35159 — GASKET, BRAKE DRUM (3 parts) 35149B — GASKET, TRANSAXLE CASE 2ND BRAKE (3 parts) 35168A — GASKET, AUTOMATIC TRANSAXLE OIL PAN (4 parts) 35106D — PAN SUB-ASSY, AUTOMATIC TRANSAXLE OIL (4 parts) 35106E — BOLT (FOR TRANSAXLE OIL PAN) (3 parts) 35394 — MAGNET, OIL CLEANER (FOR TRANSMISSION) (3 parts) 35106B — GASKET, DRAIN PLUG (ATM) (3 parts) 35106A — PLUG SUB-ASSY, DRAIN (ATM) (3 parts) 8410 — not listed in this catalogue 35104E — CASE SUB-ASSY, AUTOMATIC TRANSAXLE (6 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (4 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (4 parts) 9036425017 — not listed in this catalogue 33403M — COVER SUB-ASSY, SPEEDOMETER DRIVEN HOLE (ATM) (2 parts) 33403N — RING, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER) (3 parts) 35103 — GAGE SUB-ASSY, TRANSMISSION OIL LEVEL (6 parts) 35519D — LABEL, AUTOMATIC TRANSMISSION INFORMATION (5 parts) 90119C0055 — not listed in this catalogue 35104W — PIN, STRAIGHT (FOR TRANSAXLE CASE) (4 parts) 35336 — RING, O (FOR TRANSMISSION OIL FILLER TUBE) (3 parts) 35013 — TUBE SUB-ASSY, TRANSMISSION OIL FILLER (3 parts) 90119C0050 — not listed in this catalogue 90119C0097 — not listed in this catalogue 35104W — PIN, STRAIGHT (FOR TRANSAXLE CASE) (4 parts) 3512 — not listed in this catalogue 8410 — not listed in this catalogue 35111F — BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) (12 parts) 35111F — BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) (12 parts) 30500E — BOLT(FOR TRANSAXLE & ENGINE SETTING) (6 parts) 30500E — BOLT(FOR TRANSAXLE & ENGINE SETTING) (6 parts) 30500E — BOLT(FOR TRANSAXLE & ENGINE SETTING) (6 parts) 35111F — BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) (12 parts) 35111F — BOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING) (12 parts) 35104S — RING, O (FOR TRANSAXLE CASE PLUG NO.1) (4 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (4 parts) 35104Q — PLUG, NO.1 (FOR TRANSAXLE CASE) (4 parts) 35179 — GASKET, OVERDRIVE BRAKE (3 parts) 35103C — RING, O (2 parts) 35141G — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (3 parts) 35141G — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (3 parts) 35141G — RING, O (FOR AUTOMATIC TRANSMISSION CASE) (3 parts) 4301 — not listed in this catalogue 8410 — not listed in this catalogue 8410 — not listed in this catalogue 3512 — not listed in this catalogue 8716 — not listed in this catalogue 3507 — not listed in this catalogue
357204D · 63 callouts, 14 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
122 parts on this figure
Part number Description Fitment Price
30500E — Bolt(FOR TRANSAXLE & ENGINE SETTING)
90105-C0031 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2006-05 → 2009-03 ended
ACV4# —
90105-C0032 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2006-05 → 2009-03 ended
ACV4# —
90119-C0040 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2006-05 → 2009-03 ended
ACV4# —
90105-C0031 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2009-02 → —
ACV4# —
90105-C0032 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2009-02 → —
ACV4# —
90119-C0040 note Bolt(FOR TRANSAXLE & ENGINE SETTING)
2009-02 → —
ACV4# —
33403M — Cover Sub-assy, Speedometer Driven Hole (ATM)
33403-06010 Cover Sub-assy, Speedometer Driven Hole (ATM)
2006-05 → 2009-03 ended
ACV4# —
33403-06010 Cover Sub-assy, Speedometer Driven Hole (ATM)
2009-02 → 2015-05 ended
ACV4# —
33403N — Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
96711-24018 Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
2006-05 → 2009-02 ended
ACV40 —
96711-24018 Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
2006-05 → 2009-03 ended
ACV41 —
96711-24018 Ring, O (FOR ATM SPEEDOMETER DRIVEN HOLE COVER)
2009-02 → —
ACV4# —
35013 — Tube Sub-assy, Transmission Oil Filler
35013-33190 Tube Sub-assy, Transmission Oil Filler
2006-05 → 2009-02 ended
ACV40 —
35013-33190 Tube Sub-assy, Transmission Oil Filler
2006-05 → 2009-03 ended
ACV41 —
35013-33190 Tube Sub-assy, Transmission Oil Filler
2009-02 → —
ACV4# —
35102 — Cover Sub-assy, Transaxle Rear
35102-33020 Cover Sub-assy, Transaxle Rear
2006-05 → 2009-03 ended
ACV41 —
35102-33070 Cover Sub-assy, Transaxle Rear
2006-05 → 2009-02 ended
ACV40 —
35102-33020 Cover Sub-assy, Transaxle Rear
2009-03 → —
ACV41 —
35102-33050 Cover Sub-assy, Transaxle Rear
2009-02 → 2011-12 ended
ACV40 —
35102A — Bolt (FOR TRANSAXLE REAR COVER SETTING)
90105-08071 note Bolt (FOR TRANSAXLE REAR COVER SETTING)
2006-05 → 2009-02 ended
ACV40 —
90105-08071 note Bolt (FOR TRANSAXLE REAR COVER SETTING)
2006-05 → 2009-03 ended
ACV41 —
90105-08071 note Bolt (FOR TRANSAXLE REAR COVER SETTING)
2009-02 → —
ACV4# —
35103 — Gage Sub-assy, Transmission Oil Level
35103-33320 Gage Sub-assy, Transmission Oil Level
2006-05 → 2009-03 ended
ACV41 —
35103-33330 Gage Sub-assy, Transmission Oil Level
2006-05 → 2007-03 ended
ACV40 —
35103-33331 Gage Sub-assy, Transmission Oil Level
2007-04 → 2009-02 ended
ACV40 —
35103-06100 Gage Sub-assy, Transmission Oil Level
2013-03 → —
ACV41 —
35103-33320 Gage Sub-assy, Transmission Oil Level
2009-03 → 2013-02 ended
ACV41 —
35103-33331 Gage Sub-assy, Transmission Oil Level
2009-02 → 2011-12 ended
ACV40 —
35103C — Ring, O
90301-06008 Ring, O
2010-02 → 2013-07 ended
ACV4# —
90301-06024 Ring, O
2013-07 → —
ACV41 —
35104B — Plug, Breather, NO.1 (ATM)
90930-03149 Plug, Breather, NO.1 (ATM)
2006-05 → 2009-02 ended
ACV40 —
90930-03149 Plug, Breather, NO.1 (ATM)
2006-05 → 2009-03 ended
ACV41 —
90930-03149 Plug, Breather, NO.1 (ATM)
2009-02 → —
ACV4# —
35104C — Plug, Breather, NO.2 (ATM)
90930-03157 Plug, Breather, NO.2 (ATM)
2006-05 → 2009-03 ended
ACV41 —
90930-03157 Plug, Breather, NO.2 (ATM)
2006-05 → 2009-02 ended
ACV40 —
90930-03157 Plug, Breather, NO.2 (ATM)
2009-02 → —
ACV4# —
35104E — Case Sub-assy, Automatic Transaxle
35104-33070 Case Sub-assy, Automatic Transaxle
2006-09 → 2007-02 ended
ACV41 —
35104-33080 Case Sub-assy, Automatic Transaxle
2006-05 → 2009-02 ended
ACV40 —
35104-33090 Case Sub-assy, Automatic Transaxle
2006-05 → 2006-09 ended
ACV41 —
35104-33091 Case Sub-assy, Automatic Transaxle
2007-02 → 2009-03 ended
ACV41 —
35104-33091 Case Sub-assy, Automatic Transaxle
2009-02 → 2010-02 ended
ACV4# —
35104-33092 Case Sub-assy, Automatic Transaxle
2010-02 → —
ACV4# —
35104Q — Plug, NO.1 (FOR TRANSAXLE CASE)
90341-08001 Plug, NO.1 (FOR TRANSAXLE CASE)
2006-05 → 2009-02 ended
ACV40 —
90341-08001 Plug, NO.1 (FOR TRANSAXLE CASE)
2006-05 → 2009-03 ended
ACV41 —
90341-08001 Plug, NO.1 (FOR TRANSAXLE CASE)
2009-02 → 2011-12 ended
ACV40 —
90341-08001 Plug, NO.1 (FOR TRANSAXLE CASE)
2009-03 → —
ACV41 —
35104S — Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
90301-06196 Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
2006-05 → 2009-03 ended
ACV41 —
90301-06196 Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
2006-05 → 2009-02 ended
ACV40 —
90301-06196 Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
2009-02 → 2011-12 ended
ACV40 —
90301-06196 Ring, O (FOR TRANSAXLE CASE PLUG NO.1)
2009-03 → —
ACV41 —
35104V — Hose (FOR BREATHER PLUG)
35121-21020 Hose (FOR BREATHER PLUG)
2006-05 → 2009-02 ended
ACV40 —
35121-21020 Hose (FOR BREATHER PLUG)
2006-05 → 2009-03 ended
ACV41 —
35121-21020 Hose (FOR BREATHER PLUG)
2009-02 → —
ACV4# —
35104W — Pin, Straight (FOR TRANSAXLE CASE)
90250-10034 Pin, Straight (FOR TRANSAXLE CASE)
2006-05 → 2009-02 ended
ACV40 —
90250-10036 Pin, Straight (FOR TRANSAXLE CASE)
2006-05 → 2009-03 ended
ACV41 —
90250-10036 Pin, Straight (FOR TRANSAXLE CASE)
2009-02 → 2013-02 ended
ACV4# —
90250-10232 Pin, Straight (FOR TRANSAXLE CASE)
2013-02 → —
ACV41 —
35104X — Ring, O (FOR BREATHER PLUG)
90301-06005 Ring, O (FOR BREATHER PLUG)
2006-05 → 2009-02 ended
ACV40 —
90301-06005 Ring, O (FOR BREATHER PLUG)
2006-05 → 2009-03 ended
ACV41 —
90301-06005 Ring, O (FOR BREATHER PLUG)
2009-02 → 2013-07 ended
ACV4# —
90301-06021 Ring, O (FOR BREATHER PLUG)
2013-07 → —
ACV41 —
35106A — Plug Sub-assy, Drain (ATM)
90341-18016 Plug Sub-assy, Drain (ATM)
2006-05 → 2009-03 ended
ACV41 —
90341-18016 Plug Sub-assy, Drain (ATM)
2006-05 → 2009-02 ended
ACV40 —
90341-18016 Plug Sub-assy, Drain (ATM)
2009-02 → —
ACV4# —
35106B — Gasket, Drain Plug (ATM)
90430-18008 Gasket, Drain Plug (ATM)
2006-05 → 2009-03 ended
ACV41 —
90430-18008 Gasket, Drain Plug (ATM)
2006-05 → 2009-02 ended
ACV40 —
90430-18008 Gasket, Drain Plug (ATM)
2009-02 → —
ACV4# —
35106D — Pan Sub-assy, Automatic Transaxle Oil
35106-33030 Pan Sub-assy, Automatic Transaxle Oil
2006-05 → 2009-03 ended
ACV41 —
35106-33040 Pan Sub-assy, Automatic Transaxle Oil
2006-05 → 2009-02 ended
ACV40 —
35106-33030 Pan Sub-assy, Automatic Transaxle Oil
2009-03 → —
ACV41 —
35106-33050 Pan Sub-assy, Automatic Transaxle Oil
2009-02 → 2011-12 ended
ACV40 —
35106E — Bolt (FOR TRANSAXLE OIL PAN)
90119-06173 Bolt (FOR TRANSAXLE OIL PAN)
2006-05 → 2009-02 ended
ACV40 —
90119-06173 Bolt (FOR TRANSAXLE OIL PAN)
2006-05 → 2009-03 ended
ACV41 —
90119-06173 Bolt (FOR TRANSAXLE OIL PAN)
2009-02 → —
ACV4# —
35111F — Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
90105-06320 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2006-05 → 2009-02 ended
ACV40 —
90105-06320 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2007-02 → 2009-03 ended
ACV41 —
90105-08066 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2006-05 → 2009-02 ended
ACV40 —
90105-08233 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2006-05 → 2009-03 ended
ACV41 —
90105-08233 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2006-05 → 2009-02 ended
ACV40 —
90105-08353 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2006-05 → 2009-02 ended
ACV40 —
90105-08353 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2006-05 → 2009-03 ended
ACV41 —
90105-08353 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2006-05 → 2009-03 ended
ACV41 —
90105-06320 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2009-02 → —
ACV4# —
90105-08233 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2009-02 → —
ACV4# —
90105-08353 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2009-02 → —
ACV4# —
90105-08353 note Bolt (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
2009-02 → —
ACV4# —
35141G — Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
90301-10018 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2013-07 → —
ACV41 —
90301-10189 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2010-02 → 2011-12 ended
ACV40 —
90301-10189 Ring, O (FOR AUTOMATIC TRANSMISSION CASE)
2010-02 → 2013-07 ended
ACV41 —
35148 — Gasket, Governor Apply, NO.1
35145-21010 Gasket, Governor Apply, NO.1
2006-05 → 2009-02 ended
ACV40 —
35145-21010 Gasket, Governor Apply, NO.1
2006-05 → 2009-03 ended
ACV41 —
35145-21010 Gasket, Governor Apply, NO.1
2010-02 → —
ACV4# —
35145-21010 Gasket, Governor Apply, NO.1
2009-03 → 2010-02 ended
ACV41 —
35145-21010 Gasket, Governor Apply, NO.1
2009-02 → 2010-02 ended
ACV40 —
35149B — Gasket, Transaxle Case 2ND Brake
35149-21010 Gasket, Transaxle Case 2ND Brake
2006-05 → 2009-02 ended
ACV40 —
35149-21010 Gasket, Transaxle Case 2ND Brake
2006-05 → 2009-03 ended
ACV41 —
35149-21010 Gasket, Transaxle Case 2ND Brake
2009-02 → —
ACV4# —
35151A — Cover, Transaxle Case, Upper
35151-33120 Cover, Transaxle Case, Upper
2006-05 → 2009-02 ended
ACV40 —
35151-33120 Cover, Transaxle Case, Upper
2009-02 → 2011-12 ended
ACV40 —
35151D — Bolt (FOR TRANSAXLE CASE UPPER COVER)
90105-C0002 note Bolt (FOR TRANSAXLE CASE UPPER COVER)
2006-05 → 2009-02 ended
ACV40 —
90105-C0002 note Bolt (FOR TRANSAXLE CASE UPPER COVER)
2009-02 → 2011-12 ended
ACV40 —
35151E — Bolt (FOR TRANSAXLE CASE UPPER COVER)
90105-C0006 Bolt (FOR TRANSAXLE CASE UPPER COVER)
2009-02 → —
ACV40 —
35159 — Gasket, Brake Drum
35159-21010 Gasket, Brake Drum
2006-05 → 2009-02 ended
ACV40 —
35159-21010 Gasket, Brake Drum
2006-05 → 2009-03 ended
ACV41 —
35159-21010 Gasket, Brake Drum
2009-02 → —
ACV4# —
35168A — Gasket, Automatic Transaxle Oil Pan
35168-21010 Gasket, Automatic Transaxle Oil Pan
2006-05 → 2007-09 ended
ACV40 —
35168-21011 Gasket, Automatic Transaxle Oil Pan
2007-09 → 2009-02 ended
ACV40 —
35168-21020 Gasket, Automatic Transaxle Oil Pan
2006-05 → 2009-03 ended
ACV41 —
35168-21020 Gasket, Automatic Transaxle Oil Pan
2009-02 → —
ACV4# —
35179 — Gasket, Overdrive Brake
35179-32010 Gasket, Overdrive Brake
2006-05 → 2009-02 ended
ACV40 —
35179-32010 Gasket, Overdrive Brake
2006-05 → 2009-03 ended
ACV41 —
35179-32010 Gasket, Overdrive Brake
2009-02 → 2010-02 ended
ACV4# —
35336 — Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
90301-09173 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
2006-05 → 2009-02 ended
ACV40 —
90301-09173 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
2006-05 → 2009-03 ended
ACV41 —
90301-09173 Ring, O (FOR TRANSMISSION OIL FILLER TUBE)
2009-02 → —
ACV4# —
35394 — Magnet, Oil Cleaner (FOR TRANSMISSION)
35394-30011 Magnet, Oil Cleaner (FOR TRANSMISSION)
2006-05 → 2009-03 ended
ACV41 —
35394-48010 Magnet, Oil Cleaner (FOR TRANSMISSION)
2006-05 → 2009-02 ended
ACV40 —
35394-30011 Magnet, Oil Cleaner (FOR TRANSMISSION)
2009-02 → —
ACV4# —
35519D — Label, Automatic Transmission Information
35519-28040 Label, Automatic Transmission Information
2006-05 → 2006-11 ended
ACV4# —
35519-28041 Label, Automatic Transmission Information
2006-12 → 2007-03 ended
ACV40 —
35519-28041 Label, Automatic Transmission Information
2007-04 → 2009-02 ended
ACV40 —
35519-28041 Label, Automatic Transmission Information
2006-12 → 2009-03 ended
ACV41 —
35519-28041 Label, Automatic Transmission Information
2009-02 → —
ACV4# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
