Toyota Camry (CHINA)

2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

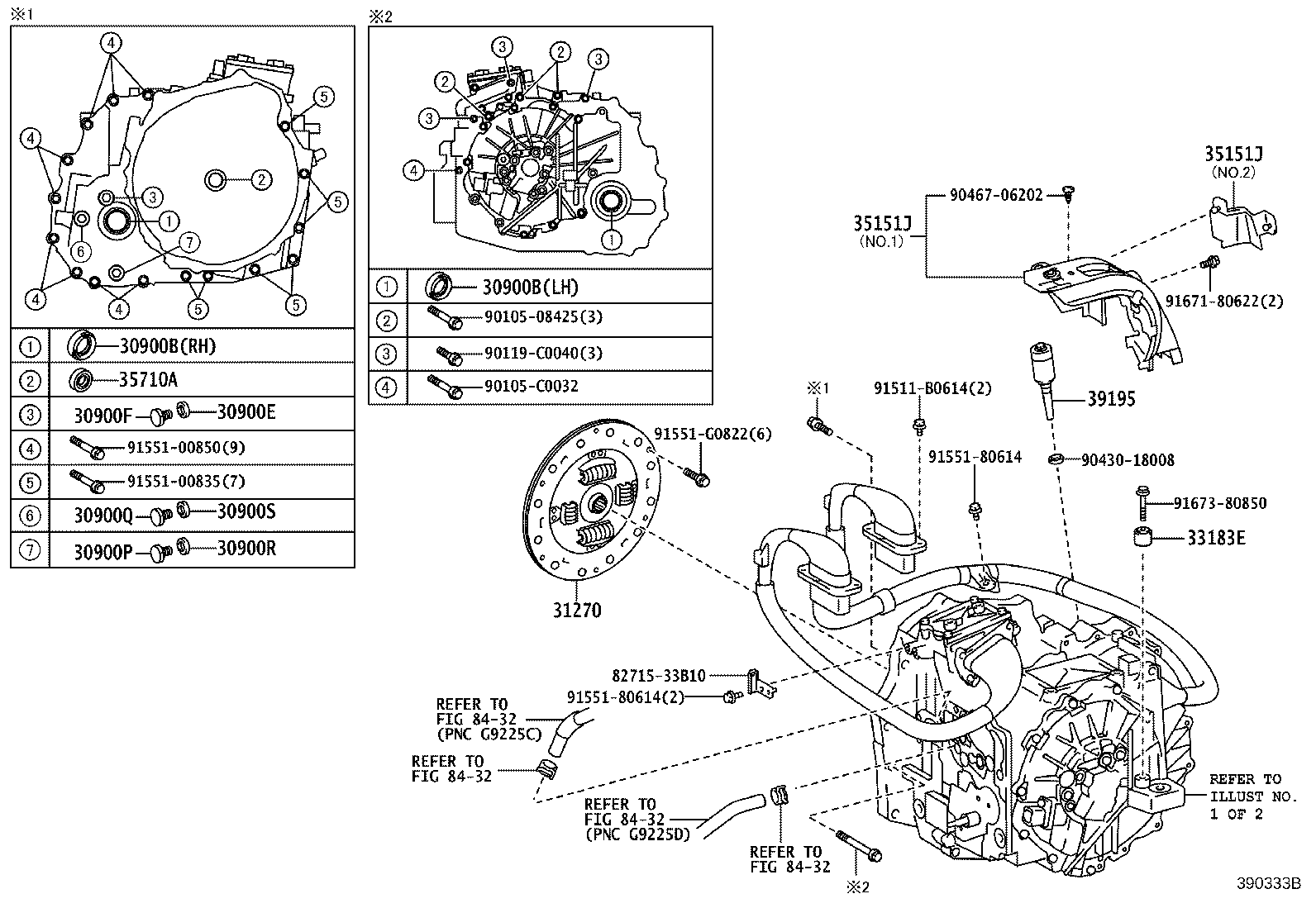

Exploded illustration 390333B 91551G0822 — not listed in this catalogue 31270 — DAMPER ASSY, TRANSMISSION INPUT (1 parts) 9155100835 — not listed in this catalogue 9155100850 — not listed in this catalogue 30900B — SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY) (2 parts) 30900F — PLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE) (1 parts) 30900E — GASKET(FOR TRANSAXLE HOUSING & CASE) (1 parts) 30900Q — PLUG, FILLER(HEV) (1 parts) 30900S — GASKET, FILLER PLUG(HEV) (1 parts) 30900P — PLUG, DRAIN(HEV) (1 parts) 30900R — GASKET, DRAIN PLUG(HEV) (1 parts) 35710A — SEAL, TYPE T OIL(FOR INPUT SHAFT) (1 parts) 9010508425 — not listed in this catalogue 90119C0040 — not listed in this catalogue 90105C0032 — not listed in this catalogue 30900B — SEAL, TYPE T OIL(FOR HYBRID VEHICLE TRANSAXLE ASSY) (2 parts) 35151J — COVER, AUTOMATIC TRANSMISSION CASE (2 parts) 35151J — COVER, AUTOMATIC TRANSMISSION CASE (2 parts) 9167180622 — not listed in this catalogue 39195 — DAMPER, HV TRANSAXLE MASS (1 parts) 9043018008 — not listed in this catalogue 9046706202 — not listed in this catalogue 9167380850 — not listed in this catalogue 33183E — DAMPER, DYNAMIC (1 parts) 9155180614 — not listed in this catalogue 91511B0614 — not listed in this catalogue 9155180614 — not listed in this catalogue 8271533B10 — not listed in this catalogue 8432 — not listed in this catalogue 8432 — not listed in this catalogue 8432 — not listed in this catalogue 8432 — not listed in this catalogue
390333B · 14 callouts, 18 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
14 parts on this figure
Part number Description Fitment Price
30900B — Seal, Type T Oil(FOR HYBRID VEHICLE TRANSAXLE ASSY)
90311-40029 note Seal, Type T Oil(FOR HYBRID VEHICLE TRANSAXLE ASSY)
2010-03 → 2011-12 ended
AHV41 —
90311-50031 note Seal, Type T Oil(FOR HYBRID VEHICLE TRANSAXLE ASSY)
2010-03 → 2011-12 ended
AHV41 —
30900E — Gasket(FOR TRANSAXLE HOUSING & CASE)
90430-18008 Gasket(FOR TRANSAXLE HOUSING & CASE)
2010-03 → 2011-12 ended
AHV41 —
30900F — Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE)
90341-18016 Plug, W/Head Straight Screw, NO.2(FOR TRANSAXLE HSG & CASE)
2010-03 → 2011-12 ended
AHV41 —
30900P — Plug, Drain(HEV)
90341-18016 Plug, Drain(HEV)
2010-03 → 2011-12 ended
AHV41 —
30900Q — Plug, Filler(HEV)
90341-18016 Plug, Filler(HEV)
2010-03 → 2011-12 ended
AHV41 —
30900R — Gasket, Drain Plug(HEV)
90430-18008 Gasket, Drain Plug(HEV)
2010-03 → 2011-12 ended
AHV41 —
30900S — Gasket, Filler Plug(HEV)
90430-18008 Gasket, Filler Plug(HEV)
2010-03 → 2011-12 ended
AHV41 —
31270 — Damper Assy, Transmission Input
31270-33010 Damper Assy, Transmission Input
2010-03 → 2011-12 ended
AHV41 —
33183E — Damper, Dynamic
33183-33040 Damper, Dynamic
2010-03 → 2011-12 ended
AHV41 —
35151J — Cover, Automatic Transmission Case
35151-33080 note Cover, Automatic Transmission Case
2010-03 → 2011-12 ended
AHV41 —
35151-33090 note Cover, Automatic Transmission Case
2010-03 → 2011-12 ended
AHV41 —
35710A — Seal, Type T Oil(FOR INPUT SHAFT)
90311-25027 Seal, Type T Oil(FOR INPUT SHAFT)
2010-03 → 2011-12 ended
AHV41 —
39195 — Damper, HV Transaxle Mass
39195-33010 Damper, HV Transaxle Mass
2010-03 → 2011-12 ended
AHV41 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
