Toyota Camry (CHINA)

2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

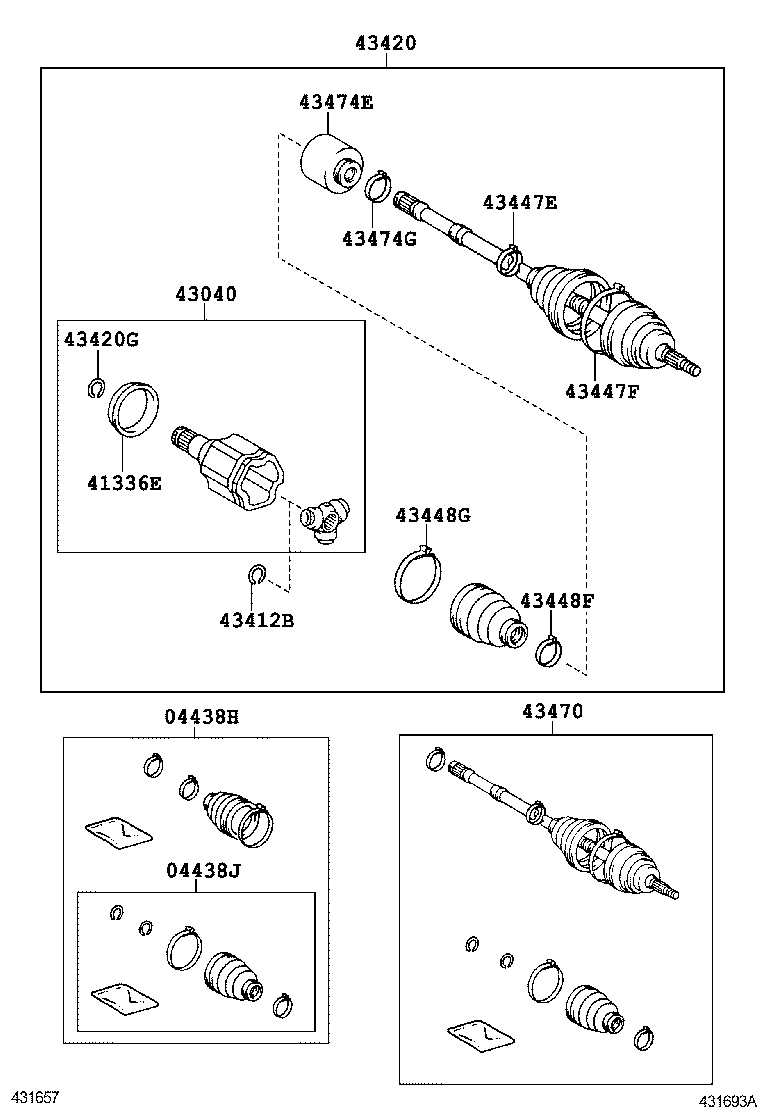

Exploded illustration 431693A 43040 — JOINT ASSY, FRONT DRIVE INBOARD, LH (4 parts) 43420 — SHAFT ASSY, FRONT DRIVE, LH (6 parts) 43420G — RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH) (3 parts) 43474E — DAMPER, FRONT DRIVE SHAFT, LH (5 parts) 43447E — CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (3 parts) 43447F — CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH) (3 parts) 43448F — CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH) (5 parts) 43470 — SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH (5 parts) 43412B — RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH) (3 parts) 04438J — BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH (5 parts) 41336E — COVER, FRONT DRIVE SHAFT DUST, LH (4 parts) 43448G — CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH) (5 parts) 04438H — BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH (6 parts) 43474G — CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH) (3 parts)
431693A · 14 callouts Full size ↗
60 parts on this figure
Part number Description Fitment Price
04438H — Boot Kit, Front Drive Shaft, IN & Outboard, LH
04428-06390 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-05 → 2009-03 ended
ACV41 —
04428-06390 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2006-05 → 2009-02 ended
ACV40 —
04428-06390 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-02 → 2009-10 ended
ACV4# —
04428-06500 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2010-03 → 2011-12 ended
AHV41 —
04428-06510 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2009-10 → 2014-02 ended
ACV4# —
04428-06511 Boot Kit, Front Drive Shaft, IN & Outboard, LH
2014-02 → —
ACV41 —
04438J — Boot Kit, Front Drive Shaft Inboard Joint, LH
04438-06580 Boot Kit, Front Drive Shaft Inboard Joint, LH
2006-05 → 2009-02 ended
ACV40 —
04438-06580 Boot Kit, Front Drive Shaft Inboard Joint, LH
2006-05 → 2009-03 ended
ACV41 —
04438-06300 Boot Kit, Front Drive Shaft Inboard Joint, LH
2010-03 → 2011-12 ended
AHV41 —
04438-06310 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-10 → —
ACV4# —
04438-06580 Boot Kit, Front Drive Shaft Inboard Joint, LH
2009-02 → 2009-10 ended
ACV4# —
41336E — Cover, Front Drive Shaft Dust, LH
41336-28020 Cover, Front Drive Shaft Dust, LH
2006-05 → 2009-02 ended
ACV40 —
41336-28020 Cover, Front Drive Shaft Dust, LH
2006-05 → 2009-03 ended
ACV41 —
41336-28020 Cover, Front Drive Shaft Dust, LH
2009-02 → —
ACV4# —
41336-28030 Cover, Front Drive Shaft Dust, LH
2010-03 → 2011-12 ended
AHV41 —
43040 — Joint Assy, Front Drive Inboard, LH
43040-06190 Joint Assy, Front Drive Inboard, LH
2006-05 → 2009-03 ended
ACV41 —
43040-06190 Joint Assy, Front Drive Inboard, LH
2006-05 → 2009-02 ended
ACV40 —
43040-06190 Joint Assy, Front Drive Inboard, LH
2009-02 → —
ACV4# —
43040-0R020 Joint Assy, Front Drive Inboard, LH
2010-03 → 2011-12 ended
AHV41 —
43412B — Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2006-05 → 2009-02 ended
ACV40 —
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2006-05 → 2009-03 ended
ACV41 —
43425-28010 Ring, Shaft Snap (FOR FRONT DRIVE INNER SHAFT INNER LH)
2009-02 → —
ACV4#,AHV41 —
43420 — Shaft Assy, Front Drive, LH
43420-06700 Shaft Assy, Front Drive, LH
2006-05 → 2009-02 ended
ACV40 —
43420-06730 Shaft Assy, Front Drive, LH
2006-05 → 2009-03 ended
ACV41 —
43420-06700 Shaft Assy, Front Drive, LH
2009-02 → 2011-12 ended
ACV40 —
43420-06730 Shaft Assy, Front Drive, LH
2009-03 → 2013-05 ended
ACV41 —
43420-06730 Shaft Assy, Front Drive, LH
2013-05 → 2015-05 ended
ACV41 —
43420-06790 Shaft Assy, Front Drive, LH
2010-03 → 2011-12 ended
AHV41 —
43420G — Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2006-05 → 2009-02 ended
ACV40 —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2006-05 → 2009-03 ended
ACV41 —
90521-33002 Ring, Hole Snap (FOR FRONT DRIVE SHAFT LH)
2009-02 → —
ACV4#,AHV41 —
43447E — Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-20040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2006-05 → 2009-03 ended
ACV41 —
42345-20040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2006-05 → 2009-02 ended
ACV40 —
42345-20040 Clamp (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-02 → —
ACV4#,AHV41 —
43447F — Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-28020 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2006-05 → 2009-02 ended
ACV40 —
42345-28020 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2006-05 → 2009-03 ended
ACV41 —
42345-28020 Clamp, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
2009-02 → —
ACV4#,AHV41 —
43448F — Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-42010 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-05 → 2009-02 ended
ACV40 —
42345-42010 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-05 → 2009-03 ended
ACV41 —
42345-42010 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-02 → 2009-10 ended
ACV40 —
42345-42010 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-10 → 2011-12 ended
ACV40,AHV41 —
42345-42010 Clamp (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-02 → —
ACV41 —
43448G — Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-05 → 2009-02 ended
ACV40 —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2006-05 → 2009-03 ended
ACV41 —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-10 → 2011-12 ended
ACV40,AHV41 —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-02 → —
ACV41 —
42345-12160 Clamp, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
2009-02 → 2009-10 ended
ACV40 —
43470 — Shaft Assy, Front Drive Outboard Joint, LH
43470-09P80 Shaft Assy, Front Drive Outboard Joint, LH
2006-05 → 2009-02 ended
ACV40 —
43470-09P80 Shaft Assy, Front Drive Outboard Joint, LH
2006-05 → 2009-03 ended
ACV41 —
43470-09Z80 Shaft Assy, Front Drive Outboard Joint, LH
2010-03 → 2011-12 ended
AHV41 —
43470-A9020 Shaft Assy, Front Drive Outboard Joint, LH
2009-02 → 2014-02 ended
ACV4# —
43470-A9021 Shaft Assy, Front Drive Outboard Joint, LH
2014-02 → —
ACV41 —
43474E — Damper, Front Drive Shaft, LH
43474-06150 Damper, Front Drive Shaft, LH
2006-05 → 2009-02 ended
ACV40 —
43474-06260 Damper, Front Drive Shaft, LH
2006-05 → 2009-03 ended
ACV41 —
43474-06150 Damper, Front Drive Shaft, LH
2009-02 → 2011-12 ended
ACV40 —
43474-06260 Damper, Front Drive Shaft, LH
2009-03 → —
ACV41 —
43474-0R010 Damper, Front Drive Shaft, LH
2010-03 → 2011-12 ended
AHV41 —
43474G — Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-06420 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2006-05 → 2009-02 ended
ACV40 —
42345-06420 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2006-05 → 2009-03 ended
ACV41 —
42345-06420 Clamp (FOR FRONT DRIVE SHAFT DAMPER LH)
2009-02 → —
ACV4#,AHV41 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
