Toyota Camry (CHINA)
2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General
Supported model
Data version 2016-01

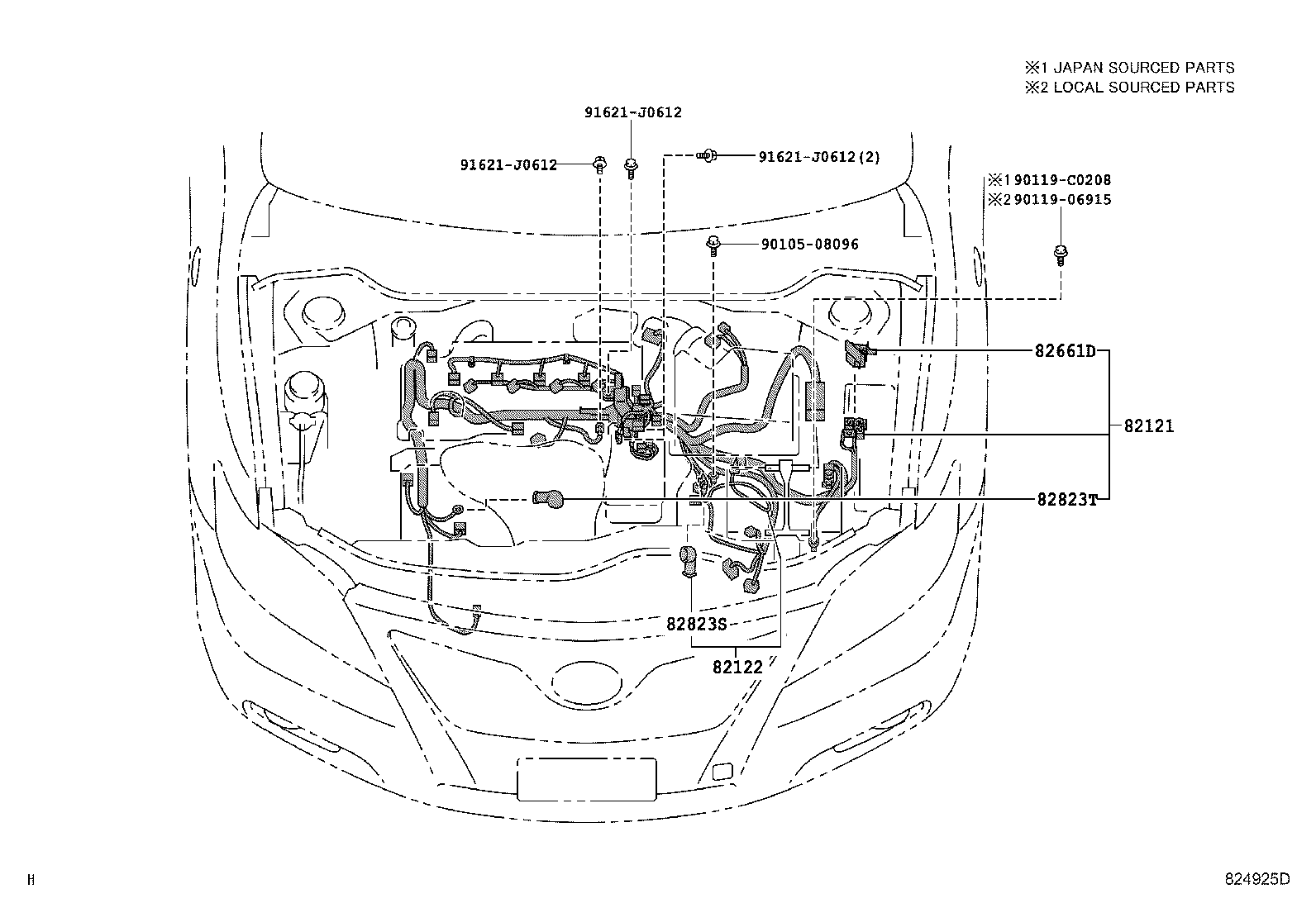

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82121 — Wire, Engine | ||||
| 82121-06A80 |
Wire, Engine
2006-05 → 2006-08
ended
|
ACV40 | — | |
| 82121-06A81 |
Wire, Engine
2006-08 → 2007-01
ended
|
ACV40 | — | |
| 82121-06A82 |
Wire, Engine
2007-01 → 2008-10
ended
|
ACV40 | — | |
| 82121-06A83 |
Wire, Engine
2008-11 → 2009-02
ended
|
ACV40 | — | |
| 82121-06A90 |
Wire, Engine
2006-05 → 2006-08
ended
|
ACV41 | — | |
| 82121-06A91 |
Wire, Engine
2006-08 → 2007-01
ended
|
ACV41 | — | |
| 82121-06A92 |
Wire, Engine
2007-01 → 2008-10
ended
|
ACV41 | — | |
| 82121-06A93 |
Wire, Engine
2008-11 → 2009-03
ended
|
ACV41 | — | |
| 82121-06800 |
Wire, Engine
2010-03 → 2011-12
ended
|
AHV41 | — | |
| 82121-06A83 |
Wire, Engine
2009-02 → 2011-12
ended
|
ACV40 | — | |
| 82121-06A93 |
Wire, Engine
2009-03 → 2015-05
ended
|
ACV41 | — | |
| 82122 — Wire, Engine, NO.2 | ||||
| 82122-06080 |
Wire, Engine, NO.2
2006-05 → 2009-03
ended
|
ACV4# | — | |
| 82122-06080 |
Wire, Engine, NO.2
2009-02 → 2015-05
ended
|
ACV4# | — | |
| 82661D — Cover, Relay Block, Side NO.1 | ||||
| 82661-33010 |
Cover, Relay Block, Side NO.1
2006-05 → 2009-02
ended
|
ACV40 | — | |
| 82661-33010 |
Cover, Relay Block, Side NO.1
2006-05 → 2009-03
ended
|
ACV41 | — | |
| 82661-33010 |
Cover, Relay Block, Side NO.1
2009-02 → —
|
ACV4#,AHV41 | — | |
| 82823S — Cap, Starter Terminal | ||||
| 82823-12090 |
Cap, Starter Terminal
2006-05 → 2009-03
ended
|
ACV4# | — | |
| 82823-12090 |
Cap, Starter Terminal
2009-02 → 2015-05
ended
|
ACV4# | — | |
| 82823T — Cap, Alternator Terminal | ||||
| 82823-22080 |
Cap, Alternator Terminal
2006-05 → 2009-03
ended
|
ACV4# | — | |
| 82823-22080 |
Cap, Alternator Terminal
2009-02 → 2015-05
ended
|
ACV4# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
