Toyota Camry (CHINA)
2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General
Supported model
Data version 2016-01

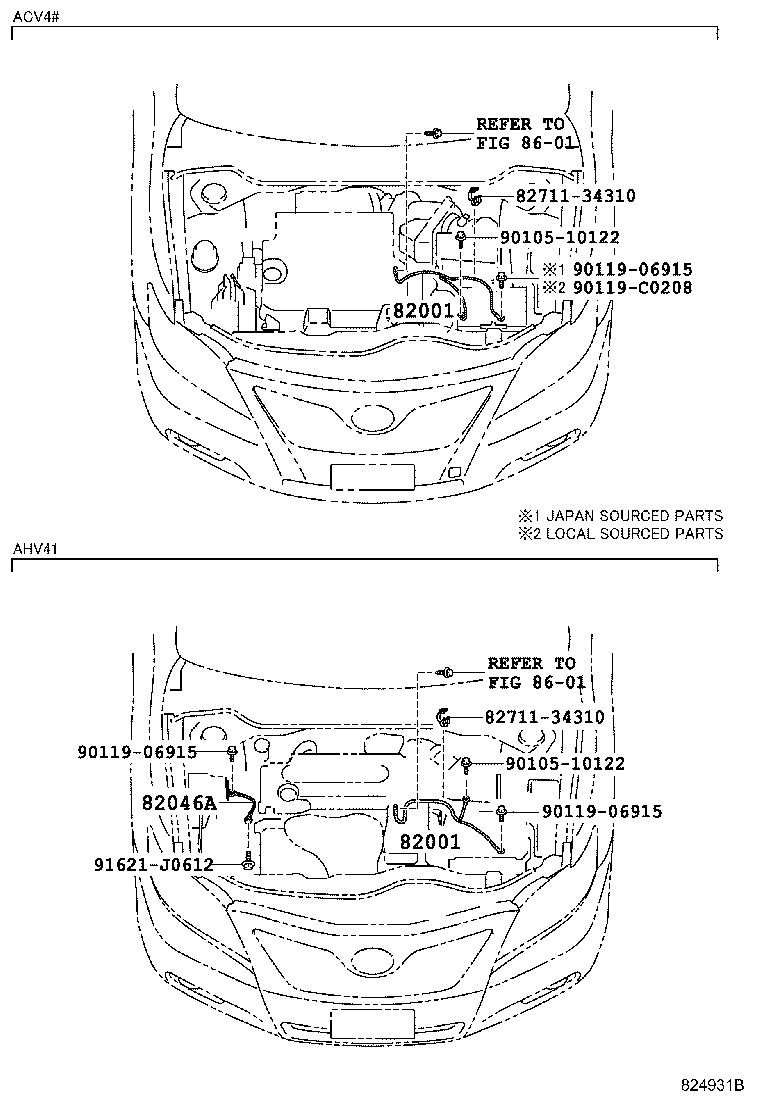

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82001 — Cable, Bond, NO.1 | ||||
| 90980-07428 |
Cable, Bond, NO.1
2006-05 → 2007-11
ended
|
ACV4# | — | |
| 90980-C7002 |
Cable, Bond, NO.1
2007-12 → 2009-02
ended
|
ACV40 | — | |
| 90980-C7002 |
Cable, Bond, NO.1
2007-12 → 2009-03
ended
|
ACV41 | — | |
| 90980-C7002 |
Cable, Bond, NO.1
2009-02 → —
|
ACV4#,AHV41 | — | |
| 82046A — Wire Sub-assy, Body Ground, NO.1 | ||||
| 82046-06010 |
Wire Sub-assy, Body Ground, NO.1
2010-03 → 2011-12
ended
|
AHV41 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
