Toyota Camry (CHINA)
2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General
Supported model
Data version 2016-01

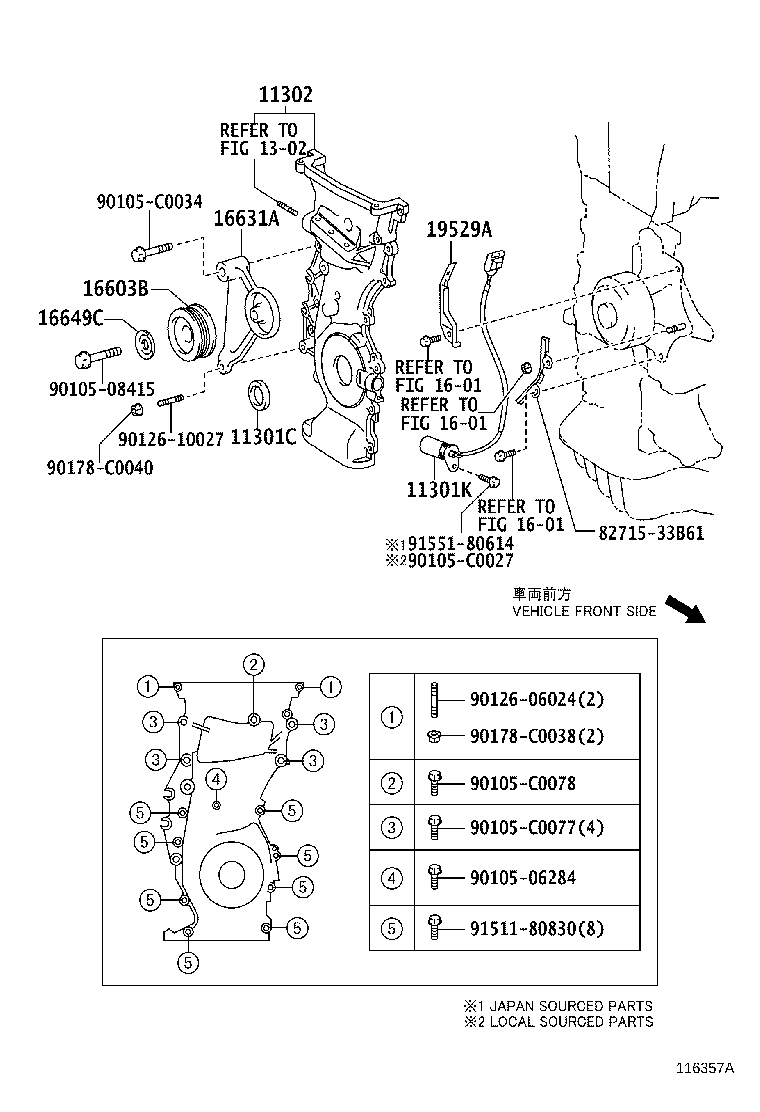

Timing Gear Cover & Rear End Plate
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 11301C | Seal, Oil(FOR TIMING GEAR CASE OR TIMING CHAIN CASE) |
| 11301K | Sensor, Crank Position |
| 11302 | Cover Sub-assy, Timing Chain OR Belt |
| 16603B | Pulley Sub-assy, Idler |
| 16631A | Bracket, Idler Pulley |
| 16649C | Plate, Idler Pulley Cover |
| 19529A | Clamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
