Fuel Injection System

19 part groups · 3 illustrations

Illustrations

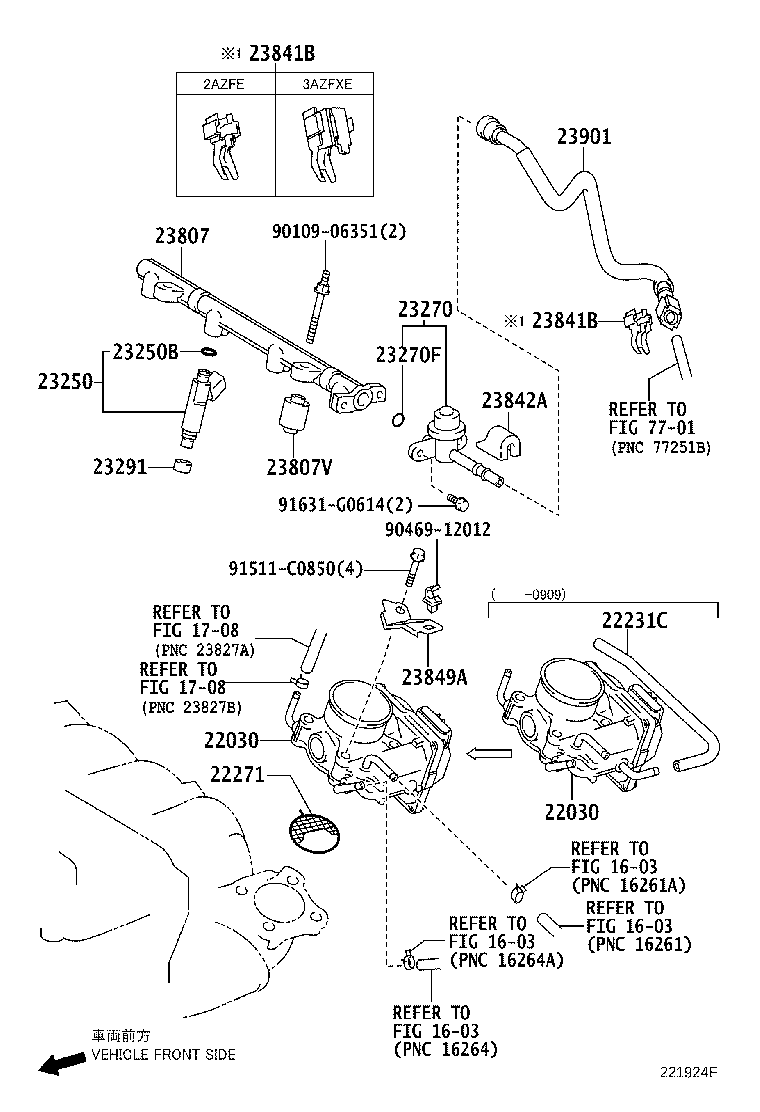

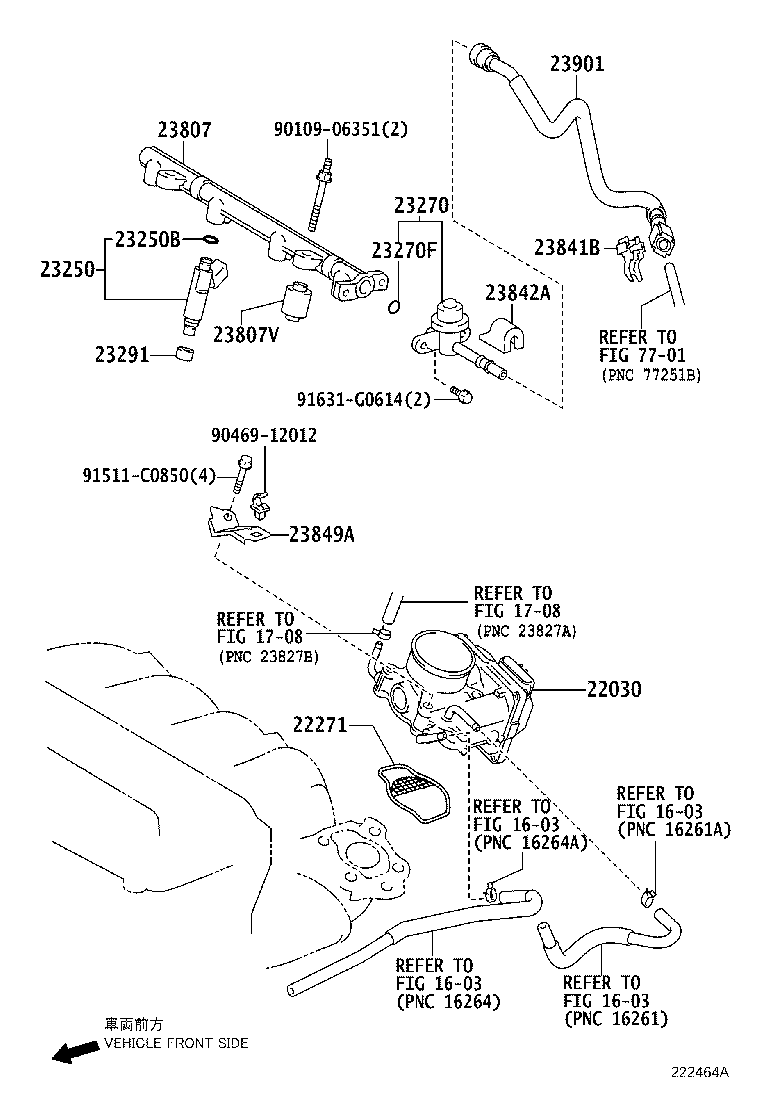

Figure 221923F 221923F 2006-05 → 2009-09 Figure 222464A 222464A 2009-09 → — Figure 221924F 221924F 2006-05 → —

Part groups

PNCDescription
22030 Body Assy, Throttle W/Throttle Position Sensor
22231B Hose, Throttle Body
22231C Hose, Throttle Body, NO.1
22231D Clamp OR Clip(FOR THROTTLE BODY HOSE)
22232 Hose, Throttle Body, NO.2
22232A Clamp OR Clip(FOR THROTTLE BODY HOSE)
22271 Gasket, Throttle Body
23250 Injector Assy, Fuel
23250B Ring, O(FOR FUEL INJECTOR)
23270 Damper Assy, Fuel Pressure Pulsation
23270F Ring, O(FOR PULSATION DAMPER)
23291 Insulator, Injector Vibration
23807 Pipe Sub-assy, Fuel Delivery
23807V Spacer, NO.1(FOR DELIVERY PIPE)
23841B Clamp, Fuel Pipe, NO.1(FOR EFI)
23842A Clamp, Fuel Pipe, NO.2(FOR EFI)
23849A Support, Fuel Pipe
23901 Tube Sub-assy, Fuel
25719B Tank, Vacuum Surge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
