Toyota Camry (CHINA)
2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General
Supported model
Data version 2016-01

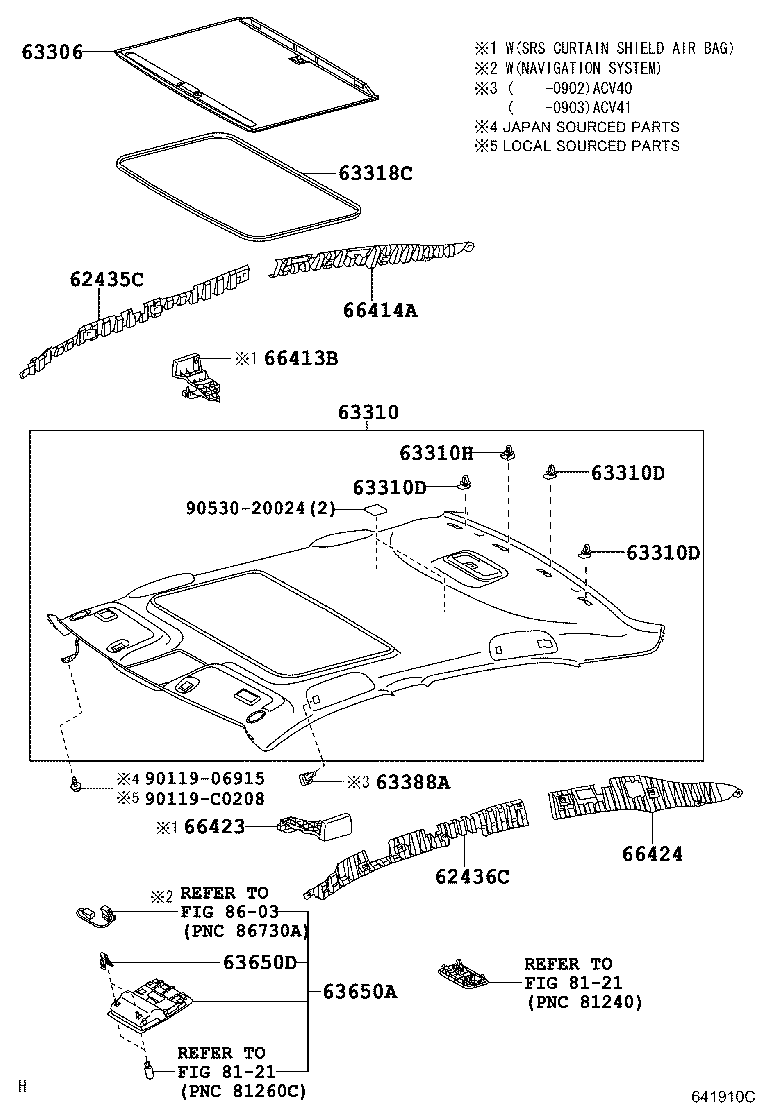

Roof Headlining & Silencer Pad
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 62435C | Pad, Roof Side Rail Garnish, RH |
| 62436C | Pad, Roof Side Rail Garnish, LH |
| 63306 | Trim Sub-assy, Sunshade |
| 63310 | Headlining Assy, Roof |
| 63310D | Clip, Roof Headlining |
| 63310H | Clip(FOR ROOF HEADLINING) |
| 63318C | Moulding, Sun Roof Opening Trim |
| 63342 | Pad, Roof Silencer, NO.2 |
| 63344H | Pad, Roof Silencer, NO.4 |
| 63388A | Cover, Roof Headlining Holder |
| 63412B | Retainer, Roof Console |
| 63650A | Box Assy, Roof Console |
| 63650D | Clip(FOR ROOF CONSOLE BOX) |
| 66413B | Spacer, Side Rail, Front RH |
| 66414A | Spacer, Side Rail, Rear RH |
| 66423 | Spacer, Side Rail, Front LH |
| 66424 | Spacer, Side Rail, Rear LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
