Toyota Camry (CHINA)

2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Package Tray Panel & Luggage Compartment Mat

25 part groups · 3 illustrations

Illustrations

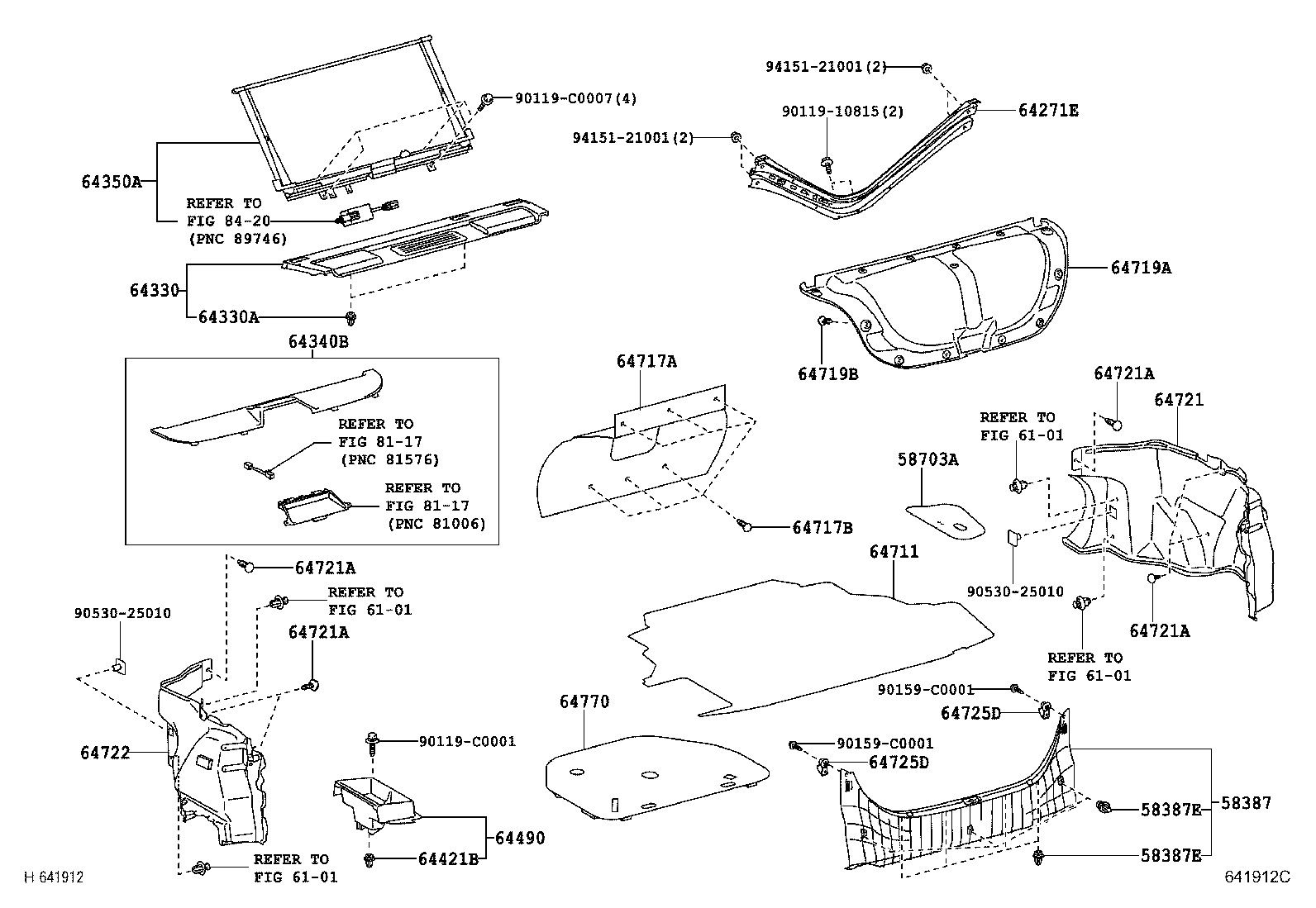

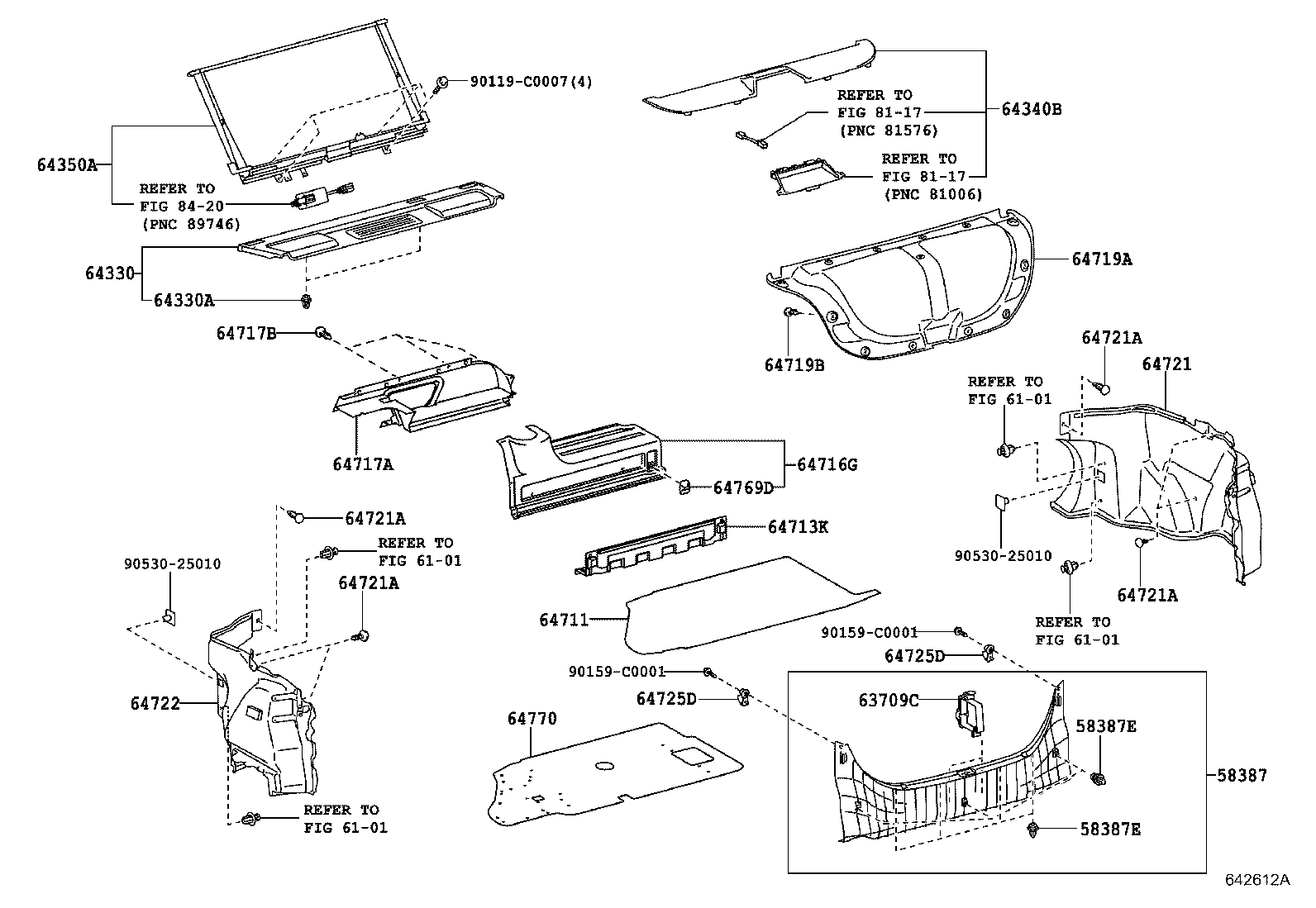

Figure 641911B 641911B 2006-05 → — Figure 641912C 641912C 2006-05 → — Figure 642612A 642612A 2010-03 → —

Part groups

PNCDescription
58387 Plate, Rear Floor Finish
58387E Clip(FOR REAR FLOOR FINISH PLATE)
58703A Cover Sub-assy, Luggage Compartment Side, RH
63709C Band Sub-assy, Room Rack
64271E Panel, Room Partition
64330 Panel Assy, Package Tray Trim
64330A Clip(FOR PACKAGE TRAY TRIM PANEL)
64330J Clip(FOR PACKAGE TRAY TRIM PANEL)
64340B Panel Assy, Package Tray Trim, NO.2
64350A Shade Assy, Rear Window
64421B Clip(FOR LUGGAGE COMPARTMENT TRAY)
64490 Tray Assy, Luggage Compartment Side
64711 Mat, Luggage Compartment Floor
64713K Cover, Luggage Compartment Trim, Front Upper
64716G Cover, Luggage Compartment Trim, Rear
64717A Cover, Luggage Compartment Trim, Front
64717B Clip(FOR LUGGAGE COMPARTMENT TRIM FRONT COVER)
64719A Cover, Luggage Compartment Door
64719B Clip(FOR LUGGAGE COMPARTMENT DOOR)
64721 Cover, Luggage Compartment Trim, Inner RH
64721A Clip(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)
64722 Cover, Luggage Compartment Trim, Inner LH
64725D Hook, Luggage Compartment Trim, NO.1
64769D Knob, Jack Cover
64770 Cover Assy, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
