Toyota Camry (CHINA)

2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Lock Cylinder Set

18 part groups · 3 illustrations

Illustrations

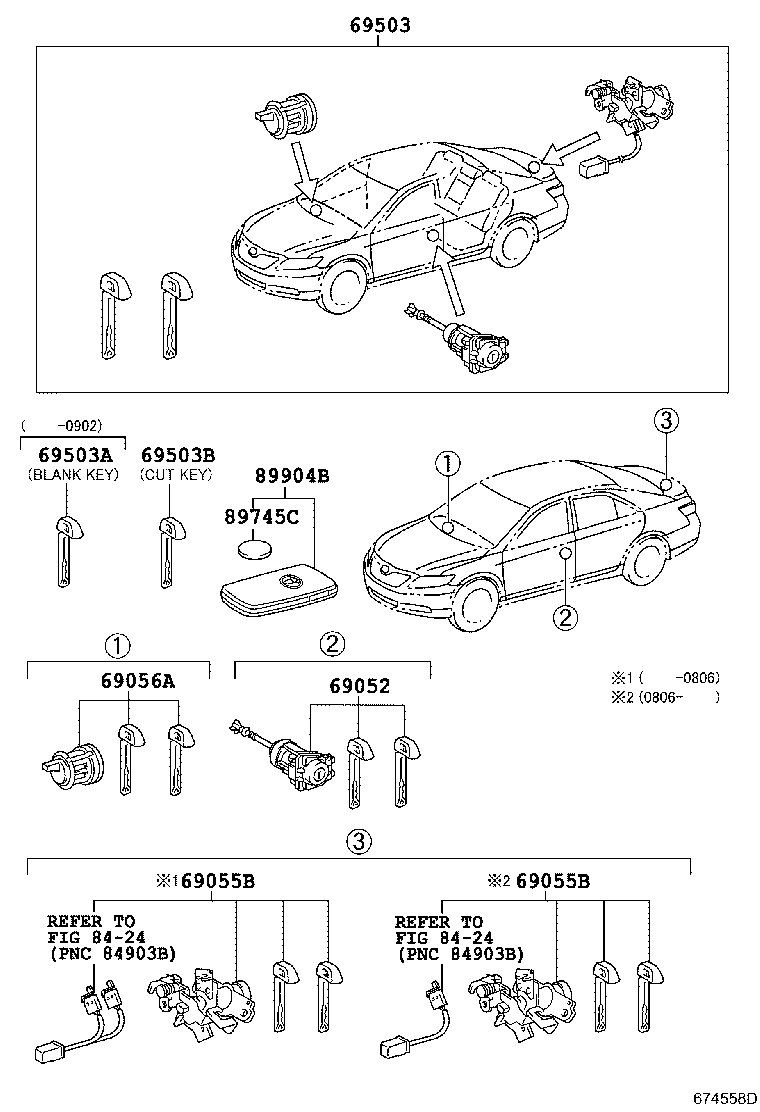

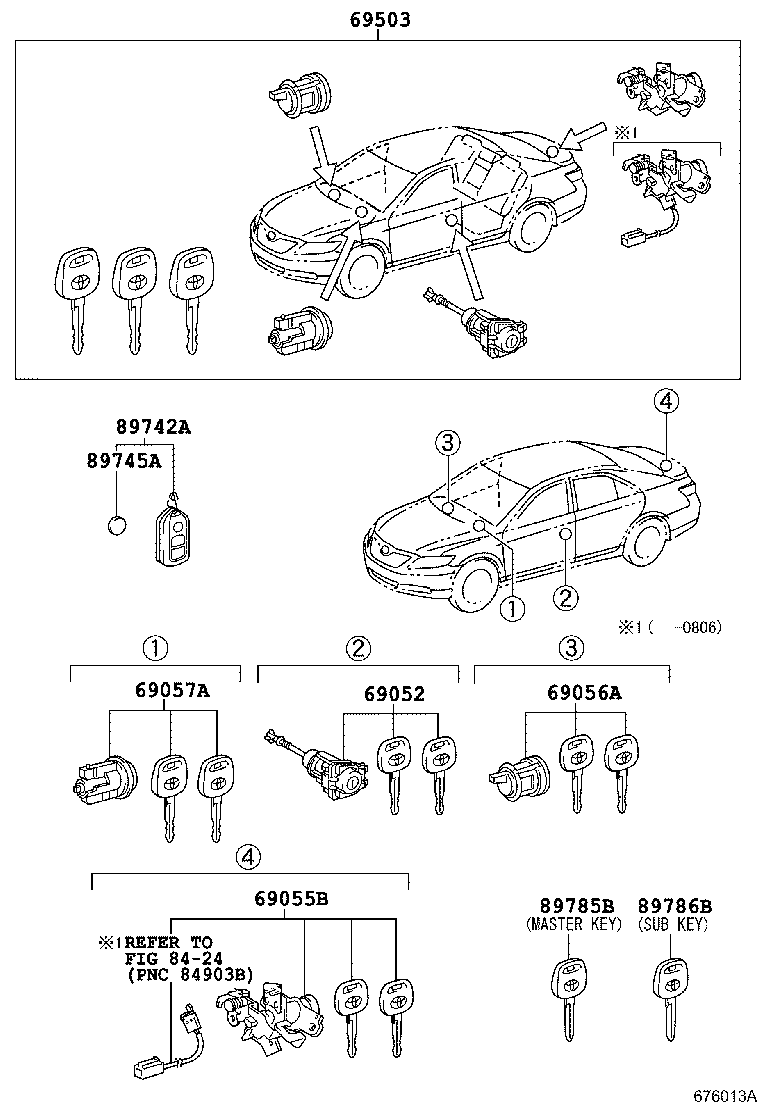

Figure 674559E 674559E 2006-05 → 2008-02 Figure 676013A 676013A 2008-02 → — Figure 674558D 674558D 2006-05 → —

Part groups

PNCDescription
69052 Cylinder & Key Set, Door Lock, LH
69055B Cylinder & Key Set, Back Door Lock
69056A Cylinder & Key Set, Glove Compartment Lock
69057A Cylinder & Key Set, Ignition Switch Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69503B Key, Cut
89070E Transmitter Assy, Door Control
89071B Module Set, Transmitter Sub-assy, Door Control
89072A Housing Set, Door Control Transmitter
8907A Switch Set, Transmitter
89742A Transmitter, Door Control
89745A Battery, Transmitter
89745C Battery, Transmitter
89751A Cover, Transmitter Housing
89785B Transmitter, Transponder Key Master
89786B Transmitter, Transponder Key Sub
89904B Transmitter Sub-assy, Electrical Key
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
