Toyota Camry (CHINA)

2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

10 part groups · 4 illustrations

Illustrations

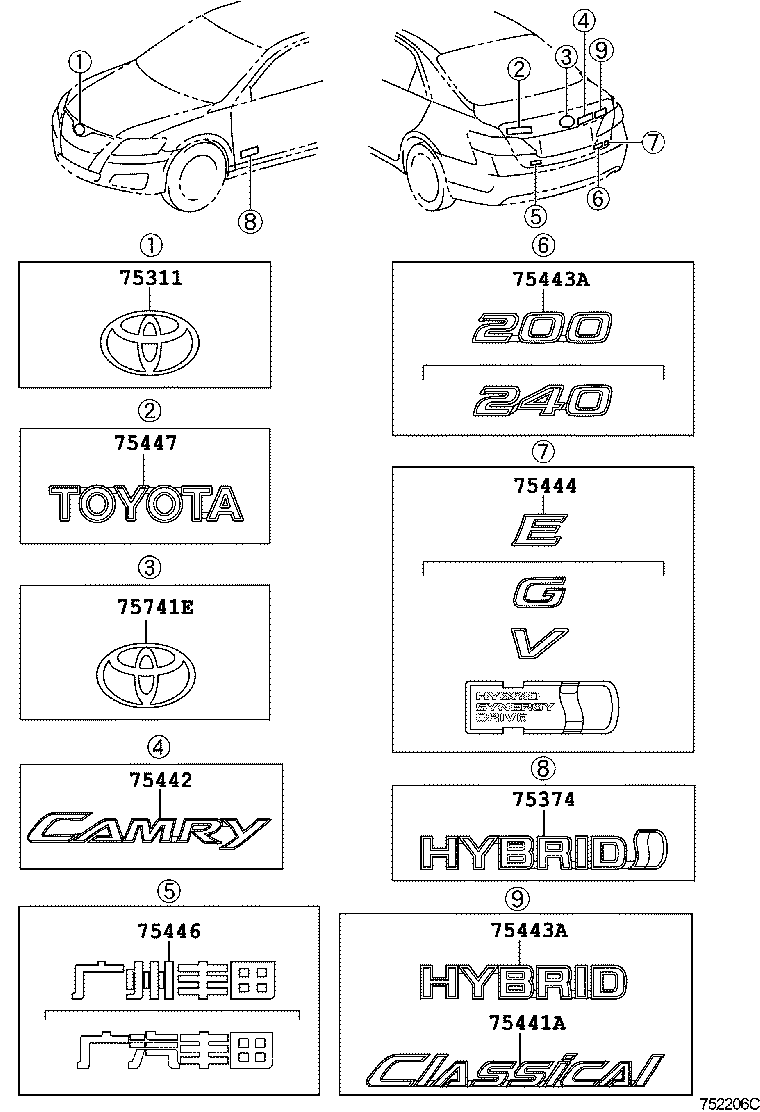

Figure 751724C 751724C 2006-05 → 2009-02 Figure 751724C 751724C 2006-05 → 2009-03 Figure 752206C 752206C 2009-02 → — Figure 752206C 752206C 2009-03 → —

Part groups

PNCDescription
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312B Emblem, Radiator Grille, NO.2
75374 Emblem, Side Panel
75441A Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
75446 Plate, Luggage Compartment Door Name, NO.6
75447 Plate, Luggage Compartment Door Name, NO.7
75741E Emblem, Symbol
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
