Toyota Camry (CHINA)

2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General

Supported model Data version 2016-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

53 part groups · 17 illustrations

Illustrations

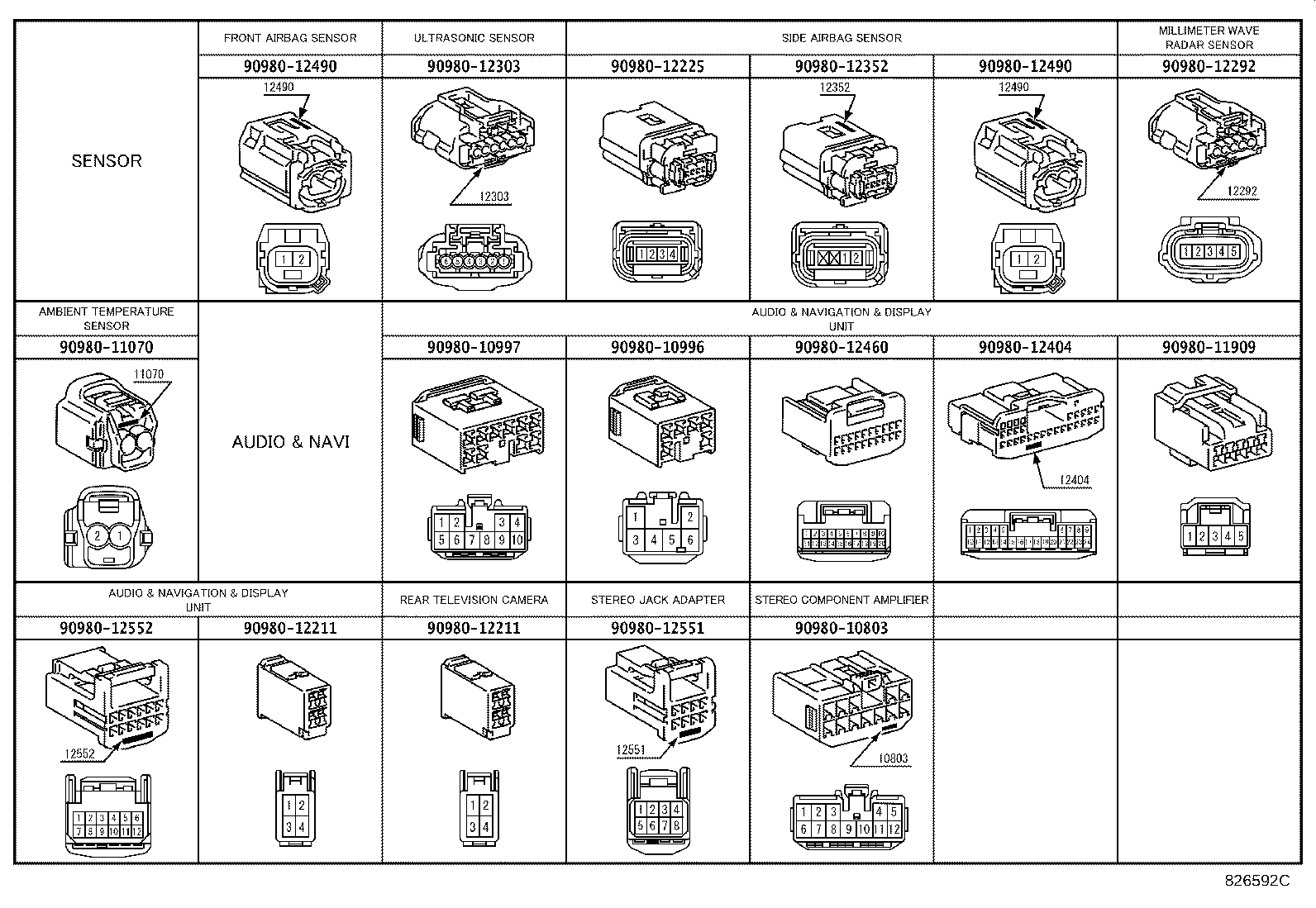

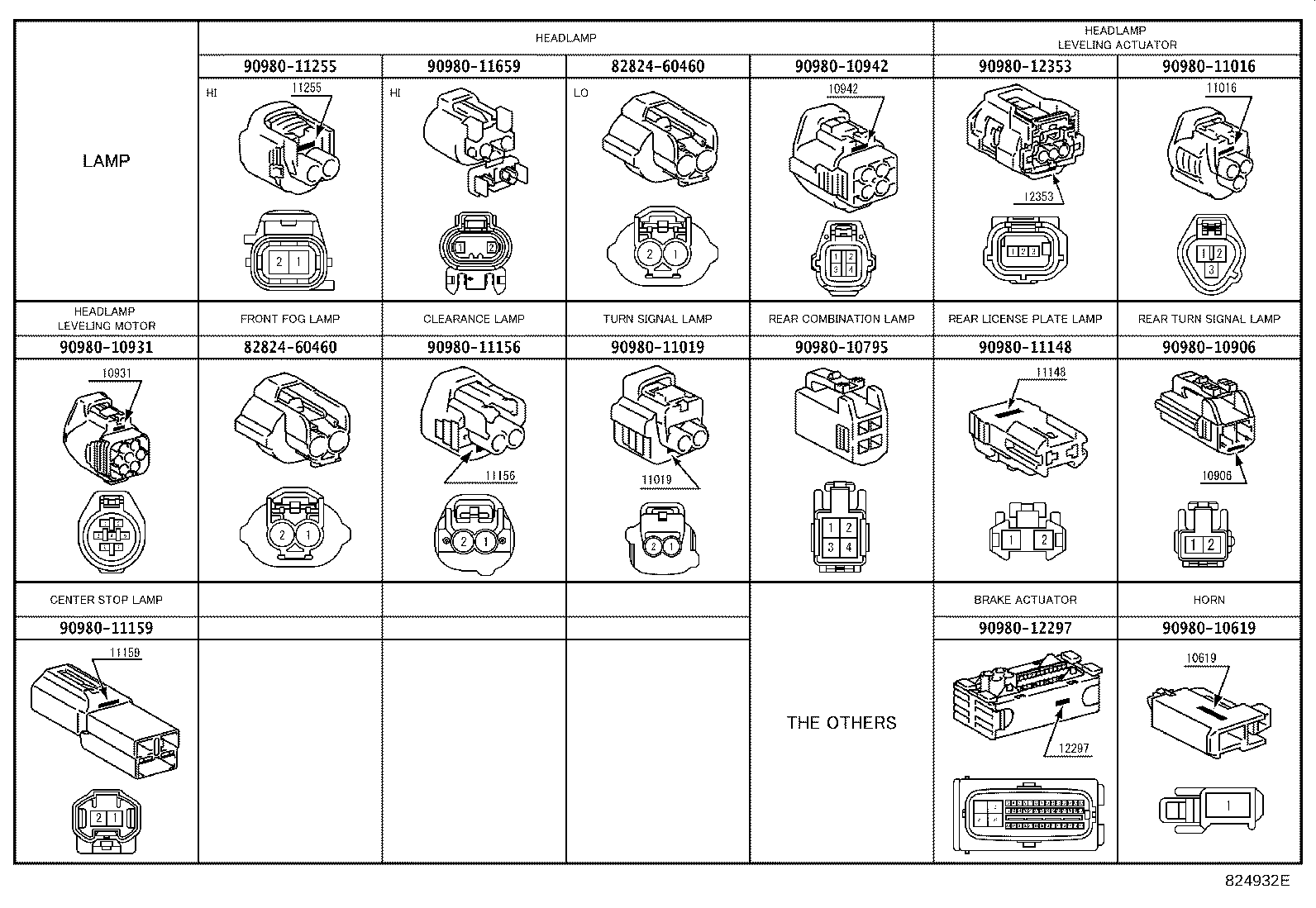

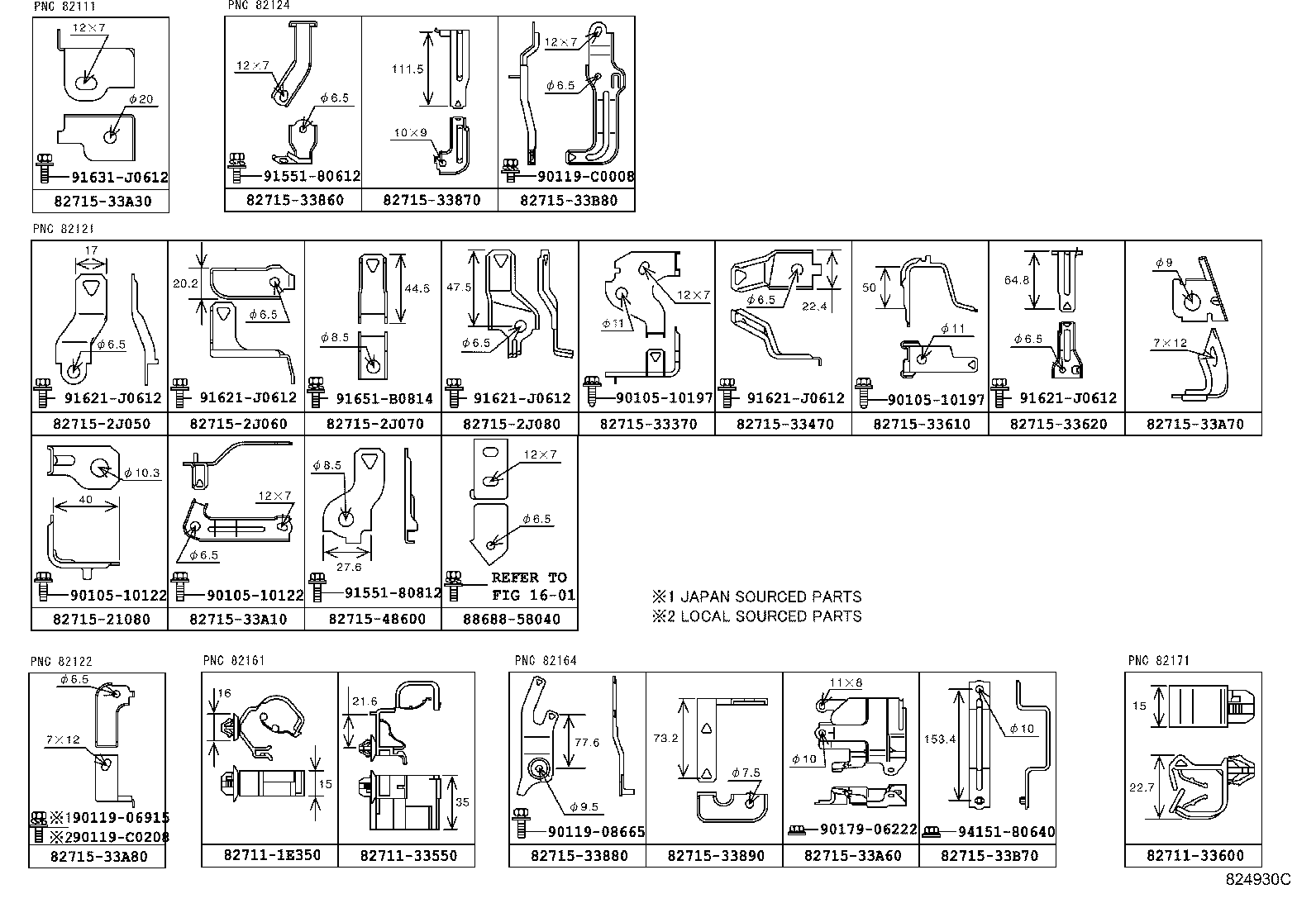

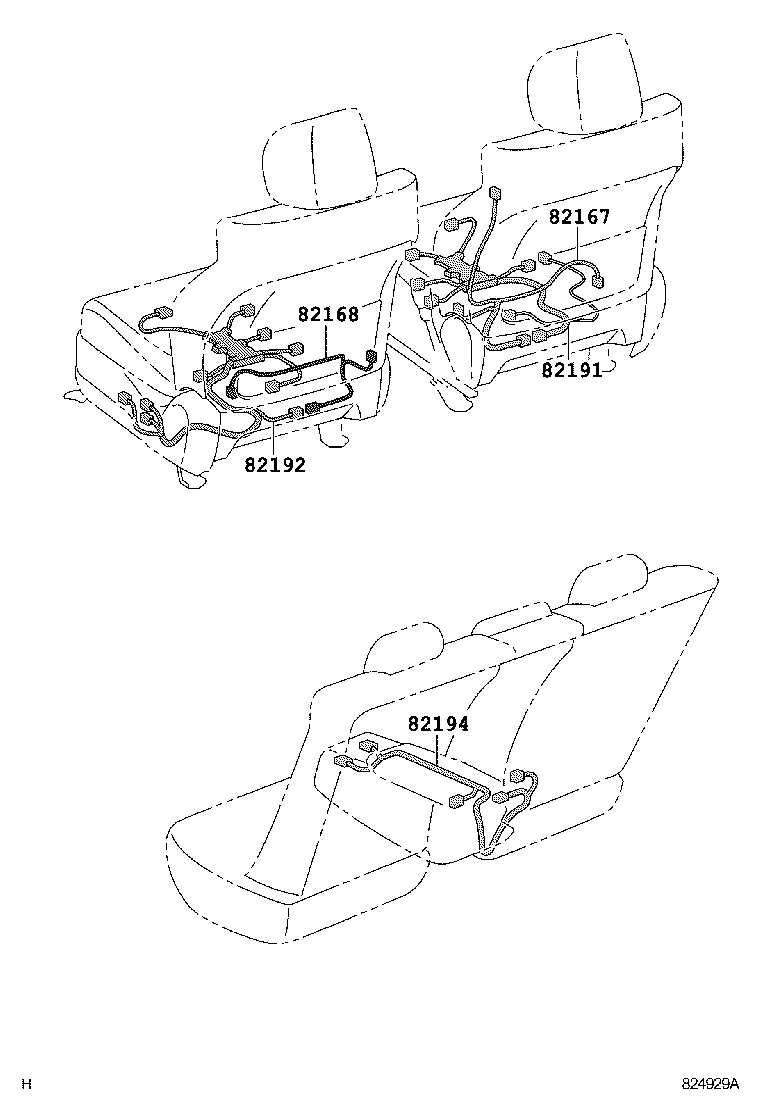

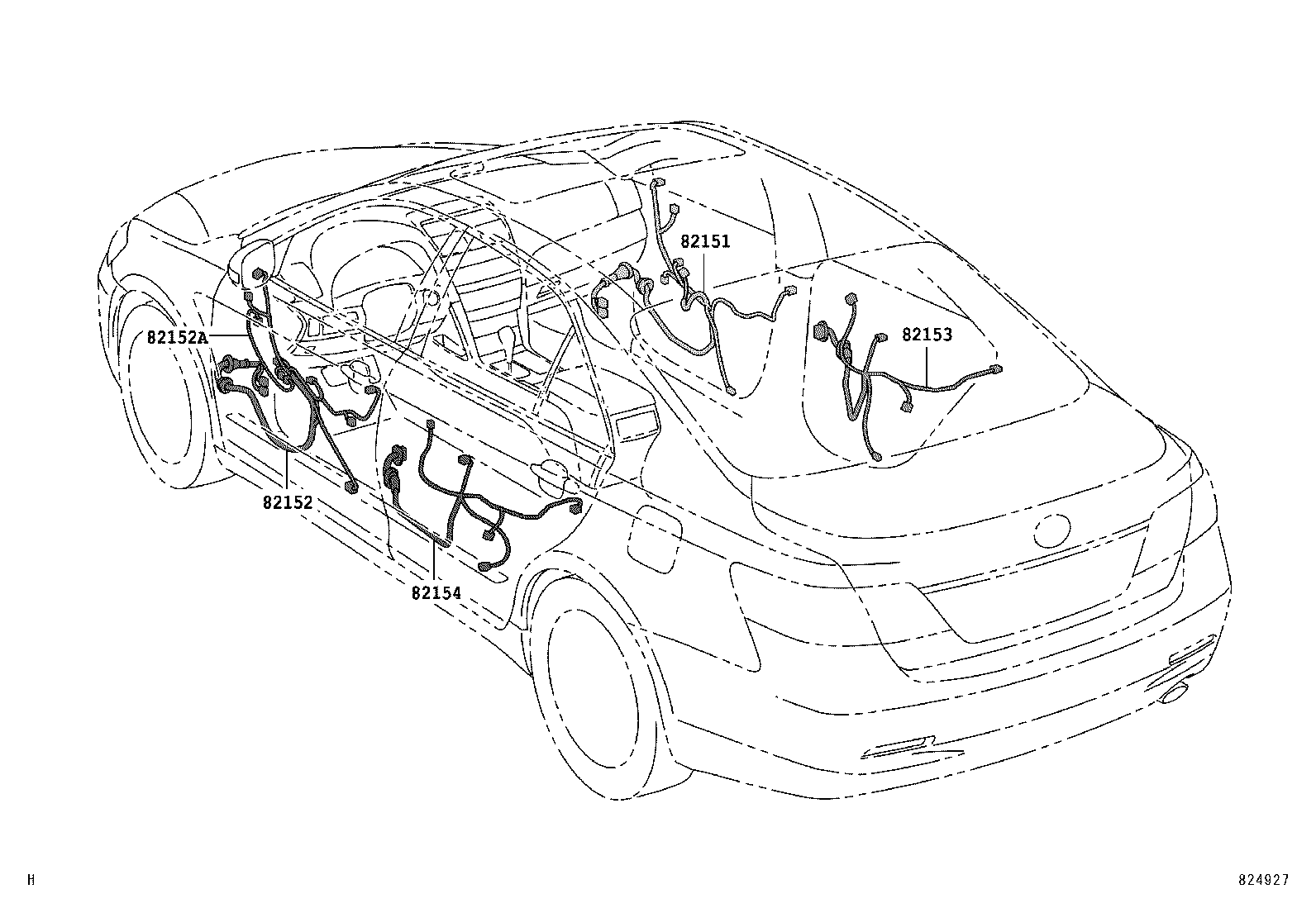

Figure 824924F 824924F 2006-05 → — Figure 826994A 826994A 2010-03 → — Figure 824925D 824925D 2006-05 → — Figure 826995A 826995A 2010-03 → — Figure 824926A 824926A 2006-05 → 2009-02 Figure 824926A 824926A 2006-05 → 2009-03 Figure 826466D 826466D 2009-02 → — Figure 826466D 826466D 2009-03 → — Figure 824927 824927 2006-05 → — Figure 824928D 824928D 2006-05 → — Figure 826996B 826996B 2010-03 → — Figure 826997B 826997B 2010-03 → — Figure 824929A 824929A 2006-05 → — Figure 824930C 824930C 2006-05 → — Figure 824931B 824931B 2006-05 → — Figure 824932E 824932E 2006-05 → — Figure 826592C 826592C 2006-05 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82046A Wire Sub-assy, Body Ground, NO.1
82111 Wire, Engine Room Main
82121 Wire, Engine
82122 Wire, Engine, NO.2
82124 Wire, Engine, NO.4
82141 Wire, Instrument Panel
82142 Wire, Instrument Panel, NO.2
82143 Wire, Instrument Panel, NO.3
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82152A Wire, Front Door, NO.2, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82162 Wire, Floor, NO.2
82163 Wire, Floor, NO.3
82163B Wire, Floor NO.5
82164 Wire, Frame
82167 Wire, Seat, NO.1
82168 Wire, Seat, NO.2
82171 Wire, Roof, NO.1
82181 Wire, Luggage Room, NO.1
82182 Wire, Luggage Room, NO.2
82191 Wire, Front Seat, RH
82192 Wire, Front Seat, LH
82194 Wire, Rear Seat, LH
82345A Diode
82345B Diode
82621 Cover, Fusible Link
82661D Cover, Relay Block, Side NO.1
82666L Holder, Connector NO.9
82670 Block Assy, Junction, NO.1
82671 Block, Junction
82671L Block, Junction, NO.4
82673 Bracket, Junction Block
82712A Support, Wiring Harness
82821A Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824E Connector, Wiring Harness
82824H Connector, Wiring Harness
82824M Connector, Wiring Harness
82824N Connector, Wiring Harness
82824P Connector, Wiring Harness
82824S Connector, Wiring Harness
82824T Connector, Wiring Harness
82824W Connector, Wiring Harness
82824X Connector, Wiring Harness
82825C Connector, Wiring Harness
82825D Connector, Wiring Harness
82825M Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
