Toyota Camry (CHINA)
2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General
Supported model
Data version 2016-01

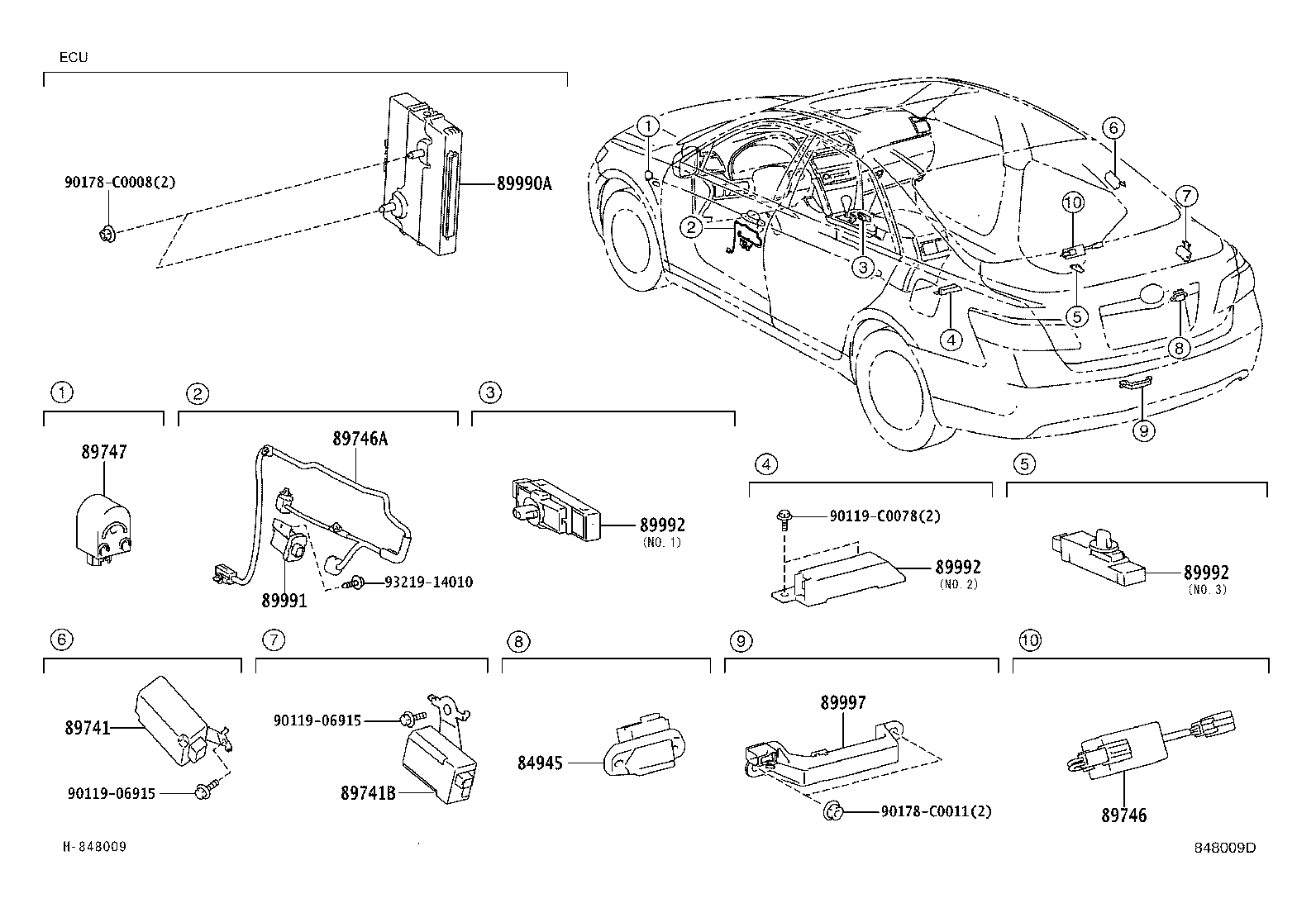

Wireless Door Lock
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84945 | Switch, Luggage Electrical Key |
| 89741 | Receiver, Door Control |
| 89741B | Receiver, Door Control, NO.2 |
| 89746 | Filter, Wireless Door Lock |
| 89746A | Harness, Electrical Key Wire |
| 89747 | Buzzer, Wireless Door Lock |
| 89990A | Computer Assy, Smart Key |
| 89991 | Oscillator, Door Electrical Key |
| 89992 | Oscillator, Indoor Electrical Key |
| 89997 | Antenna, Electrical Key |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
