Toyota Camry (CHINA)
2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General
Supported model
Data version 2016-01

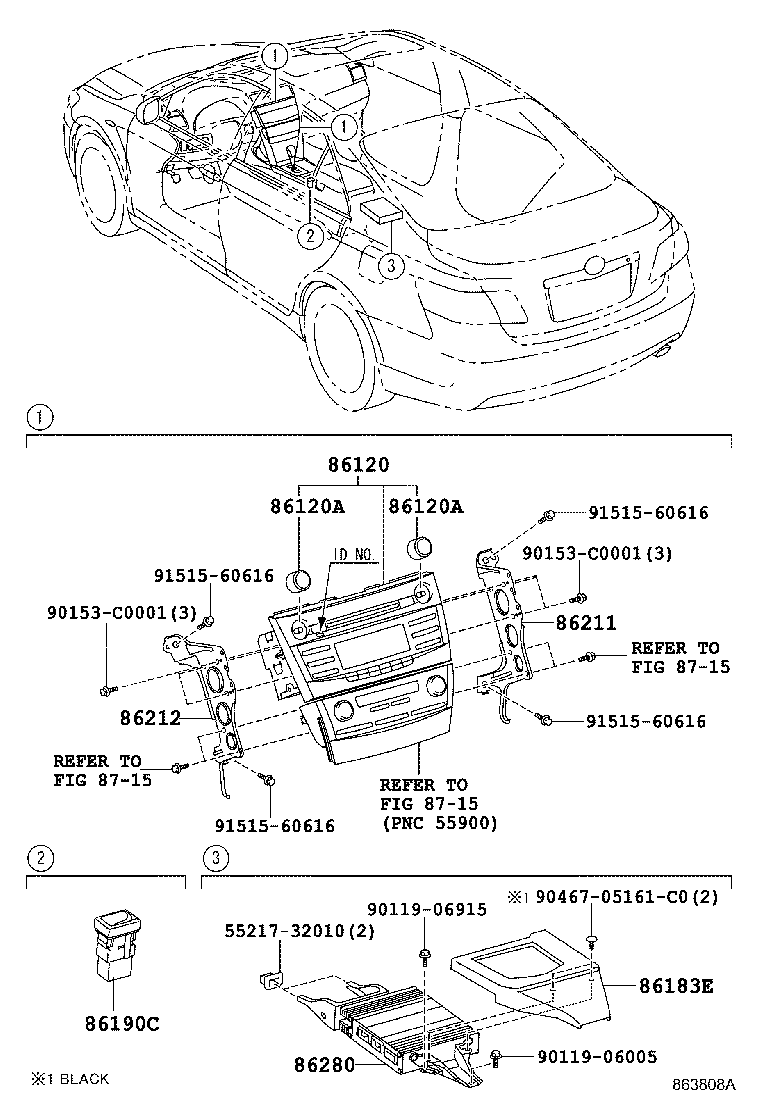

Radio Receiver & Amplifier & Condenser
10 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|

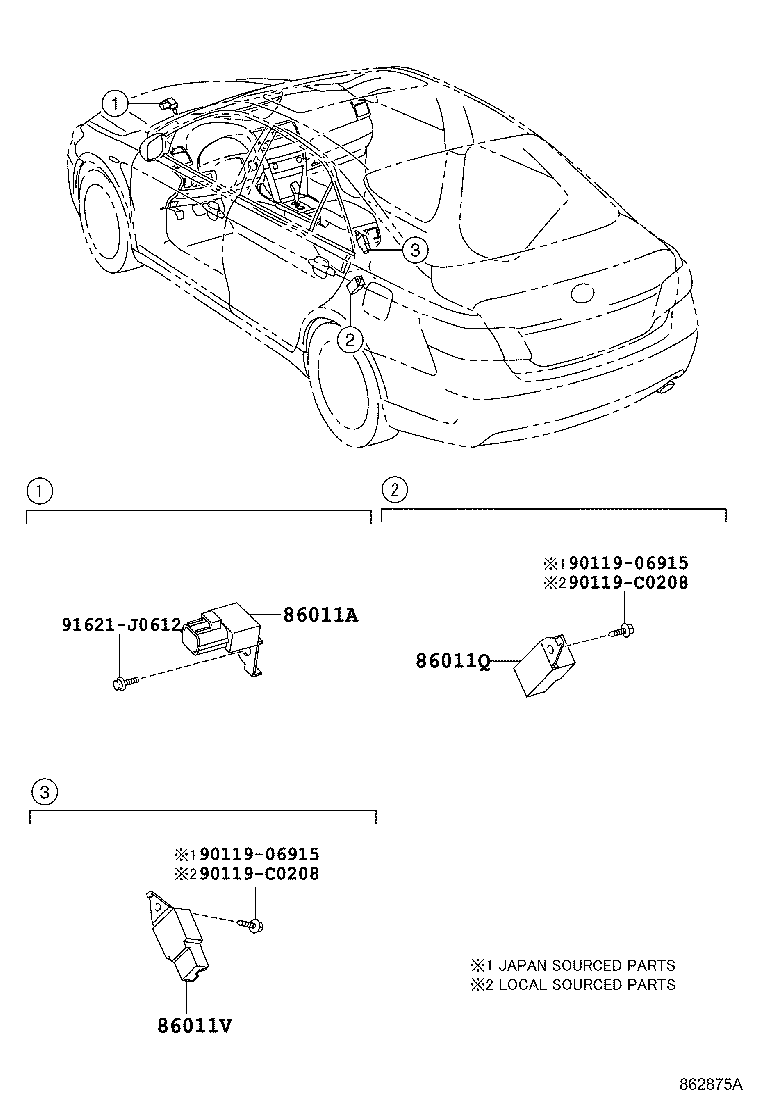

| 86011A | Condenser, Radio Setting |
| 86011Q | Condenser, Radio Setting |
| 86011V | Condenser, Radio Setting |
| 86120 | Receiver Assy, Radio |
| 86120A | Knob, Radio Receiver Switch |
| 86183E | Cover, Audio Amplifier |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86280 | Amplifier Assy, Stereo Component |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
