Toyota Camry (CHINA)
2006-05 → 2015-05 · chassis ACV4#,AHV41 · catalogue 280310 · General
Supported model
Data version 2016-01

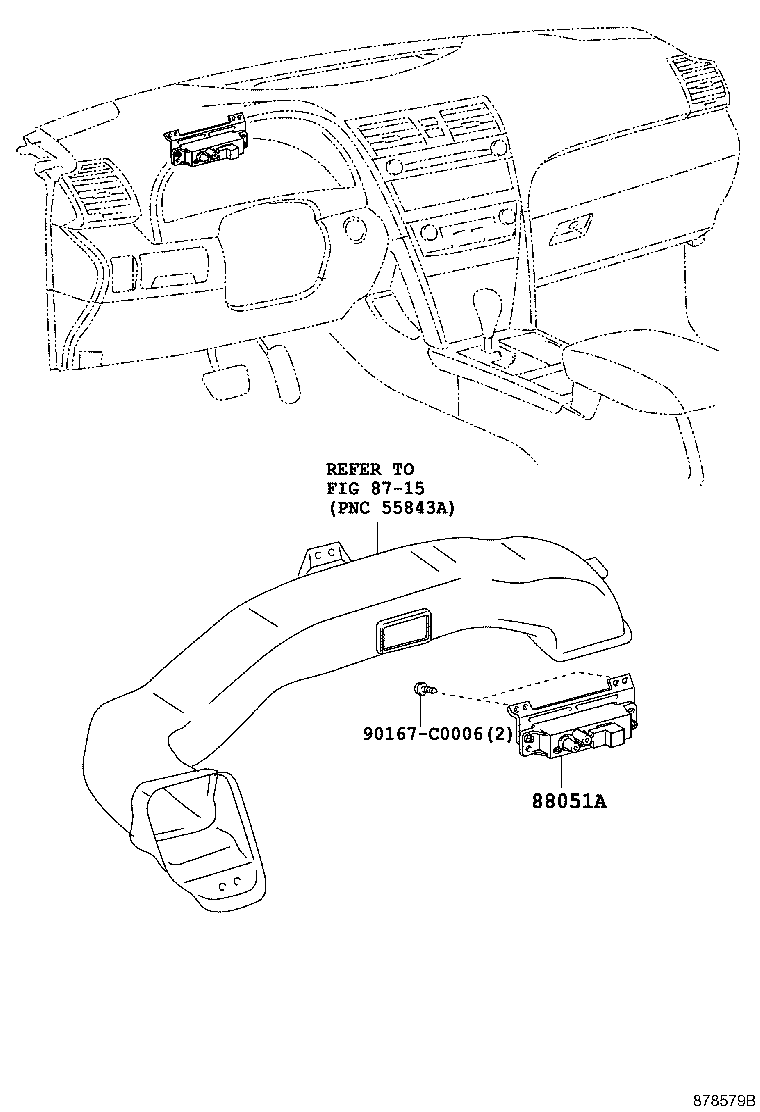

Air Purifier OR Ion Generator
11 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87211N | Duct, Air Purifier Air, NO.1 |
| 87211P | Duct, Air Purifier Air, NO.2 |
| 88051A | Generator Sub-assy,Ion |
| 88899R | Frame, Air Purifier |
| 88899X | Plate, Air Purifier Cover |
| 88901 | Motor Sub-assy, Air Purifier |
| 88905E | Fuse, Air Purifier Wire |
| 88912 | Fan, Air Purifier |
| 88918 | Lamp, Air Purifier |
| 88920A | Purifier Assy, Air |
| 88926 | Filter, Air Purifier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
