Toyota Camry/Hybrid (CHINA)
2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General
Supported model
Data version 2018-05

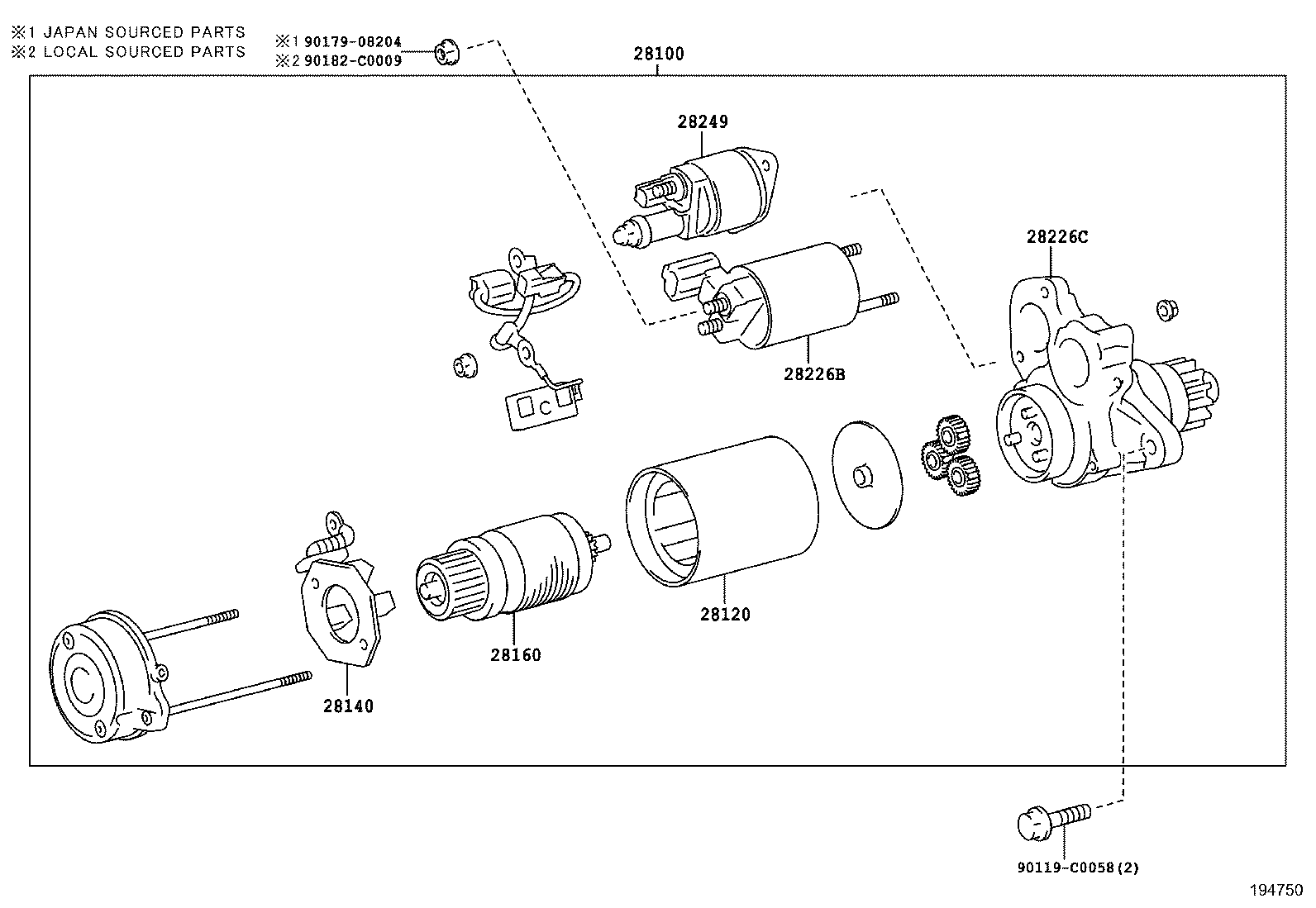

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 28100 — Starter Assy | ||||
| 28100-0H080 note |
Starter Assy
2011-12 → 2015-01
ended
|
1AZFE,5ARFE ACV51,ASV50 | — | |
| 28100-0H080 note |
Starter Assy
2015-01 → 2016-08
ended
|
5ARFE,6ARFSE ASV5# | — | |
| 28100-0V060 note |
Starter Assy
2016-08 → —
|
5ARFE,6ARFSE ASV5# | — | |
| 28120 — Yoke Assy, Starter | ||||
| 28120-0H120 |
Yoke Assy, Starter
2011-12 → 2015-01
ended
|
1AZFE,5ARFE ACV51,ASV50 | — | |
| 28120-0H120 |
Yoke Assy, Starter
2015-01 → 2016-08
ended
|
5ARFE,6ARFSE ASV5# | — | |
| 28120-0V020 |
Yoke Assy, Starter
2016-08 → —
|
5ARFE,6ARFSE ASV5# | — | |
| 28140 — Holder Assy, Starter Brush | ||||
| 28140-0V020 |
Holder Assy, Starter Brush
2016-08 → —
|
5ARFE,6ARFSE ASV5# | — | |
| 28160 — Armature Assy, Starter | ||||
| 28160-28040 |
Armature Assy, Starter
2011-12 → 2015-01
ended
|
1AZFE,5ARFE ACV51,ASV50 | — | |
| 28160-0S050 |
Armature Assy, Starter
2016-08 → —
|
5ARFE,6ARFSE ASV5# | — | |
| 28160-28040 |
Armature Assy, Starter
2015-01 → 2016-08
ended
|
5ARFE,6ARFSE ASV5# | — | |
| 28226B — Starter Kit, Repair Service | ||||
| 28226-28051 |
Starter Kit, Repair Service
2011-12 → 2015-01
ended
|
1AZFE,5ARFE ACV51,ASV50 | — | |
| 28226-28051 |
Starter Kit, Repair Service
2015-01 → 2016-08
ended
|
5ARFE,6ARFSE ASV5# | — | |
| 28226-31100 |
Starter Kit, Repair Service
2016-08 → —
|
5ARFE,6ARFSE ASV5# | — | |
| 28226C — Starter Kit, Repair Service, NO.2 | ||||
| 28226-28041 |
Starter Kit, Repair Service, NO.2
2011-12 → 2015-01
ended
|
1AZFE,5ARFE ACV51,ASV50 | — | |
| 28226-0V060 |
Starter Kit, Repair Service, NO.2
2016-08 → —
|
5ARFE,6ARFSE ASV5# | — | |
| 28226-28041 |
Starter Kit, Repair Service, NO.2
2015-01 → 2016-08
ended
|
5ARFE,6ARFSE ASV5# | — | |
| 28249 — Relay, Starter Inrush Current Reduction | ||||
| 28249-36110 |
Relay, Starter Inrush Current Reduction
2016-08 → —
|
5ARFE,6ARFSE ASV5# | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
