Toyota Camry/Hybrid (CHINA)

2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General

Supported model Data version 2018-05

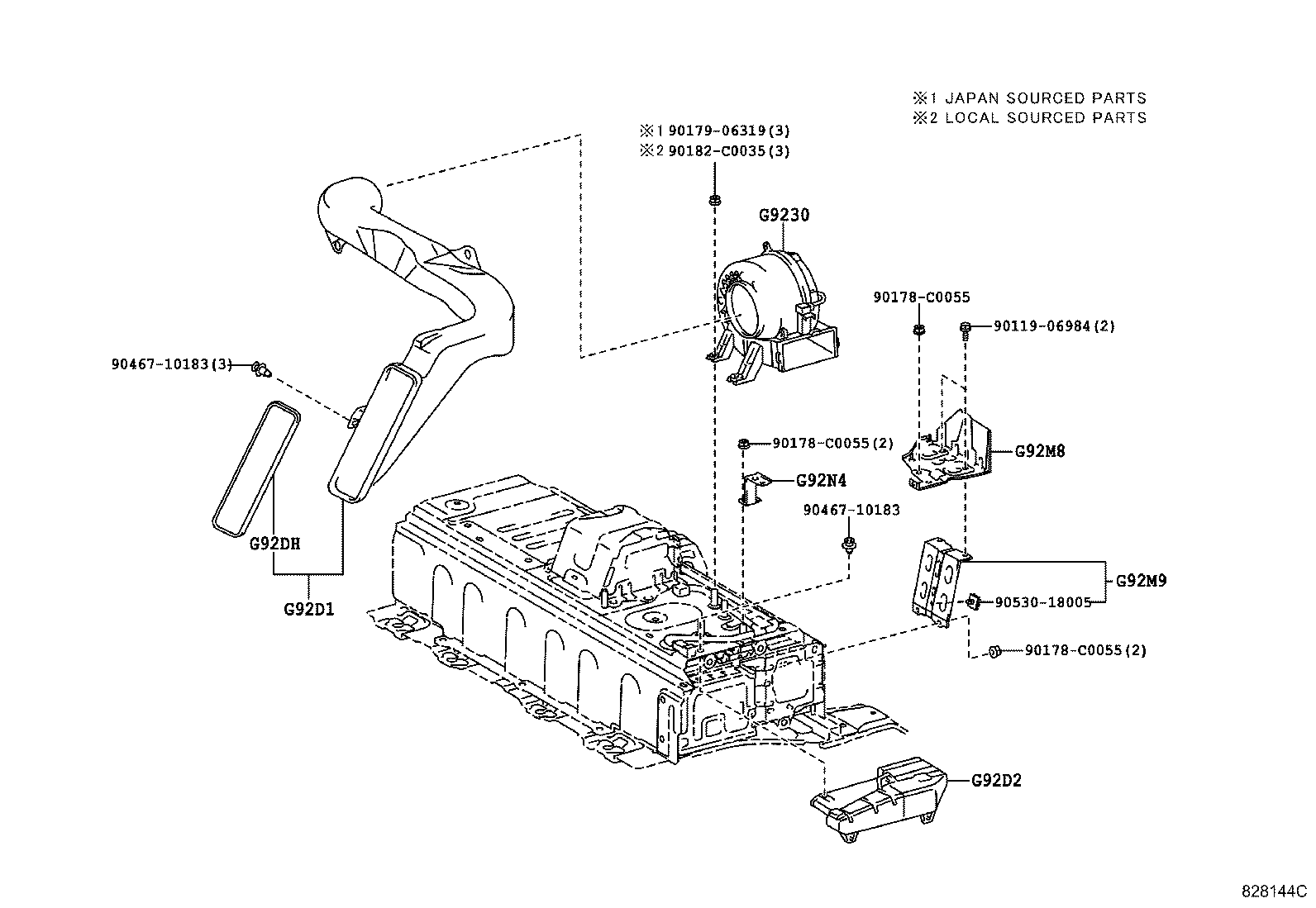

Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.

15 parts on this figure

Part number	Description	Fitment	Price
G9230 — Blower Assy, Battery Cooling
G9230-33040	Blower Assy, Battery Cooling 2012-05 → 2015-01 ended	AVV50	—
G9230-33040	Blower Assy, Battery Cooling 2015-01 → —	AVV50	—
G92D1 — Duct, Hybrid Battery Intake, NO.1
G92D1-06080	Duct, Hybrid Battery Intake, NO.1 2012-05 → 2013-05 ended	AVV50	—
G92D1-06081	Duct, Hybrid Battery Intake, NO.1 2013-06 → 2015-01 ended	AVV50	—
G92D1-06081	Duct, Hybrid Battery Intake, NO.1 2015-01 → —	AVV50	—
G92D2 — Duct, Hybrid Battery Intake, NO.2
G92D2-06080	Duct, Hybrid Battery Intake, NO.2 2012-05 → 2015-01 ended	AVV50	—
G92D2-06080	Duct, Hybrid Battery Intake, NO.2 2015-01 → —	AVV50	—
G92DH — Filter, HV Battery Intake, NO.1
G92DH-33040	Filter, HV Battery Intake, NO.1 2013-06 → 2015-01 ended	AVV50	—
G92DH-33040	Filter, HV Battery Intake, NO.1 2015-01 → —	AVV50	—
G92M8 — Bracket, HV Battery Upper Carrier, NO.2
G92M8-33010	Bracket, HV Battery Upper Carrier, NO.2 2012-05 → 2015-01 ended	AVV50	—
G92M8-33010	Bracket, HV Battery Upper Carrier, NO.2 2015-01 → —	AVV50	—
G92M9 — Bracket, HV Battery Upper Carrier, NO.3
G92M9-33010	Bracket, HV Battery Upper Carrier, NO.3 2012-05 → 2015-01 ended	AVV50	—
G92M9-33010	Bracket, HV Battery Upper Carrier, NO.3 2015-01 → —	AVV50	—
G92N4 — Bracket, HV Battery Upper Cover, NO.2
G92N4-33010	Bracket, HV Battery Upper Cover, NO.2 2012-05 → 2015-01 ended	AVV50	—
G92N4-33010	Bracket, HV Battery Upper Cover, NO.2 2015-01 → —	AVV50	—

No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
