Toyota Camry/Hybrid (CHINA)
2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General
Supported model
Data version 2018-05

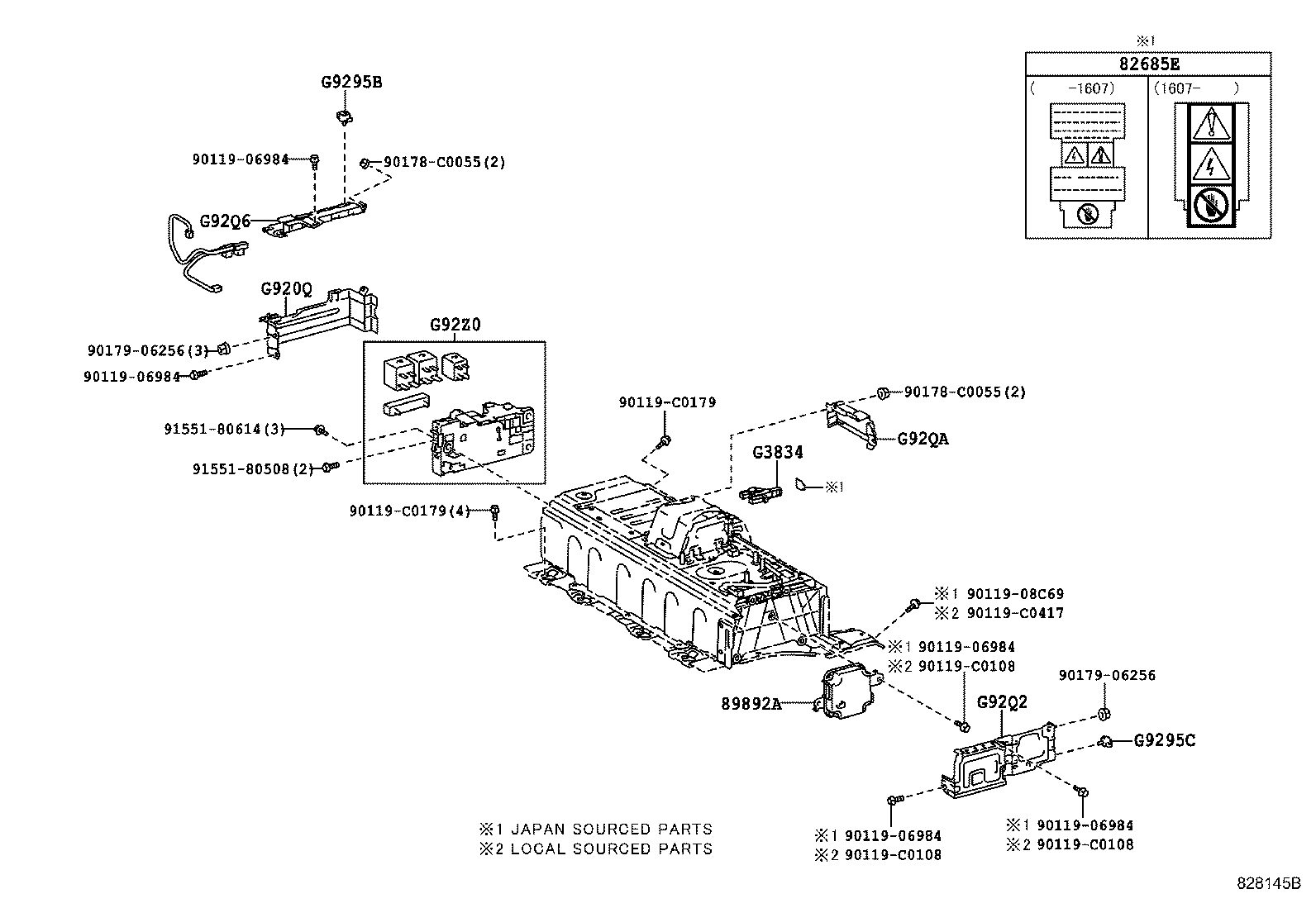

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 82685E — Plate, Service Plug Caution | ||||
| 82685-50050 |
Plate, Service Plug Caution
2012-05 → 2015-01
ended
|
AVV50 | — | |
| 82685-50050 |
Plate, Service Plug Caution
2015-01 → 2016-07
ended
|
AVV50 | — | |
| 82685-76020 |
Plate, Service Plug Caution
2016-07 → —
|
AVV50 | — | |
| 89892A — Sensor, Battery Voltage | ||||
| 89892-33020 |
Sensor, Battery Voltage
2012-05 → 2015-01
ended
|
AVV50 | — | |
| 89892-33020 |
Sensor, Battery Voltage
2015-01 → —
|
AVV50 | — | |
| G3834 — Grip, Service Plug | ||||
| G3834-48010 |
Grip, Service Plug
2012-05 → 2015-01
ended
|
AVV50 | — | |
| G3834-48010 |
Grip, Service Plug
2015-01 → —
|
AVV50 | — | |
| G920Q — Shield Sub-assy, Hybrid Battery, NO.1 | ||||
| G920Q-33010 |
Shield Sub-assy, Hybrid Battery, NO.1
2012-05 → 2015-01
ended
|
AVV50 | — | |
| G920Q-33010 |
Shield Sub-assy, Hybrid Battery, NO.1
2015-01 → —
|
AVV50 | — | |
| G9295B — Striker, Battery Cover Lock | ||||
| G9295-30020 |
Striker, Battery Cover Lock
2012-05 → 2015-01
ended
|
AVV50 | — | |
| G9295-30020 |
Striker, Battery Cover Lock
2015-01 → —
|
AVV50 | — | |
| G9295C — Striker, Battery Cover Lock, NO.2 | ||||
| G9295-30020 |
Striker, Battery Cover Lock, NO.2
2012-05 → 2015-01
ended
|
AVV50 | — | |
| G9295-30020 |
Striker, Battery Cover Lock, NO.2
2015-01 → —
|
AVV50 | — | |
| G92Q2 — Panel, HV Battery Shield, NO.2 | ||||
| G92Q2-33010 |
Panel, HV Battery Shield, NO.2
2012-05 → 2015-01
ended
|
AVV50 | — | |
| G92Q2-33010 |
Panel, HV Battery Shield, NO.2
2015-01 → —
|
AVV50 | — | |
| G92Q6 — Panel, HV Battery Shield, NO.4 | ||||
| G92Q6-33010 |
Panel, HV Battery Shield, NO.4
2012-05 → 2015-01
ended
|
AVV50 | — | |
| G92Q6-33010 |
Panel, HV Battery Shield, NO.4
2015-01 → —
|
AVV50 | — | |
| G92QA — Panel, HV Battery Shield, NO.8 | ||||
| G92QA-33010 |
Panel, HV Battery Shield, NO.8
2012-05 → 2015-01
ended
|
AVV50 | — | |
| G92QA-33010 |
Panel, HV Battery Shield, NO.8
2015-01 → —
|
AVV50 | — | |
| G92Z0 — Block Assy, HV Battery Junction | ||||
| G92Z0-33020 |
Block Assy, HV Battery Junction
2012-05 → 2013-07
ended
|
AVV50 | — | |
| G92Z0-33030 |
Block Assy, HV Battery Junction
2013-08 → 2015-01
ended
|
AVV50 | — | |
| G92Z0-33030 |
Block Assy, HV Battery Junction
2015-01 → —
|
AVV50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
