Toyota Camry/Hybrid (CHINA)
2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General
Supported model
Data version 2018-05

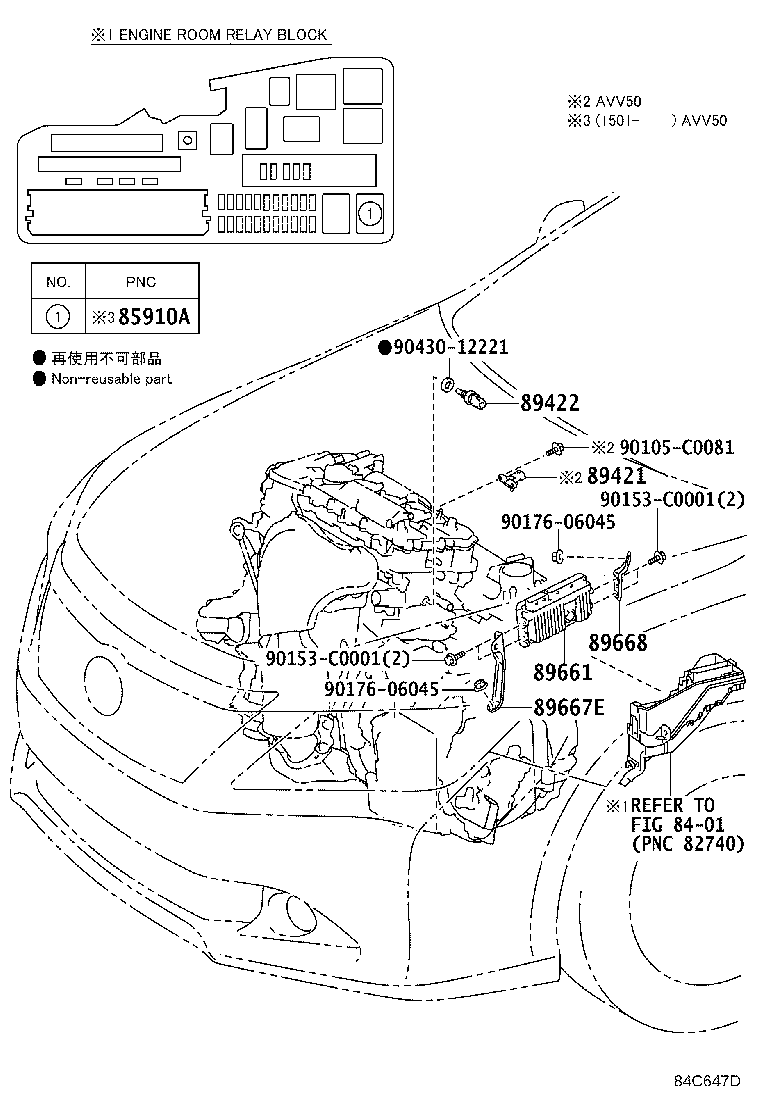

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 85910A — Relay Assy, Circuit Opening (FOR EFI) | ||||
| 90987-02027 note |
Relay Assy, Circuit Opening (FOR EFI)
2015-01 → 2017-11
ended
|
AVV50 | — | |
| 90987-T2005 note |
Relay Assy, Circuit Opening (FOR EFI)
2015-01 → 2017-11
ended
|
AVV50 | — | |
| 89421 — Sensor Assy, Vacuum (FOR E.F.I.) | ||||
| 89421-26030 |
Sensor Assy, Vacuum (FOR E.F.I.)
2012-05 → 2015-01
ended
|
AVV50 | — | |
| 89421-26030 |
Sensor Assy, Vacuum (FOR E.F.I.)
2015-01 → —
|
ASV51,AVV50 | — | |
| 89422 — Sensor, Water Temperature (FOR E.F.I.) | ||||
| 89422-0D010 |
Sensor, Water Temperature (FOR E.F.I.)
2011-12 → 2015-01
ended
|
ACV51,ASV50 | — | |
| 89422-0D010 note |
Sensor, Water Temperature (FOR E.F.I.)
2012-05 → 2015-01
ended
|
AVV50 | — | |
| 89422-33030 note |
Sensor, Water Temperature (FOR E.F.I.)
2012-05 → 2015-01
ended
|
AVV50 | — | |
| 89422-0D010 |
Sensor, Water Temperature (FOR E.F.I.)
2015-01 → —
|
ASV50 | — | |
| 89422-0D010 note |
Sensor, Water Temperature (FOR E.F.I.)
2015-01 → —
|
ASV51,AVV50 | — | |
| 89422-33030 note |
Sensor, Water Temperature (FOR E.F.I.)
2015-01 → —
|
ASV51,AVV50 | — | |
| 89661 — Computer, Engine Control | ||||
| 89661-06M10 |
Computer, Engine Control
2012-05 → 2014-06
ended
|
AVV50 | — | |
| 89661-06M20 |
Computer, Engine Control
2011-12 → 2012-06
ended
|
ACV51 | — | |
| 89661-06M30 note |
Computer, Engine Control
2011-12 → 2014-04
ended
|
ASV50 25G,25V | — | |
| 89661-06M40 note |
Computer, Engine Control
2011-12 → 2014-04
ended
|
ASV50 25S | — | |
| 89661-06M50 |
Computer, Engine Control
2011-12 → 2012-06
ended
|
ASV50 25G,25V | — | |
| 89661-06M60 |
Computer, Engine Control
2011-12 → 2012-06
ended
|
ASV50 25S | — | |
| 89661-06P10 |
Computer, Engine Control
2012-06 → 2014-08
ended
|
ACV51 | — | |
| 89661-06P20 |
Computer, Engine Control
2012-06 → 2015-01
ended
|
ASV50 25G,25V | — | |
| 89661-06P30 |
Computer, Engine Control
2012-06 → 2015-01
ended
|
ASV50 25S | — | |
| 89661-06W40 note |
Computer, Engine Control
2014-04 → 2015-01
ended
|
ASV50 25G,25V | — | |
| 89661-06W50 note |
Computer, Engine Control
2014-04 → 2015-01
ended
|
ASV50 25S | — | |
| 89661-06W60 |
Computer, Engine Control
2014-08 → 2014-09
ended
|
ACV51 | — | |
| 89661-06W61 |
Computer, Engine Control
2014-10 → 2015-01
ended
|
ACV51 | — | |
| 89661-06X20 |
Computer, Engine Control
2014-06 → 2015-01
ended
|
AVV50 | — | |
| 89661-06V00 |
Computer, Engine Control
2015-01 → 2016-08
ended
|
ASV51 | — | |
| 89661-06V10 note |
Computer, Engine Control
2015-01 → 2016-08
ended
|
ASV50 25G,25V | — | |
| 89661-06V20 note |
Computer, Engine Control
2015-01 → 2016-08
ended
|
ASV50 25S | — | |
| 89661-06V30 |
Computer, Engine Control
2015-01 → 2016-08
ended
|
ASV50 25G,25V | — | |
| 89661-06V40 |
Computer, Engine Control
2015-01 → 2016-08
ended
|
ASV50 25S | — | |
| 89661-06V50 |
Computer, Engine Control
2015-01 → —
|
AVV50 | — | |
| 89661-06X10 note |
Computer, Engine Control
2015-01 → 2016-08
ended
|
ASV51 20E | — | |
| 89661-06X10 note |
Computer, Engine Control
2015-01 → 2016-08
ended
|
ASV51 20S | — | |
| 89661-0X330 |
Computer, Engine Control
2016-08 → —
|
ASV50 25S | — | |
| 89661-0X340 |
Computer, Engine Control
2016-08 → —
|
ASV50 25G,25V | — | |
| 89661-0X350 |
Computer, Engine Control
2016-08 → —
|
ASV51 | — | |
| 89667E — Bracket, Engine Control Computer, NO.1 | ||||
| 89667-06130 |
Bracket, Engine Control Computer, NO.1
2011-12 → 2015-01
ended
|
ACV51 | — | |
| 89667-06230 |
Bracket, Engine Control Computer, NO.1
2011-12 → 2015-01
ended
|
ASV50,AVV50 | — | |
| 89667-06150 |
Bracket, Engine Control Computer, NO.1
2015-01 → —
|
ASV51 | — | |
| 89667-06230 |
Bracket, Engine Control Computer, NO.1
2015-01 → —
|
ASV50,AVV50 | — | |
| 89668 — Bracket, Engine Control Computer, NO.2 | ||||
| 89668-06130 |
Bracket, Engine Control Computer, NO.2
2011-12 → 2015-01
ended
|
ACV51 | — | |
| 89668-06230 |
Bracket, Engine Control Computer, NO.2
2011-12 → 2015-01
ended
|
ASV50,AVV50 | — | |
| 89668-06150 |
Bracket, Engine Control Computer, NO.2
2015-01 → —
|
ASV51 | — | |
| 89668-06230 |
Bracket, Engine Control Computer, NO.2
2015-01 → —
|
ASV50,AVV50 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
