Toyota Camry/Hybrid (CHINA)
2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General
Supported model
Data version 2018-05

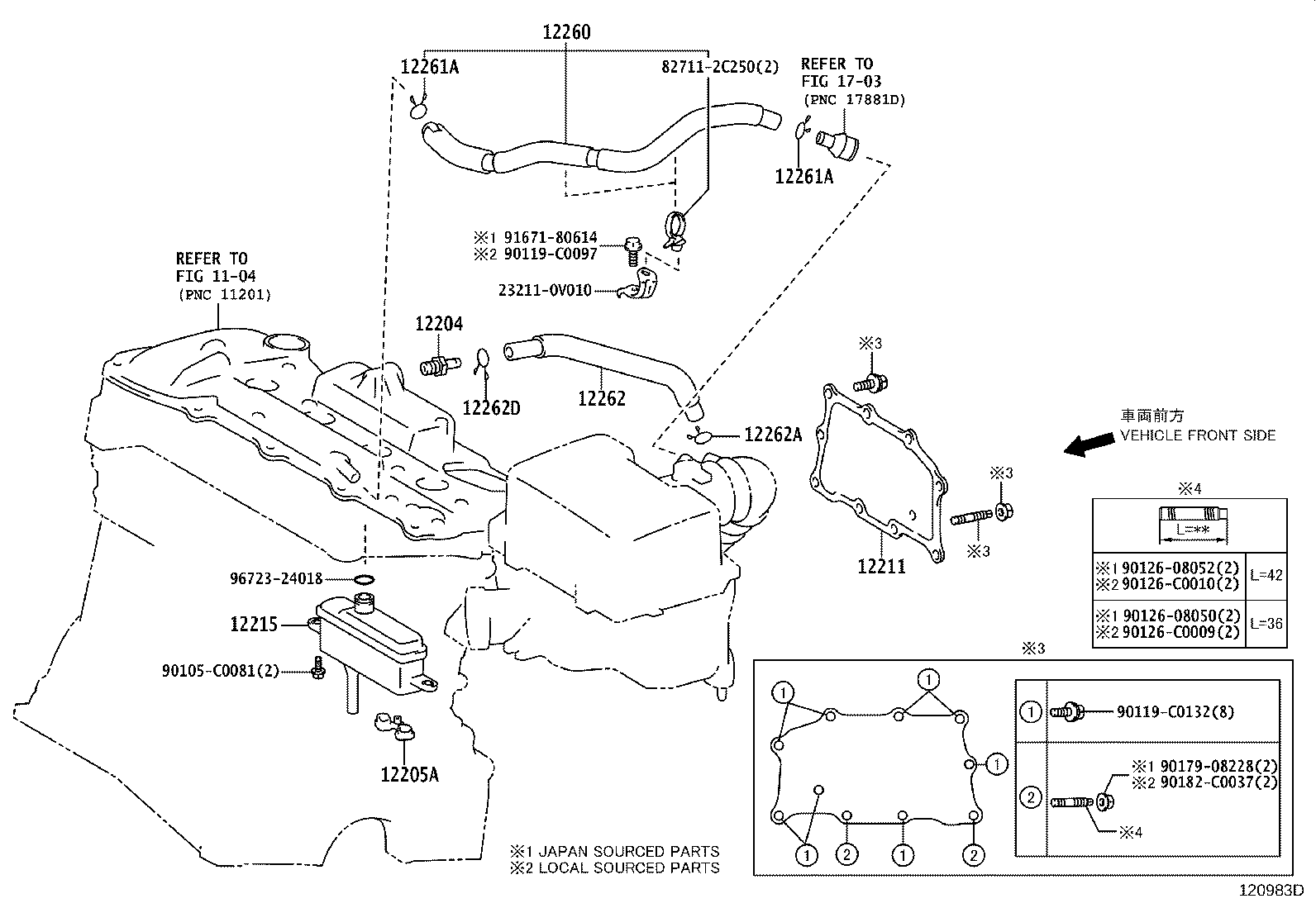

Ventilation Hose
12 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 12204 | Valve Sub-assy, Ventilation |
| 12205 | Case Sub-assy, Ventilation |
| 12205A | Ring, O(FOR VENTILATION CASE) |
| 12211 | Case, Ventilation, NO.1 |
| 12215 | Separator, Case |
| 12260 | Hose Assy, Ventilation |
| 12261 | Hose, Ventilation |
| 12261A | Clip OR Clamp(FOR VENTILATION HOSE) |
| 12262 | Hose, Ventilation, NO.2 |
| 12262A | Clip(FOR VENTILATION HOSE NO.2) |
| 12262D | Clip(FOR VENTILATION HOSE NO.2) |
| 12278 | Insulator, Ventilation Hose Heat |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
