Water Pump

5 part groups · 4 illustrations

Illustrations

Figure 164678E

164678E 2011-12 → —

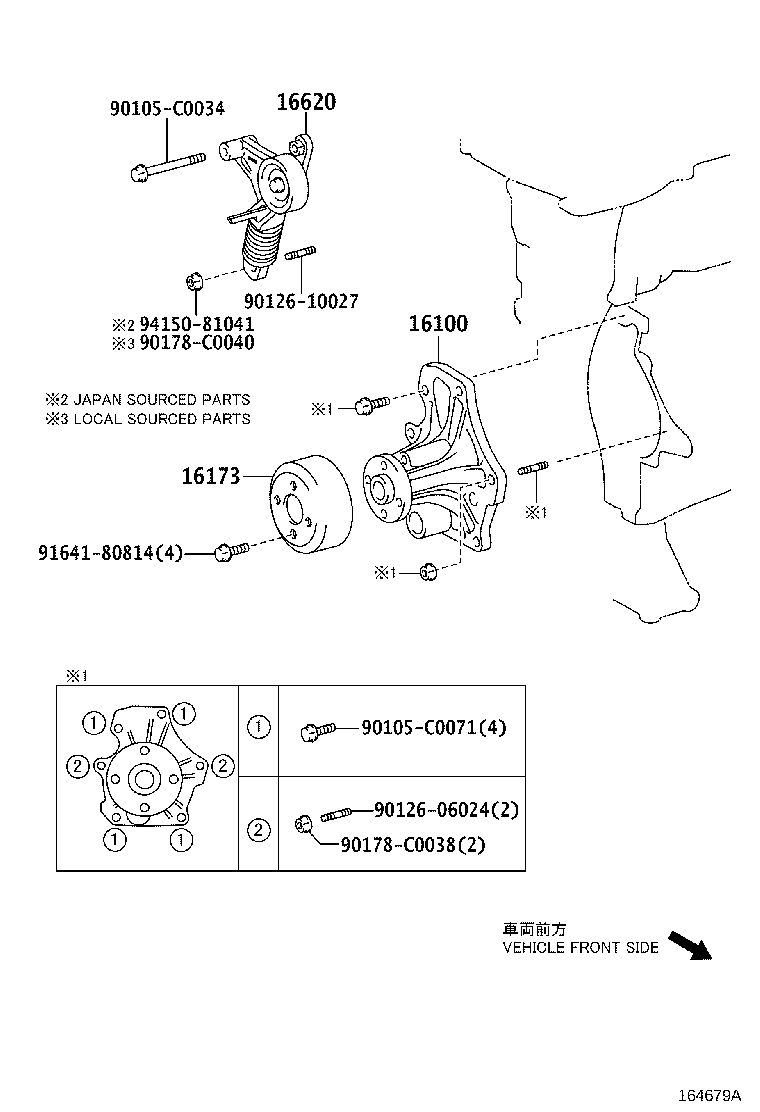

Figure 164679A

164679A 2011-12 → —

Figure 164752B

164752B 2012-05 → —

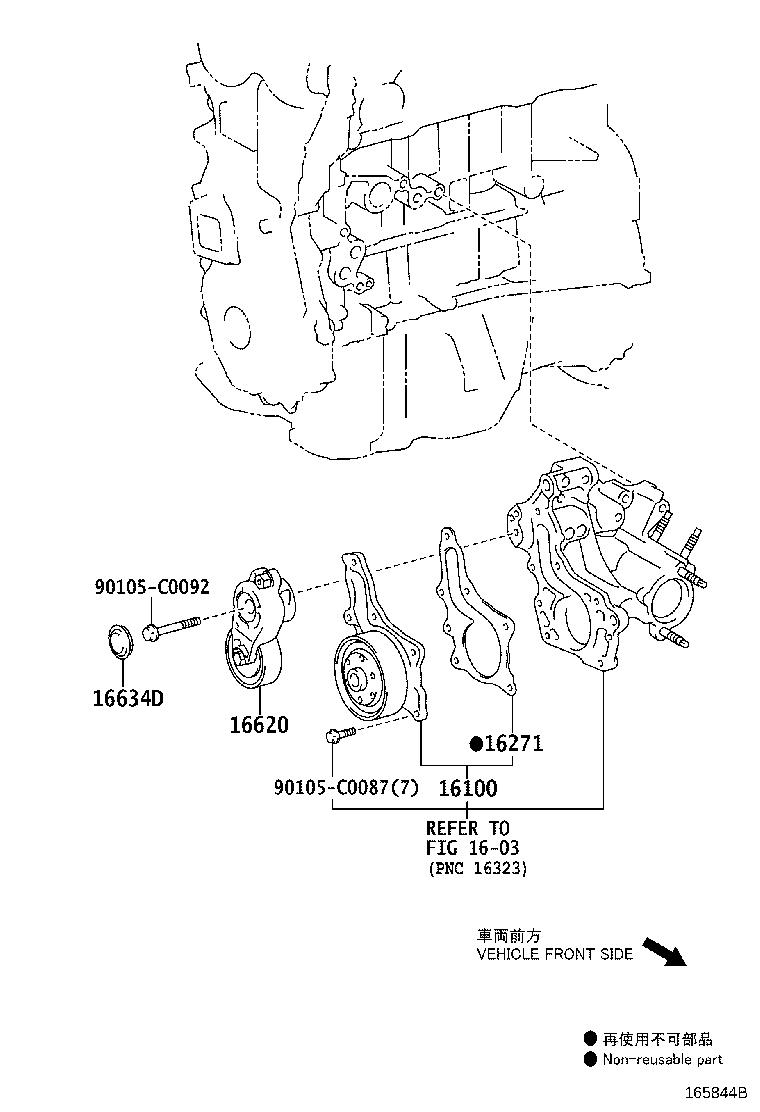

Figure 165844B

165844B 2015-01 → —

Part groups

PNC	Description
16100	Pump Assy, Engine Water
16173	Pulley, Water Pump
16271	Gasket, Water Pump
16620	Tensioner Assy, V-ribbed Belt
16634D	Cover, Dust

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
