Toyota Camry/Hybrid (CHINA)

2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

11 part groups · 4 illustrations

Illustrations

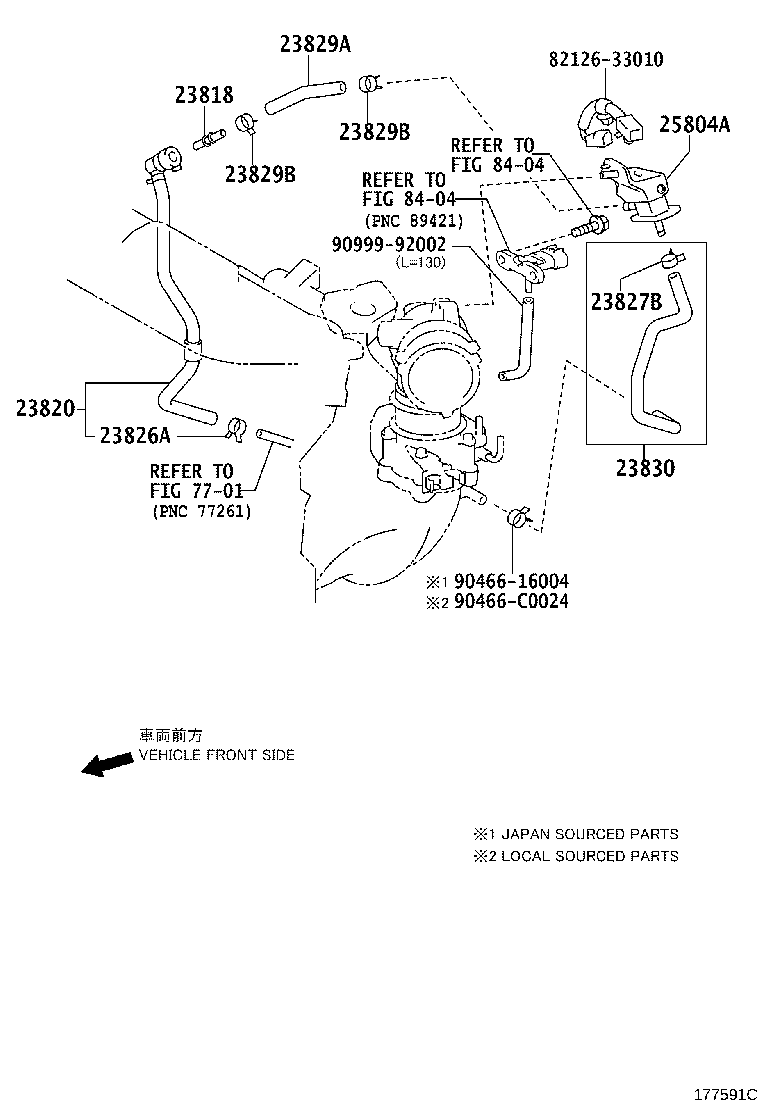

Figure 177434A 177434A 2011-12 → — Figure 177433A 177433A 2011-12 → — Figure 177591C 177591C 2012-05 → — Figure 178667A 178667A 2015-01 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23285A Valve, Check, NO.1
23818 Pipe, Fuel Vapor Feed
23820 Hose Assy, Fuel Vapor Feed
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
23829A Hose, Fuel Vapor Feed
23829B Clip(FOR FUEL VAPOR FEED HOSE)
23830 Hose Assy, Fuel Vapor Feed, NO.2
25804A Valve Sub-assy, Vacuum Switching
25860 Valve Assy, Vacuum Switching, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
