Toyota Camry/Hybrid (CHINA)

2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Oil Cooler & Tube (ATM)

16 part groups · 4 illustrations

Illustrations

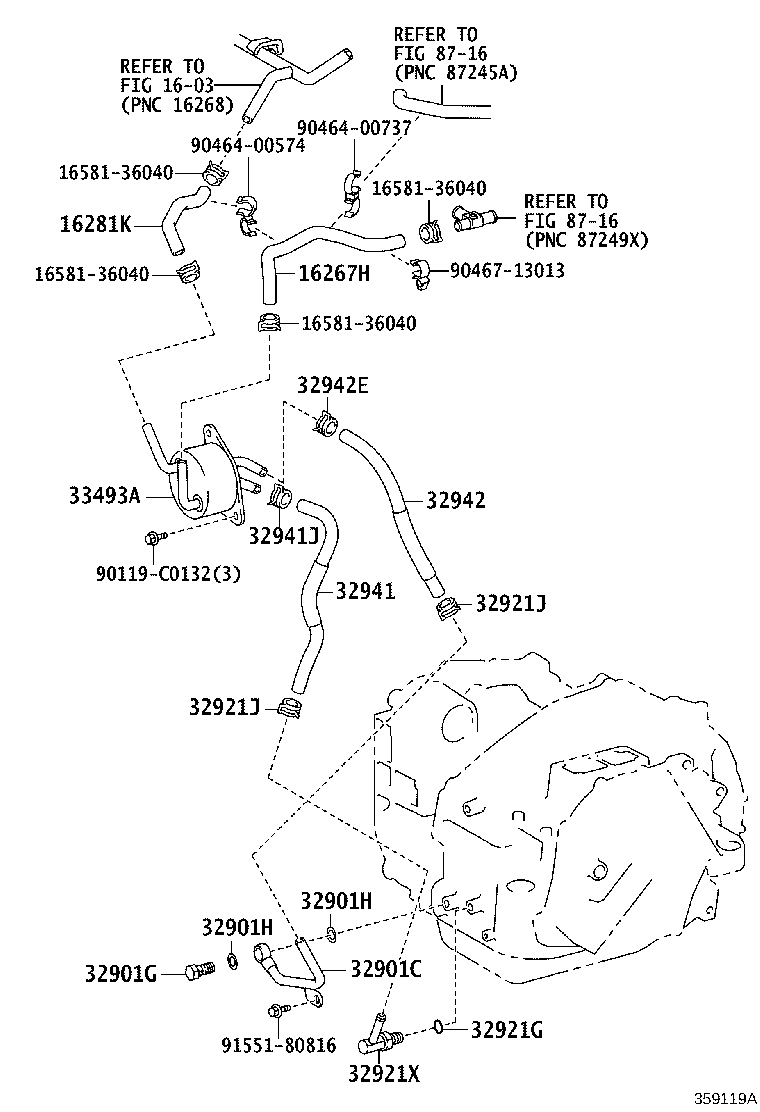

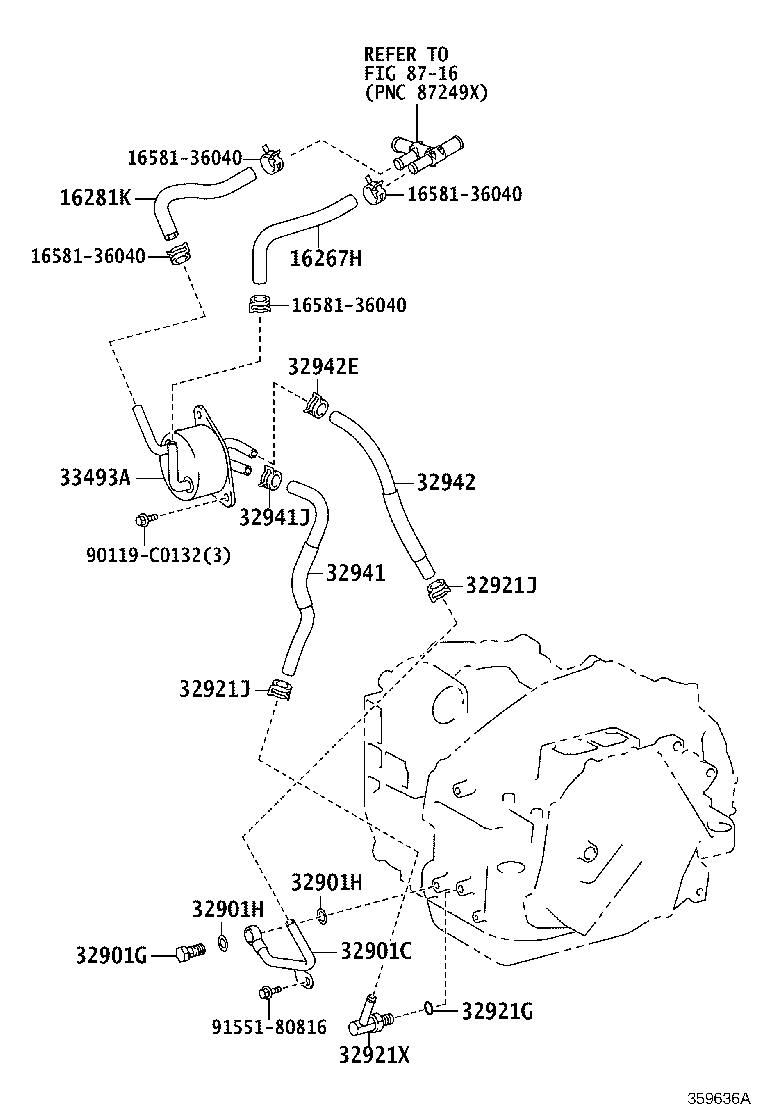

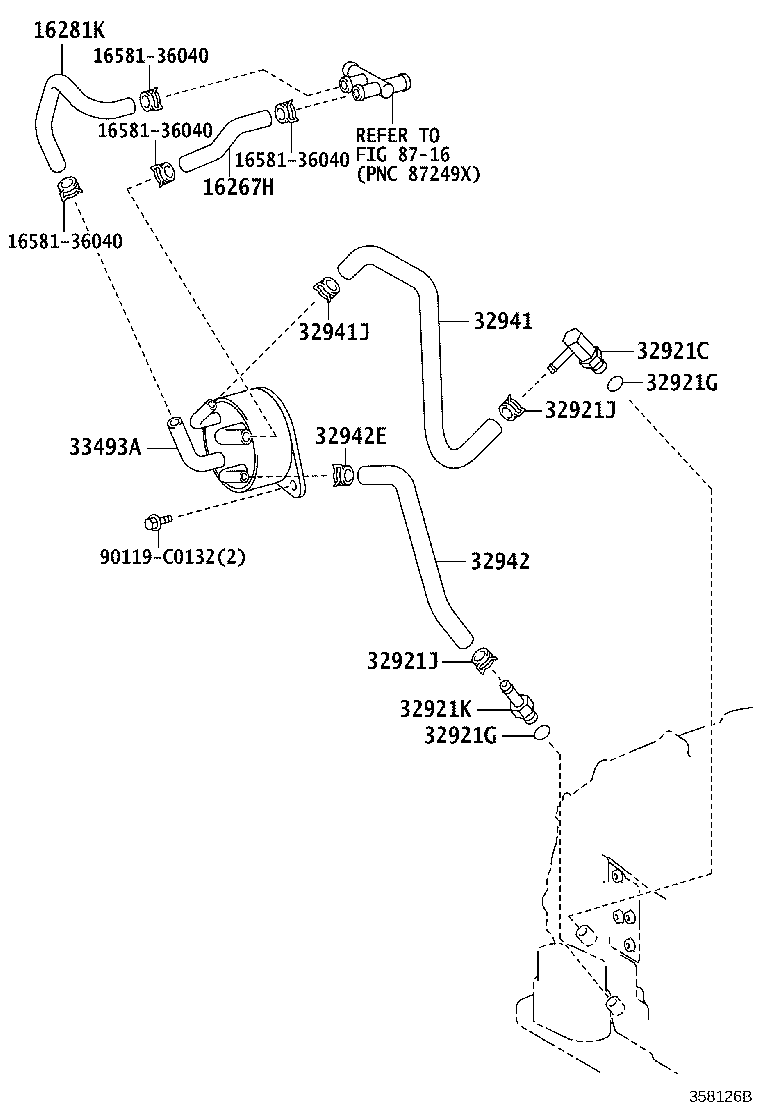

Figure 358127C 358127C 2011-12 → 2016-08 Figure 358126B 358126B 2011-12 → 2015-01 Figure 359119A 359119A 2015-01 → — Figure 359636A 359636A 2016-08 → —

Part groups

PNCDescription
16267H Hose, Water By-pass, NO.3
16281K Hose, Water By-pass, NO.4
32901C Union Sub-assy, Oil Cooler
32901G Bolt, Union(FOR OIL COOLER)
32901H Gasket(FOR OIL COOLER UNION)
32921C Union(FOR OIL COOLER TUBE)
32921G Ring, O(FOR OIL COOLER TUBE UNION)
32921J Clip(FOR OIL COOLER HOSE)
32921K Union, NO.2(FOR OIL COOLER TUBE)
32921X Union OR Elbow, Oil Cooler Inlet
32922D Union OR Elbow, Oil Cooler Outlet
32941 Hose, Oil Cooler Inlet, NO.1
32941J Clip, NO.1(FOR OIL COOLER HOSE)
32942 Hose, Oil Cooler Outlet, NO.1
32942E Clip, NO.2(FOR OIL COOLER HOSE)
33493A Cooler, Transmission Oil(ATF WARMER)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
