Toyota Camry/Hybrid (CHINA)

2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

24 part groups · 3 illustrations

Illustrations

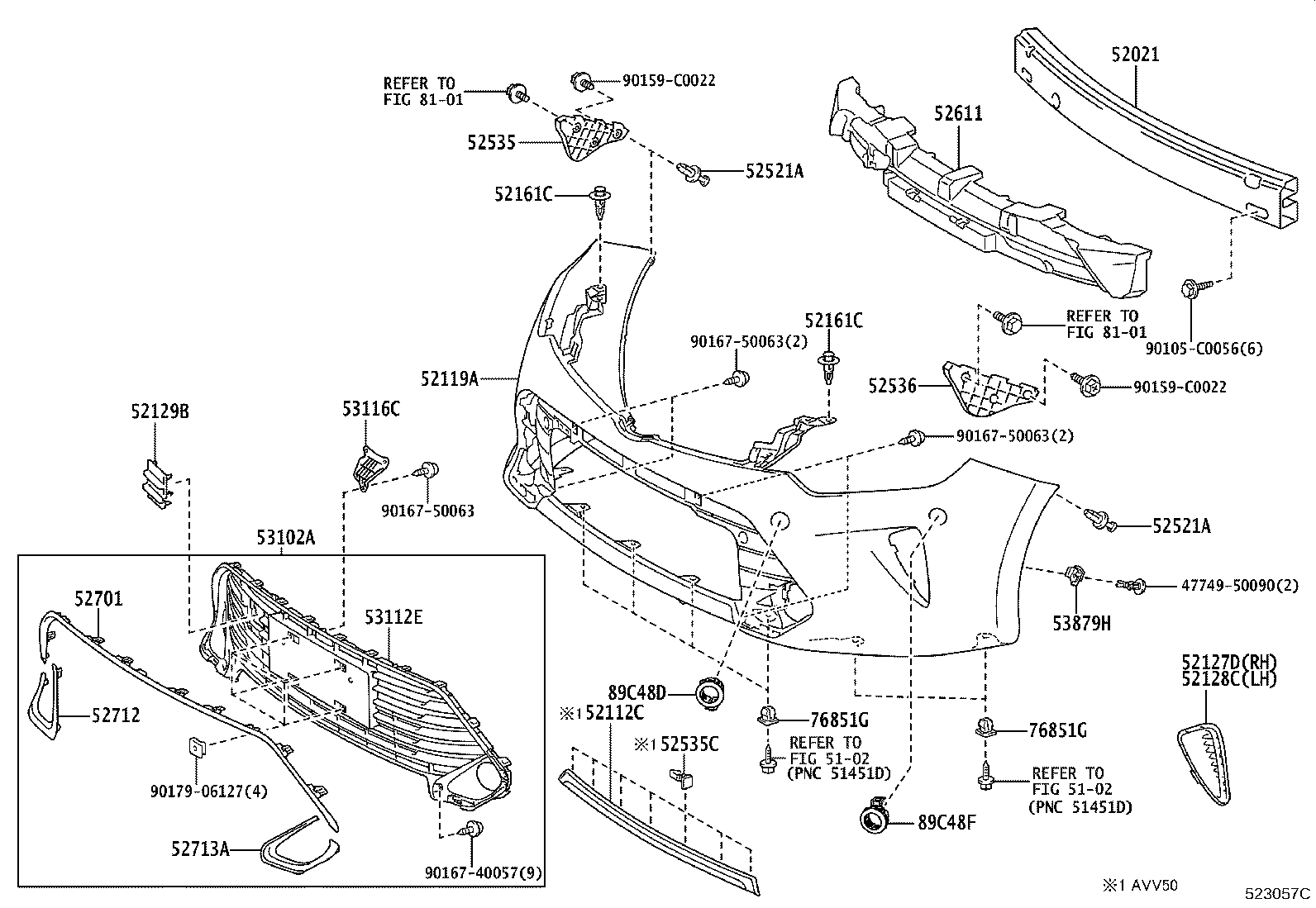

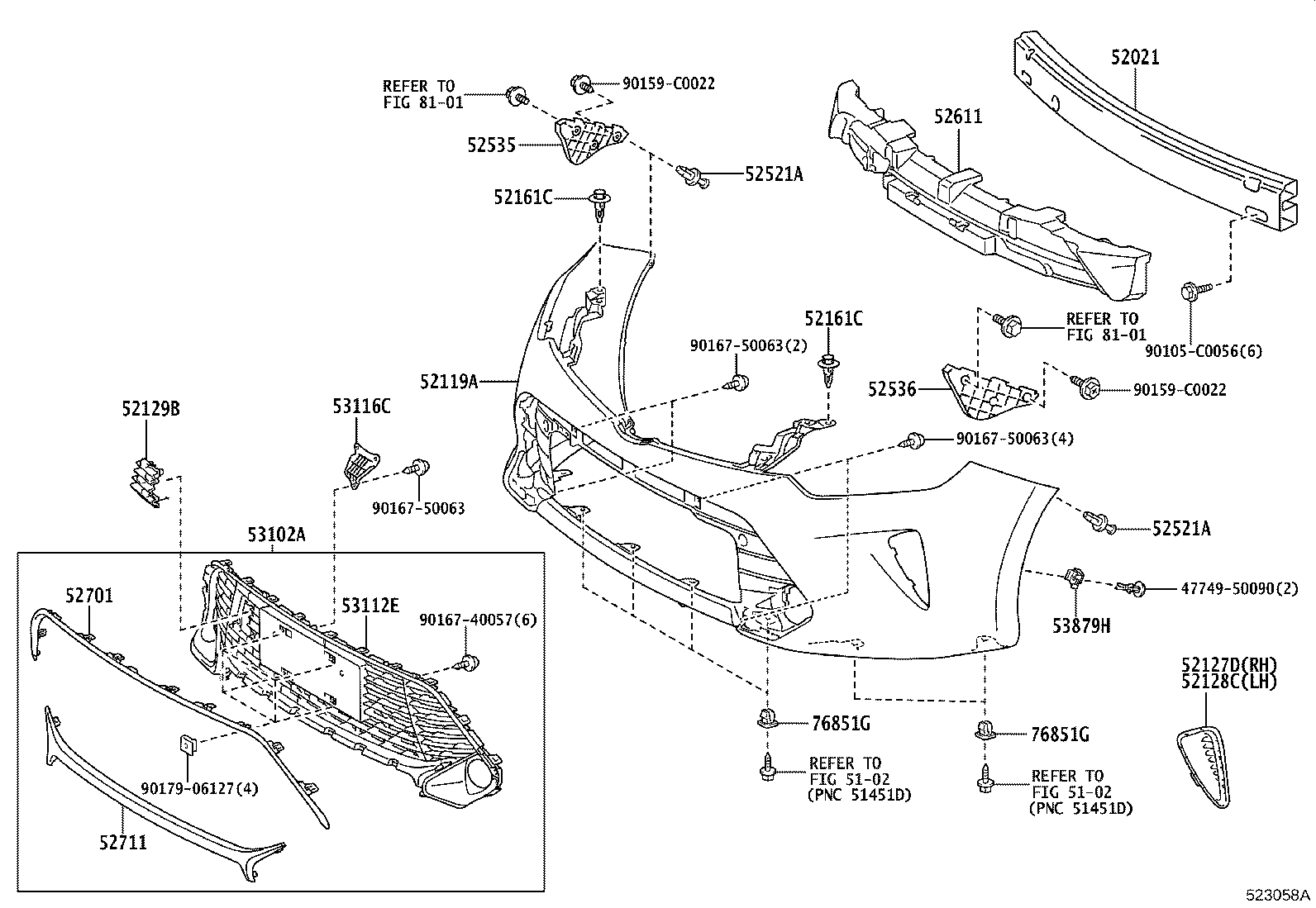

Figure 522534F 522534F 2011-12 → 2015-01 Figure 523057C 523057C 2015-01 → — Figure 523058A 523058A 2015-01 → —

Part groups

PNCDescription
52021 Reinforcement Sub-assy, Front Bumper
52112C Extension, Front Bumper
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52127D Cover, Front Bumper Hole, RH
52128C Cover, Front Bumper Hole, LH
52129B Cover, Front Bumper, Lower
52161C Piece, Front Bumper
52521A Clip(FOR FRONT BUMPER RETAINER)
52535 Retainer, Front Bumper Side, RH
52535C Retainer, Front Bumper Side
52536 Retainer, Front Bumper Side, LH
52611 Absorber, Front Bumper Energy
52701 Moulding Sub-assy, Front Bumper
52711 Moulding, Front Bumper
52712 Moulding, Front Bumper Side, RH
52713A Moulding, Front Bumper Side, LH
53102A Grille Sub-assy, Radiator, Lwr
53112E Grille, Radiator, Lower NO.1
53116C Bracket, Radiator Grille, NO.2
53879H Retainer, Front Fender Liner
76851G Grommet, Screw, NO.1
89C48D Retainer, Ultrasonic Sensor, Front Corner
89C48F Retainer, Ultrasonic Sensor, Front Side
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
