Toyota Camry/Hybrid (CHINA)

2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General

Supported model Data version 2018-05

Floor Pan & Lower Back Panel

40 part groups · 5 illustrations

PNC	Description

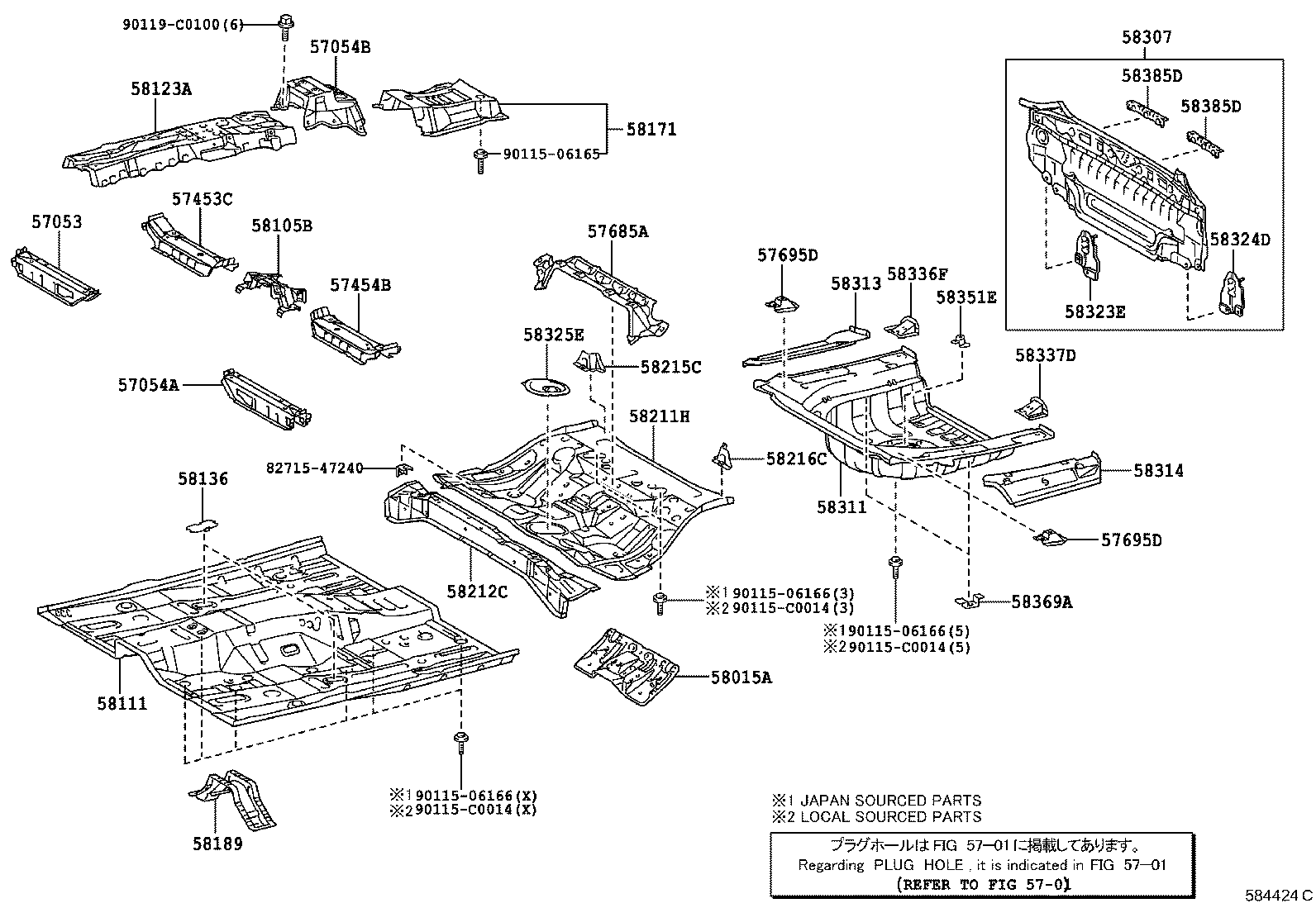

52161P	Piece, Rear Bumper
57053	Reinforcement Sub-assy, Front Floor Crossmember, RH
57054A	Reinforcement Sub-assy, Front Floor Crossmember, LH
57054B	Reinforcet Sub-assy, Crossmember Floor, NO.4
57453C	Member, Front Floor Cross Side, RH
57454B	Member, Front Floor Cross Side, LH
57628C	Cover, Rear Floor Side Member, LH
57685A	Bracket, Rear Floor Mounting, NO.1 RH
57695D	Bracket, Rear Floor Mounting, NO.2 RH
58015A	Reinforce Sub-assy, Belt Anchor, NO.3 RH
58105B	Panel Sub-assy, Front Floor Rear Upper Sub
58111	Pan, Front Floor
58123A	Support, Shift & Select Lever
58136	Cover, Front Floor Hole
58165B	Cover, Front Floor, RH
58166	Cover, Front Floor, LH

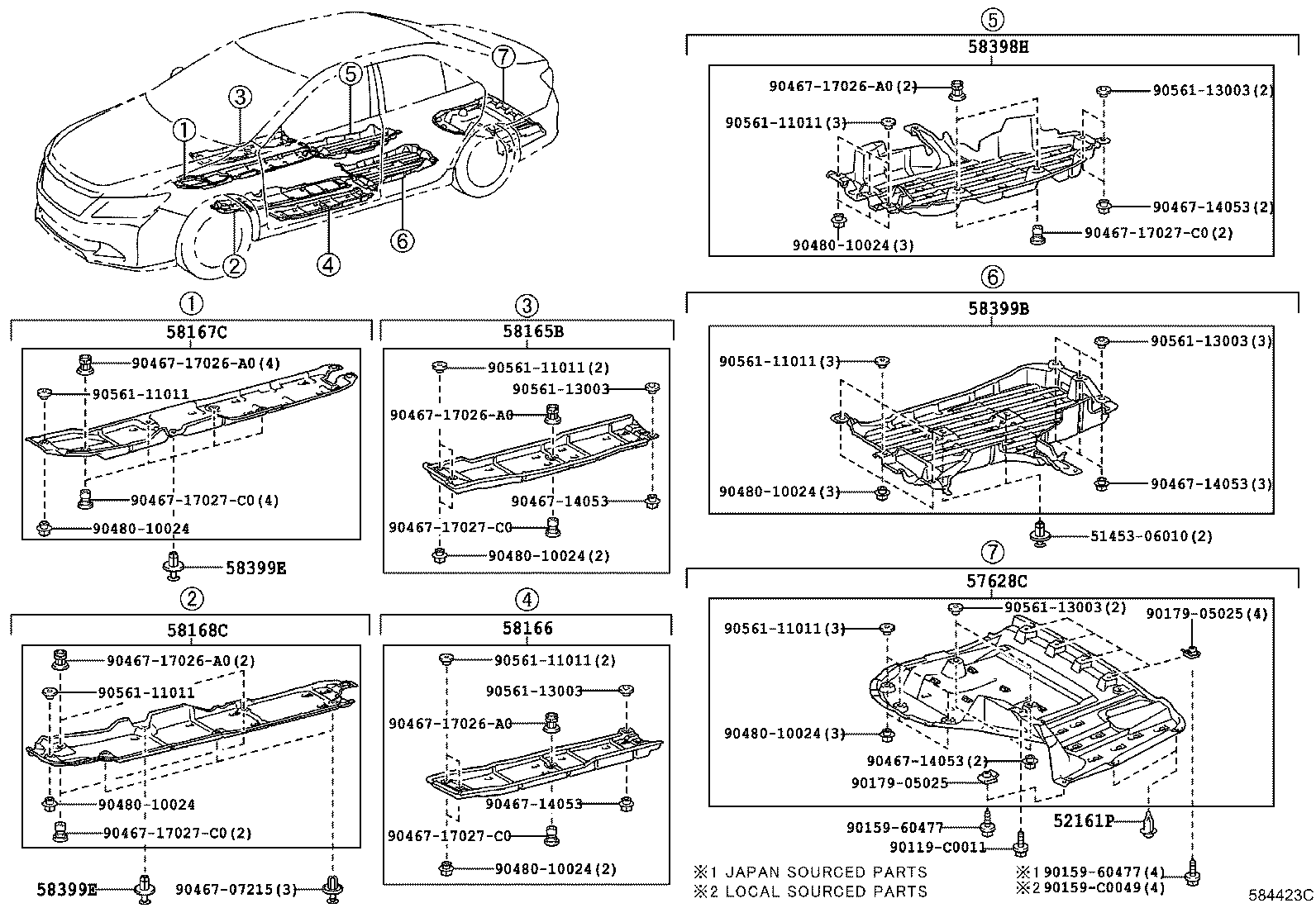

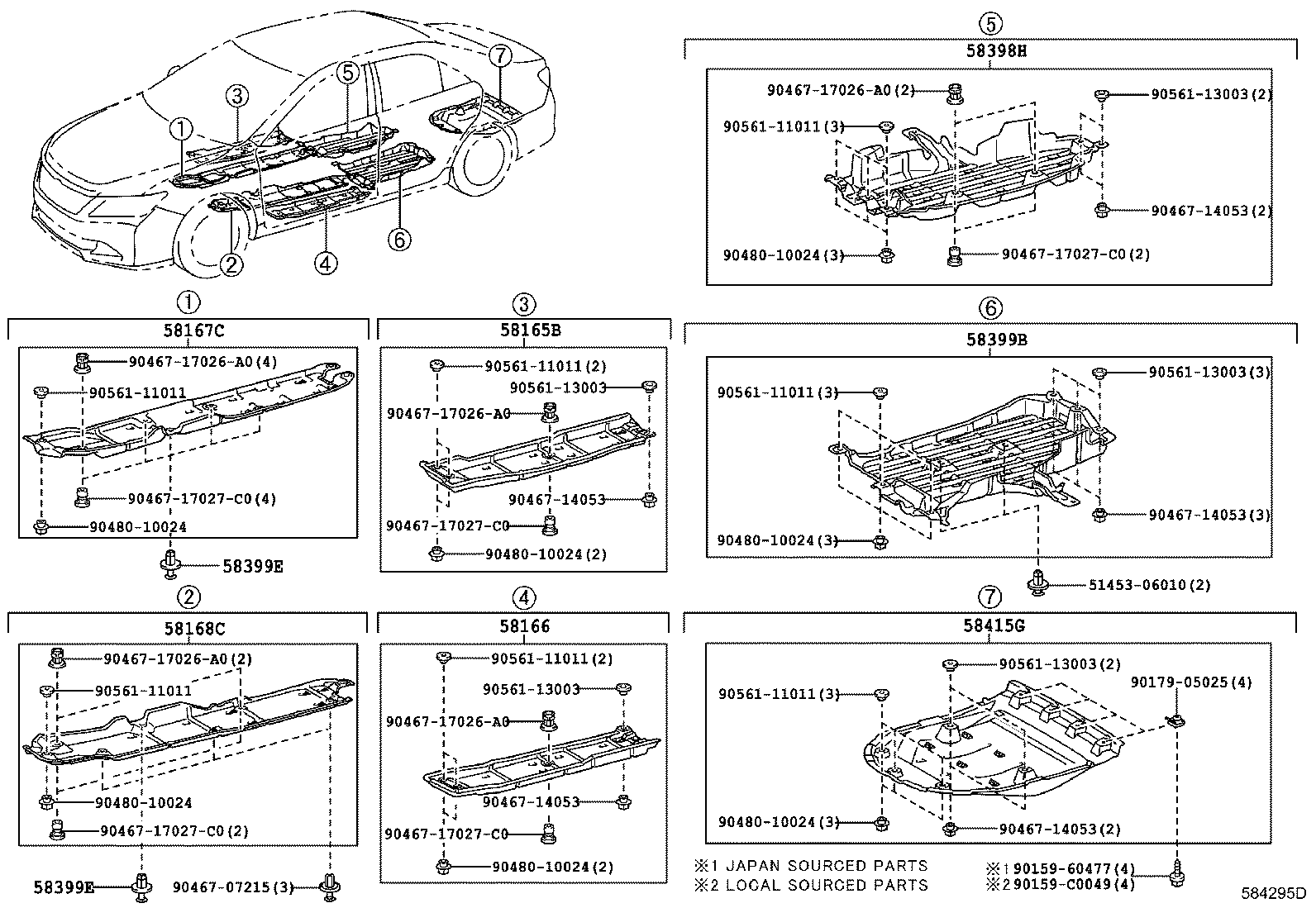

58167C	Cover, Front Floor, Center RH
58168C	Cover, Front Floor, Center LH
58171	Reinforcement, Parking Brake Base
58189	Reinforcement, Exhaust Pipe Clamp Bracket
58211H	Pan, Center Floor
58212C	Pan, Center Floor, Front
58215C	Reinforcement, Center Floor Panel, NO.2 RH
58216C	Reinforcement, Center Floor Panel, NO.2 LH
58307	Panel Sub-assy, Body Lower Back
58311	Pan, Rear Floor
58313	Panel, Rear Floor Side, RH
58314	Panel, Rear Floor Side, LH
58323E	Reinforcement, Rear Bumper Arm Support, RH
58324D	Reinforcement, Rear Bumper Arm Support, LH
58325E	Cover, Rear Floor Service Hole
58336F	Reinforcement, Rear Floor Pan, RH
58337D	Reinforcement, Rear Floor Pan, LH
58351E	Bracket, Spare Wheel Clamp
58369A	Bracket, Fuel Tube, NO.3
58385D	Bracket, Rear Bumper Cover

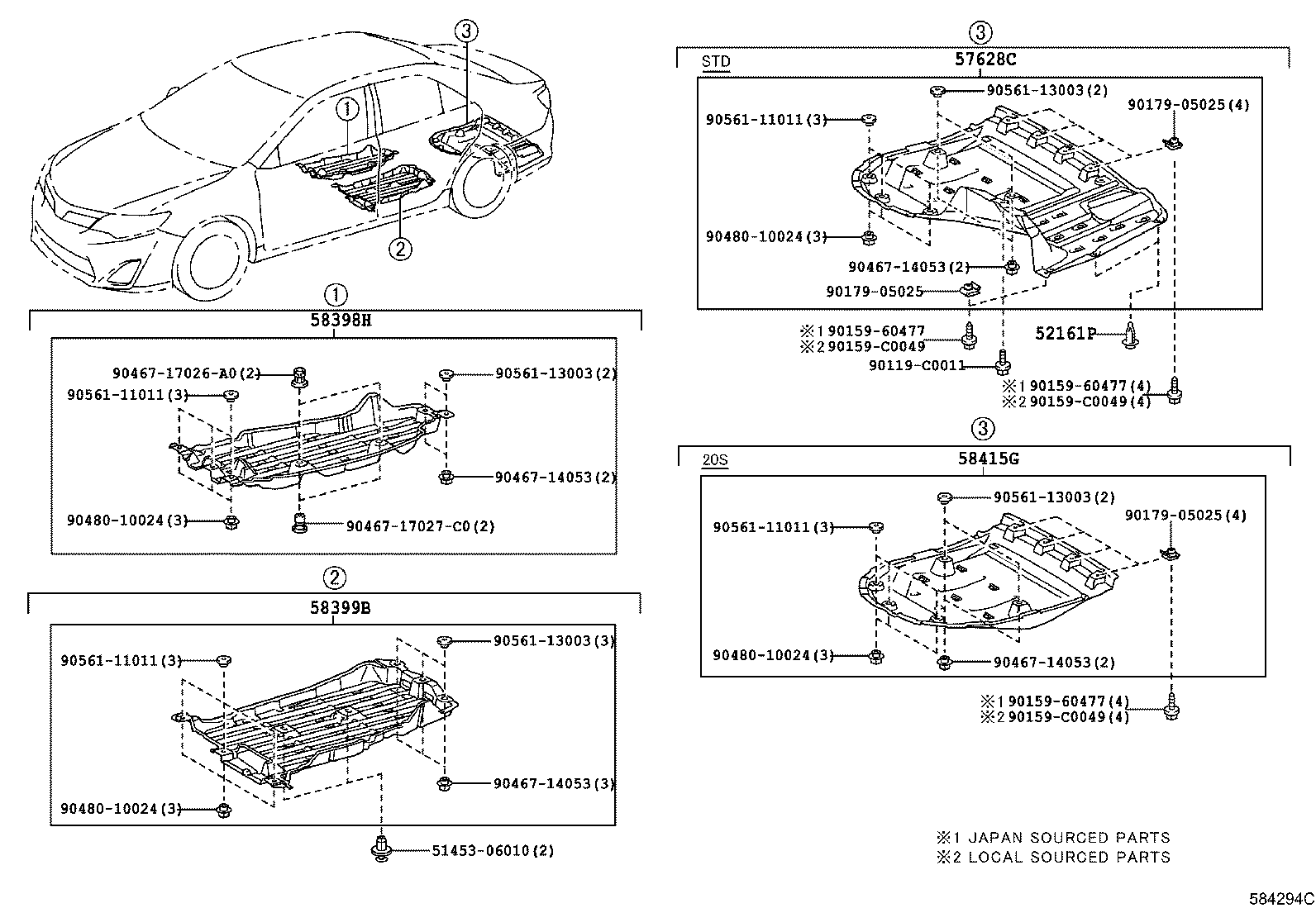

58398H	Cover, Floor Under, NO.1
58399B	Cover, Floor Under, NO.2
58399E	Clip, NO.1(FOR FLOOR UNDER COVER)
58415G	Board, Rear Floor, NO.1

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
