Toyota Camry/Hybrid (CHINA)

2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General

Supported model Data version 2018-05

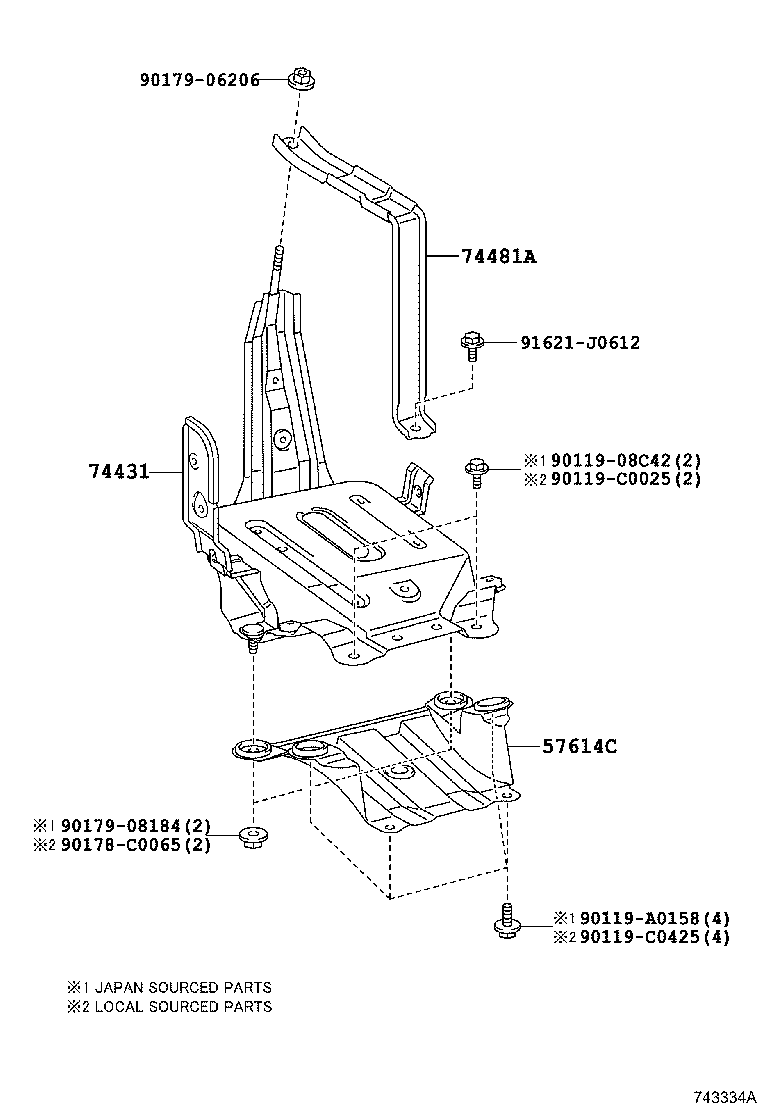

Battery Carrier

5 part groups · 2 illustrations

PNC	Description
57614C	Member, Rear Floor Side, Center Rear
74404A	Clamp Sub-assy, Battery
74431	Tray, Battery
74451B	Bolt, Battery Clamp
74481A	Clamp, Battery

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
