Toyota Camry/Hybrid (CHINA)

2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Emblem & Name Plate (EXTERIOR & INTERIOR)

11 part groups · 2 illustrations

Illustrations

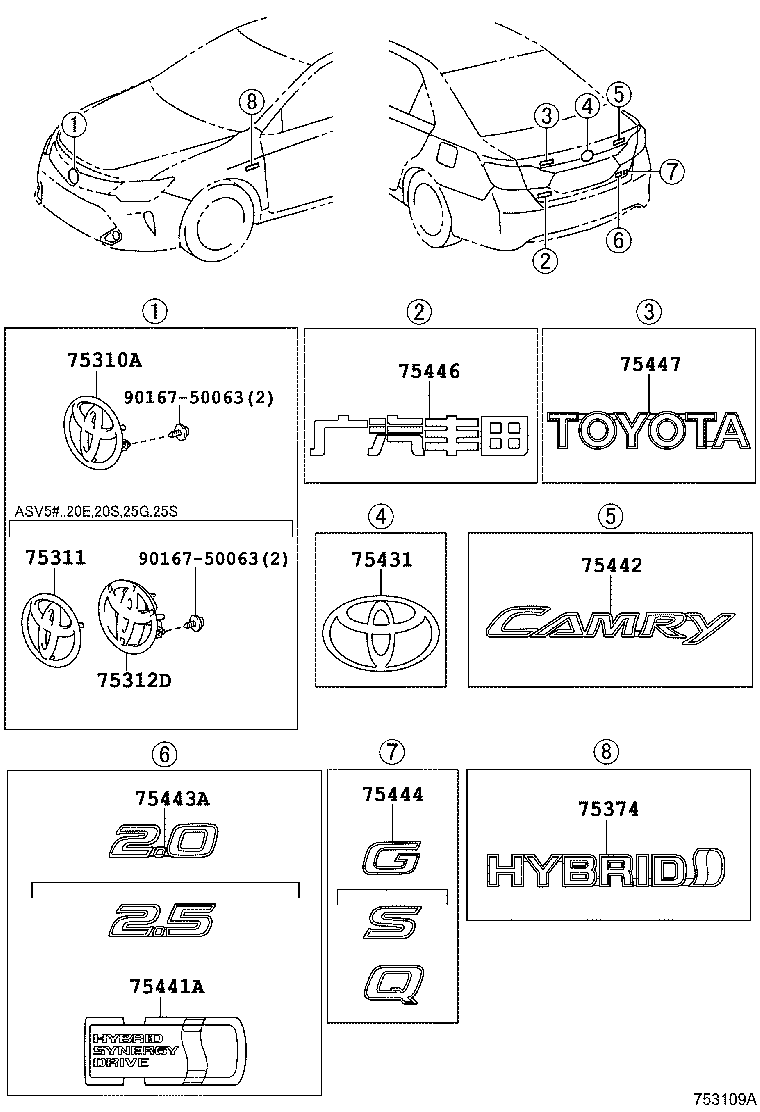

Figure 752574A 752574A 2011-12 → 2015-01 Figure 753109A 753109A 2015-01 → —

Part groups

PNCDescription
75310A Emblem Assy, Radiator Grille
75311 Emblem, Radiator Grille (OR FRONT PANEL)
75312D Base, Radiator Grille Emblem
75374 Emblem, Side Panel
75431 Emblem, Luggage Compartment Door
75441A Plate, Luggage Compartment Door Name, NO.1
75442 Plate, Luggage Compartment Door Name, NO.2
75443A Plate, Luggage Compartment Door, NO.3
75444 Plate, Luggage Compartment Door, NO.4
75446 Plate, Luggage Compartment Door Name, NO.6
75447 Plate, Luggage Compartment Door Name, NO.7
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
