Toyota Camry/Hybrid (CHINA)

2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Moulding

6 part groups · 2 illustrations

Illustrations

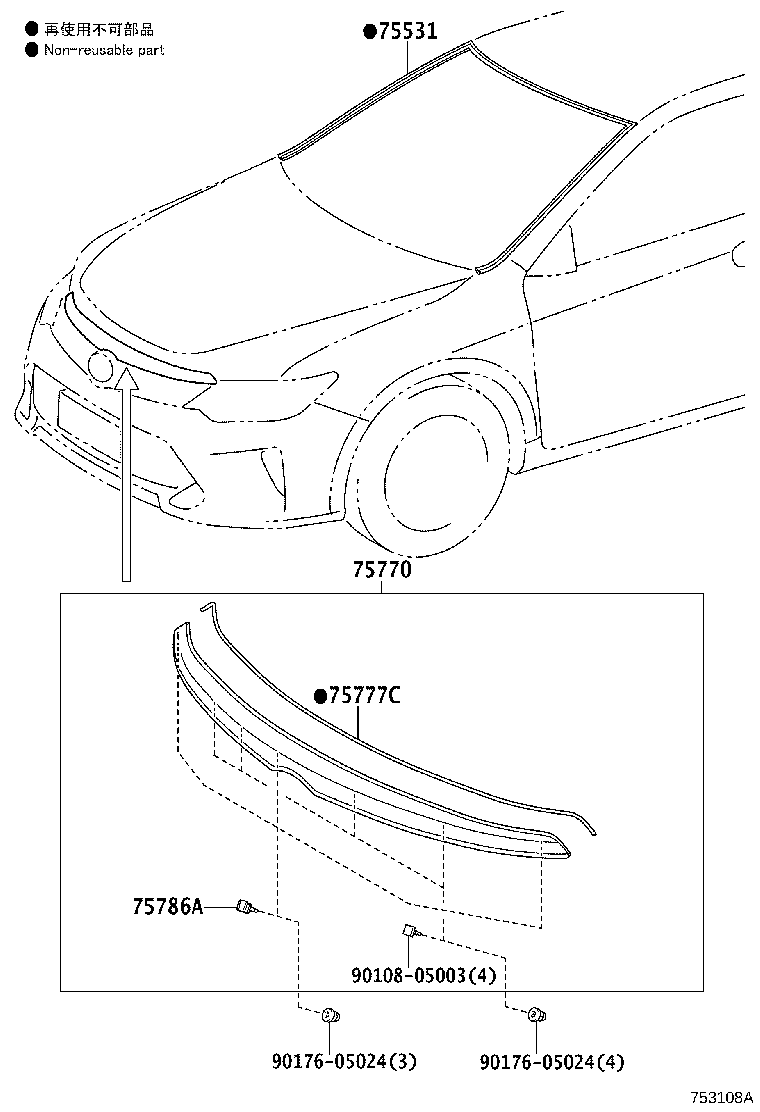

Figure 752575D 752575D 2011-12 → 2015-01 Figure 753108A 753108A 2015-01 → —

Part groups

PNCDescription
75531 Moulding, Windshield, Outer Upper
75770 Moulding Assy, Hood, Front
75777C Pad, Hood Front Moulding
75778F Pad, Hood Front Moulding, RH
75786A Retainer, Hood Front Moulding
75788D Pad, Hood Front Moulding, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
