Toyota Camry/Hybrid (CHINA)

2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Interior Lamp

16 part groups · 2 illustrations

Illustrations

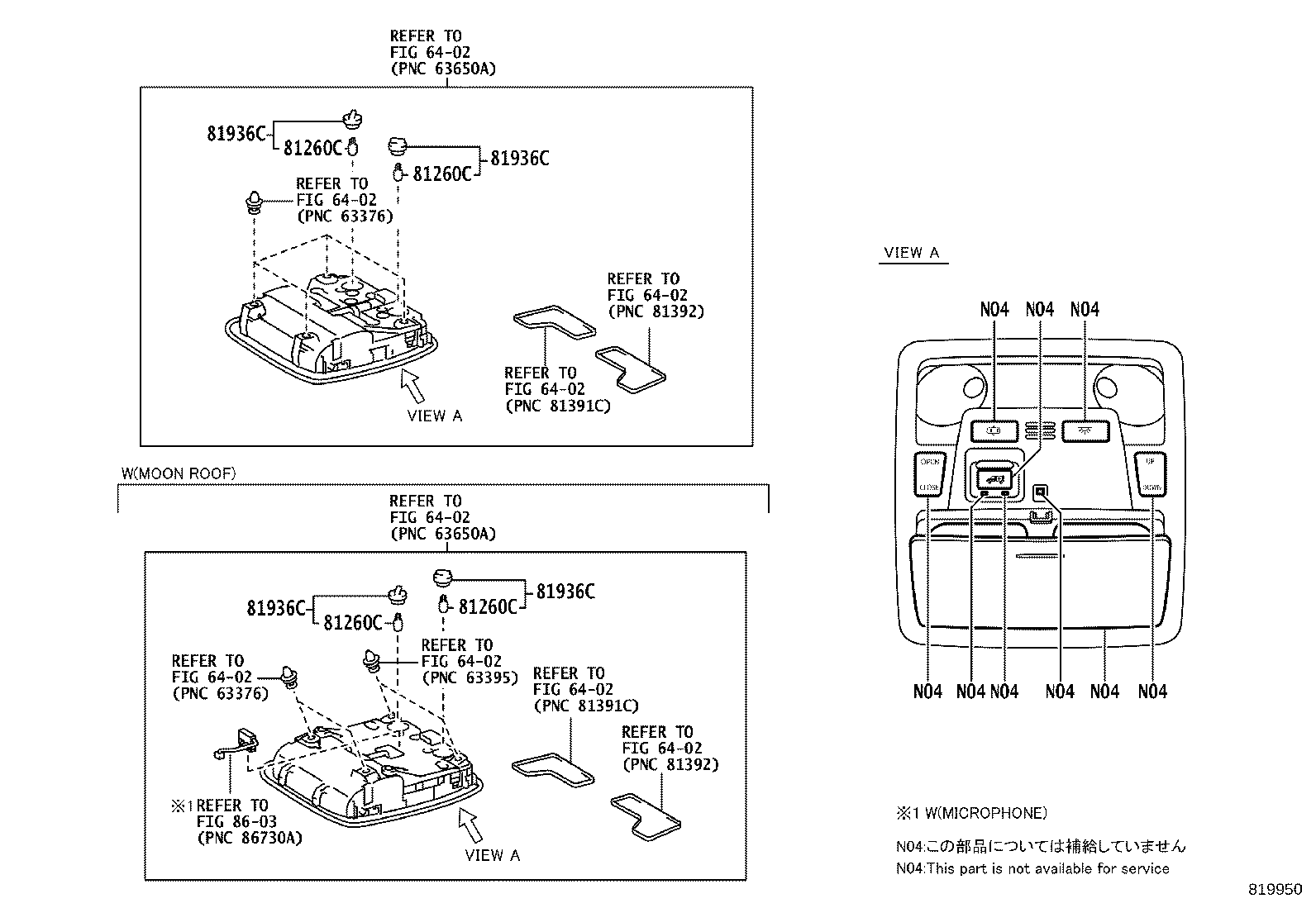

Figure 815893B 815893B 2011-12 → — Figure 819950 819950 2011-12 → —

Part groups

PNCDescription
81080D Lamp Assy, Front Door Inside Handle Illumination, RH
81080E Lamp Assy, Front Door Inside Handle Illumination, LH
81080F Lamp Assy, Rear Door Inside Handle Illumination, RH
81080G Lamp Assy, Rear Door Inside Handle Illumination, LH
81080H Lamp Assy, Interior Illumination, NO.1 RH
81080L Lamp Assy, Interior Illumination, NO.1 LH
81251B Lens, Rear Room Lamp, RH
81260C Bulb(FOR MAP LAMP)
81291A Lens, Rear Room Lamp, LH
81330 Lamp Assy, Luggage Compartment, NO.1
81330B Bulb, Luggage Compartment Lamp
81340 Lamp Assy, Vanity
81340B Bulb (FOR VANITY LAMP)
81360T Lamp Assy, Spot
81360U Bulb, Spot Lamp
81936C Bulb Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
