Toyota Camry/Hybrid (CHINA)

2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Switch & Relay & Computer

132 part groups · 16 illustrations

Illustrations

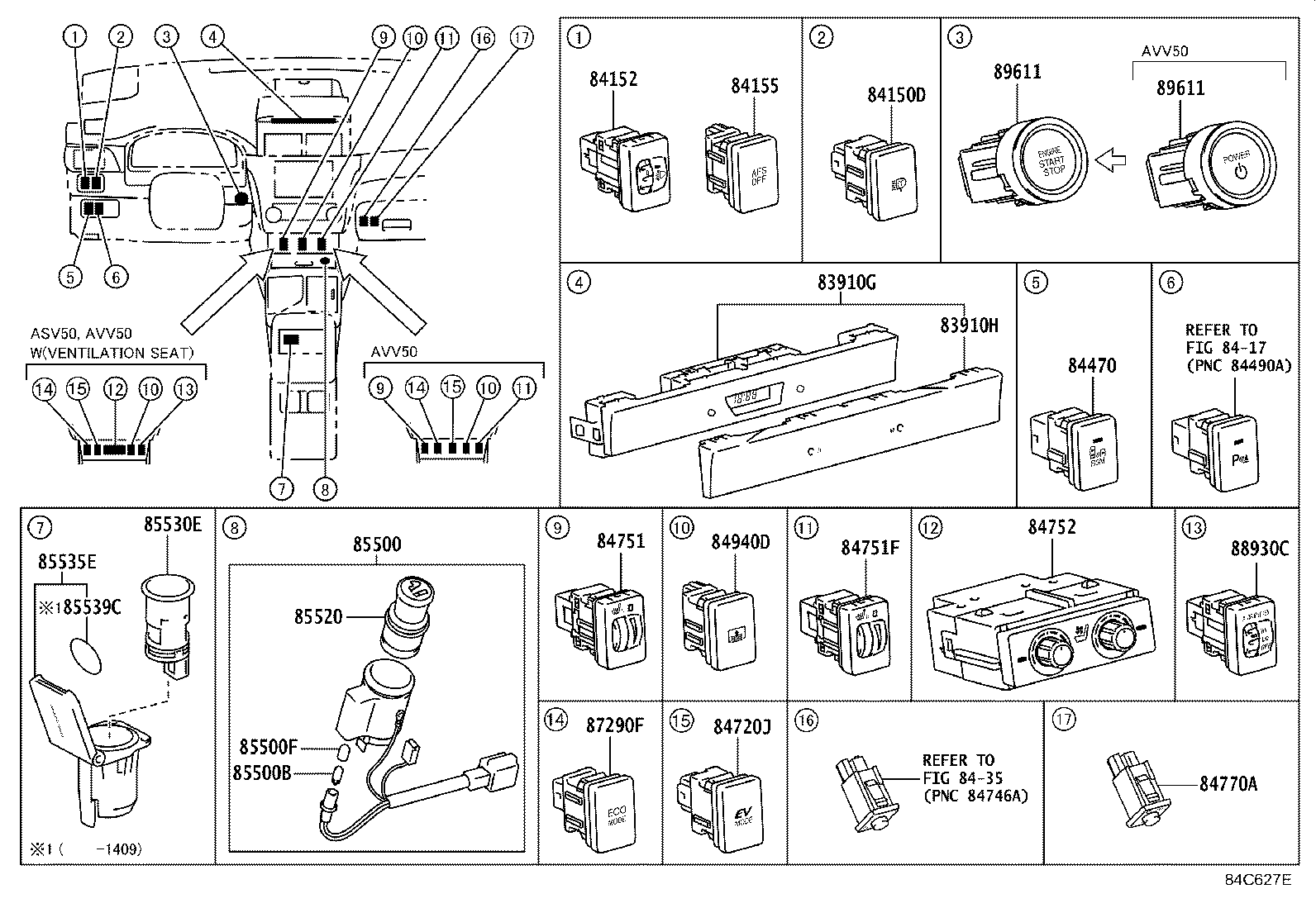

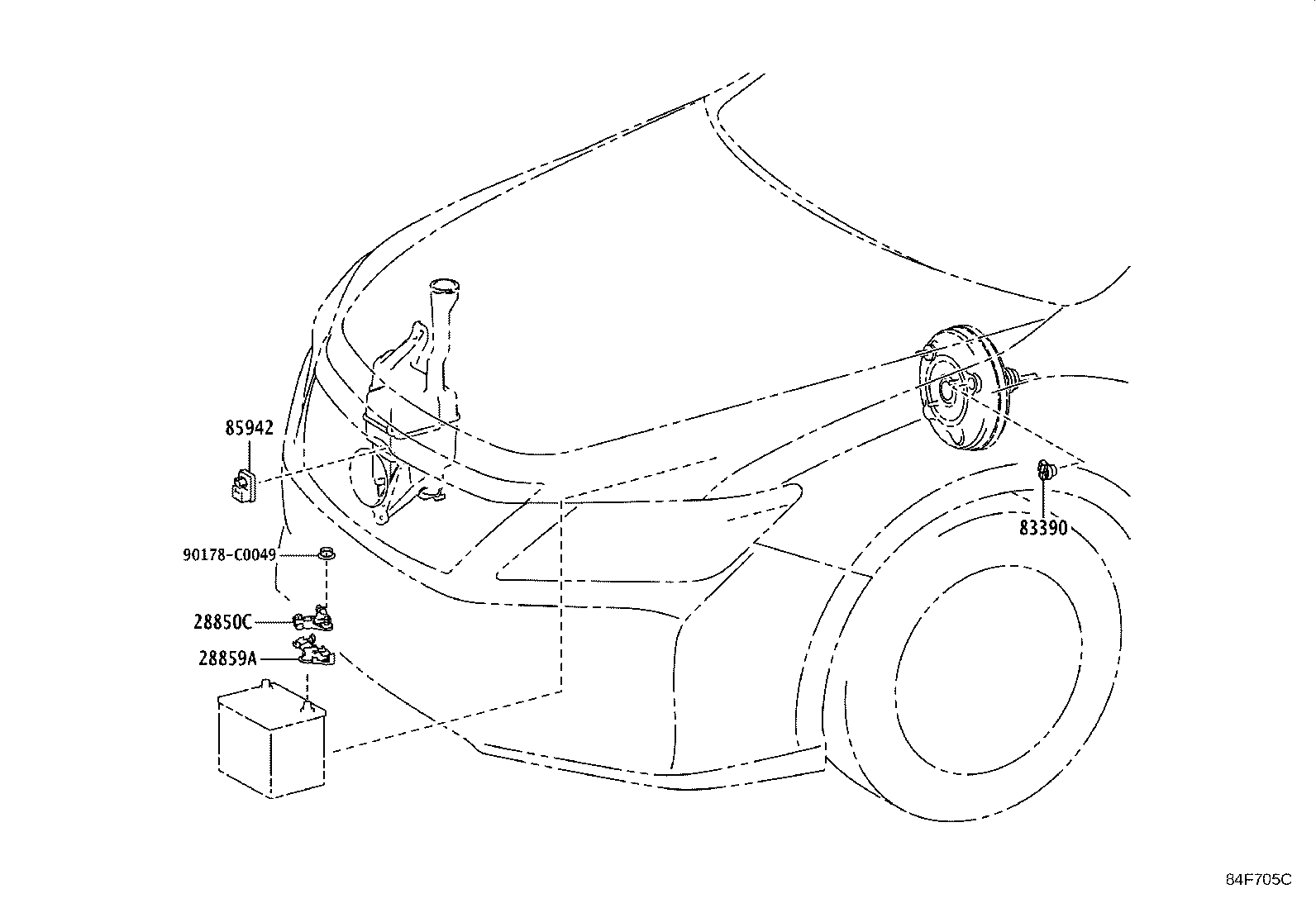

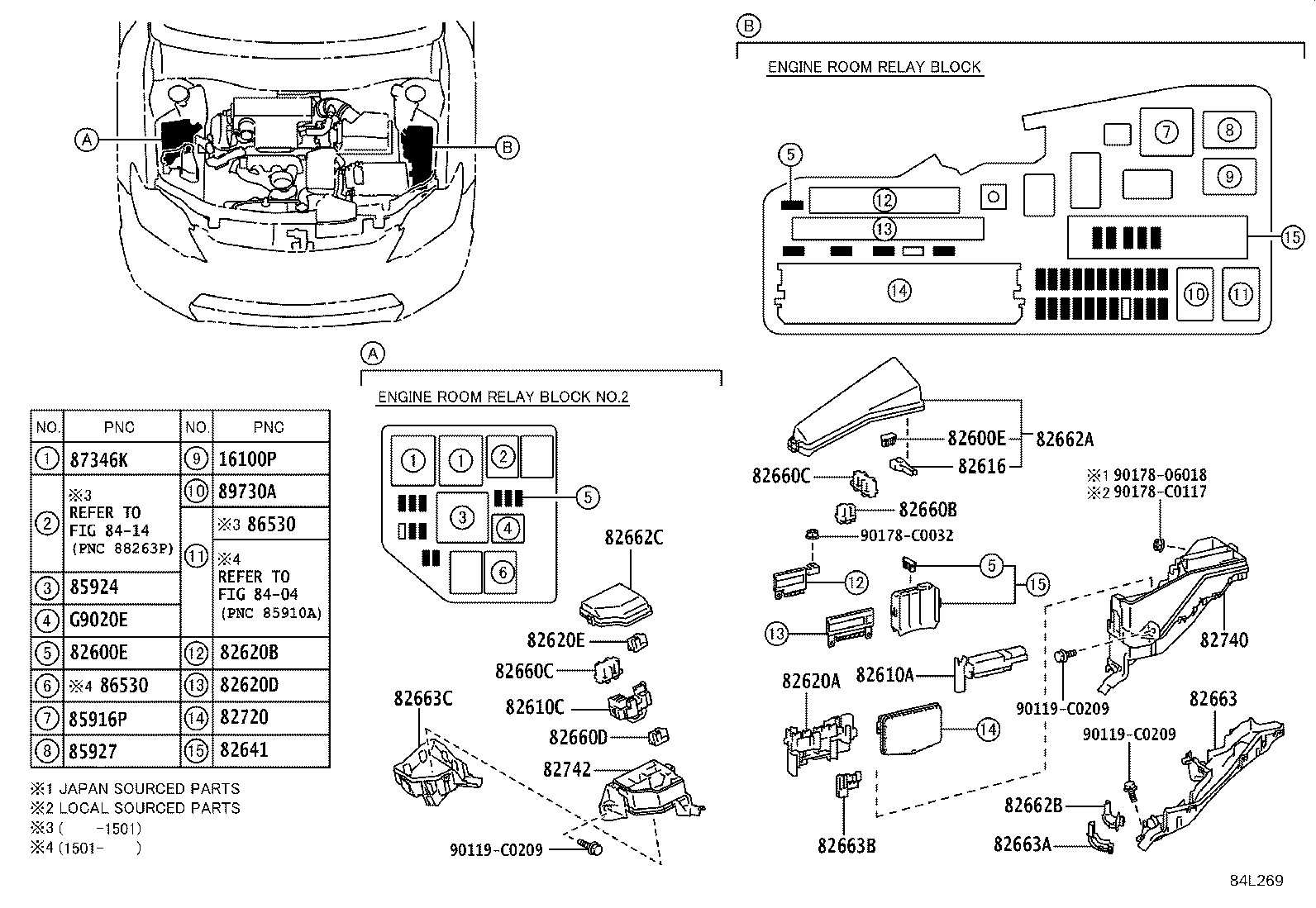

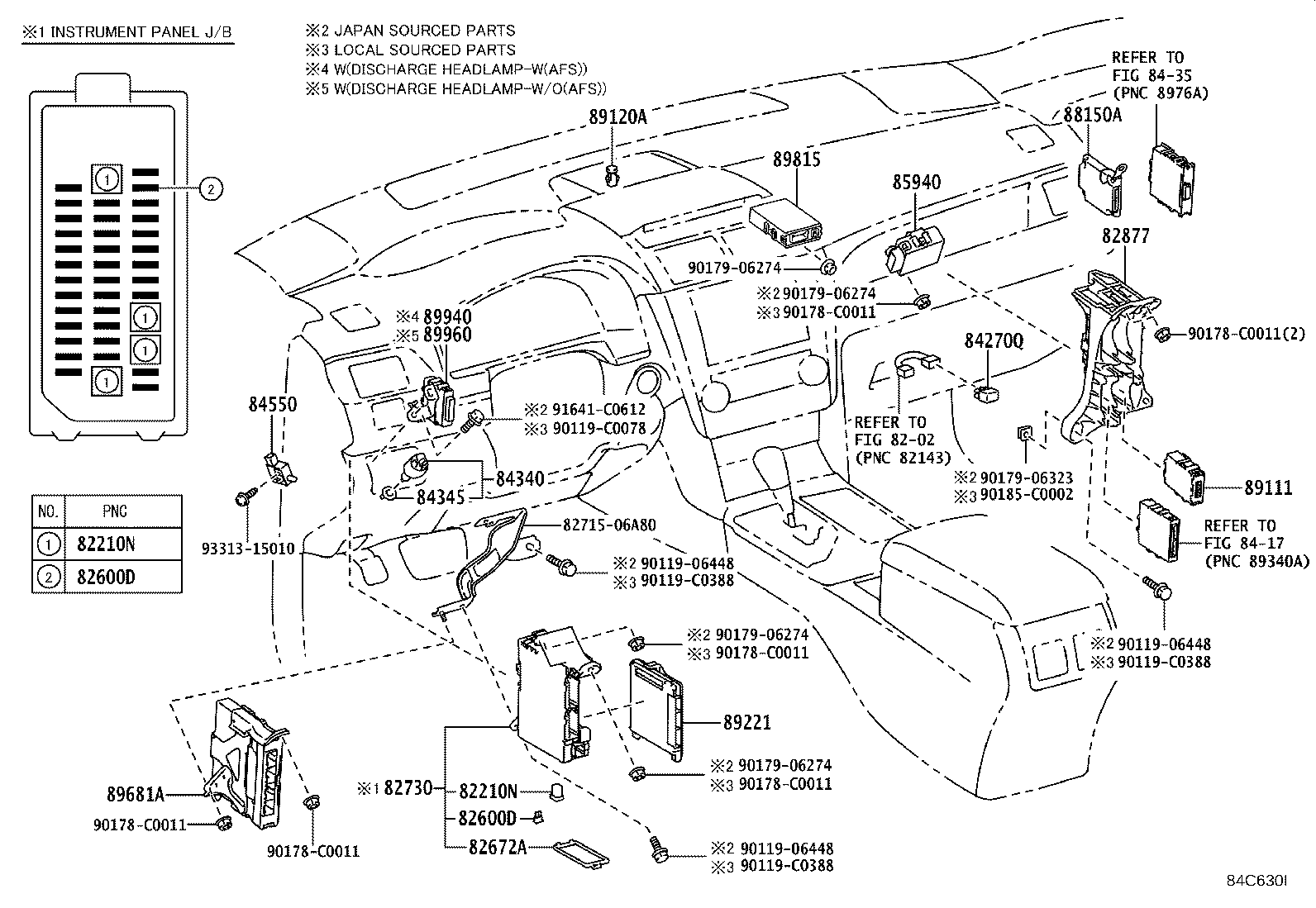

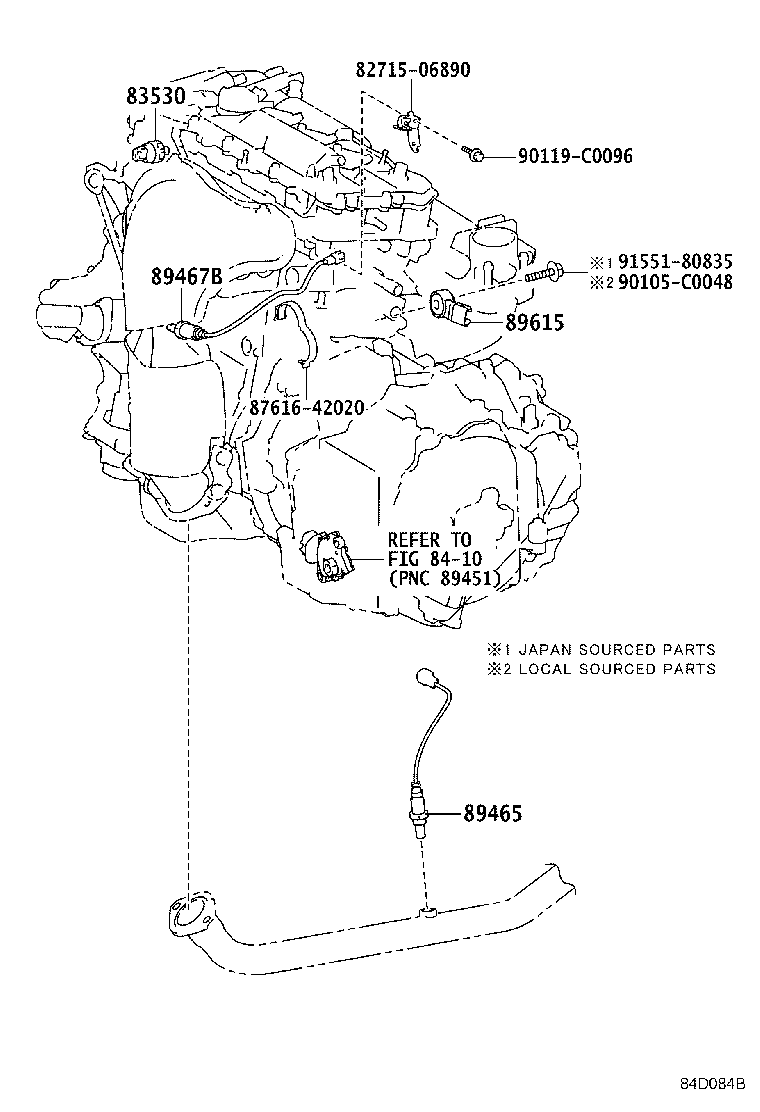

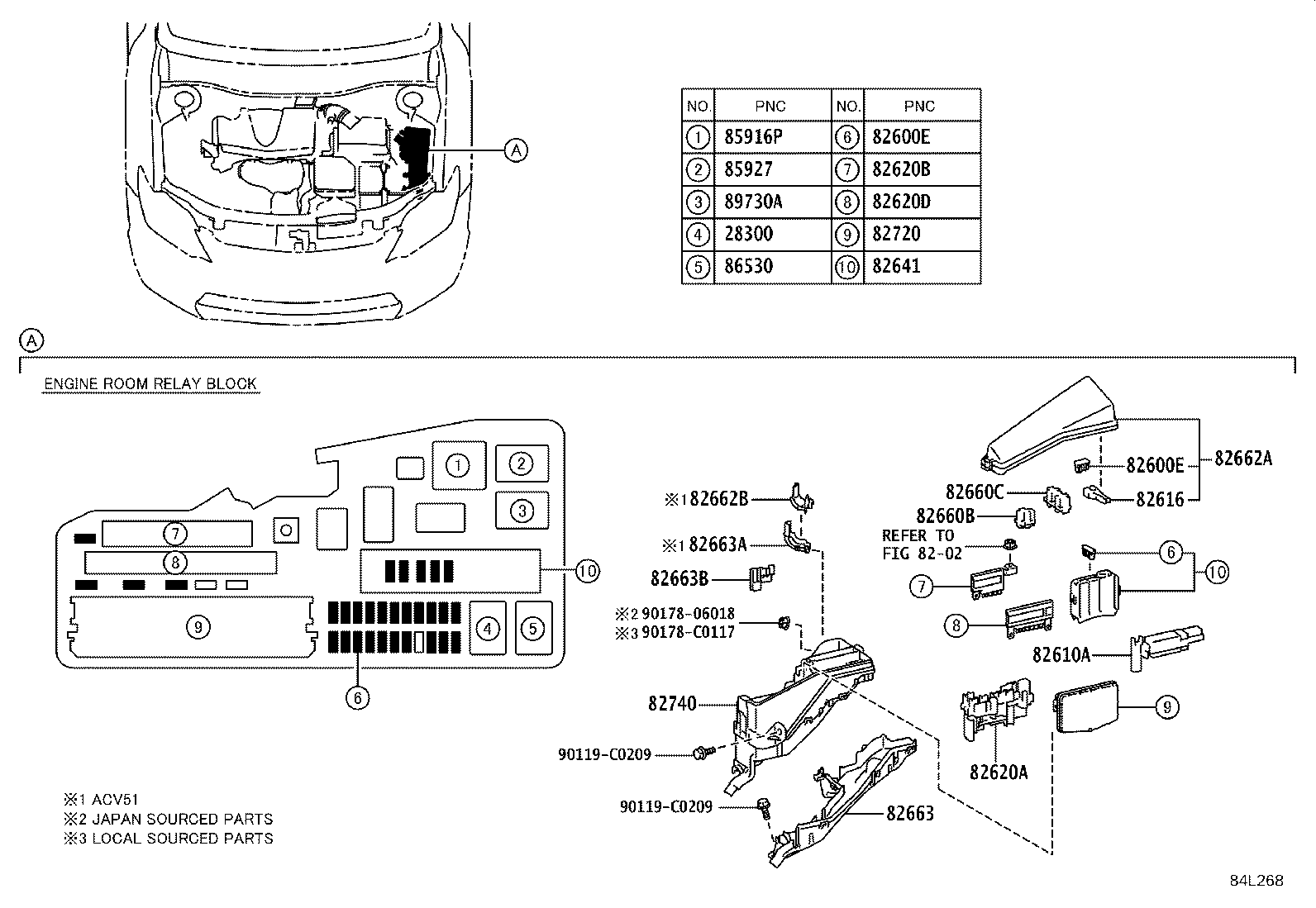

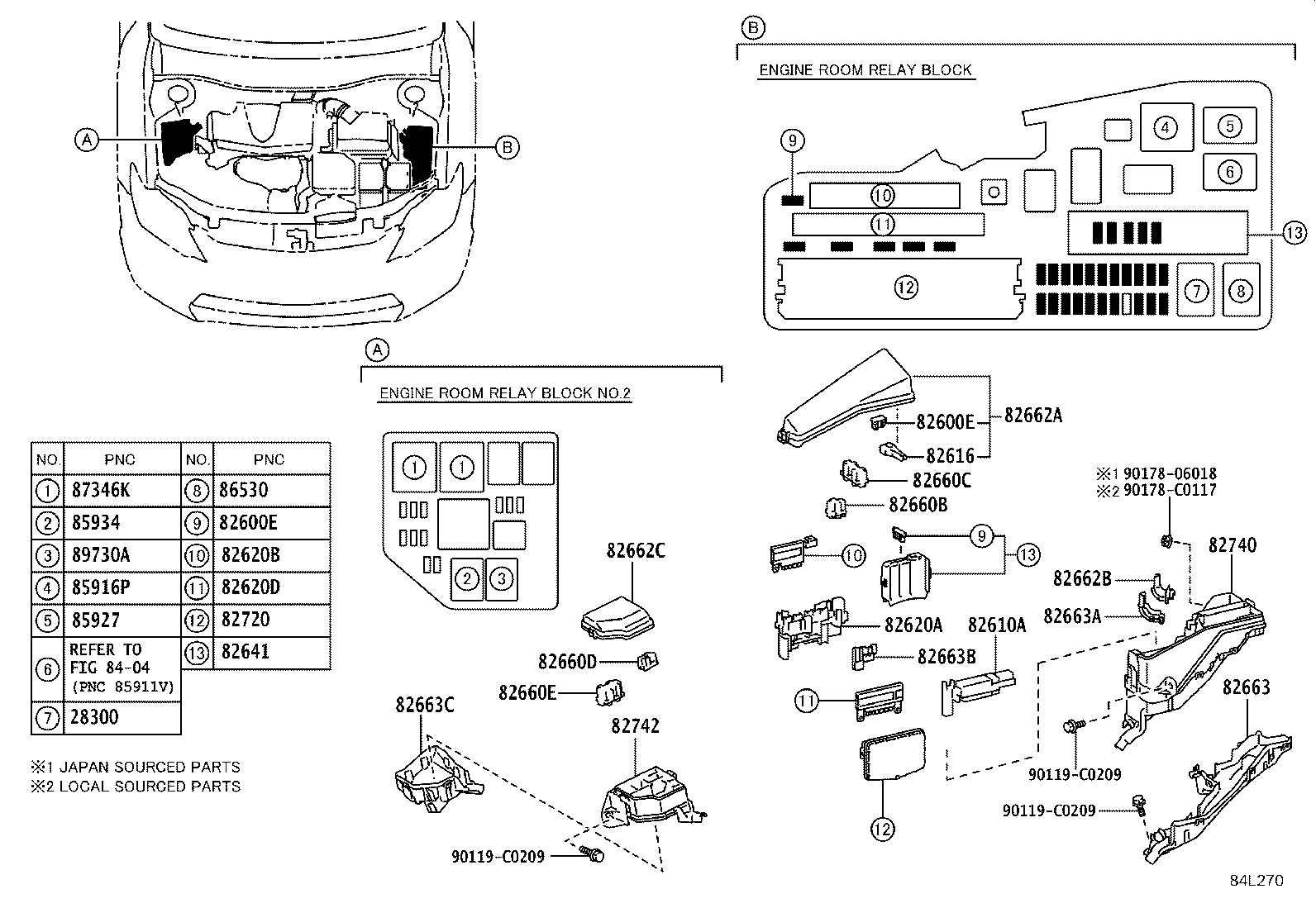

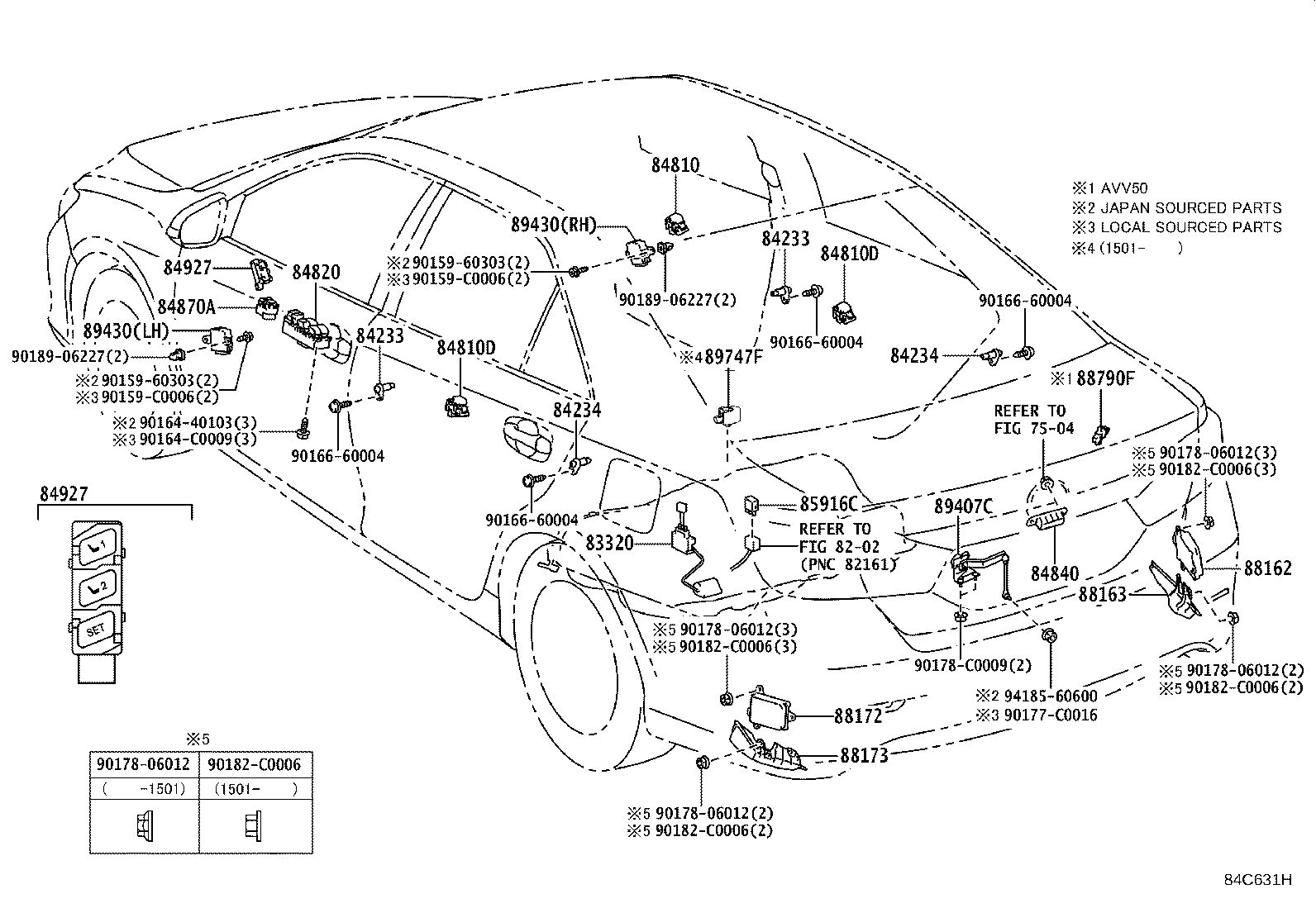

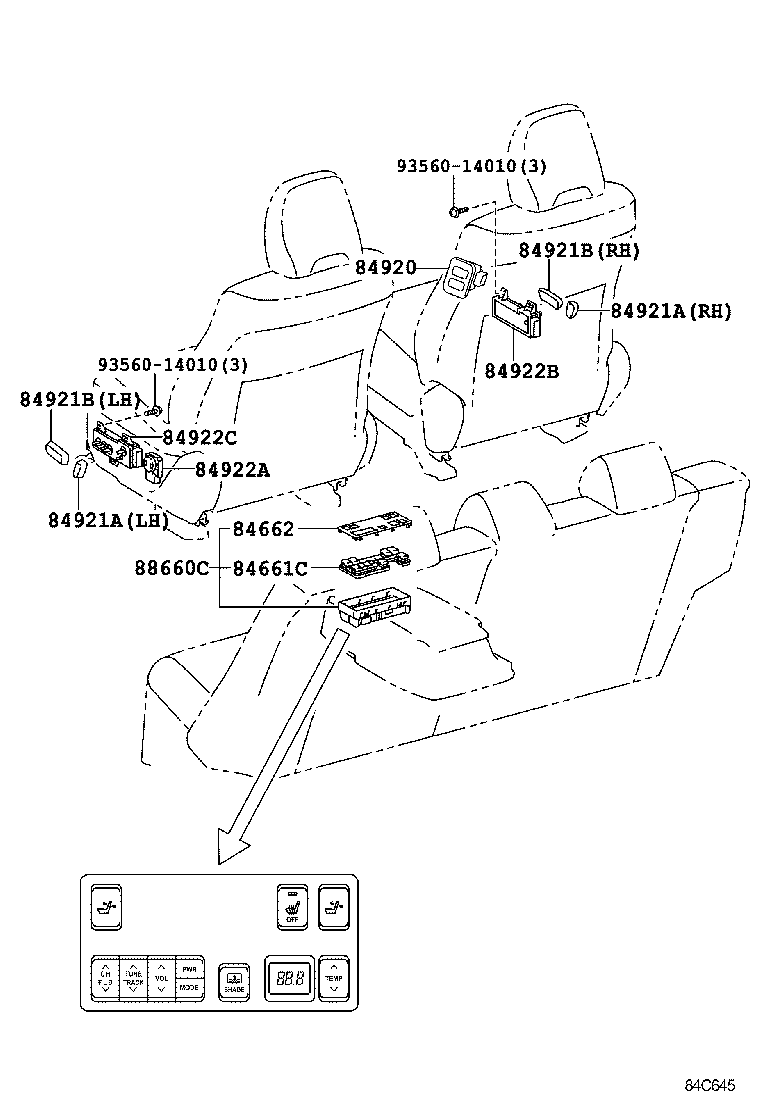

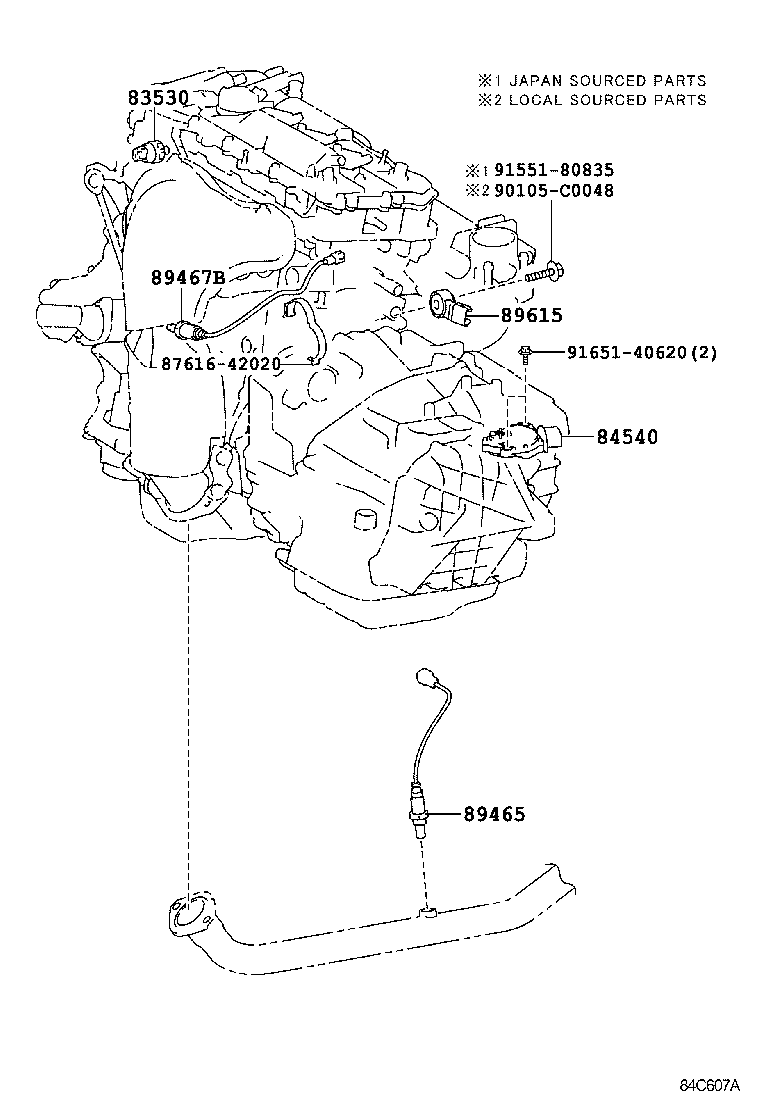

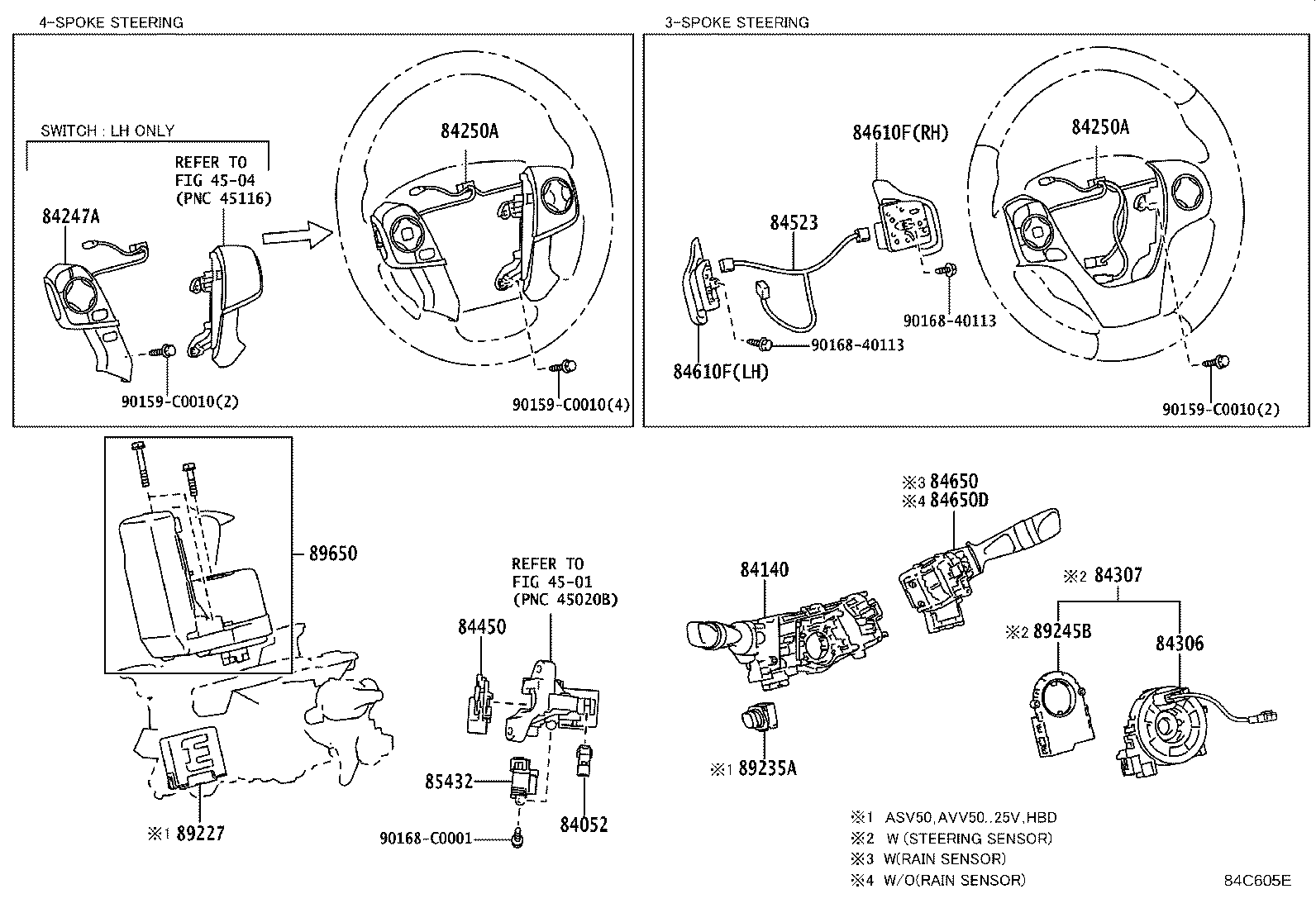

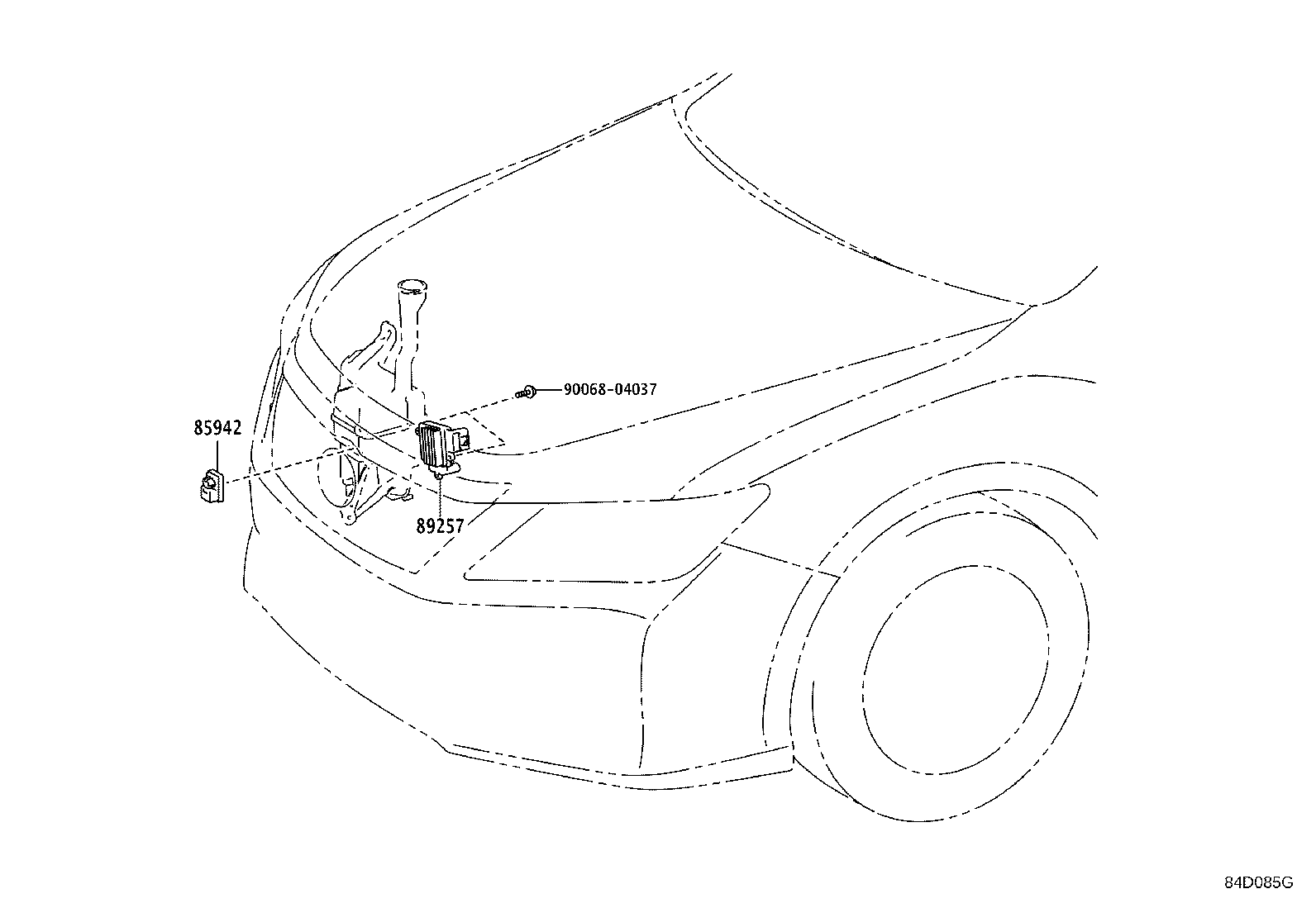

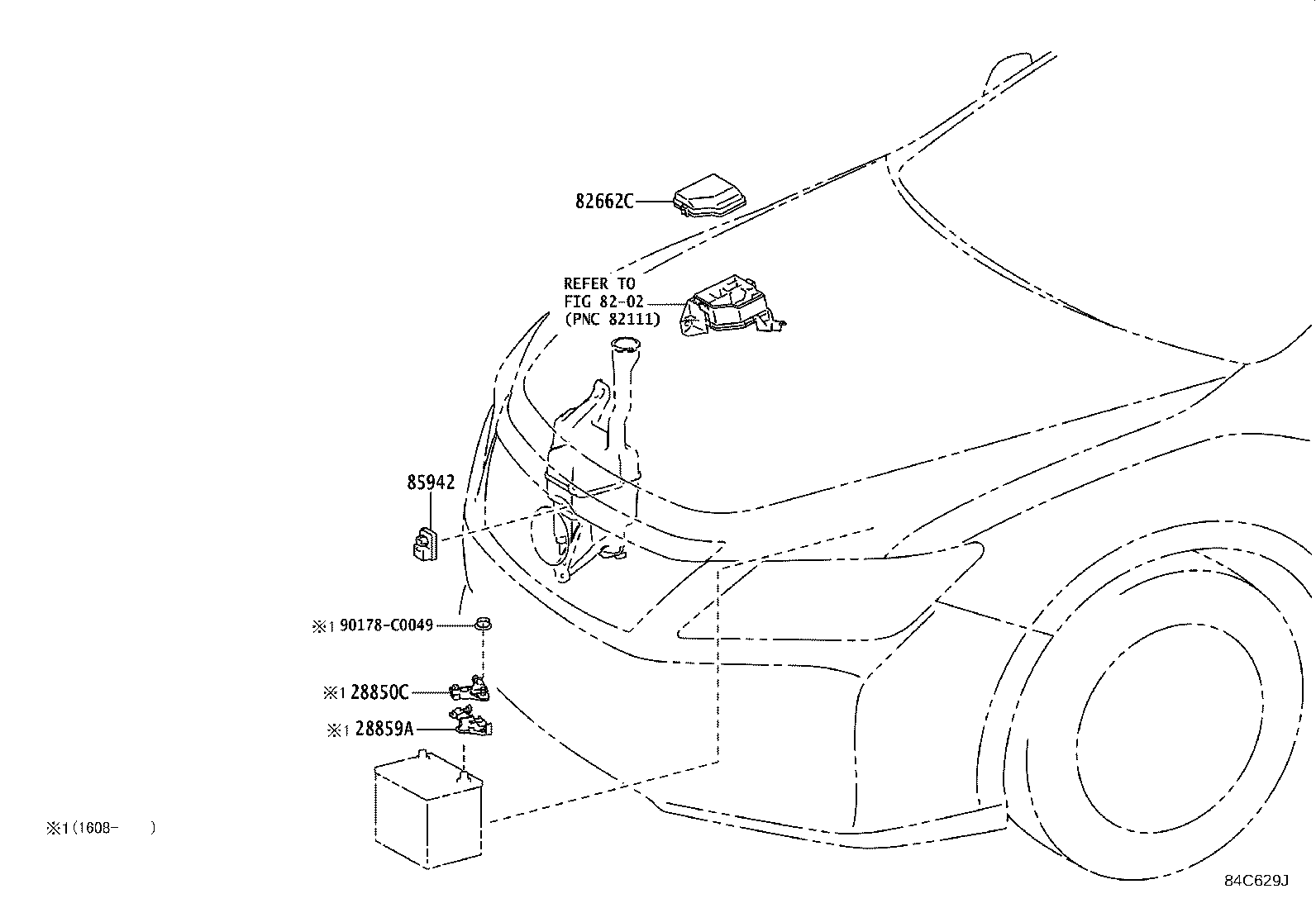

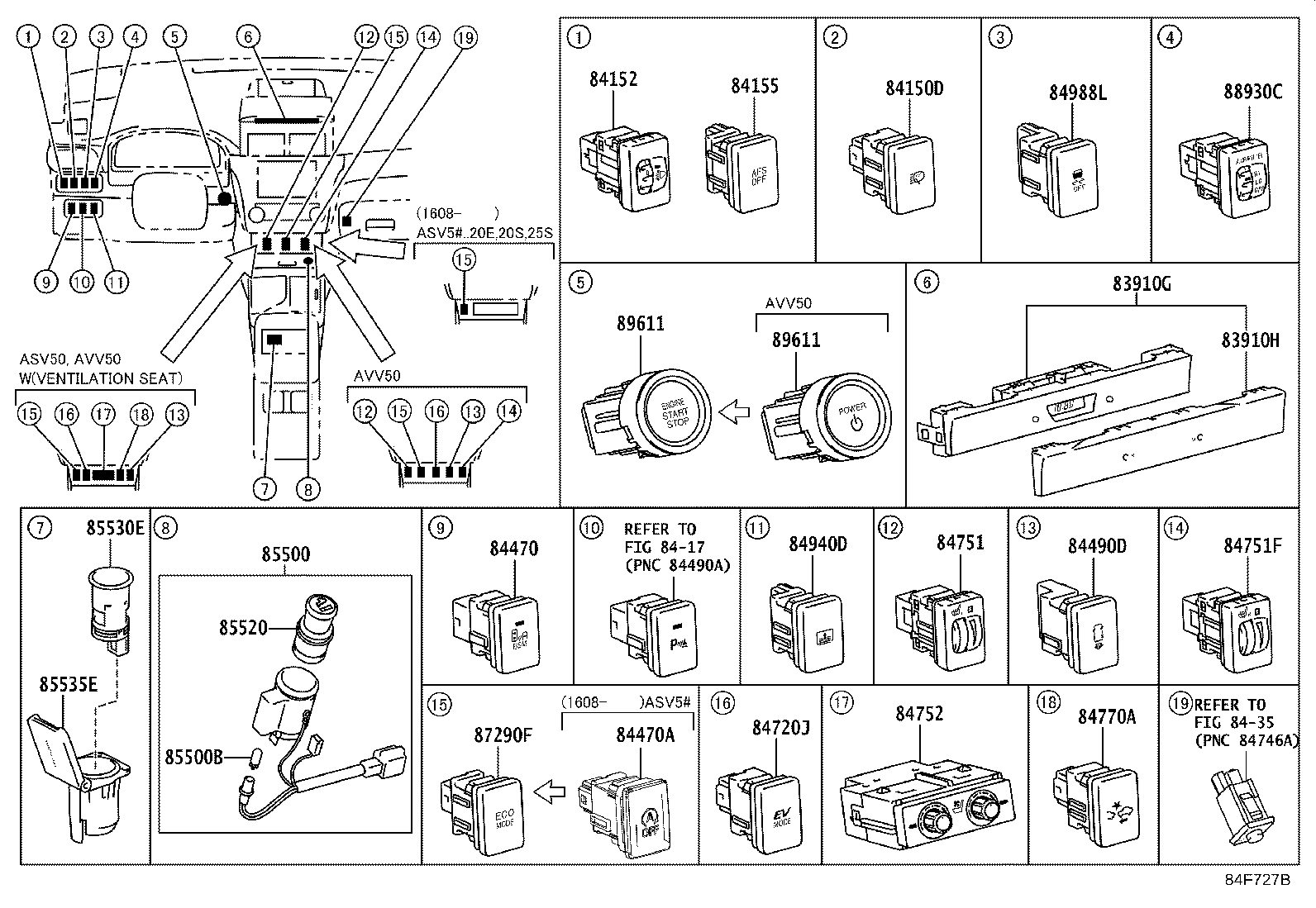

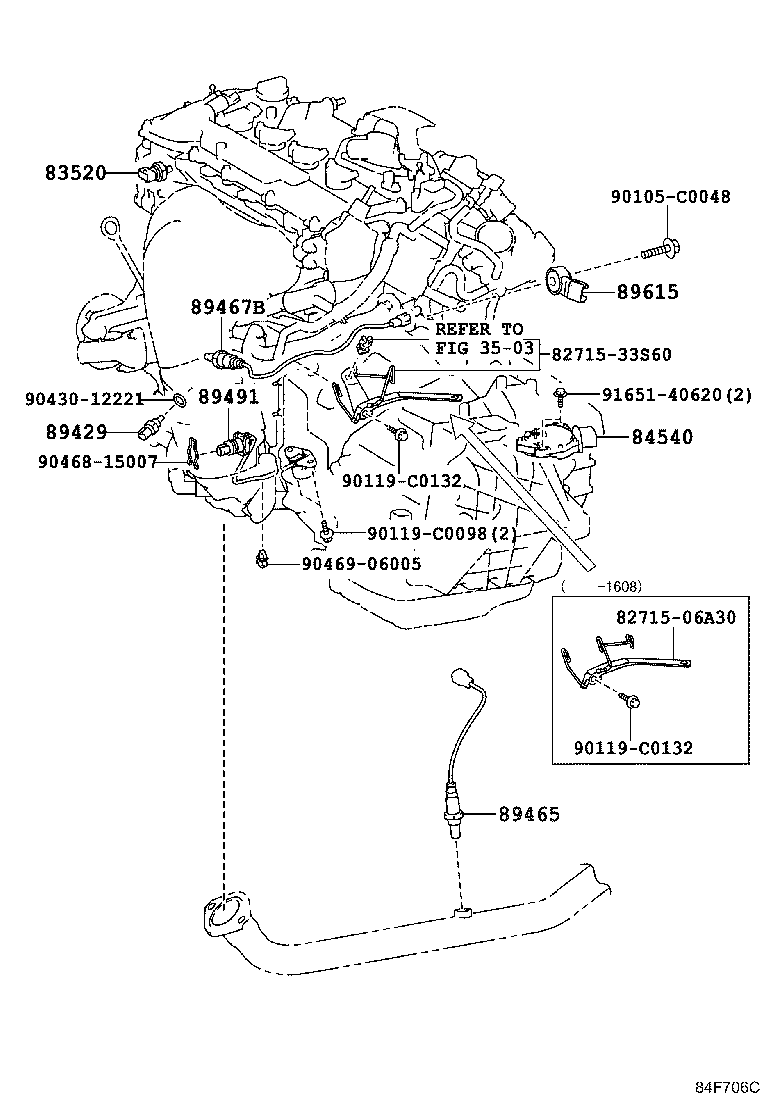

Figure 84C606A 84C606A 2011-12 → 2015-01 Figure 84C607A 84C607A 2011-12 → — Figure 84D084B 84D084B 2012-05 → — Figure 84F706C 84F706C 2015-01 → — Figure 84C629J 84C629J 2011-12 → — Figure 84D085G 84D085G 2012-05 → — Figure 84F705C 84F705C 2015-01 → — Figure 84L268 84L268 2011-12 → — Figure 84L269 84L269 2012-05 → — Figure 84L270 84L270 2015-01 → — Figure 84C630I 84C630I 2011-12 → — Figure 84C627E 84C627E 2011-12 → 2015-01 Figure 84F727B 84F727B 2015-01 → — Figure 84C605E 84C605E 2011-12 → — Figure 84C645 84C645 2011-12 → — Figure 84C631H 84C631H 2011-12 → —

Part groups

PNCDescription
16100P Relay, Water Pump
28300 Relay Assy, Starter
28850C Sensor Assy, Battery State
28859A Holder, Battery Current Sensor
82210N Instrument Panel Fusible Link
82600D Instrument Panel Fuse
82600E Engine Room Fuse
82610A Block Assy, Fuse
82610C Block Assy, Fuse
82616 Puller, Fuse
82620A Block Assy, Fusible Link
82620B Block Assy, Fusible Link
82620D Block Assy, Fusible Link
82620E Block Assy, Fusible Link
82641 Relay, Integration NO.1
82660B Block Assy, Relay
82660C Block Assy, Relay
82660D Block Assy, Relay
82660E Block Assy, Relay
82662A Cover, Relay Block, Upper, NO.1
82662B Cover, Relay Block, Upper, NO.2
82662C Cover, Relay Block, Upper, NO.3
82663 Cover, Relay Block, Lower
82663A Cover, Relay Block, Lower, NO.2
82663B Cover, Relay Block, Lower, NO.3
82663C Cover, Relay Block Lower, NO.4
82672A Cover, Junction Block
82720 Block Assy, Engine Room Junction
82730 Block Assy, Instrument Panel Junction
82740 Block Assy, Engine Room Relay
82742 Block, Engine Room Relay, NO.2
82877 Box, Computer Integration, RH
83320 Gage Assy, Fuel Sender
83390 Switch Assy, Vacuum Warning
83520 Gage Assy,Oil Pressure Sender
83530 Switch Assy, Oil Pressure (FOR ENGINE)
83910G Clock Assy
83910H Lens, Clock
84052 Switch Assy, Un-lock Warning
84140 Switch Assy, Headlamp Dimmer
84150D Switch Assy, Headlamp Cleaner
84152 Switch, Headlamp Leveling
84155 Switch, Headlamp Swivel Main
84233 Switch Assy, Courtesy Lamp (FOR FRONT DOOR)
84234 Switch Assy, Courtesy Lamp (FOR REAR DOOR)
84247A Switch, Steering Pad, LH
84250A Switch Assy, Steering Pad
84270Q Relay, Lamp Cut
84306 Cable Sub-assy, Spiral
84307 Cable Sub-assy, Spiral W/Sensor
84340 Switch Assy, Stop Lamp
84345 Adjuster, Stop Lamp Switch Mounting
84450 Switch Assy, Ignition OR Starter
84470 Switch Assy, Warning Canceling
84470A Switch Assy, Ecorun Cancel
84490D Switch Assy, Ipa Main
84523 Wire, Switch NO.1
84540 Switch Assy, Neutral Start
84550 Switch Assy, Parking Brake
84610F Switch Assy, Transmission Shift
84650 Switch Assy, Windshield Wiper
84650D Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL)
84661C Knob, Cooler Control Switch
84662 Panel, Cooler Control Switch
84720J Switch Assy, Pattern Select
84751 Switch, Seat Heater
84751F Switch, Seat Heater
84752 Switch, Refreshing Seat
84770A Switch Assy, Pre-collision System Cancel
84810 Switch Assy, Power Window Regulator
84810D Switch Assy, Power Window Regulator, Rear
84820 Master Switch Assy, Power Window Regulator
84840 Switch Assy, Luggage Compartment Door Opening
84870A Switch Assy, Outer Mirror
84920 Switch Assy, Power Seat
84921A Knob, Power Seat Switch (FOR RECLINING)
84921B Knob, Power Seat Switch (FOR SLIDE & VERTICAL)
84922A Switch, Front Power Seat(FOR LUMBAR)
84922B Switch, Front Power Seat, RH
84922C Switch, Front Power Seat, LH
84927 Switch, Seat Memory
84940D Switch Assy, Rear Sun Shade
84988L Switch, Vsc Off
85432 Solenoid, Key Interlock
85500 Lighter Assy, Cigarette
85500B Bulb, Cigarette Lighter
85500F Cap, Cigarette Lighter Bulb
85520 Knob And Element Assy, Cigarette Lighter
85530E Socket Assy, Power Outlet, NO.3
85535E Cover, Power Outlet Socket, NO.2
85539C Label, Power Outlet Notice
85916C Relay, Back UP Lamp
85916P Relay, Headlamp
85924 Relay, Ignition Control
85927 Relay, Cooling Fan
85934 Relay, Magnet-clutch
85940 Relay Assy, Windshield Wiper
85942 Relay, Headlamp Cleaner Control
86530 Relay Assy, Horn
87290F Switch Assy, Eco
87346K Relay, Ptc Heater
88150A Computer Assy, Driving Support
88162 Sensor, Blind Spot Monitor, RH
88163 Cover, Blind Spot Monitor, RH
88172 Sensor, Blind Spot Monitor, LH
88173 Cover, Blind Spot Monitor, LH
88660C Switch Assy, Cooler Control
88790F Thermistor Assy
88930C Switch Assy, Air Purifier
89111 Computer, Network Gateway
89120A Sensor, Automatic Light Control
89221 Computer, Multiplex Network Body
89227 Computer, Multiplex Tilt & Telescopic
89235A Switch, Tilt & Telescopic
89245B Sensor, Steering
89257 Computer, Cooling Fan
89407C Sensor Sub-assy, Height Control, Rear
89429 Sensor, Oil Temperature
89430 Computer Assy, Outer Mirror Control
89465 Sensor, Oxygen
89467B Sensor, Air Fuel Ratio
89491 Sensor, Engine Oil Level
89611 Switch, Push Start
89615 Sensor, Knock Control
89650 Computer Assy, Power Steering
89681A Computer, Power Management Control
89730A Relay(FOR SECURITY WARNING)
89747F Buzzer, Blind Spot Monitor
89815 Computer, Seat Belt Control
89940 Computer Assy, Headlamp Swivel
89960 Computer Assy, Headlamp Leveling
G9020E Relay, Hybrid Water Pump
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
