Toyota Camry/Hybrid (CHINA)

2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General

Supported model Data version 2018-05
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Speaker

6 part groups · 2 illustrations

Illustrations

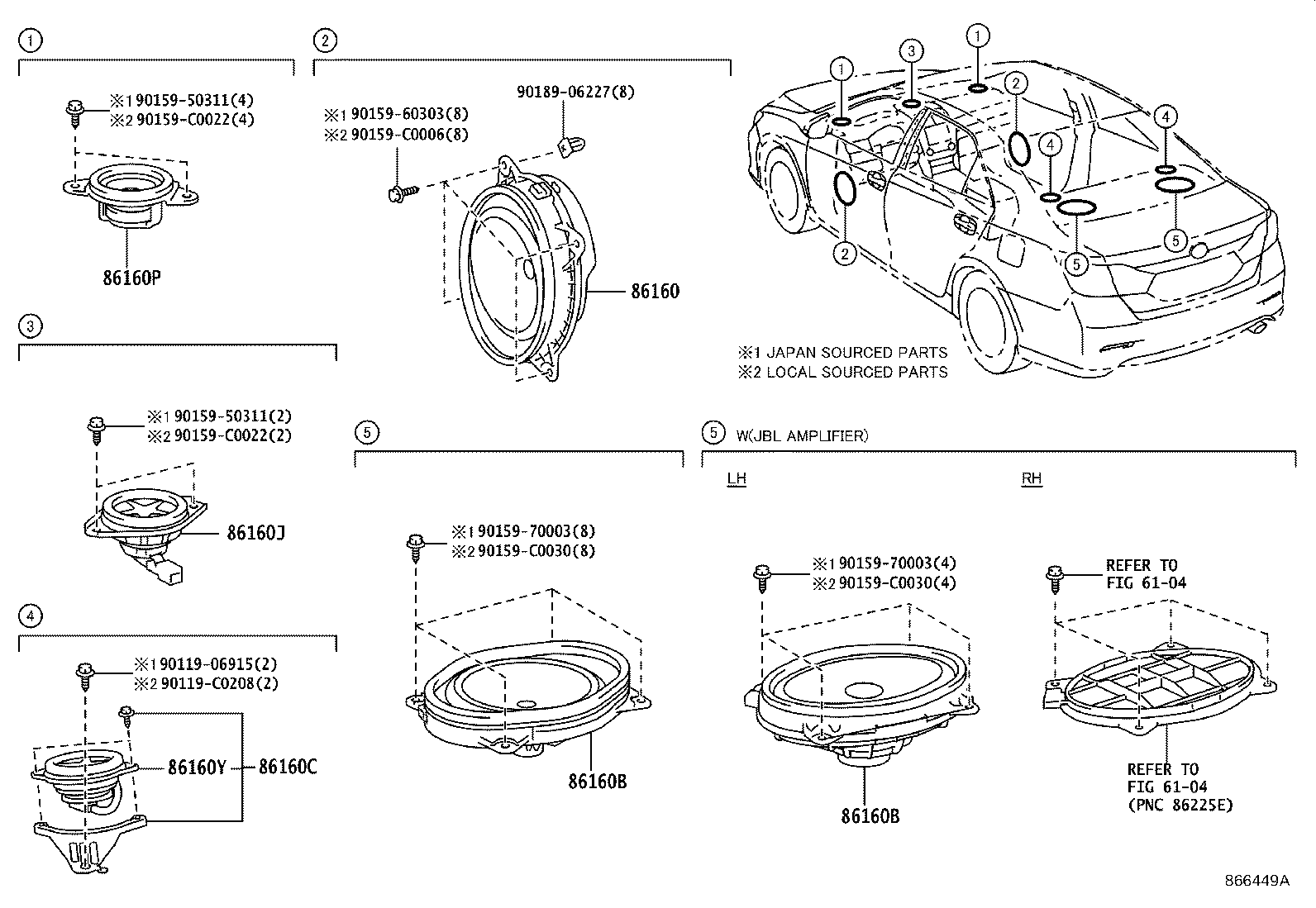

Figure 864701D 864701D 2011-12 → 2015-08 Figure 866449A 866449A 2015-08 → —

Part groups

PNCDescription
86160 Speaker Assy, Front NO.1
86160B Speaker Assy, Rear
86160C Speaker Set, Rear
86160J Speaker Assy, Front NO.3
86160P Speaker Assy, Front NO.2
86160Y Speaker Assy, Rear NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
