Toyota Camry/Hybrid (CHINA)
2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General
Supported model
Data version 2018-05

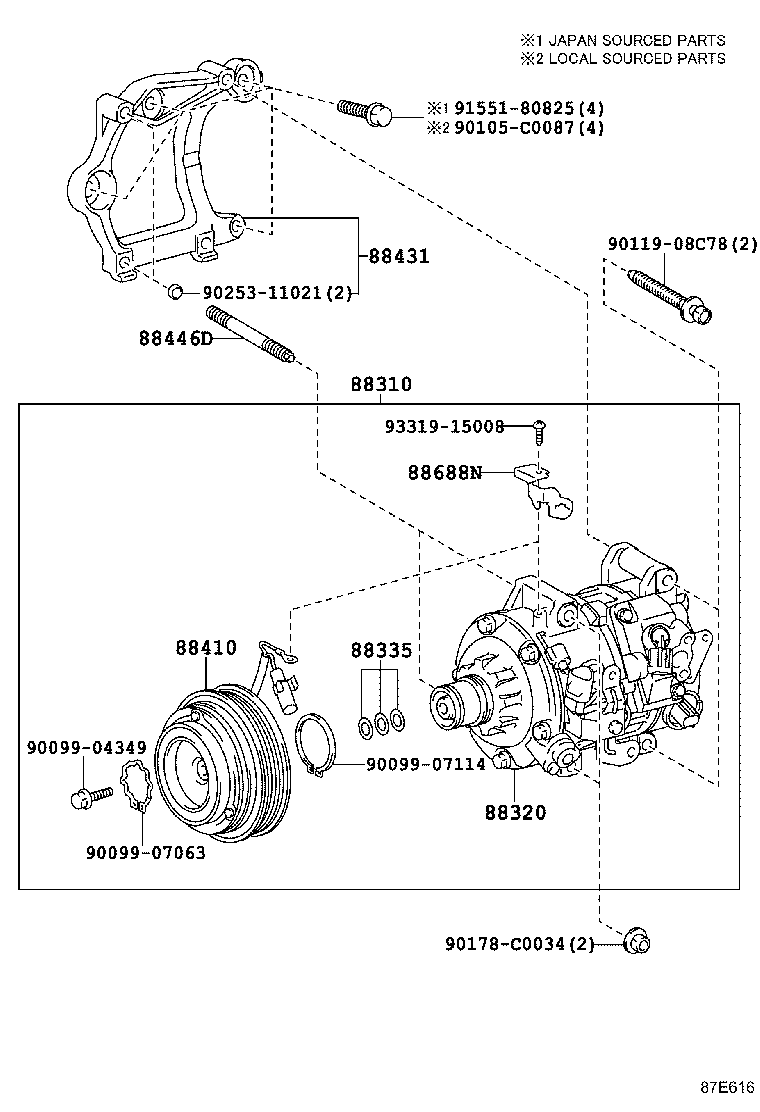

Heating & Air Conditioning - Compressor
8 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 88310 | Compressor Assy, W/Pulley |
| 88320 | Compressor Assy, Cooler |
| 88335 | Gasket Kit, Overhaul |
| 88370 | Compressor Assy, W/Motor |
| 88410 | Clutch Assy, Magnet |
| 88431 | Bracket, Compressor Mounting, NO.1 |
| 88446D | Bolt, Cooler |
| 88688N | Bracket, Cooler |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
