Toyota Camry/Hybrid (CHINA)
2011-12 → 2017-11 · chassis ACV51,ASV5#,AVV50 · catalogue 280320 · General
Supported model
Data version 2018-05

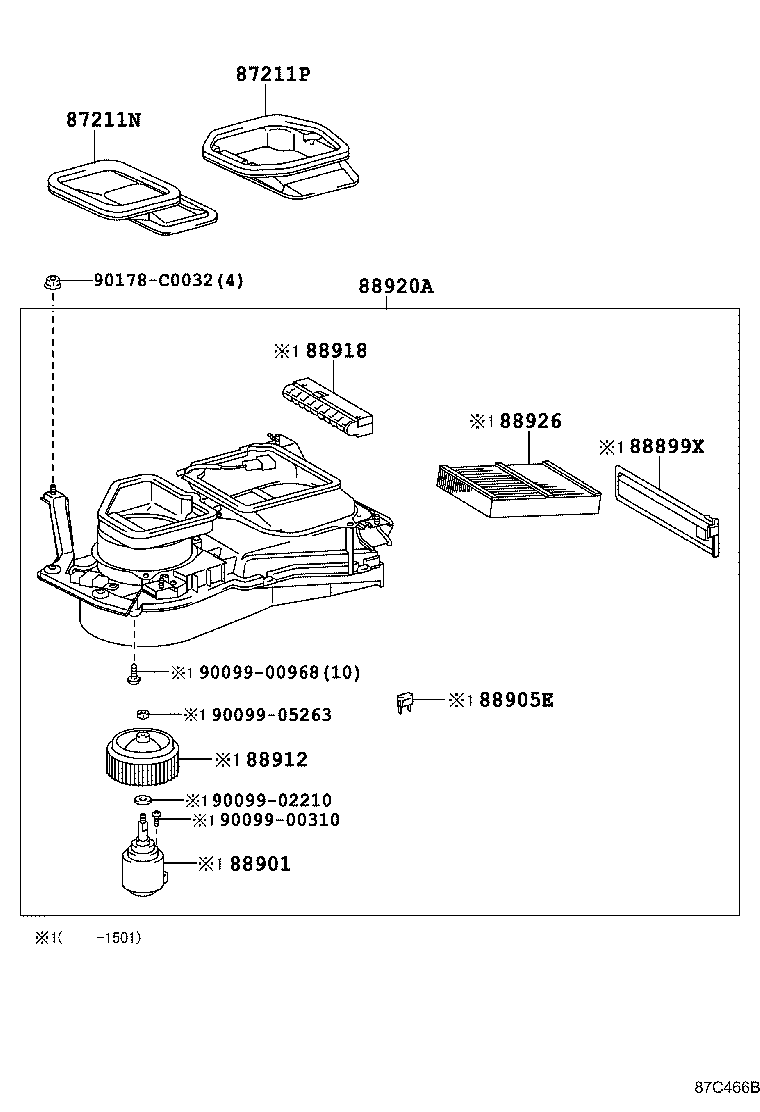

Air Purifier OR Ion Generator
13 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 87211N | Duct, Air Purifier Air, NO.1 |
| 87211P | Duct, Air Purifier Air, NO.2 |
| 87211Q | Duct, Air Purifier Air, NO.3 |
| 88050 | Generator Assy, Ion |
| 88051A | Generator Sub-assy,Ion |
| 88899X | Plate, Air Purifier Cover |
| 88901 | Motor Sub-assy, Air Purifier |
| 88905E | Fuse, Air Purifier Wire |
| 88912 | Fan, Air Purifier |
| 88918 | Lamp, Air Purifier |
| 88920A | Purifier Assy, Air |
| 88926 | Filter, Air Purifier |
| 88995 | Bracket,Ion Generator, NO.1 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
