Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

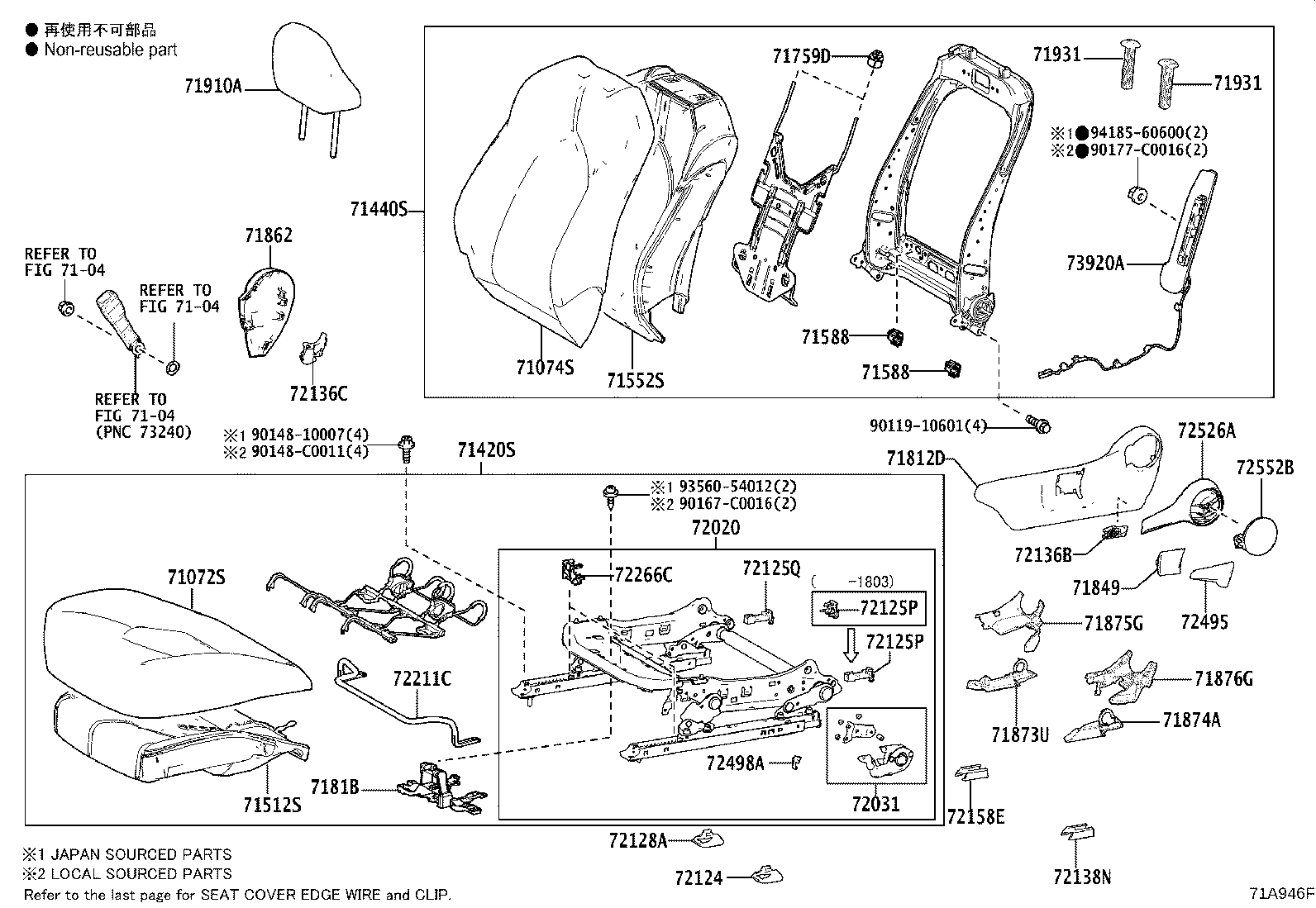

Exploded illustration 71A946F 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (45 parts) 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (36 parts) 71420S — CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) (50 parts) 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (36 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (10 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (5 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (3 parts) 7181B — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH (8 parts) 71910A — HEADREST ASSY, FRONT SEAT (21 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (20 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (20 parts) 72020 — ADJUSTER ASSY, FRONT SEAT, LH (10 parts) 72125Q — COVER, SEAT TRACK, UPPER REAR NO.4 (6 parts) 72125P — COVER, SEAT TRACK, UPPER REAR NO.3 (7 parts) 72125P — COVER, SEAT TRACK, UPPER REAR NO.3 (7 parts) 72031 — ADJUSTER ASSY, FRONT SEAT VERTICAL (6 parts) 72211C — HANDLE, SEAT TRACK ADJUSTING (4 parts) 72266C — COVER, SEAT TRACK UPPER RAIL, LH (6 parts) 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (12 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (12 parts) 71588 — PROTECTOR, FRONT SEATBACK EDGE, NO.2 (3 parts) 71588 — PROTECTOR, FRONT SEATBACK EDGE, NO.2 (3 parts) 72526A — HANDLE, RECLINING ADJUSTER RELEASE, LH (5 parts) 72552B — COVER, RECLINING HINGE, LH (5 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (3 parts) 90177C0016 — not listed in this catalogue 9418560600 — not listed in this catalogue 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (12 parts) 9011910601 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (14 parts) 71849 — CAP, SEAT ADJUSTER COVER, LH (5 parts) 72136C — SPACER, SEAT TRACK, LOWER NO.4 (8 parts) 72136B — SPACER, SEAT TRACK, LOWER NO.3 (8 parts) 72495 — HANDLE, VERTICAL ADJUSTING, LH (5 parts) 72498A — COVER, VERTICAL ADJUSTER BRACKET, LH (3 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (3 parts) 71873U — SHIELD, FRONT SEAT CUSHION, LOWER RH (3 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 72158E — COVER, SEAT TRACK BRACKET, INNER REAR LH (3 parts) 72138N — COVER, SEAT TRACK BRACKET, OUTER REAR LH (3 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (3 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (3 parts) 9014810007 — not listed in this catalogue 90148C0011 — not listed in this catalogue 9356054012 — not listed in this catalogue 90167C0016 — not listed in this catalogue
71A946F · 38 callouts, 10 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
386 parts on this figure
Part number Description Fitment Price
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-06Q60-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
ASV71,AXVH71 E —
71072-06Q60-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVH71,MXVA71 E —
71072-06Q60-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 S —
71072-06Q60-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
MXVA71 S —
71072-06Q80-A6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
ASV71,AXVA70,AXVH71 G —
71072-06Q80-A8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71,MXVA71 G —
71072-06Q80-A8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71072-06Q80-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
ASV71,AXVA70,AXVH71 G —
71072-06Q80-C9 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71072-06Q80-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71072-06Q90-A4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71072-06Q90-A6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71 G —
71072-06Q90-A6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71072-06Q90-C5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71072-06Q90-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 G —
71072-06Q90-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71072-06R00-C5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70 S —
71072-06R00-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2019-04 ended
AXVH71 S —
71072-06R00-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70 S —
71072-06R00-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71072-06R00-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-04 → 2021-03 ended
AXVH71 S —
71072-06R00-D3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70 S —
71072-06R00-D5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71072-06R00-D5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70 S —
71072-06R00-D5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2019-04 ended
AXVH71 S —
71072-06R00-D5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-04 → 2021-03 ended
AXVH71 S —
71072-06N51-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → —
AXVA70 S —
71072-06N51-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → —
MXVA71 S —
71072-06V20-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
MXVA71 S —
71072-06V20-D2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 S —
71072-06V21-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
MXVA71 S —
71072-06V21-D2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 S —
71072-06V60-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 G —
71072-06V60-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 G —
71072-06V60-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 G —
71072-06V61-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 G —
71072-06V61-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 G —
71072-06V61-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 G —
71072-06V70-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71 G —
71072-06V70-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71 G —
71072-06V71-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71 G —
71072-06V71-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71 G —
71072-06V80-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71 S —
71072-06V81-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71 S —
71072-06W80-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVH71,MXVA71 E —
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-06T70-A3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 E —
71074-06T70-A3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVH71 E —
71074-06T70-C4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 S —
71074-06T71-A4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVH71,MXVA71 E —
71074-06T71-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
MXVA71 S —
71074-06U20-A6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71074-06U20-A6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 G —
71074-06U20-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71074-06U20-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 G —
71074-06U21-A8 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71074-06U21-A8 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71,MXVA71 G —
71074-06U21-C9 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71074-06U21-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71074-06U30-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70 S —
71074-06U30-D3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70 S —
71074-06U31-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 S —
71074-06U31-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71074-06U31-D5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 S —
71074-06U31-D5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71074-06U60-A4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71074-06U60-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71074-06U61-A6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71074-06U61-A6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71 G —
71074-06U61-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 G —
71074-06U61-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71074-06X80-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → —
AXVA70 S —
71074-06X80-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → —
MXVA71 S —
71074-06Y90-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
MXVA71 S —
71074-06Y90-D0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71074-06Z30-A1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71074-06Z30-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71074-06Z30-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71074-06Z40-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 G —
71074-06Z40-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 G —
71074-06Z50-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 S —
71074-06Z90-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVH71,MXVA71 E —
71420S — Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71420-06N90-C4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 S —
71420-06N90-C5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
MXVA71 S —
71420-06N90-E4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVH71 E —
71420-06N90-E4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 E —
71420-06N90-E5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVH71,MXVA71 E —
71420-06P00-C8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-02 ended
ASV71 G —
71420-06P00-C8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-03 ended
AXVA70,AXVH71 G —
71420-06P00-C8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2018-10 ended
ASV71,AXVA70,AXVH71 G —
71420-06P00-C9 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71420-06P00-E8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-02 ended
ASV71 G —
71420-06P00-E8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-03 ended
AXVA70,AXVH71 G —
71420-06P00-E8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2018-10 ended
ASV71,AXVA70,AXVH71 G —
71420-06P00-E9 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71420-06P00-E9 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71,MXVA71 G —
71420-06P00-L0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71420-06P40-C5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2018-10 ended
AXVA70,AXVH71 G —
71420-06P40-C6 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-03 ended
AXVA70,AXVH71 G —
71420-06P40-C7 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 G —
71420-06P40-E5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2018-10 ended
AXVA70,AXVH71 G —
71420-06P40-E6 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-03 ended
AXVA70,AXVH71 G —
71420-06P40-E7 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71420-06P40-E7 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71 G —
71420-06P40-E8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71420-06P50-C4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2018-10 ended
AXVA70 S —
71420-06P50-C5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-03 ended
AXVA70 S —
71420-06P50-C6 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 S —
71420-06P50-C6 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71420-06P50-D4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2018-10 ended
AXVA70 S —
71420-06P50-D5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-03 ended
AXVA70 S —
71420-06P50-D6 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 S —
71420-06P50-D6 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71420-06T80-C2 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
MXVA71 S —
71420-06T80-D2 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 S —
71420-06T81-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
MXVA71 S —
71420-06T81-D0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 S —
71420-06T90-C2 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 G —
71420-06T90-E4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 G —
71420-06T90-E5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 G —
71420-06T91-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 G —
71420-06T91-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 G —
71420-06T91-E1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 G —
71420-06U00-C2 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71 G —
71420-06U00-E3 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71 G —
71420-06U01-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71 G —
71420-06U01-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71 G —
71420-06U10-C2 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71 S —
71420-06U11-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71 S —
71420-06U90-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → —
AXVH71,MXVA71 E —
71420-06V31-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-06 → —
MXVA71 S —
71420-06V31-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-06 → —
AXVA70 S —
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71440-06P40-C4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 S —
71440-06P40-E4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 E —
71440-06P40-E4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVH71 E —
71440-06P41-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
MXVA71 S —
71440-06P41-E1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVH71,MXVA71 E —
71440-06P50-C7 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 G —
71440-06P50-C7 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71440-06P50-E7 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 G —
71440-06P50-E7 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71440-06P51-C2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71440-06P51-E2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71,MXVA71 G —
71440-06P51-E2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71440-06P51-E4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71440-06Q00-C4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70 S —
71440-06Q00-D4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70 S —
71440-06Q01-C2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71440-06Q01-C2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 S —
71440-06Q01-D2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71440-06Q01-D2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 S —
71440-06T70-C3 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71440-06T70-E3 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71440-06T71-C2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 G —
71440-06T71-E2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71 G —
71440-06T71-E2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71440-06T71-E4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71440-06V80-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
MXVA71 S —
71440-06V80-D0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71440-06V90-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71440-06V90-E2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71440-06V90-E3 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71440-06W00-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 G —
71440-06W00-E1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 G —
71440-06W10-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 S —
71440-06X10-E0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVH71,MXVA71 E —
71440-06X70-C0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-06 → —
AXVA70 S —
71440-06X70-C0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-06 → —
MXVA71 S —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71512-06760 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 E,S —
71512-06760 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2020-05 ended
MXVA71 S —
71512-06760 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71512-06770 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 G —
71512-06770 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
71512-06770 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71512-06790 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
71512-06760 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2021-03 → —
AXVH71,MXVA71 E —
71512-06770 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
71512-06790 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 G —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-06670 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
71552-06670 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 —
71552-06690 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
71552-06670 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 —
71552-06690 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 G —
71588 — Protector, Front Seatback Edge, NO.2
71587-06010 Protector, Front Seatback Edge, NO.2
2017-12 → 2019-02 ended
ASV71 —
71587-06010 Protector, Front Seatback Edge, NO.2
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
71587-06010 Protector, Front Seatback Edge, NO.2
2021-03 → —
AXVA70,AXVH71,MXVA71 —
71759D — Hook, Front Seatback, NO.2
71759-06030 Hook, Front Seatback, NO.2
2017-12 → 2019-02 ended
ASV71 —
71759-06030 Hook, Front Seatback, NO.2
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
71759-06030 Hook, Front Seatback, NO.2
2021-03 → —
AXVA70,AXVH71,MXVA71 —
71812D — Shield, Front Seat Cushion, LH
71812-06570-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2019-02 ended
ASV71 S —
71812-06570-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2020-05 ended
MXVA71 S —
71812-06570-E0 note Shield, Front Seat Cushion, LH
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71812-06570-E0 note Shield, Front Seat Cushion, LH
2017-12 → 2019-02 ended
ASV71 E —
71812-06580-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2019-02 ended
ASV71 G —
71812-06580-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71812-06580-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71812-06580-C0 note Shield, Front Seat Cushion, LH
2020-05 → 2021-03 ended
MXVA71 S —
71812-06580-E0 note Shield, Front Seat Cushion, LH
2017-12 → 2019-02 ended
ASV71 G —
71812-06580-E0 note Shield, Front Seat Cushion, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71812-06570-E0 note Shield, Front Seat Cushion, LH
2021-03 → —
AXVH71,MXVA71 E —
71812-06580-C0 note Shield, Front Seat Cushion, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71812-06580-C0 note Shield, Front Seat Cushion, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71812-06580-E0 note Shield, Front Seat Cushion, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
7181B — Holder, Front Seat Cushion Wire Harness, LH
7181B-06010 Holder, Front Seat Cushion Wire Harness, LH
2017-12 → 2019-02 ended
ASV71 E,S —
7181B-06010 Holder, Front Seat Cushion Wire Harness, LH
2017-12 → 2020-05 ended
MXVA71 S —
7181B-06010 Holder, Front Seat Cushion Wire Harness, LH
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
7181B-06020 Holder, Front Seat Cushion Wire Harness, LH
2017-12 → 2019-02 ended
ASV71 G —
7181B-06020 Holder, Front Seat Cushion Wire Harness, LH
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
7181B-06020 Holder, Front Seat Cushion Wire Harness, LH
2020-05 → 2021-03 ended
MXVA71 S —
7181B-06010 Holder, Front Seat Cushion Wire Harness, LH
2021-03 → —
AXVH71,MXVA71 E —
7181B-06020 Holder, Front Seat Cushion Wire Harness, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
71849 — Cap, Seat Adjuster Cover, LH
71849-06010-C0 note Cap, Seat Adjuster Cover, LH
2017-12 → 2019-02 ended
ASV71 S —
71849-06010-C0 note Cap, Seat Adjuster Cover, LH
2017-12 → 2020-05 ended
MXVA71 S —
71849-06010-E0 note Cap, Seat Adjuster Cover, LH
2017-12 → 2019-02 ended
ASV71 E —
71849-06010-E0 note Cap, Seat Adjuster Cover, LH
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71849-06010-E0 note Cap, Seat Adjuster Cover, LH
2021-03 → —
AXVH71,MXVA71 E —
71862 — Shield, Front Seat Cushion, Inner LH
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2019-02 ended
ASV71 G,S —
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2020-05 → 2021-03 ended
MXVA71 S —
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2020-05 ended
MXVA71 S —
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71862-06340-E0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71862-06340-E0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2019-02 ended
ASV71 E,G —
71862-06340-E0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71862-06340-E0 note Shield, Front Seat Cushion, Inner LH
2021-03 → —
AXVH71,MXVA71 E —
71862-06340-E0 note Shield, Front Seat Cushion, Inner LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71873U — Shield, Front Seat Cushion, Lower RH
71874-06400 Shield, Front Seat Cushion, Lower RH
2017-12 → 2019-02 ended
ASV71 —
71874-06400 Shield, Front Seat Cushion, Lower RH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
71874-06400 Shield, Front Seat Cushion, Lower RH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
71874A — Shield, Front Seat Cushion, Lower LH
71874-06390 Shield, Front Seat Cushion, Lower LH
2017-12 → 2019-02 ended
ASV71 —
71874-06390 Shield, Front Seat Cushion, Lower LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
71874-06390 Shield, Front Seat Cushion, Lower LH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2019-02 ended
ASV71 G,S —
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2020-05 ended
MXVA71 S —
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2020-05 → 2021-03 ended
MXVA71 S —
71876-06420-E0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2019-02 ended
ASV71 E,G —
71876-06420-E0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71876-06420-E0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71876-06420-E0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2021-03 → —
AXVH71,MXVA71 E —
71876-06420-E0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2019-02 ended
ASV71 G,S —
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2020-05 ended
MXVA71 S —
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2020-05 → 2021-03 ended
MXVA71 S —
71876-06390-E0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2019-02 ended
ASV71 E,G —
71876-06390-E0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71876-06390-E0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71876-06390-E0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71876-06390-E0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2021-03 → —
AXVH71,MXVA71 E —
71910A — Headrest Assy, Front Seat
71910-06G60-C3 note Headrest Assy, Front Seat
2017-12 → 2019-02 ended
ASV71 S —
71910-06G60-E3 note Headrest Assy, Front Seat
2017-12 → 2019-02 ended
ASV71 E —
71910-06G60-E3 note Headrest Assy, Front Seat
2017-12 → 2019-03 ended
AXVH71 E —
71910-06G61-C4 note Headrest Assy, Front Seat
2019-03 → 2020-05 ended
MXVA71 S —
71910-06G61-E4 note Headrest Assy, Front Seat
2019-03 → 2021-03 ended
AXVH71,MXVA71 E —
71910-06G80-C6 note Headrest Assy, Front Seat
2020-05 → 2021-03 ended
MXVA71 S —
71910-06G80-C6 note Headrest Assy, Front Seat
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71910-06G80-C7 note Headrest Assy, Front Seat
2017-12 → 2019-02 ended
ASV71 G —
71910-06G80-C7 note Headrest Assy, Front Seat
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71910-06G80-D3 note Headrest Assy, Front Seat
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71910-06G80-D3 note Headrest Assy, Front Seat
2020-05 → 2021-03 ended
MXVA71 S —
71910-06G80-E4 note Headrest Assy, Front Seat
2017-12 → 2019-02 ended
ASV71 G —
71910-06G80-E4 note Headrest Assy, Front Seat
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71910-06G80-E4 note Headrest Assy, Front Seat
2017-12 → 2020-05 ended
AXVA70,AXVH71,MXVA71 G —
71910-06G80-E5 note Headrest Assy, Front Seat
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71910-06G61-E4 note Headrest Assy, Front Seat
2021-03 → —
AXVH71,MXVA71 E —
71910-06G80-C6 note Headrest Assy, Front Seat
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71910-06G80-C7 note Headrest Assy, Front Seat
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71910-06G80-D3 note Headrest Assy, Front Seat
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71910-06G80-E4 note Headrest Assy, Front Seat
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71910-06G80-E5 note Headrest Assy, Front Seat
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71931 — Support, Front Seat Headrest
71930-06070-C0 note Support, Front Seat Headrest
2017-12 → 2019-02 ended
ASV71 G,S —
71930-06070-C0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71930-06070-C0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 S —
71930-06070-E0 note Support, Front Seat Headrest
2017-12 → 2019-02 ended
ASV71 E,G —
71930-06070-E0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71930-06070-E0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71931-06060-C0 note Support, Front Seat Headrest
2017-12 → 2019-02 ended
ASV71 G,S —
71931-06060-C0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 S —
71931-06060-C0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71931-06060-E0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71931-06060-E0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71931-06060-E0 note Support, Front Seat Headrest
2017-12 → 2019-02 ended
ASV71 E,G —
71930-06070-C0 note Support, Front Seat Headrest
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71930-06070-C0 note Support, Front Seat Headrest
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71930-06070-E0 note Support, Front Seat Headrest
2021-03 → —
AXVH71,MXVA71 E —
71930-06070-E0 note Support, Front Seat Headrest
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71931-06060-C0 note Support, Front Seat Headrest
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71931-06060-C0 note Support, Front Seat Headrest
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71931-06060-E0 note Support, Front Seat Headrest
2021-03 → —
AXVH71,MXVA71 E —
71931-06060-E0 note Support, Front Seat Headrest
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
72020 — Adjuster Assy, Front Seat, LH
72020-06370 Adjuster Assy, Front Seat, LH
2017-12 → 2019-05 ended
AXVH71 E;ASV71,MXVA71 E,S —
72020-06371 Adjuster Assy, Front Seat, LH
2019-06 → 2020-05 ended
MXVA71 S —
72020-06371 Adjuster Assy, Front Seat, LH
2019-06 → 2021-03 ended
AXVH71,MXVA71 E —
72020-06380 Adjuster Assy, Front Seat, LH
2017-12 → 2021-03 ended
ASV71,MXVA71 G;AXVA70,AXVH71 G,S —
72020-06380 Adjuster Assy, Front Seat, LH
2020-05 → 2021-03 ended
MXVA71 S —
72020-06540 note Adjuster Assy, Front Seat, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
72020-06371 Adjuster Assy, Front Seat, LH
2021-03 → 2021-04 ended
AXVH71,MXVA71 E —
72020-06372 Adjuster Assy, Front Seat, LH
2021-04 → —
AXVH71,MXVA71 E —
72020-06380 Adjuster Assy, Front Seat, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
72020-06540 note Adjuster Assy, Front Seat, LH
2021-03 → —
AXVA70,AXVH71 G —
72031 — Adjuster Assy, Front Seat Vertical
72443-47020 Adjuster Assy, Front Seat Vertical
2017-12 → 2019-02 ended
ASV71 E,S —
72443-47020 Adjuster Assy, Front Seat Vertical
2017-12 → 2019-03 ended
AXVH71 E —
72443-47020 Adjuster Assy, Front Seat Vertical
2017-12 → 2019-04 ended
MXVA71 E,S —
72443-47021 Adjuster Assy, Front Seat Vertical
2019-04 → 2020-05 ended
MXVA71 S —
72443-47021 Adjuster Assy, Front Seat Vertical
2019-04 → 2021-03 ended
AXVH71,MXVA71 E —
72443-47021 Adjuster Assy, Front Seat Vertical
2021-03 → —
AXVH71,MXVA71 E —
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-06110 Cover, Seat Track Bracket, Outer Front LH
2017-12 → 2019-02 ended
ASV71 —
72123-06110 Cover, Seat Track Bracket, Outer Front LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
72123-06110 Cover, Seat Track Bracket, Outer Front LH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
72125P — Cover, Seat Track, Upper Rear NO.3
72125-06050 Cover, Seat Track, Upper Rear NO.3
2017-12 → 2018-03 ended
ASV71,AXVH71 E,S —
72125-06050 Cover, Seat Track, Upper Rear NO.3
2017-12 → 2021-03 ended
ASV71,MXVA71 G;AXVA70,AXVH71 G,S —
72125-06050 Cover, Seat Track, Upper Rear NO.3
2020-05 → 2021-03 ended
MXVA71 S —
72125-06060 Cover, Seat Track, Upper Rear NO.3
2018-03 → 2020-05 ended
MXVA71 S —
72125-06060 Cover, Seat Track, Upper Rear NO.3
2018-03 → 2021-03 ended
ASV71 E,S;AXVH71,MXVA71 E —
72125-06050 Cover, Seat Track, Upper Rear NO.3
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
72125-06060 Cover, Seat Track, Upper Rear NO.3
2021-03 → —
AXVH71,MXVA71 E —
72125Q — Cover, Seat Track, Upper Rear NO.4
72125-06050 Cover, Seat Track, Upper Rear NO.4
2020-05 → 2021-03 ended
MXVA71 S —
72125-06050 Cover, Seat Track, Upper Rear NO.4
2017-12 → 2021-03 ended
ASV71,MXVA71 G;AXVA70,AXVH71 G,S —
72125-06060 Cover, Seat Track, Upper Rear NO.4
2017-12 → 2021-03 ended
ASV71 E,S;AXVH71,MXVA71 E —
72125-06060 Cover, Seat Track, Upper Rear NO.4
2017-12 → 2020-05 ended
MXVA71 S —
72125-06050 Cover, Seat Track, Upper Rear NO.4
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
72125-06060 Cover, Seat Track, Upper Rear NO.4
2021-03 → —
AXVH71,MXVA71 E —
72128A — Cover, Seat Track Bracket, Inner Front LH
72123-06110 Cover, Seat Track Bracket, Inner Front LH
2017-12 → 2019-02 ended
ASV71 —
72123-06110 Cover, Seat Track Bracket, Inner Front LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
72123-06110 Cover, Seat Track Bracket, Inner Front LH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
72136B — Spacer, Seat Track, Lower NO.3
72136-06600 Spacer, Seat Track, Lower NO.3
2017-12 → 2019-02 ended
ASV71 E,S —
72136-06600 Spacer, Seat Track, Lower NO.3
2017-12 → 2020-05 ended
MXVA71 S —
72136-06600 Spacer, Seat Track, Lower NO.3
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
72136-06620 Spacer, Seat Track, Lower NO.3
2020-05 → 2021-03 ended
MXVA71 S —
72136-06620 Spacer, Seat Track, Lower NO.3
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
72136-06620 Spacer, Seat Track, Lower NO.3
2017-12 → 2019-02 ended
ASV71 G —
72136-06600 Spacer, Seat Track, Lower NO.3
2021-03 → —
AXVH71,MXVA71 E —
72136-06620 Spacer, Seat Track, Lower NO.3
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
72136C — Spacer, Seat Track, Lower NO.4
72136-06610 Spacer, Seat Track, Lower NO.4
2017-12 → 2019-02 ended
ASV71 E,S —
72136-06610 Spacer, Seat Track, Lower NO.4
2017-12 → 2020-05 ended
MXVA71 S —
72136-06610 Spacer, Seat Track, Lower NO.4
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
72136-06630 Spacer, Seat Track, Lower NO.4
2017-12 → 2019-02 ended
ASV71 G —
72136-06630 Spacer, Seat Track, Lower NO.4
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
72136-06630 Spacer, Seat Track, Lower NO.4
2020-05 → 2021-03 ended
MXVA71 S —
72136-06610 Spacer, Seat Track, Lower NO.4
2021-03 → —
AXVH71,MXVA71 E —
72136-06630 Spacer, Seat Track, Lower NO.4
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
72138N — Cover, Seat Track Bracket, Outer Rear LH
72137-06130 Cover, Seat Track Bracket, Outer Rear LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
72137-06130 Cover, Seat Track Bracket, Outer Rear LH
2017-12 → 2019-02 ended
ASV71 —
72137-06130 Cover, Seat Track Bracket, Outer Rear LH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
72158E — Cover, Seat Track Bracket, Inner Rear LH
72158-06200 Cover, Seat Track Bracket, Inner Rear LH
2017-12 → 2019-02 ended
ASV71 —
72158-06200 Cover, Seat Track Bracket, Inner Rear LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
72158-06200 Cover, Seat Track Bracket, Inner Rear LH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
72211C — Handle, Seat Track Adjusting
72211-06140 Handle, Seat Track Adjusting
2017-12 → 2019-02 ended
ASV71 E,S —
72211-06140 Handle, Seat Track Adjusting
2017-12 → 2020-05 ended
MXVA71 S —
72211-06140 Handle, Seat Track Adjusting
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
72211-06140 Handle, Seat Track Adjusting
2021-03 → —
AXVH71,MXVA71 E —
72266C — Cover, Seat Track Upper Rail, LH
72265-06020 Cover, Seat Track Upper Rail, LH
2020-05 → 2021-03 ended
MXVA71 S —
72265-06020 Cover, Seat Track Upper Rail, LH
2017-12 → 2021-03 ended
ASV71,MXVA71 G;AXVA70,AXVH71 G,S —
72265-06030 Cover, Seat Track Upper Rail, LH
2017-12 → 2021-03 ended
ASV71 E,S;AXVH71,MXVA71 E —
72265-06030 Cover, Seat Track Upper Rail, LH
2017-12 → 2020-05 ended
MXVA71 S —
72265-06020 Cover, Seat Track Upper Rail, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
72265-06030 Cover, Seat Track Upper Rail, LH
2021-03 → —
AXVH71,MXVA71 E —
72495 — Handle, Vertical Adjusting, LH
72495-06020-C0 note Handle, Vertical Adjusting, LH
2017-12 → 2019-02 ended
ASV71 S —
72495-06020-C0 note Handle, Vertical Adjusting, LH
2017-12 → 2020-05 ended
MXVA71 S —
72495-06020-E0 note Handle, Vertical Adjusting, LH
2017-12 → 2019-02 ended
ASV71 E —
72495-06020-E0 note Handle, Vertical Adjusting, LH
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
72495-06020-E0 note Handle, Vertical Adjusting, LH
2021-03 → —
AXVH71,MXVA71 E —
72498A — Cover, Vertical Adjuster Bracket, LH
72498-06050 Cover, Vertical Adjuster Bracket, LH
2017-12 → 2020-05 ended
MXVA71 S —
72498-06050 Cover, Vertical Adjuster Bracket, LH
2017-12 → 2021-03 ended
ASV71 E,S;AXVH71,MXVA71 E —
72498-06050 Cover, Vertical Adjuster Bracket, LH
2021-03 → —
AXVH71,MXVA71 E —
72526A — Handle, Reclining Adjuster Release, LH
72526-06110-C0 note Handle, Reclining Adjuster Release, LH
2017-12 → 2019-02 ended
ASV71 S —
72526-06110-C0 note Handle, Reclining Adjuster Release, LH
2017-12 → 2020-05 ended
MXVA71 S —
72526-06110-E0 note Handle, Reclining Adjuster Release, LH
2017-12 → 2019-02 ended
ASV71 E —
72526-06110-E0 note Handle, Reclining Adjuster Release, LH
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
72526-06110-E0 note Handle, Reclining Adjuster Release, LH
2021-03 → —
AXVH71,MXVA71 E —
72552B — Cover, Reclining Hinge, LH
72551-06010-C0 note Cover, Reclining Hinge, LH
2017-12 → 2019-02 ended
ASV71 S —
72551-06010-C0 note Cover, Reclining Hinge, LH
2019-03 → 2020-05 ended
MXVA71 S —
72551-06010-E0 note Cover, Reclining Hinge, LH
2017-12 → 2019-02 ended
ASV71 E —
72551-06010-E0 note Cover, Reclining Hinge, LH
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
72551-06010-E0 note Cover, Reclining Hinge, LH
2021-03 → —
AXVH71,MXVA71 E —
73920A — Airbag Assy, Front Seat, LH
73920-06210 Airbag Assy, Front Seat, LH
2017-12 → 2019-02 ended
ASV71 —
73920-06210 Airbag Assy, Front Seat, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
73920-06210 Airbag Assy, Front Seat, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
