Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

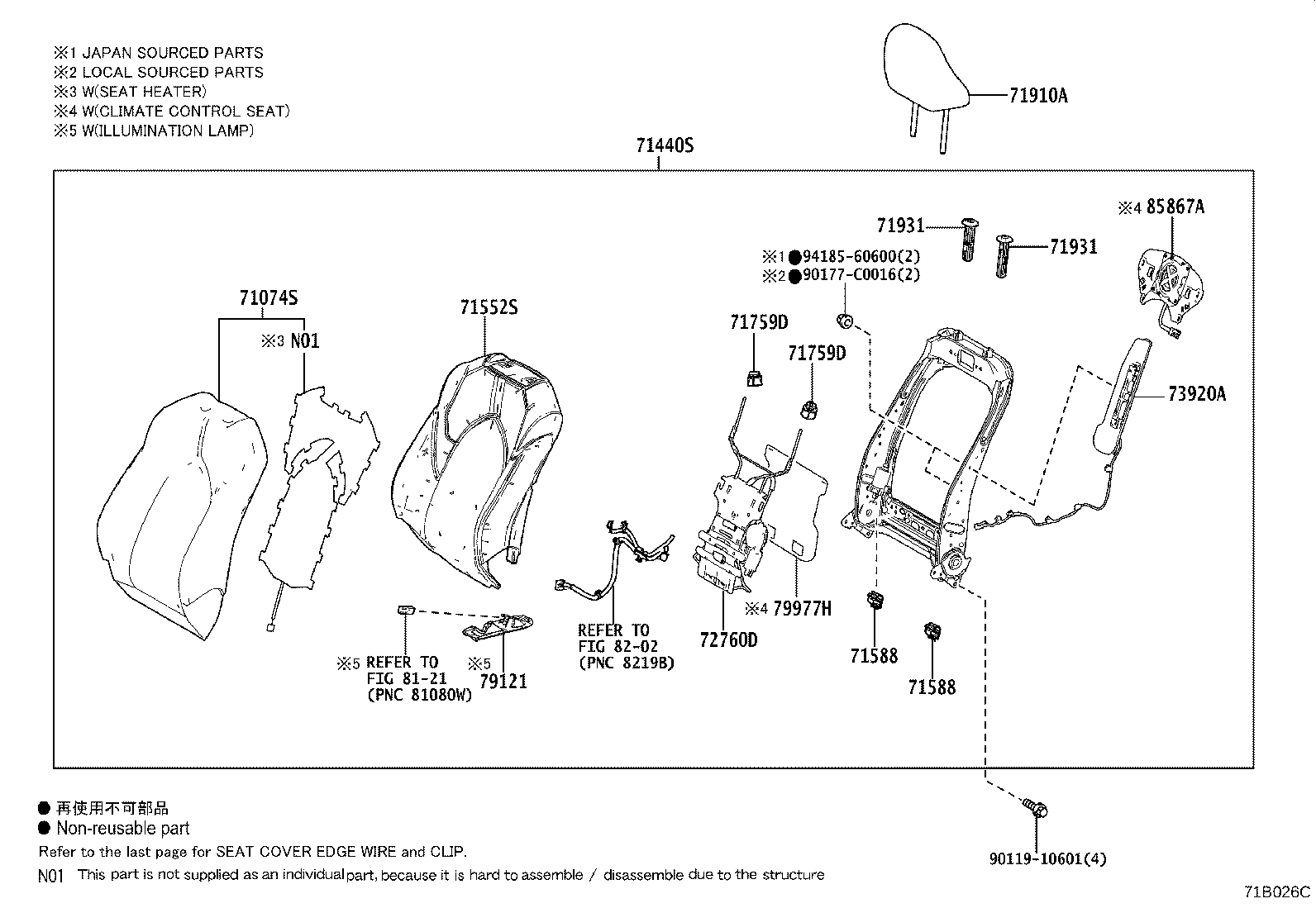

Exploded illustration 71B026C 71074S — COVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (36 parts) 71552S — PAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE) (5 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (3 parts) 71759D — HOOK, FRONT SEATBACK, NO.2 (3 parts) 71910A — HEADREST ASSY, FRONT SEAT (21 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (20 parts) 71931 — SUPPORT, FRONT SEAT HEADREST (20 parts) 9011910601 — not listed in this catalogue 90177C0016 — not listed in this catalogue 9418560600 — not listed in this catalogue 71440S — BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) (36 parts) 8202 — not listed in this catalogue 8121 — not listed in this catalogue 72760D — ADJUSTER ASSY, LUMBAR SUPPORT, LH (6 parts) 79121 — BRACKET, NO.1 SEAT CUSHION (4 parts) 85867A — BLOWER, SEATBACK CLIMATE CONTROL, LH (2 parts) 73920A — AIRBAG ASSY, FRONT SEAT, LH (3 parts) 71588 — PROTECTOR, FRONT SEATBACK EDGE, NO.2 (3 parts) 71588 — PROTECTOR, FRONT SEATBACK EDGE, NO.2 (3 parts) 79977H — FELT, FRONT SEATBACK, LH (3 parts)
71B026C · 15 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
142 parts on this figure
Part number Description Fitment Price
71074S — Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71074-06T70-A3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 E —
71074-06T70-A3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVH71 E —
71074-06T70-C4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 S —
71074-06T71-A4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVH71,MXVA71 E —
71074-06T71-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
MXVA71 S —
71074-06U20-A6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 G —
71074-06U20-A6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71074-06U20-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71074-06U20-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 G —
71074-06U21-A8 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71,MXVA71 G —
71074-06U21-A8 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71074-06U21-C9 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71074-06U21-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71074-06U30-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70 S —
71074-06U30-D3 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70 S —
71074-06U31-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71074-06U31-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 S —
71074-06U31-D5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 S —
71074-06U31-D5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71074-06U60-A4 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71074-06U60-C5 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71074-06U61-A6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71 G —
71074-06U61-A6 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71074-06U61-C7 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 G —
71074-06U61-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71074-06X80-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → —
AXVA70 S —
71074-06X80-C0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2022-06 → —
MXVA71 S —
71074-06Y90-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
MXVA71 S —
71074-06Y90-D0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71074-06Z30-A1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71074-06Z30-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71074-06Z30-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71074-06Z40-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 G —
71074-06Z40-E1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 G —
71074-06Z50-C1 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 S —
71074-06Z90-A0 note Cover, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVH71,MXVA71 E —
71440S — Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71440-06P40-C4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 S —
71440-06P40-E4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 E —
71440-06P40-E4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVH71 E —
71440-06P41-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
MXVA71 S —
71440-06P41-E1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVH71,MXVA71 E —
71440-06P50-C7 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 G —
71440-06P50-C7 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71440-06P50-E7 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71440-06P50-E7 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 G —
71440-06P51-C2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71440-06P51-E2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71440-06P51-E2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71,MXVA71 G —
71440-06P51-E4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71440-06Q00-C4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70 S —
71440-06Q00-D4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70 S —
71440-06Q01-C2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 S —
71440-06Q01-C2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71440-06Q01-D2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 S —
71440-06Q01-D2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71440-06T70-C3 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71440-06T70-E3 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71440-06T71-C2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 G —
71440-06T71-E2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71 G —
71440-06T71-E2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71440-06T71-E4 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71440-06V80-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
MXVA71 S —
71440-06V80-D0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71440-06V90-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71440-06V90-E2 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71440-06V90-E3 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71440-06W00-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 G —
71440-06W00-E1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 G —
71440-06W10-C1 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 S —
71440-06X10-E0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVH71,MXVA71 E —
71440-06X70-C0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-06 → —
AXVA70 S —
71440-06X70-C0 note Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
2022-06 → —
MXVA71 S —
71552S — Pad, Front Seatback, LH(FOR SEPARATE TYPE)
71552-06670 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 —
71552-06670 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
71552-06690 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
71552-06670 Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 —
71552-06690 note Pad, Front Seatback, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 G —
71588 — Protector, Front Seatback Edge, NO.2
71587-06010 Protector, Front Seatback Edge, NO.2
2017-12 → 2019-02 ended
ASV71 —
71587-06010 Protector, Front Seatback Edge, NO.2
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
71587-06010 Protector, Front Seatback Edge, NO.2
2021-03 → —
AXVA70,AXVH71,MXVA71 —
71759D — Hook, Front Seatback, NO.2
71759-06030 Hook, Front Seatback, NO.2
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
71759-06030 Hook, Front Seatback, NO.2
2017-12 → 2019-02 ended
ASV71 —
71759-06030 Hook, Front Seatback, NO.2
2021-03 → —
AXVA70,AXVH71,MXVA71 —
71910A — Headrest Assy, Front Seat
71910-06G60-C3 note Headrest Assy, Front Seat
2017-12 → 2019-02 ended
ASV71 S —
71910-06G60-E3 note Headrest Assy, Front Seat
2017-12 → 2019-02 ended
ASV71 E —
71910-06G60-E3 note Headrest Assy, Front Seat
2017-12 → 2019-03 ended
AXVH71 E —
71910-06G61-C4 note Headrest Assy, Front Seat
2019-03 → 2020-05 ended
MXVA71 S —
71910-06G61-E4 note Headrest Assy, Front Seat
2019-03 → 2021-03 ended
AXVH71,MXVA71 E —
71910-06G80-C6 note Headrest Assy, Front Seat
2020-05 → 2021-03 ended
MXVA71 S —
71910-06G80-C6 note Headrest Assy, Front Seat
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71910-06G80-C7 note Headrest Assy, Front Seat
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71910-06G80-C7 note Headrest Assy, Front Seat
2017-12 → 2019-02 ended
ASV71 G —
71910-06G80-D3 note Headrest Assy, Front Seat
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71910-06G80-D3 note Headrest Assy, Front Seat
2020-05 → 2021-03 ended
MXVA71 S —
71910-06G80-E4 note Headrest Assy, Front Seat
2017-12 → 2020-05 ended
AXVA70,AXVH71,MXVA71 G —
71910-06G80-E4 note Headrest Assy, Front Seat
2017-12 → 2019-02 ended
ASV71 G —
71910-06G80-E4 note Headrest Assy, Front Seat
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71910-06G80-E5 note Headrest Assy, Front Seat
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71910-06G61-E4 note Headrest Assy, Front Seat
2021-03 → —
AXVH71,MXVA71 E —
71910-06G80-C6 note Headrest Assy, Front Seat
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71910-06G80-C7 note Headrest Assy, Front Seat
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71910-06G80-D3 note Headrest Assy, Front Seat
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71910-06G80-E4 note Headrest Assy, Front Seat
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71910-06G80-E5 note Headrest Assy, Front Seat
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71931 — Support, Front Seat Headrest
71930-06070-C0 note Support, Front Seat Headrest
2017-12 → 2019-02 ended
ASV71 G,S —
71930-06070-C0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 S —
71930-06070-C0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71930-06070-E0 note Support, Front Seat Headrest
2017-12 → 2019-02 ended
ASV71 E,G —
71930-06070-E0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71930-06070-E0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71931-06060-C0 note Support, Front Seat Headrest
2017-12 → 2019-02 ended
ASV71 G,S —
71931-06060-C0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71931-06060-C0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 S —
71931-06060-E0 note Support, Front Seat Headrest
2017-12 → 2019-02 ended
ASV71 E,G —
71931-06060-E0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71931-06060-E0 note Support, Front Seat Headrest
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71930-06070-C0 note Support, Front Seat Headrest
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71930-06070-C0 note Support, Front Seat Headrest
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71930-06070-E0 note Support, Front Seat Headrest
2021-03 → —
AXVH71,MXVA71 E —
71930-06070-E0 note Support, Front Seat Headrest
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71931-06060-C0 note Support, Front Seat Headrest
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71931-06060-C0 note Support, Front Seat Headrest
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71931-06060-E0 note Support, Front Seat Headrest
2021-03 → —
AXVH71,MXVA71 E —
71931-06060-E0 note Support, Front Seat Headrest
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
72760D — Adjuster Assy, Lumbar Support, LH
72760-11010 note Adjuster Assy, Lumbar Support, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
72760-47030 Adjuster Assy, Lumbar Support, LH
2020-05 → 2021-03 ended
MXVA71 S —
72760-47030 Adjuster Assy, Lumbar Support, LH
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
72760-47030 Adjuster Assy, Lumbar Support, LH
2017-12 → 2019-02 ended
ASV71 G —
72760-11010 note Adjuster Assy, Lumbar Support, LH
2021-03 → —
AXVA70,AXVH71 G —
72760-47030 Adjuster Assy, Lumbar Support, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
73920A — Airbag Assy, Front Seat, LH
73920-06210 Airbag Assy, Front Seat, LH
2017-12 → 2019-02 ended
ASV71 —
73920-06210 Airbag Assy, Front Seat, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
73920-06210 Airbag Assy, Front Seat, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
79121 — Bracket, NO.1 Seat Cushion
79121-06040 note Bracket, NO.1 Seat Cushion
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
79122-06040 note Bracket, NO.1 Seat Cushion
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
79121-06040 note Bracket, NO.1 Seat Cushion
2021-03 → —
AXVA70,AXVH71 G —
79122-06040 note Bracket, NO.1 Seat Cushion
2021-03 → —
AXVA70,AXVH71 G —
79977H — Felt, Front Seatback, LH
79977-06080 note Felt, Front Seatback, LH
2019-05 → 2021-03 ended
AXVA70,AXVH71 G —
79977-33030 note Felt, Front Seatback, LH
2017-12 → 2019-04 ended
AXVA70,AXVH71 G —
79977-06080 note Felt, Front Seatback, LH
2021-03 → —
AXVA70,AXVH71 G —
85867A — Blower, Seatback Climate Control, LH
85867-11010 note Blower, Seatback Climate Control, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
85867-11010 note Blower, Seatback Climate Control, LH
2021-03 → —
AXVA70,AXVH71 G —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
