Toyota Camry/Hybrid (CHINA)

2017-12 → present · chassis ASV71,AXVA70,AXVH71,MXVA71 · catalogue 280330 · General

Supported model Data version 2021-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

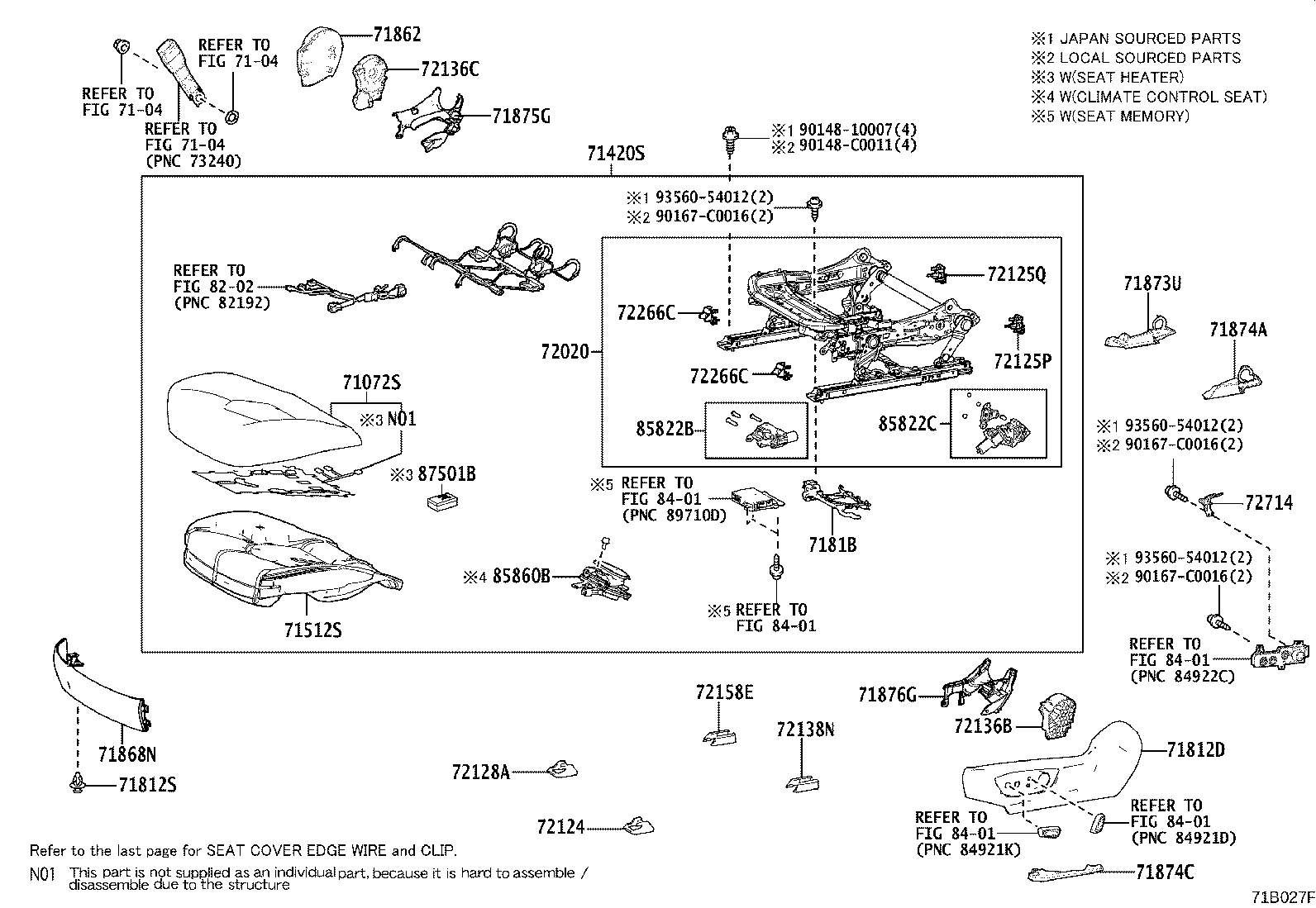

Exploded illustration 71B027F 71875G — COVER, RECLINING ADJUSTER INSIDE, RH (FOR LH SEAT) (12 parts) 71876G — COVER, RECLINING ADJUSTER INSIDE, LH (FOR LH SEAT) (12 parts) 71812S — CLIP, FRONT SEAT CUSHION SHIELD, LH (4 parts) 90167C0016 — not listed in this catalogue 9356054012 — not listed in this catalogue 90167C0016 — not listed in this catalogue 9356054012 — not listed in this catalogue 90167C0016 — not listed in this catalogue 9356054012 — not listed in this catalogue 7181B — HOLDER, FRONT SEAT CUSHION WIRE HARNESS, LH (8 parts) 72020 — ADJUSTER ASSY, FRONT SEAT, LH (10 parts) 71420S — CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) (50 parts) 71873U — SHIELD, FRONT SEAT CUSHION, LOWER RH (3 parts) 71874A — SHIELD, FRONT SEAT CUSHION, LOWER LH (3 parts) 72125Q — COVER, SEAT TRACK, UPPER REAR NO.4 (6 parts) 72266C — COVER, SEAT TRACK UPPER RAIL, LH (6 parts) 72266C — COVER, SEAT TRACK UPPER RAIL, LH (6 parts) 85822B — MOTOR ASSY, POWER SEAT TILT, LH (6 parts) 85822C — MOTOR ASSY, POWER SEAT LIFTER, LH (6 parts) 72125P — COVER, SEAT TRACK, UPPER REAR NO.3 (7 parts) 72128A — COVER, SEAT TRACK BRACKET, INNER FRONT LH (3 parts) 72124 — COVER, SEAT TRACK BRACKET, OUTER FRONT LH (3 parts) 8202 — not listed in this catalogue 8401 — not listed in this catalogue 9014810007 — not listed in this catalogue 90148C0011 — not listed in this catalogue 71072S — COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) (45 parts) 71512S — PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) (10 parts) 87501B — CONTROL SUB-ASSY, SEAT HEATER, LH (2 parts) 85860B — BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH (2 parts) 72136C — SPACER, SEAT TRACK, LOWER NO.4 (8 parts) 8401 — not listed in this catalogue 72136B — SPACER, SEAT TRACK, LOWER NO.3 (8 parts) 72714 — BRACKET, SEAT ADJUSTER SHIELD CLAMP, LH (4 parts) 7104 — not listed in this catalogue 7104 — not listed in this catalogue 7104 — not listed in this catalogue 8401 — not listed in this catalogue 8401 — not listed in this catalogue 71812D — SHIELD, FRONT SEAT CUSHION, LH (14 parts) 71862 — SHIELD, FRONT SEAT CUSHION, INNER LH (12 parts) 71868N — SHIELD, FRONT SEAT CUSHION, FRONT LH (9 parts) 72138N — COVER, SEAT TRACK BRACKET, OUTER REAR LH (3 parts) 72158E — COVER, SEAT TRACK BRACKET, INNER REAR LH (3 parts) 71874C — SHIELD, FRONT SEAT CUSHION, LOWER (4 parts) 8401 — not listed in this catalogue
71B027F · 29 callouts, 17 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
263 parts on this figure
Part number Description Fitment Price
71072S — Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71072-06Q60-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
ASV71,AXVH71 E —
71072-06Q60-A1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVH71,MXVA71 E —
71072-06Q60-C1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 S —
71072-06Q60-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
MXVA71 S —
71072-06Q80-A6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
ASV71,AXVA70,AXVH71 G —
71072-06Q80-A8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71072-06Q80-A8 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71,MXVA71 G —
71072-06Q80-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
ASV71,AXVA70,AXVH71 G —
71072-06Q80-C9 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71072-06Q80-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71072-06Q90-A4 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71072-06Q90-A6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71 G —
71072-06Q90-A6 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71072-06Q90-C5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70,AXVH71 G —
71072-06Q90-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 G —
71072-06Q90-E1 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71072-06R00-C5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70 S —
71072-06R00-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2019-04 ended
AXVH71 S —
71072-06R00-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70 S —
71072-06R00-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-04 → 2021-03 ended
AXVH71 S —
71072-06R00-C7 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71072-06R00-D3 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVA70 S —
71072-06R00-D5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-04 → 2021-03 ended
AXVH71 S —
71072-06R00-D5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71072-06R00-D5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70 S —
71072-06R00-D5 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2019-03 → 2019-04 ended
AXVH71 S —
71072-06N51-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → —
AXVA70 S —
71072-06N51-C0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-06 → —
MXVA71 S —
71072-06V20-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
MXVA71 S —
71072-06V20-D2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 S —
71072-06V21-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
MXVA71 S —
71072-06V21-D2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 S —
71072-06V60-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 G —
71072-06V60-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 G —
71072-06V60-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 G —
71072-06V61-A2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 G —
71072-06V61-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 G —
71072-06V61-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 G —
71072-06V70-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71 G —
71072-06V70-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71 G —
71072-06V71-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71 G —
71072-06V71-E2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71 G —
71072-06V80-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71 S —
71072-06V81-C2 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71 S —
71072-06W80-A0 note Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
2021-03 → —
AXVH71,MXVA71 E —
71420S — Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71420-06N90-C4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 S —
71420-06N90-C5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
MXVA71 S —
71420-06N90-E4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 E —
71420-06N90-E4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2019-03 ended
AXVH71 E —
71420-06N90-E5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVH71,MXVA71 E —
71420-06P00-C8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2018-10 ended
ASV71,AXVA70,AXVH71 G —
71420-06P00-C8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-02 ended
ASV71 G —
71420-06P00-C8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-03 ended
AXVA70,AXVH71 G —
71420-06P00-C9 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71420-06P00-E8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-02 ended
ASV71 G —
71420-06P00-E8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-03 ended
AXVA70,AXVH71 G —
71420-06P00-E8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2018-10 ended
ASV71,AXVA70,AXVH71 G —
71420-06P00-E9 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71420-06P00-E9 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71,MXVA71 G —
71420-06P00-L0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71420-06P40-C5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2018-10 ended
AXVA70,AXVH71 G —
71420-06P40-C6 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-03 ended
AXVA70,AXVH71 G —
71420-06P40-C7 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 G —
71420-06P40-E5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2018-10 ended
AXVA70,AXVH71 G —
71420-06P40-E6 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-03 ended
AXVA70,AXVH71 G —
71420-06P40-E7 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2020-05 ended
AXVA70,AXVH71 G —
71420-06P40-E7 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71420-06P40-E8 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
AXVA70,AXVH71 G —
71420-06P50-C4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2018-10 ended
AXVA70 S —
71420-06P50-C5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-03 ended
AXVA70 S —
71420-06P50-C6 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 S —
71420-06P50-C6 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71420-06P50-D4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2017-12 → 2018-10 ended
AXVA70 S —
71420-06P50-D5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2018-10 → 2019-03 ended
AXVA70 S —
71420-06P50-D6 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2019-03 → 2021-03 ended
AXVA70,AXVH71 S —
71420-06P50-D6 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71420-06T80-C2 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
MXVA71 S —
71420-06T80-D2 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 S —
71420-06T81-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
MXVA71 S —
71420-06T81-D0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 S —
71420-06T90-C2 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 G —
71420-06T90-E4 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 G —
71420-06T90-E5 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71,MXVA71 G —
71420-06T91-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 G —
71420-06T91-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 G —
71420-06T91-E1 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71,MXVA71 G —
71420-06U00-C2 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71 G —
71420-06U00-E3 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71 G —
71420-06U01-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71 G —
71420-06U01-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71 G —
71420-06U10-C2 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → 2022-03 ended
AXVA70,AXVH71 S —
71420-06U11-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-04 → —
AXVA70,AXVH71 S —
71420-06U90-E0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2021-03 → —
AXVH71,MXVA71 E —
71420-06V31-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-06 → —
MXVA71 S —
71420-06V31-C0 note Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
2022-06 → —
AXVA70 S —
71512S — Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
71512-06760 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71512-06760 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2020-05 ended
MXVA71 S —
71512-06760 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 E,S —
71512-06770 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2019-02 ended
ASV71 G —
71512-06770 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2020-05 → 2021-03 ended
MXVA71 S —
71512-06770 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
71512-06790 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
71512-06760 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2021-03 → —
AXVH71,MXVA71 E —
71512-06770 Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
71512-06790 note Pad, Front Seat Cushion, LH (FOR SEPARATE TYPE)
2021-03 → —
AXVA70,AXVH71 G —
71812D — Shield, Front Seat Cushion, LH
71812-06570-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2019-02 ended
ASV71 S —
71812-06570-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2020-05 ended
MXVA71 S —
71812-06570-E0 note Shield, Front Seat Cushion, LH
2017-12 → 2019-02 ended
ASV71 E —
71812-06570-E0 note Shield, Front Seat Cushion, LH
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71812-06580-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2019-02 ended
ASV71 G —
71812-06580-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71812-06580-C0 note Shield, Front Seat Cushion, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71812-06580-C0 note Shield, Front Seat Cushion, LH
2020-05 → 2021-03 ended
MXVA71 S —
71812-06580-E0 note Shield, Front Seat Cushion, LH
2017-12 → 2019-02 ended
ASV71 G —
71812-06580-E0 note Shield, Front Seat Cushion, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71812-06570-E0 note Shield, Front Seat Cushion, LH
2021-03 → —
AXVH71,MXVA71 E —
71812-06580-C0 note Shield, Front Seat Cushion, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71812-06580-C0 note Shield, Front Seat Cushion, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71812-06580-E0 note Shield, Front Seat Cushion, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71812S — Clip, Front Seat Cushion Shield, LH
90467-07215 Clip, Front Seat Cushion Shield, LH
2017-12 → 2019-02 ended
ASV71 G —
90467-07215 Clip, Front Seat Cushion Shield, LH
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
90467-07215 Clip, Front Seat Cushion Shield, LH
2020-05 → 2021-03 ended
MXVA71 S —
90467-07215 Clip, Front Seat Cushion Shield, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
7181B — Holder, Front Seat Cushion Wire Harness, LH
7181B-06010 Holder, Front Seat Cushion Wire Harness, LH
2017-12 → 2020-05 ended
MXVA71 S —
7181B-06010 Holder, Front Seat Cushion Wire Harness, LH
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
7181B-06010 Holder, Front Seat Cushion Wire Harness, LH
2017-12 → 2019-02 ended
ASV71 E,S —
7181B-06020 Holder, Front Seat Cushion Wire Harness, LH
2017-12 → 2019-02 ended
ASV71 G —
7181B-06020 Holder, Front Seat Cushion Wire Harness, LH
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
7181B-06020 Holder, Front Seat Cushion Wire Harness, LH
2020-05 → 2021-03 ended
MXVA71 S —
7181B-06010 Holder, Front Seat Cushion Wire Harness, LH
2021-03 → —
AXVH71,MXVA71 E —
7181B-06020 Holder, Front Seat Cushion Wire Harness, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
71862 — Shield, Front Seat Cushion, Inner LH
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2019-02 ended
ASV71 G,S —
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2020-05 → 2021-03 ended
MXVA71 S —
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2020-05 ended
MXVA71 S —
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71862-06340-E0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71862-06340-E0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71862-06340-E0 note Shield, Front Seat Cushion, Inner LH
2017-12 → 2019-02 ended
ASV71 E,G —
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71862-06340-C0 note Shield, Front Seat Cushion, Inner LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71862-06340-E0 note Shield, Front Seat Cushion, Inner LH
2021-03 → —
AXVH71,MXVA71 E —
71862-06340-E0 note Shield, Front Seat Cushion, Inner LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71868N — Shield, Front Seat Cushion, Front LH
71868-06090-C0 note Shield, Front Seat Cushion, Front LH
2017-12 → 2019-02 ended
ASV71 G —
71868-06090-C0 note Shield, Front Seat Cushion, Front LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71868-06090-C0 note Shield, Front Seat Cushion, Front LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71868-06090-C0 note Shield, Front Seat Cushion, Front LH
2020-05 → 2021-03 ended
MXVA71 S —
71868-06090-E0 note Shield, Front Seat Cushion, Front LH
2017-12 → 2019-02 ended
ASV71 G —
71868-06090-E0 note Shield, Front Seat Cushion, Front LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71868-06090-C0 note Shield, Front Seat Cushion, Front LH
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71868-06090-C0 note Shield, Front Seat Cushion, Front LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71868-06090-E0 note Shield, Front Seat Cushion, Front LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71873U — Shield, Front Seat Cushion, Lower RH
71874-06400 Shield, Front Seat Cushion, Lower RH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
71874-06400 Shield, Front Seat Cushion, Lower RH
2017-12 → 2019-02 ended
ASV71 —
71874-06400 Shield, Front Seat Cushion, Lower RH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
71874A — Shield, Front Seat Cushion, Lower LH
71874-06390 Shield, Front Seat Cushion, Lower LH
2017-12 → 2019-02 ended
ASV71 —
71874-06390 Shield, Front Seat Cushion, Lower LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
71874-06390 Shield, Front Seat Cushion, Lower LH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
71874C — Shield, Front Seat Cushion, Lower
71874-06410 Shield, Front Seat Cushion, Lower
2017-12 → 2019-02 ended
ASV71 G —
71874-06410 Shield, Front Seat Cushion, Lower
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
71874-06410 Shield, Front Seat Cushion, Lower
2020-05 → 2021-03 ended
MXVA71 S —
71874-06410 Shield, Front Seat Cushion, Lower
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
71875G — Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2019-02 ended
ASV71 G,S —
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2020-05 → 2021-03 ended
MXVA71 S —
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2020-05 ended
MXVA71 S —
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71876-06420-E0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71876-06420-E0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2019-02 ended
ASV71 E,G —
71876-06420-E0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71876-06420-C0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71876-06420-E0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2021-03 → —
AXVH71,MXVA71 E —
71876-06420-E0 note Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71876G — Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2019-02 ended
ASV71 G,S —
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2020-05 ended
MXVA71 S —
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVA70,AXVH71 S —
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2020-05 → 2021-03 ended
MXVA71 S —
71876-06390-E0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2019-02 ended
ASV71 E,G —
71876-06390-E0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
71876-06390-E0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 G —
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
71876-06390-C0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2021-03 → —
AXVA70,AXVH71,MXVA71 S —
71876-06390-E0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2021-03 → —
AXVH71,MXVA71 E —
71876-06390-E0 note Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
2021-03 → —
AXVA70,AXVH71,MXVA71 G —
72020 — Adjuster Assy, Front Seat, LH
72020-06370 Adjuster Assy, Front Seat, LH
2017-12 → 2019-05 ended
AXVH71 E;ASV71,MXVA71 E,S —
72020-06371 Adjuster Assy, Front Seat, LH
2019-06 → 2020-05 ended
MXVA71 S —
72020-06371 Adjuster Assy, Front Seat, LH
2019-06 → 2021-03 ended
AXVH71,MXVA71 E —
72020-06380 Adjuster Assy, Front Seat, LH
2017-12 → 2021-03 ended
ASV71,MXVA71 G;AXVA70,AXVH71 G,S —
72020-06380 Adjuster Assy, Front Seat, LH
2020-05 → 2021-03 ended
MXVA71 S —
72020-06540 note Adjuster Assy, Front Seat, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
72020-06371 Adjuster Assy, Front Seat, LH
2021-03 → 2021-04 ended
AXVH71,MXVA71 E —
72020-06372 Adjuster Assy, Front Seat, LH
2021-04 → —
AXVH71,MXVA71 E —
72020-06380 Adjuster Assy, Front Seat, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
72020-06540 note Adjuster Assy, Front Seat, LH
2021-03 → —
AXVA70,AXVH71 G —
72124 — Cover, Seat Track Bracket, Outer Front LH
72123-06110 Cover, Seat Track Bracket, Outer Front LH
2017-12 → 2019-02 ended
ASV71 —
72123-06110 Cover, Seat Track Bracket, Outer Front LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
72123-06110 Cover, Seat Track Bracket, Outer Front LH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
72125P — Cover, Seat Track, Upper Rear NO.3
72125-06050 Cover, Seat Track, Upper Rear NO.3
2017-12 → 2018-03 ended
ASV71,AXVH71 E,S —
72125-06050 Cover, Seat Track, Upper Rear NO.3
2017-12 → 2021-03 ended
ASV71,MXVA71 G;AXVA70,AXVH71 G,S —
72125-06050 Cover, Seat Track, Upper Rear NO.3
2020-05 → 2021-03 ended
MXVA71 S —
72125-06060 Cover, Seat Track, Upper Rear NO.3
2018-03 → 2020-05 ended
MXVA71 S —
72125-06060 Cover, Seat Track, Upper Rear NO.3
2018-03 → 2021-03 ended
ASV71 E,S;AXVH71,MXVA71 E —
72125-06050 Cover, Seat Track, Upper Rear NO.3
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
72125-06060 Cover, Seat Track, Upper Rear NO.3
2021-03 → —
AXVH71,MXVA71 E —
72125Q — Cover, Seat Track, Upper Rear NO.4
72125-06050 Cover, Seat Track, Upper Rear NO.4
2017-12 → 2021-03 ended
ASV71,MXVA71 G;AXVA70,AXVH71 G,S —
72125-06050 Cover, Seat Track, Upper Rear NO.4
2020-05 → 2021-03 ended
MXVA71 S —
72125-06060 Cover, Seat Track, Upper Rear NO.4
2017-12 → 2020-05 ended
MXVA71 S —
72125-06060 Cover, Seat Track, Upper Rear NO.4
2017-12 → 2021-03 ended
ASV71 E,S;AXVH71,MXVA71 E —
72125-06050 Cover, Seat Track, Upper Rear NO.4
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
72125-06060 Cover, Seat Track, Upper Rear NO.4
2021-03 → —
AXVH71,MXVA71 E —
72128A — Cover, Seat Track Bracket, Inner Front LH
72123-06110 Cover, Seat Track Bracket, Inner Front LH
2017-12 → 2019-02 ended
ASV71 —
72123-06110 Cover, Seat Track Bracket, Inner Front LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
72123-06110 Cover, Seat Track Bracket, Inner Front LH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
72136B — Spacer, Seat Track, Lower NO.3
72136-06600 Spacer, Seat Track, Lower NO.3
2017-12 → 2020-05 ended
MXVA71 S —
72136-06600 Spacer, Seat Track, Lower NO.3
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
72136-06600 Spacer, Seat Track, Lower NO.3
2017-12 → 2019-02 ended
ASV71 E,S —
72136-06620 Spacer, Seat Track, Lower NO.3
2017-12 → 2019-02 ended
ASV71 G —
72136-06620 Spacer, Seat Track, Lower NO.3
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
72136-06620 Spacer, Seat Track, Lower NO.3
2020-05 → 2021-03 ended
MXVA71 S —
72136-06600 Spacer, Seat Track, Lower NO.3
2021-03 → —
AXVH71,MXVA71 E —
72136-06620 Spacer, Seat Track, Lower NO.3
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
72136C — Spacer, Seat Track, Lower NO.4
72136-06610 Spacer, Seat Track, Lower NO.4
2017-12 → 2019-02 ended
ASV71 E,S —
72136-06610 Spacer, Seat Track, Lower NO.4
2017-12 → 2020-05 ended
MXVA71 S —
72136-06610 Spacer, Seat Track, Lower NO.4
2017-12 → 2021-03 ended
AXVH71,MXVA71 E —
72136-06630 Spacer, Seat Track, Lower NO.4
2017-12 → 2019-02 ended
ASV71 G —
72136-06630 Spacer, Seat Track, Lower NO.4
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
72136-06630 Spacer, Seat Track, Lower NO.4
2020-05 → 2021-03 ended
MXVA71 S —
72136-06610 Spacer, Seat Track, Lower NO.4
2021-03 → —
AXVH71,MXVA71 E —
72136-06630 Spacer, Seat Track, Lower NO.4
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
72138N — Cover, Seat Track Bracket, Outer Rear LH
72137-06130 Cover, Seat Track Bracket, Outer Rear LH
2017-12 → 2019-02 ended
ASV71 —
72137-06130 Cover, Seat Track Bracket, Outer Rear LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
72137-06130 Cover, Seat Track Bracket, Outer Rear LH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
72158E — Cover, Seat Track Bracket, Inner Rear LH
72158-06200 Cover, Seat Track Bracket, Inner Rear LH
2017-12 → 2019-02 ended
ASV71 —
72158-06200 Cover, Seat Track Bracket, Inner Rear LH
2017-12 → 2021-03 ended
AXVA70,AXVH71,MXVA71 —
72158-06200 Cover, Seat Track Bracket, Inner Rear LH
2021-03 → —
AXVA70,AXVH71,MXVA71 —
72266C — Cover, Seat Track Upper Rail, LH
72265-06020 Cover, Seat Track Upper Rail, LH
2017-12 → 2021-03 ended
ASV71,MXVA71 G;AXVA70,AXVH71 G,S —
72265-06020 Cover, Seat Track Upper Rail, LH
2020-05 → 2021-03 ended
MXVA71 S —
72265-06030 Cover, Seat Track Upper Rail, LH
2017-12 → 2020-05 ended
MXVA71 S —
72265-06030 Cover, Seat Track Upper Rail, LH
2017-12 → 2021-03 ended
ASV71 E,S;AXVH71,MXVA71 E —
72265-06020 Cover, Seat Track Upper Rail, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
72265-06030 Cover, Seat Track Upper Rail, LH
2021-03 → —
AXVH71,MXVA71 E —
72714 — Bracket, Seat Adjuster Shield Clamp, LH
72714-06010 Bracket, Seat Adjuster Shield Clamp, LH
2017-12 → 2019-02 ended
ASV71 G —
72714-06010 Bracket, Seat Adjuster Shield Clamp, LH
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
72714-06010 Bracket, Seat Adjuster Shield Clamp, LH
2020-05 → 2021-03 ended
MXVA71 S —
72714-06010 Bracket, Seat Adjuster Shield Clamp, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
85822B — Motor Assy, Power Seat Tilt, LH
85801-11040 note Motor Assy, Power Seat Tilt, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
85801-47040 Motor Assy, Power Seat Tilt, LH
2017-12 → 2019-02 ended
ASV71 G —
85801-47040 Motor Assy, Power Seat Tilt, LH
2020-05 → 2021-03 ended
MXVA71 S —
85801-47040 Motor Assy, Power Seat Tilt, LH
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
85801-11040 note Motor Assy, Power Seat Tilt, LH
2021-03 → —
AXVA70,AXVH71 G —
85801-47040 Motor Assy, Power Seat Tilt, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
85822C — Motor Assy, Power Seat Lifter, LH
85801-11050 note Motor Assy, Power Seat Lifter, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
85801-47030 Motor Assy, Power Seat Lifter, LH
2017-12 → 2019-02 ended
ASV71 G —
85801-47030 Motor Assy, Power Seat Lifter, LH
2017-12 → 2021-03 ended
MXVA71 G;AXVA70,AXVH71 G,S —
85801-47030 Motor Assy, Power Seat Lifter, LH
2020-05 → 2021-03 ended
MXVA71 S —
85801-11050 note Motor Assy, Power Seat Lifter, LH
2021-03 → —
AXVA70,AXVH71 G —
85801-47030 Motor Assy, Power Seat Lifter, LH
2021-03 → —
AXVA70,AXVH71,MXVA71 G,S —
85860B — Blower Assy, Seat Cushion Climate Control, LH
85802-11010 note Blower Assy, Seat Cushion Climate Control, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
85802-11010 note Blower Assy, Seat Cushion Climate Control, LH
2021-03 → —
AXVA70,AXVH71 G —
87501B — Control Sub-assy, Seat Heater, LH
87501-06020 note Control Sub-assy, Seat Heater, LH
2017-12 → 2021-03 ended
AXVA70,AXVH71 G —
87501-06020 note Control Sub-assy, Seat Heater, LH
2021-03 → —
AXVA70,AXVH71 G —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
